1997 BUICK CENTURY jump start

@) Section 5 Problems on the Road
Here you’ll find what to do about some problems that can occur on the road.
5-2
5-3
5-9
5-15
5-
17
Hazard Warning Flashers
Jump Starting
Towing Your Vehicle
Engine Overheating
Cooling System 5-25
5-25
5-37
5-38
If a Tire Goes Flat
Changing
a Flat Tire
Compact Spare Tire
If You’re Stuck: In Sand, Mud,
Ice or Snow
5-1
ProCarManuals.com

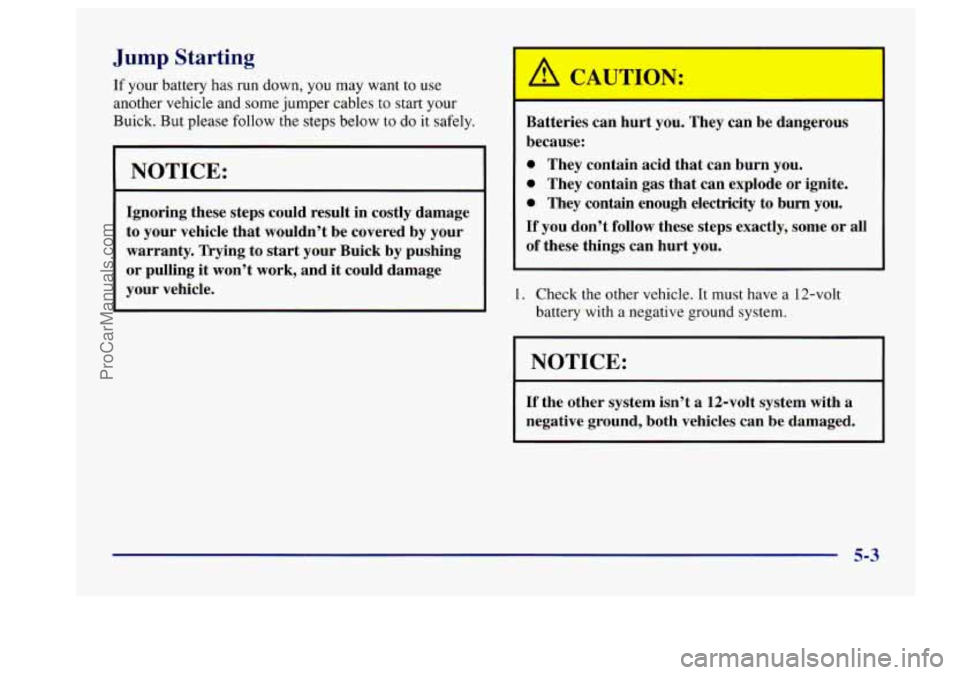

Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables
to start your
Buick. But please follow the steps below to do it safely.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by your
warranty. Trying to start your Buick by pushing
or pulling
it won’t work, and it could damage
your vehicle.
U
Batteries can hurt you. They can be dangerous
because:
0 They contain acid that can burn you.
0 They contain gas that can explode or ignite.
0 They contain enough electricity to burn you.
If you don’t follow these steps exactly, some or all
of these things can hurt you.
1. Check the other vehicle. It must have a 12-volt
battery with
a negative ground sysl 1.
I NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
5-3
ProCarManuals.com

2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t be able
to start your Buick, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling,
set the parking brake
firmly on both vehicles
involved
in the jump start procedure. Put your
automatic transaxle
in PARK (P) before setting
the parking brake.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into
the cigarette
lighter or accessory power outlet.
Turn off all lamps
that aren’t needed as well as radios. This will avoid
sparks and help save both batteries. In addition, it
could save your radio!
I
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries. (Your
vehicle’s battery is located under the windshield
washer fluid reservoir.)
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
ProCarManuals.com

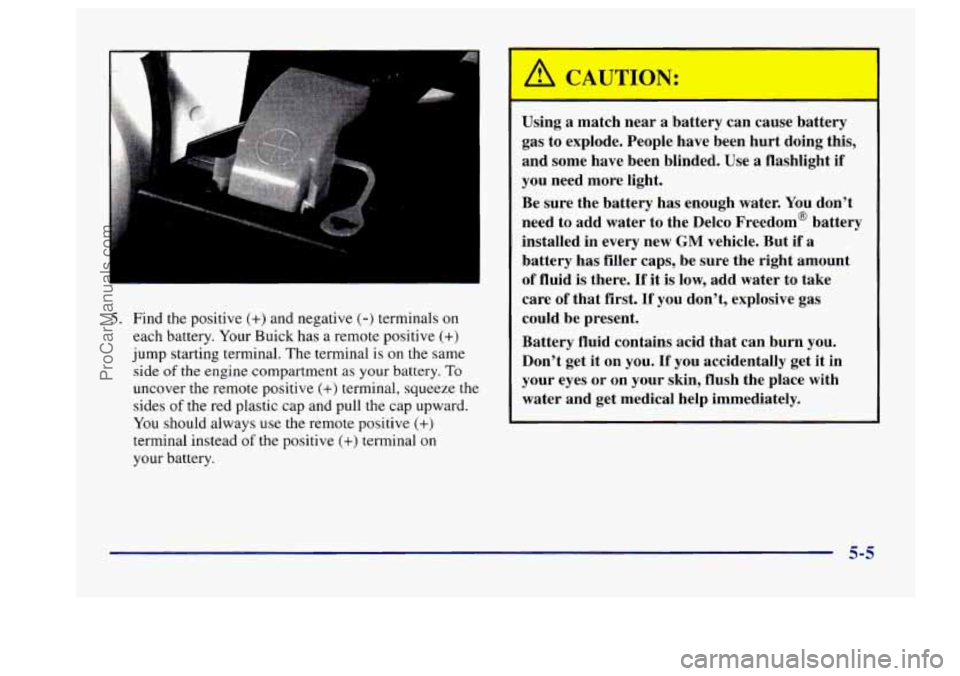

5. Find the positive (+) and negative (-) terminals on
each battery. Your Buick has a remote positive
(+)
jump starting terminal. The terminal is on the same
side
of the engine compartment as your battery. To
uncover the remote positive (+) terminal, squeeze the
sides
of the red plastic cap and pull the cap upward.
You should always use the remote positive
(+)
terminal instead of the positive (+) terminal on
your battery. Using
a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use
a flashlight if
you need more light.
Be sure the battery has enough water. You don’t
need to add water to the Delco Freedom’ battery
installed in every new
GM vehicle. But if a
battery has filler caps, be sure the right amount
of fluid is there. If it is low, add water to take
care of that first.
If you don’t, explosive gas
could be present.
Battery fluid contains acid that can burn you.
Don’t get it on you. If you accidentally get it in
your eyes or
on your skin, flush the place with
water and get medical help immediately.
5-5
ProCarManuals.com

10. 11.
12.
13.

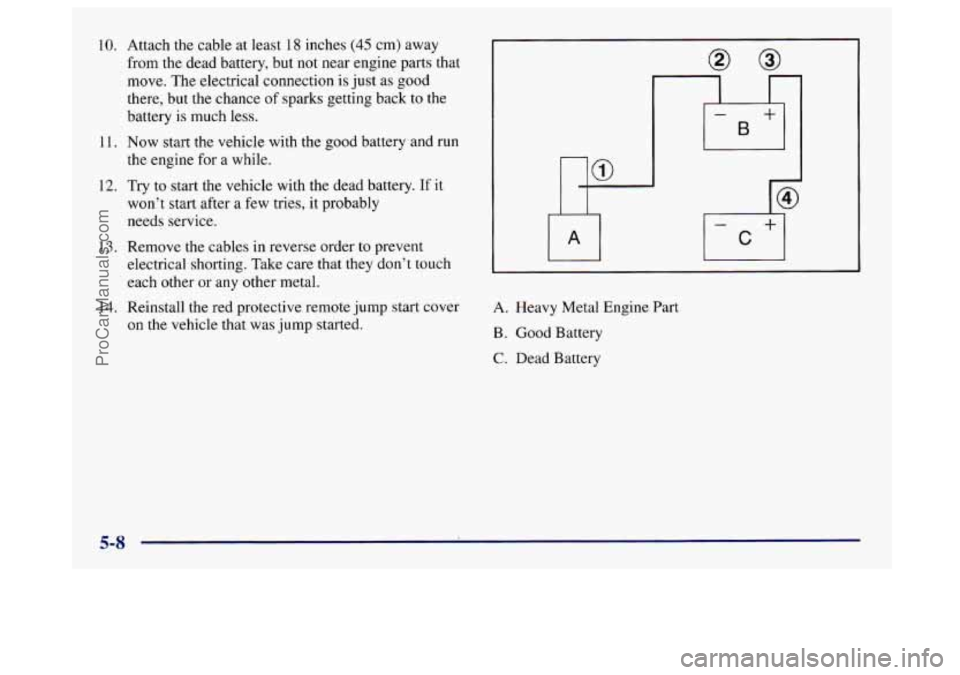

14. Attach the cable at least 18 inches (45 c’m)
away
from the dead battery, but not near engine parts that
move. The electrical connection
is just as good
there, but
the chance of sparks getting back to the
battery is much less.
Now start the vehicle with the good battery and run
the engine for a while.
Try to start the vehicle with the dead battery. If it
won’t start after a few tries, it probably
needs service.
Remove the cables in reverse order
to prevent
electrical shorting. Take care that they don’t touch
each other or any other metal.
Reinstall the red protective remote jump start cover
on the vehicle that was jump started. A.
Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
5-8
ProCarManuals.com

Vehicle Storage Bulb Replacement
If you’re not going to drive your vehicle for 25 days In this section you’ll find directions for changing the
or more, take off the black, negative (-) cable from
bulbs in some of the lamps on your Buick. See
the battery. This will help keep your battery from
“Replacement Bulbs” in the Index to find the type of
running down.
bulb you should use.
r
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature” in the Index.
1 Halogen Bulbs
I m-
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to
read and
follow the instructions on the bulb package.
6-30
ProCarManuals.com

Back-up Lamp Bulb Replacement ................. 6-35
Battery
....................................... 6-29
Jump Starting
................................. 5-3
Replacement. Remote Keyless Entry
.............. 2- 13
Rundown Protection ........................... 2-46
Warnings
................................ 5.3. 5.5
RBB Auto Line ................................. 8-7
Better Business Bureau Mediation
................... 8-7
Brake
Adjustment
.................................. 6-29
Fluid
....................................... 6-26
Master Cylinder
.............................. 6-26
Replacing System Parts
........................ 6-29
System Warning Light
......................... 2-57
Parking
..................................... 2-26
PedalTravel
................................. 6-29
Trailer
...................................... 4-34
Transaxle Shift Interlock
....................... 2-29
Transaxle Shift Interlock Check
.................. 7-39
Wear
....................................... 6-28
Brakes. Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking
in Emergencies ........................... 4-9
Break-In. New Vehicle
.......................... 2- I7
BTSICheck ................................... 7-39
Built-in Child Restraint .......................... 1-34
Built-in Child Restraint. Cleaning
.................. 6-48
Built-in Child Restraint Harness. Cleaning
........... 6-49
Bulb Replacement
.............................. 6-30
BTSI
......................................... 2-29 Canadian
Roadside Assistance
.................... 8-5
Capacities and Specifications
...................... 6-62
Carbon Monoxide
............... 2.14.2.30.4.27. 4.33
Cassette Deck Service
........................... 7-37
Cassette Tape Player
.................. 3- 16.3.20. 3.28
Cassette Tape Player Care ........................ 3-35
Cellular Phone Provisions
........................ 2-52
Center High-Mounted Stoplamp
Bulb Replacement .... 6-32
Certification
Label .............................. 4-29
Chains. Safety
................................. 4-34
Chains. Tire
................................... 6-44
Change Oil Soon Light
.......................... 2-66
Changing
a Flat Tire ............................. 5-25
Charging System Light
.......................... 2-57
Checking Your Restraint Systems
.................. 1-60
Chemical Paint Spotting .......................... 6-53
Child Restraints
...................... 1.32. 1.33. 1-49
Built-in
..................................... 1-34
Securing
in a Rear Outside Seat Position ........... 1-51
Securing in the Center Rear Seat Position .......... 1-53
Securing in the Right Front Seat Position .......... 1-54
TopStrap ................................... 1-50
Wheretoput
................................ 1-49
Cigarette Lighter
............................... 2-50
Circuit Breakers and Fuses ....................... 6-57
Cleaner. Air
................................... 6-15
Aluminum Wheels
............................ 6-51
Built-in Child Restraint
........................ 6-48
Built-in Child Restraint Harness
................. 6-49
Fabric
...................................... 6-46
Glass ....................................... 6-49
Cassette
Tape Player Errors
............. 3- 17.3.21. 3.28
Center Passenger Position
........................ 1-25
Cleaning
...................................... 6-45
9-2
ProCarManuals.com

tiuide en Franpis 11
GVWR ....................................... 4-29
Halogen Bulbs
................................ 6-30
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Headlamps .................................... 2-41
Bulb Replacement
............................ 6-3 1
Flash-to-Pass ................................ 2-35
High/LowBeam
.............................. 2-35
On Reminder
................................ 2-41
Wiring
..................................... 6-56
Hearing Impaired, Customer Assistance .............. 8-4
Heated Foldaway Outside Mirrors
.................. 2-48
Heating
............................... 3-4.3-6. 3- 10
High-Beam Headlamps
.......................... 2-35
Highway Hypnosis
.............................. 4-22
Hill and Mountain Roads
......................... 4-22
Hitches. Trailer
................................. 4-33
Hood Checking Things Under
......................... 6-7
Release
...................................... 6-8
Horn
......................................... 2-33
Hydroplaning
.................................. 4-18
Ignition Positions
.............................. 2- 17
Ignition Transaxle Lock Check
.................... 7-40
Illuminated Entry
............................... 2-44
Inflation. Tire
.................................. 6-38
Inside Day/Night Rearview Mirror
................. 2-46
Inspections Brakesystem
................................ 7-41
.. ................................. Exhaust Systems ............................. 7-41
Front Drive Axle Boot
......................... 7-41
Front Drive Axle Seal
......................... 7-41
Radiator and Heater Hose
...................... 7-41
Steering
.................................... 7-41
Suspension
.................................. 7-41
Throttle Linkage
.............................. 7-41
Instrument Panel
............................... 2-53
Cleaning
.................................... 6-48
Cluster
..................................... 2-54
FuseBlock
.................................. 6-57
Instrument Panel Brightness Control
................ 2-44
Interior Lamps
................................. 2-44
Jack. Tire
...... 5.25.5.27.5.28.5.29.5.30.5.31. 5.33
Jump Starting ................................... 5-3
Key Lock Cylinders Service
..................... 7-38
Key Reminder Warning
.......................... 2-15
Keys
.......................................... 2-2
Labels Certification
................................. 4-29
Service Parts Identification
..................... 6-55
Tire-Loading Information
...................... 4-28
Vehicle Identification Number
................... 6-55
Lamps
........................................ 2-41
Courtesy
.................................... 2-44
Dome
...................................... 2-45
Exterior
.................................... 2-41
Interior
..................................... 2-44
Reading. Rearview Mirror
...................... 2-45
ProCarManuals.com
