1997 BUICK CENTURY window

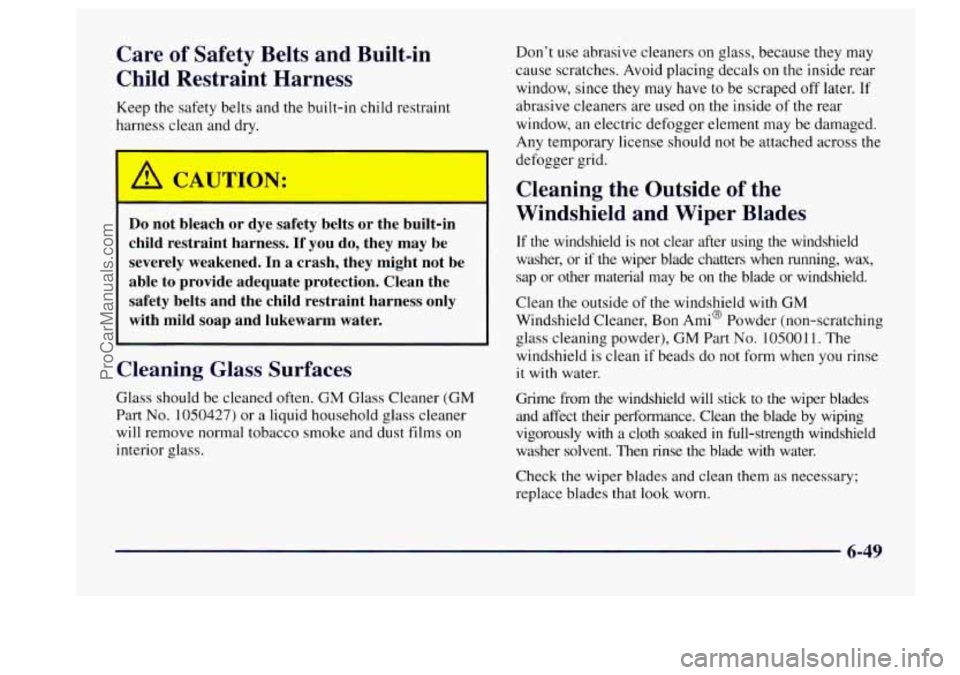

Care of Safety Belts and Built-in
Child Restraint Harness
Keep the safety belts and the built-in child restraint
harness clean and dry.
Do not bleach or dye safety belts or the built-in
child restraint harness. If you do, they may be
severely weakened. In
a crash, they might not be
able to provide adequate protection. Clean the
safety belts and the child restraint harness only with mild soap and lukewarm water.
Cleaning Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner (GM
Part No. 1050427) or a liquid household glass cleaner
will remove normal tobacco smoke and dust films on
interior glass. Don’t use
abrasive cleaners on glass, because they may
cause scratches. Avoid placing decals on
the inside rear
window, since they
may have to be scraped off later. If
abrasive cleaners are used on the inside of
the rear
window, an electric defogger element
may be damaged.
Any temporary license should not be attached across the
defogger grid.
Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running, wax,
sap or other material may be
on the blade or windshield.
Clean the outside of the windshield with
GM
Windshield Cleaner, Bon Ami@ Powder (non-scratching
glass cleaning powder),
GM Part No. 10500 1 1. The
windshield is clean
if beads do not form when you rinse
it with water.
Grime from the windshield will stick
to the wiper blades
and affect
their performance. Clean the blade by wiping
vigorously with
a cloth soaked in full-strength windshield
washer solvent. Then rinse the blade with water.
Check
the wiper blades and clean them as necessary;
replace blades that look worn.
6-49
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Buick
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Buick, see “Servicing
Your Air Bag-Equipped Buick” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center.
An electrical overload
will cause the lamps to go on and off, or in some cases
to remain
off. If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load
is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
6-56
ProCarManuals.com

Circuit
Breaker
A
B
C
D
Description
Not Used
Power Windows/Sunroof
Rear Defog
Power Seats
Fuse
1
4
6
8
10
13
14
15
17
18
19
20
22
Description
Not Used
Ignition Signal
-- Hot in Run and
Start
-- PCM, BCM U/H Relay
Power Mirrors
Panel Dimming
Ignition Signal
-- Hot in Run,
Unlock and Start -- Cluster,
Powertrain Control Module, Body
Control Module
DRL Module
Interior Lamps
Door Locks
Taillamps, License Lp
Radio Heated Mirror
Cruise Control
Clusters
6-58
ProCarManuals.com

Underhood Electrical Center -- Passenger's Side
Some fuses and relays are in the underhood electrical
center on the passenger's side
of the engine compartment.
D
121
(31
(41
(51 F I I I I
m
[61
18j
(71 [TI
Fuse
1
2
3
Description
Cooling Fan
Starter Solenoid
Power Seats, Rear Defog
4
5
6
7
8
Relay
9
10
11
12
13
14
High Blower, Hazard Flasher,
Stoplamps, Power Mirror, Door Locks
Ignition Switch, BTSI, Stoplamps,
ABS, Turn Signals, Cluster, Air Bag,
DRL Module
Cooling Fan
Interior Lamps, Retained Accessory
Power, ABS, Keyless Entry, Data Link,
HVAC Head, Cluster, Radio,
AUX Power, Cigarette Lighter
Ignition Switch, Wipers, Radio,
Steering Wheel Controls, Body Control
Module, AUX Power, Power Windows,
Sunroof, HVAC Controls, DRL, Rear
Defog Relay
Description
Cooling Fan 2
Cooling Fan 3
Starter Solenoid
Cooling Fan
1
Ignition Main
Not Used
ProCarManuals.com

Section 9 Index
Adding Equipment to the Outside of Your Vehicle ..... 6-3
AirBag
....................................... 1-19
How Does
it Restrain .......................... 1-23
How
it Works ................................ 1-21
Location
.................................... 1-21
Readiness Light
......................... 1.20. 2.56
Servicing
................................... 1-24
What Makes
it Inflate .......................... 1-22
What Will You See After
it Inflates ............... 1-23
When Should
it Inflate ......................... 1-22
Aircleaner
.................................... 6-1s
Air Conditioning
........................ 3-3,3-6, 3-9
Air Conditioning Refrigerants ..................... 6-63
Alarm, Instant
................................. 2- 12
Alignment and Balance, Tire
...................... 6-43
Aluminum Wheels, Cleaning ...................... 6-5 1
AM-FM Stereo ................................ 3- 13
AM-FM Stereo
with Cassette Tape Player ........... 3- 15
AM-FM Stereo with Cassette Tape Player and
Automatic Tone Control
........................ 3- 18
AM-FM Stereo
with Compact Disc Player and
Automatic Tone Control
........................ 3-22
AM-FM Stereo
with Cassette Tape and Compact
Disc Player with Automatic Tone Control
.......... 3-26
Antenna Backglass
.................................... 3-37
FixedMast
.................................. 3-36 Antifreeze
..................................... 6-20
Anti-Lock Brake System Active Light
................. 2.59. 4.9
Brake System Warning Light
................ 2.58. 4.7
Brakes
...................................... 4-7
Using ....................................... 4-9
Anti.Theft. Radio .............................. 3-31
Appearance Care
............................... 6-45
Appearance Care Materials ....................... 6-54
Arbitration Program
.............................. 8-7
Armrest. Storage
............................... 2-49
Audio Controls. Steering Wheel Touch Control
....... 3-33
Audio Equipment. Adding
........................ 3-35
Audio Systems
................................. 3-12
Audio Systems. Tips
............................ 3-34
Auto-Down Window
............................ 2-32
Automatic Headlamp Control
............................ 2-42
Overdrive
(0) .......................... 2-24.2-25
Power Door Locks
............................. 2-7
Transaxle Check
.............................. 7-38
Transaxle Fluid
............................... 6-17
Transaxle Operation
........................... 2-22
Transaxle Park Mechanism Check ................ 7-40
Ashtrays
...................................... 2-50
Auxiliary Power Connection
...................... 2-51
9-1
ProCarManuals.com

Inside of Your Buick .......................... 6-45
Instrument Panel
............................. 6-48
Leather
..................................... 6-48
Outside of Your Buick
......................... 6-50
Special Problems
............................. 6-47
Stains
...................................... 6-46
Tires
....................................... 6-52
Vinyl ....................................... 6-47
Wheels
..................................... 6-51
Windshield and Wiper Blades
.................... 6-50
Clock. Setting the
............................... 3- 12
Comfort Controls
............................ 3- 1. 3.2
Compact Disc Care ............................. 3-36
Compact Disc Player
....................... 3.24. 3.30
Compact Disc Player Errors .................. 3.24. 3.30
Control. Lossof
................................ 4-13
Control
of a Vehicle .............................. 4-6
Convenience
Net ............................... 2-49
Convex Outside Mirror
.......................... 2-48
Coolant
....................................... 6-20
Bleedvalves
................................. 5-22
RecoveryTank
............................... 5719
Coolant Heater. Engine
.......................... 2-20
Cooling System
................................ 5-17
Courtesy Lamps
................................ 2-44
Courtesy Transportation
........................... 8-6
Cruise Control
................................. 2-37
Cruise Light
................................... 2-67
Compact Spare
Tire
............................. 5-37
Cupholders
.................................... 2-49
Customer Assistance for Text Telephone Users
......... 8-4
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2 Damage.
Finish
............................... 6-52
Damage. Sheet Metal
............................ 6-52
Daytime Running Lamps
......................... 2-42
Dead Battery
................................... 5-3
Defects. Reporting Safety
......................... 8-8
Defensive Driving
............................... 4-2
Defogger. Rear Window
......................... 3-11
Defogging ............................ 3-4.3.6. 3- 10
Defrosting ............................ 3.4.3.6. 3.10
Delayed Exit Lighting ........................... 2-45
Dimensions. Vehicle
............................ 6-63
Dolby@
B Noise Reduction ............. 3.18.3.21. 3.29
Dome Lamp Bulb Replacement
.................... 6-35
DoorLocks ..................................... 2-4
Door/Trunk Ajar Warning Light
................... 2-68
Driver Position
................................. 1 . IO
Driving
City
........................................ 4-19
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-20
InaBlizzard
................................. 4-26
In Foreign Countries
........................... 6-5
IntheRain
.................................. 4-16
Night
...................................... 4-14
OnCurves
................................... 4-9
On Grades While Towing
a Trailer ............... 4-36
On Hill and Mountain Roads
.................... 4-22
On Snow or Ice
.............................. 4-25
WetRoads
.................................. 4-16
Winter
...................................... 4-24
With
a Trailer ................................ 4-34
Delayed Entry Lighting
.......................... 2-44
Through Deep Standing Water
................... 4-18
9-3
ProCarManuals.com

Leaving Your Vehicle ............................. 2-9
Leaving Your Vehicle with the Engine Running
....... 2-28
Lighter
....................................... 2-50
Lights Air Bag Readiness
....................... 1-20’2-56
Anti-Lock Brake System Active
............. 2-59, 4-9
Anti-Lock Brake System Warning
............ 2-58, 4-7
Brake System Warning
......................... 2-57
Change Oil Soon
............................. 2-66
Charging System
............................. 2-57
Door/Trunk Ajar Warning
...................... 2-68
Engine Coolant Temperature Light
............... 2-60
Interior
..................................... 2-44
Low Coolant Warning
.................... 2-61, 6-22
LowFuel
................................... 2-68
Low Oil Level
.......................... 2-65, 6- 10
Low Traction ................................ 2-6 1
Low Washer Fluid Warning ................ 2-37, 2-67
Oilwarning
................................. 2-64
Safety Belt Reminder
...................... 1-5, 2-56
Security
.................................... 2-66
Service Engine Soon
.......................... 2-62
Service Vehicle Soon
.......................... 2-67
Loading Your Vehicle
........................... 4-28
Cylinders
................................... 7-38
Delayed Locking
.............................. 2-8
Cruise
...................................... 2-67
Locks Automatic Power Door
......................... 2-7
Door
........................................ 2-4
Ignition Transaxle Lock Check
.................. 7-40
Key Lock Cylinder Service
..................... 7-38
Lockout Prevention Feature
...................... 2-5
ManualDoor
................................. 2-4 PowerDoor
.................................. 2-3
Rear Door Security Locks ....................... 2-6
Trunk
...................................... 2-15
Window
..................................... 2-32
Loss of Control
................................ 4-13
Low Coolant Warning Light
................. 2-61, 6-22
Low Oil Level Light
....................... 2-65, 6-10
Low Traction Light ............................. 2-61
Low Washer Fluid Warning Light ............. 2-37, 2-67
Low-Beam Headlamps
.......................... 2-35
Lubricants
and Fluids ............................ 7-42
Lubrication Service, Body
........................ 7-38
LowFuelLight
................................ 2-68
Maintenance, Normal Replacement Parts
........... 6-63
Maintenance Record ............................ 7-44
How it’s Organized
............................ 7-3
Long Trip/Highway
........................... 7-27
Long Trip/Highway Definition
................... 7-6
Long Tripmighway Intervals ..................... 7-6
Owner Checks and Services
..................... 7-37
Periodic Maintenance Inspections
................ 7-41
Scheduled Maintenance Services
.................. 7-4
Short Trip/City
................................ 7-7
Short Trip/City Definition
....................... 7-5
Short Trip/City Intervals
........................ 7-5
Your Vehicle and the Environment
................ 7-2
and Lubricants ............................... 7-42
Maintenance, Underbody
......................... 6-53
Maintenance When Trailer Towing
................. 4-37
Maintenance Schedule
............................ 7-1
Introduction
.................................. 7-2
Maintenance Schedule, Recommended Fluids
9-6
ProCarManuals.com

Malfunction Indicator Lamp .............. ... 2-62
Manual
DoorLocks
................................... 2-4
Front Seat
.................................... 1-2
Outside Mirrors .............................. 2-47
Manual Single Zone Climate Control
................ 3-2
Methanol
...................................... 6-4
Mirrors
....................................... 2-46
Electrochromic Day/Night Rearview
............. 2-47
Convex Outside
.............................. 2-48
Heated Foldaway Outside
...................... 2-48
Inside Day/Night Rearview
..................... 2-46
Manual Outside
.............................. 2-47
Power Outside
............................... 2-48
Visor Vanity
................................. 2-5 I
MMT ......................................... 6-4
Mountain Roads
................................ 4-22
Multifunction Lever
............................. 2-34
Net. Convenience
.............................. 2-49
Neutral. Automatic Transaxle
..................... 2-23
New Vehicle "Break-In"
......................... 2- I7
Nightvision ................................... 4-15
Odometer
.................................... 2-55
Odometer. Trip
................................. 2-55
Off-Road Recovery
............................. 4- 1 1
Oil. Engine .................................... 6-10
Oil Warning Light
.............................. 2-64
Overdrive.
(a) Automatic ................... 2-24.2-25
Overheating Engine
............................. 5- 15
Owner Checks and Services ....................... 7-37
Owner Publications. Ordering
..................... 8-10
Paint Spotting. Chemical ........................ 6-53
Park
Automatic Transaxle
.......................... 2-22
Shifting Into
................................. 2-27
Shifting
Out of ............................... 2-29
AtNight
.................................... 2-15
Brake
...................................... 2-26
Brake Mechanism Check
....................... 7-40
Lots
....................................... 2-15
Over Things That Burn
........................ 2-30
With
a Trailer ................................ 4-36
Passenger Compartment Air Filter
.................. 6-16
Passing
....................................... 4-12
PASS-Key
I1 ................................. 2-16
Periodic Maintenance Inspections
.................. 7-41
Power
Auxiliary Connection
.......................... 2-51
Option Fuses
................................ 6-56
Outside Mirrors
.............................. 2-48
Retained Accessory
........................... 2-46
Seat (Six-Way)
................................ 1-3
Steering
..................................... 4-9
Steering Fluid
................................ 6-24
Windows
................................... 2-32
Pregnancy . Use of Safety Belts .................... 1-18
Problems on the Road ............................ 5-1
Publications. Service and Owner
................... 8-10
Parking
DoorLocks
................................... 2-5
Publications. Service and Owner. Ordering
in Canada ... 8-9
9-7
ProCarManuals.com
