1997 AUDI A4 EVAP Workshop Manual

Page 1 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-130


EVAP system, servicing EVAP system components

1 -
Cap nut
10 Nm
2 -
Cover For EVAP canister
3 -
Stud 15 Nm
4 -
Sealing piece
5 -
Bleed line To EVAP canister purge regulator valve

Page 2 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-131


7 -
Vacuum hose
LDP / throttle actuator control module
  Connection in engine compartment4 cylinder engine   Fig.   16 cylinder engine   Fig.   2
8 -
Cable tie
To mounting of vacuum li

Page 3 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-132


11 -
Connecting hose
LDP / EVAP canisterPressure sideTo remove at LDP, press unlocking tab on
connector
12 -
10 Nm
13 -
Air filter For LDP
14 -
Sealing piece
15 -
Cable tie For m

Page 4 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-133


Vehicles with 1.8 ltr. turbo engine
The vacuum line for the LDP -V144 is connected to the Throttle actuator
control module line with a T-piece -arrow-.  Fig. 1  Connections to LDP in e

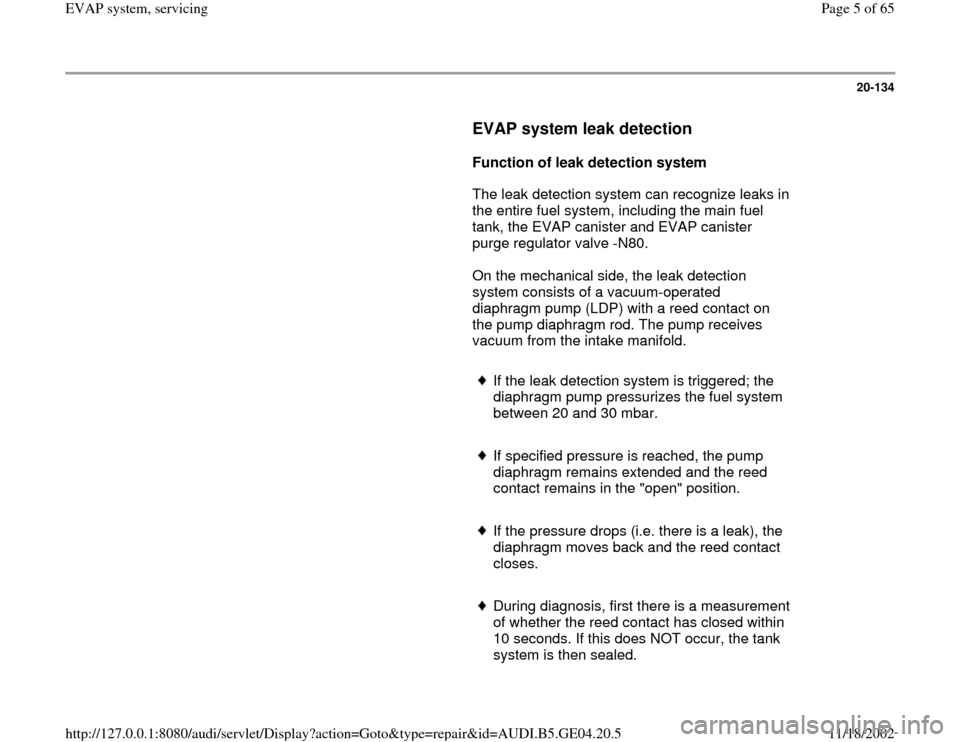

Page 5 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-134

EVAP system leak detection


Function of leak detection system
      The leak detection system can recognize leaks in
the entire fuel system, including the main fuel
tank, the

Page 6 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-135

If; however, the reed contact closes within 10
seconds, there is a leak. Then, the pump
continues to cycle for four more strokes. The
ECM measures the time for each of these four
str

Page 7 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual 20-136

Fuel tank and EVAP system, checking
for leaks


Note:
     In the following, individual questionable points
will be considered that could be leaks in the fuel
tank and tank ve

Page 8 of 65

AUDI A4 1997 B5 / 1.G EVAP Workshop Manual
-  Remove connector flange cover under luggage
compartment trim.
Pa
