1997 AUDI A4 relay

26-42


Function

During the cold running phase, the engine
control module -6- actuates the secondary air
injection pump -1- via the secondary air
injection pump relay -5-. Air reaches the
combination valve for the secondary air inlet -3-.
Parallel to this the secondary air inlet valve -8-
is actuated, which allows the vacuum to reach
the combination valve for secondary air inlet -3-.
The combination valve for secondary air inlet
thus allows the secondary air to enter the
exhaust ducts of the cylinder head -9-.
Pa
ge 2 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-43


1 -
Secondary Air Injection (AIR) Pump motor
-V101-
Location Fig. 2
, Page 26
-45
2 -
Air cleaner
3 -
Combination valve for secondary air inlet
Location Fig. 4
, Page 26
-46
4 -
Non-return valve
Position (light side/ dark side or direction of
arrow) as shown in illustration, arrow faces
in direction of flow
5 -
Secondary Air Injection (AIR) Pump relay -
J299- Location Fig. 3
, Page 26
-46Pa
ge 3 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-46


Fig. 3 Installation position Secondary Air Injection (AIR) Pump
relay -J299-
In E-box in plenum chamber
1 - Engine control module
2 - Secondary air pump relay -J299-
3 - Power supply relay for Motronic -J271-
4 - Fuse S130 for secondary air pump

Fig. 4 Combination valve for secondary air injection
Right rear on cylinder head
Pa
ge 6 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-51

Checking power supply

Note:
The power supply for the secondary air injection
solenoid valve -N112- is via the fuel pump relay.

Test requirements:

Fuse for secondary air injection solenoid
valve OK.

Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder

Fuel pump relay OK.

Repair Manual, 1.8 Liter 4
-Cyl. 5V Turbo Fuel
Injection & Ignition, Engine Code(s): AWM, Repair Group 24


- Disconnect connector from valve.

- Connect voltage tester VAG 1527 B as follows:Connector
Measure to
Pa
ge 11 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-52
If the LED does not light up:

- Check wiring from contact 1 on the connector
via the fuse to the fuel pump relay for an open
circuit:

Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder
- Repair open circuit, if necessary
If the LED lights up:

- Check actuation.

Checking actuation

- Connect voltage tester VAG 1527 B to contacts 1 (positive) and 2 of
connector.
- Initiate output Diagnostic Test Mode (DTM) and activate secondary air
injection solenoid valve -N112-.

LED must flash.
Pa
ge 13 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-54

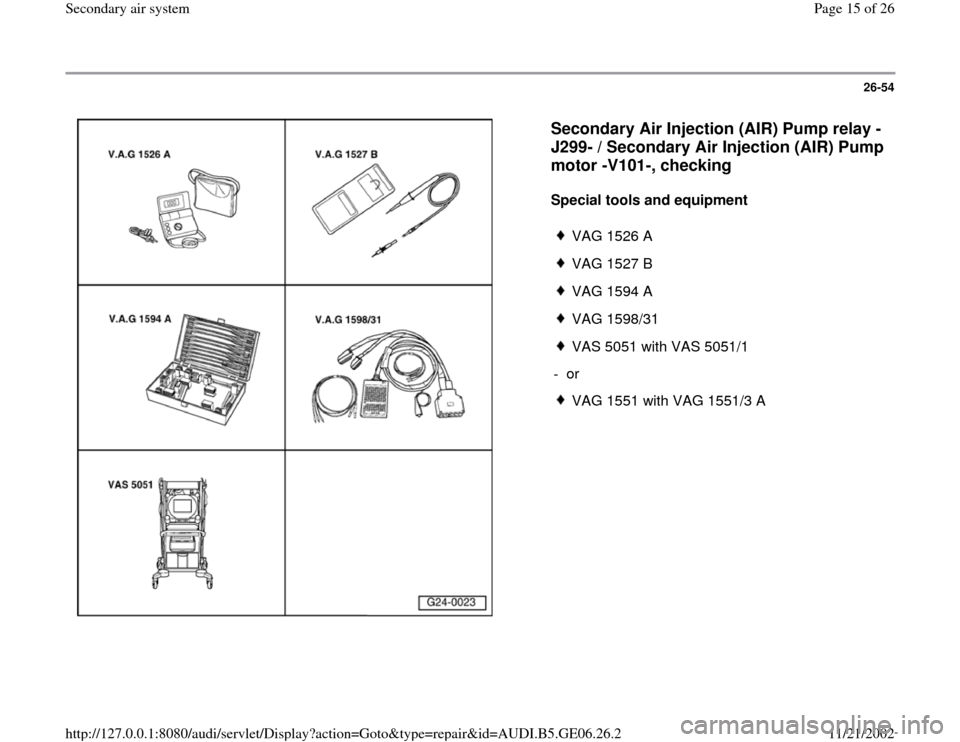

Secondary Air Injection (AIR) Pump relay -
J299- / Secondary Air Injection (AIR) Pump
motor -V101-, checking

Special tools and equipment

VAG 1526 A
VAG 1527 B
VAG 1594 A
VAG 1598/31
VAS 5051 with VAS 5051/1
- or
VAG 1551 with VAG 1551/3 A
Pa
ge 15 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-55

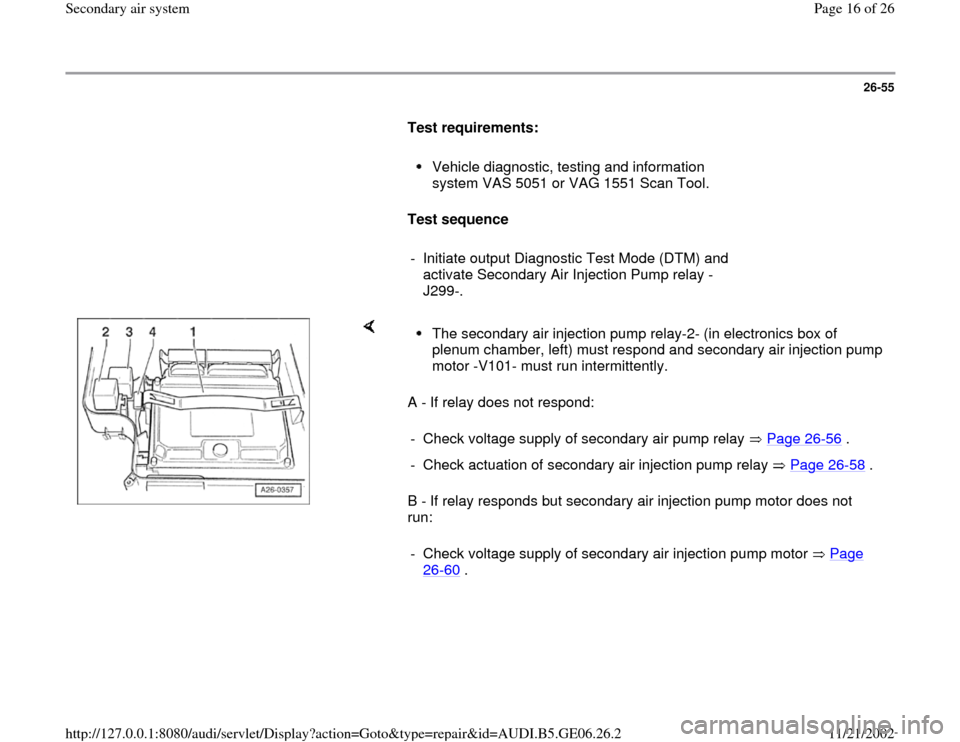

Test requirements:

Vehicle diagnostic, testing and information
system VAS 5051 or VAG 1551 Scan Tool.

Test sequence

- Initiate output Diagnostic Test Mode (DTM) and
activate Secondary Air Injection Pump relay -
J299-.

A - If relay does not respond:
B - If relay responds but secondary air injection pump motor does not
run:
The secondary air injection pump relay-2- (in electronics box of
plenum chamber, left) must respond and secondary air injection pump
motor -V101- must run intermittently.
- Check voltage supply of secondary air pump relay Page 26
-56
.
- Check actuation of secondary air injection pump relay Page 26
-58
.
- Check voltage supply of secondary air injection pump motor Page
26
-60
.
Pa
ge 16 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2

26-56

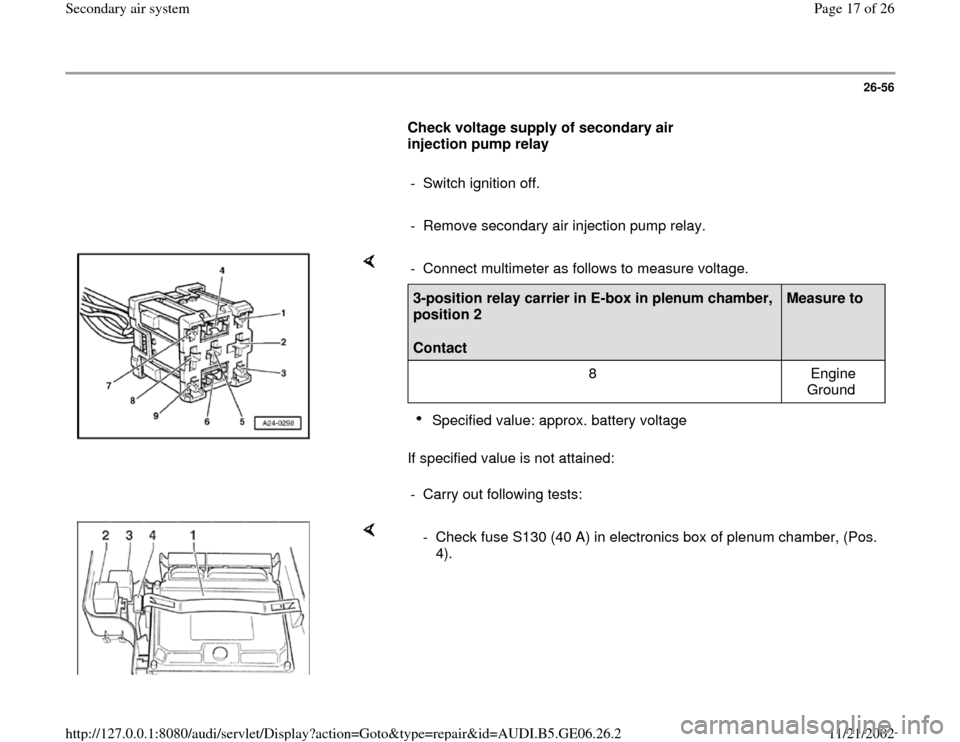

Check voltage supply of secondary air
injection pump relay

- Switch ignition off.

- Remove secondary air injection pump relay.

If specified value is not attained: - Connect multimeter as follows to measure voltage.3-position relay carrier in E-box in plenum chamber,
position 2
Contact
Measure to

8 Engine
Ground
Specified value: approx. battery voltage
- Carry out following tests:

- Check fuse S130 (40 A) in electronics box of plenum chamber, (Pos.
4).
Pa
ge 17 of 26 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.2
