Page 3 of 12
13-69


6 -
Bearing cap
Bearing cap 1: Pulley endBearing cap 3 with recesses for thrust
washers Bearing shell retaining lugs (cylinder
block/bearing cap) must be on the same
side
7 -
10 Nm +
1/4 turn (90 ) further
Always replaceAfter each removal of the bolts replace
sensor wheel Fig.  1
 ,   Page 13
-71

8 -
Needle bearing
For vehicles with manual transmissionPulling out and driving in   Page 13
-73
Pa
ge 3 of 12 Crankshaft, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.3





        Page 4 of 12
13-70


9 -
Sensor wheel
For engine speed sensor -G28-Can only be installed in one position. Holes
are offset Always replace sensor wheel if securing
bolts have been loosened. Removing and installing  Fig.   1
 ,
Page 13
-71

10 -
Crankshaft
Axial clearance new: 0.07 to 00.23 mm,
Wear limit: 0.30 mm Check radial clearance with Plastigage ,
New: 0.02 to 0.04 mm, Wear limit: 0.15 mmDo not rotate the crankshaft when checking
the radial clearance. Crankshaft dimensions   Page 13
-76Pa
ge 4 of 12 Crankshaft, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.3





        Page 5 of 12
13-71


Note:
Tightening torque  1) Replace bolts  2) 90 corresponds to a quarter turn   Fig. 1  Removing and installing sensor wheelAlways replace sensor wheel -2- if securing bolts -1- have been
loosened.. If the securing bolts are tightened a second time, the seats for the
countersunk bolt heads in the sensor wheel will be distorted to such
an extent that the bolt heads will come into direct contact with the
crankshaft -3- (-arrows-) and the sensor wheel will only fit loosely
under the bolts. The mounting holes are asymmetrically spaced, so it is only possible
to install the sensor wheel in one position.
Component

Nm
Sensor wheel to crankshaft
10 + 90
1)2)

Pa
ge 5 of 12 Crankshaft, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.3





        Page 11 of 12
13-77

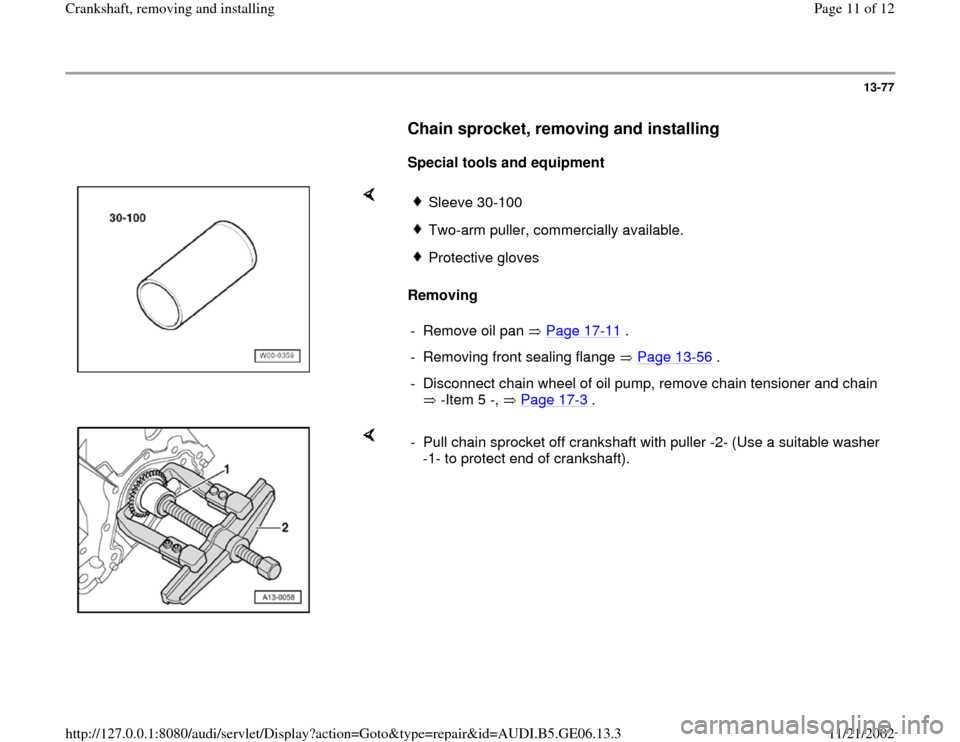

Chain sprocket, removing and installing


Special tools and equipment

Removing
Sleeve 30-100Two-arm puller, commercially available.Protective gloves
-  Remove oil pan   Page 17
-11
 .
-  Removing front sealing flange   Page 13
-56
 .
-  Disconnect chain wheel of oil pump, remove chain tensioner and chain
 -Item 5 -,   Page 17
-3 .

-  Pull chain sprocket off crankshaft with puller -2- (Use a suitable washer
-1- to protect end of crankshaft).
