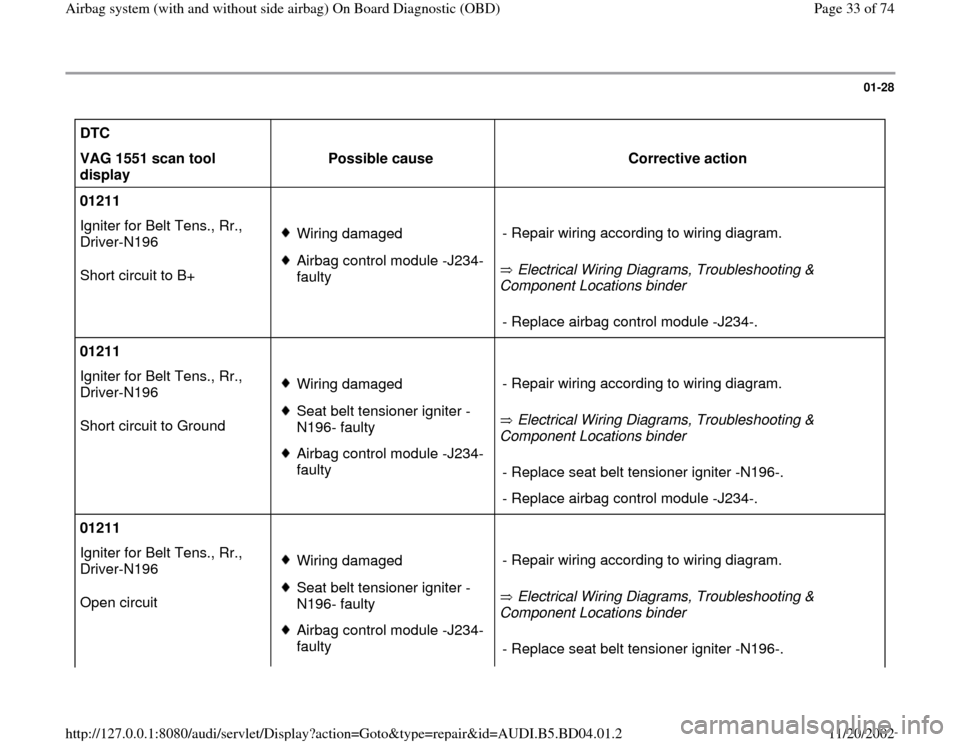

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual 01-28 DTC VAG 1551 scan tool display Possible cause Corrective action 01211 Igniter for Belt Tens., Rr., Driver-N196 Short circuit to B+ Wiring damaged Airbag control mo

Page 34 of 74

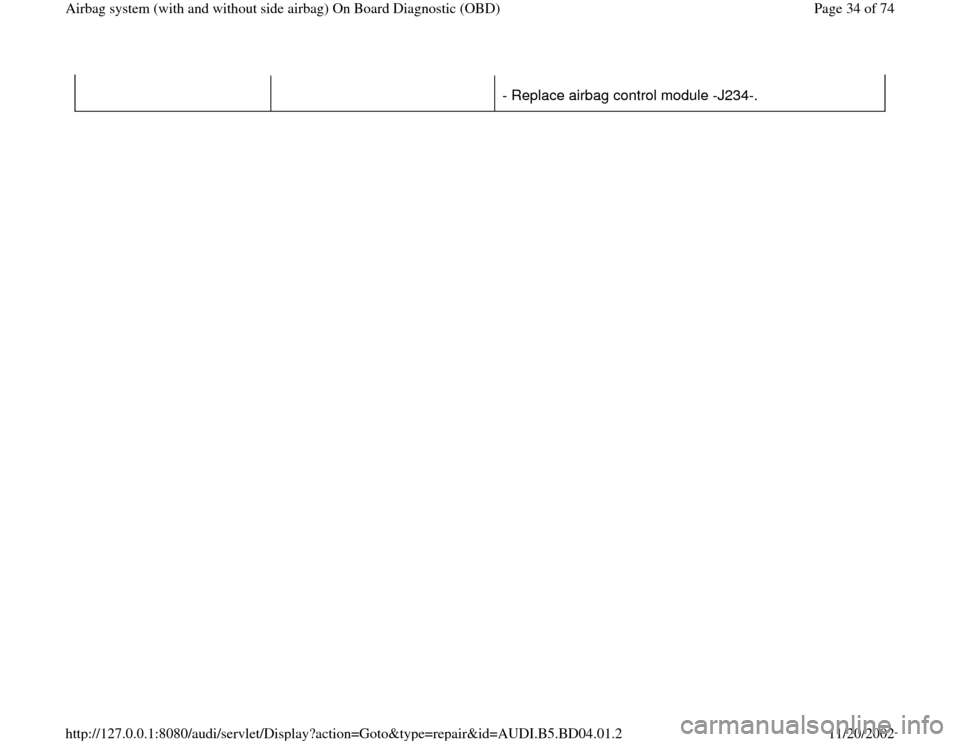

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual - Replace airbag control module -J234-. Pa ge 34 of 74 Airba g system (with and without side airba g) On Board Dia gnostic (OBD ) 11/20/2002 htt p://127.0.0.1:8080/audi/servlet/Dis play?action=Goto

Page 35 of 74

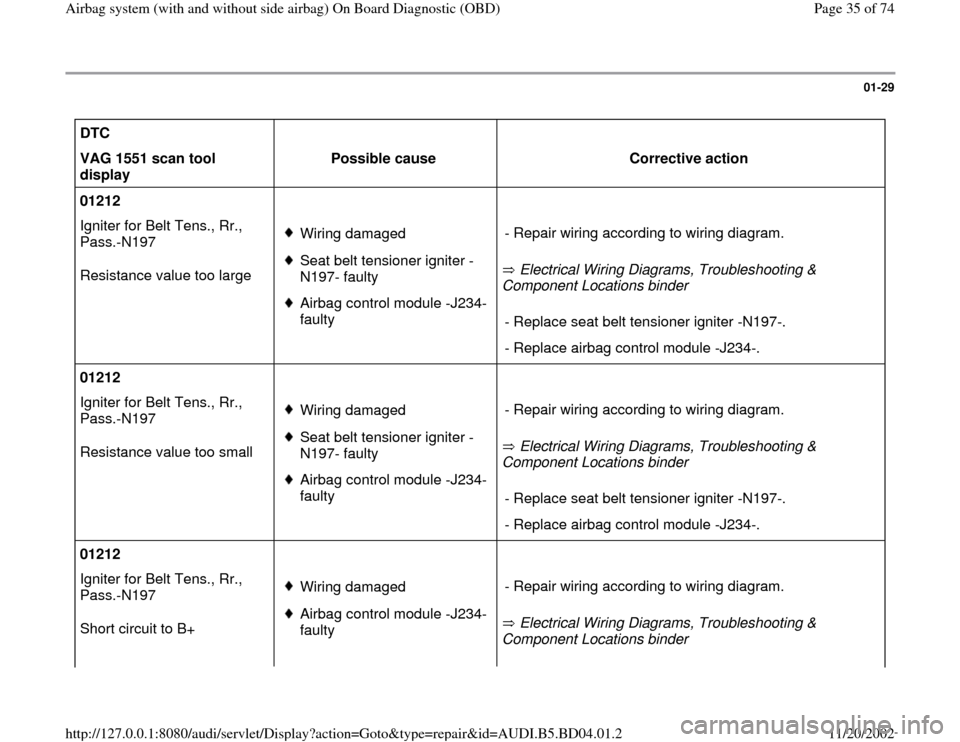

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual 01-29 DTC VAG 1551 scan tool display Possible cause Corrective action 01212 Igniter for Belt Tens., Rr., Pass.-N197 Resistance value too large Wiring damaged Seat belt te

Page 36 of 74

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual - Replace airbag control module -J234-. Pa ge 36 of 74 Airba g system (with and without side airba g) On Board Dia gnostic (OBD ) 11/20/2002 htt p://127.0.0.1:8080/audi/servlet/Dis play?action=Goto

Page 37 of 74

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual 01-30 DTC VAG 1551 scan tool display Possible cause Corrective action 01212 Igniter for Belt Tens., Rr., Pass.-N197 Short circuit to Ground Wiring damaged Seat belt tens

Page 38 of 74

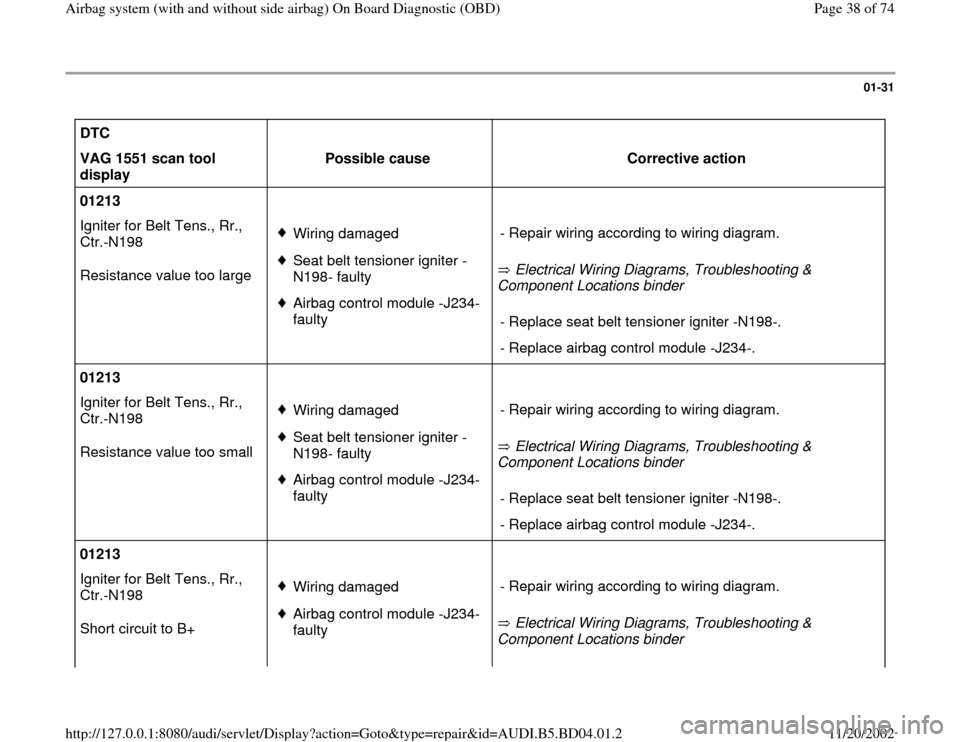

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual 01-31 DTC VAG 1551 scan tool display Possible cause Corrective action 01213 Igniter for Belt Tens., Rr., Ctr.-N198 Resistance value too large Wiring damaged Seat belt te

Page 39 of 74

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual - Replace airbag control module -J234-. Pa ge 39 of 74 Airba g system (with and without side airba g) On Board Dia gnostic (OBD ) 11/20/2002 htt p://127.0.0.1:8080/audi/servlet/Dis play?action=Goto

Page 40 of 74

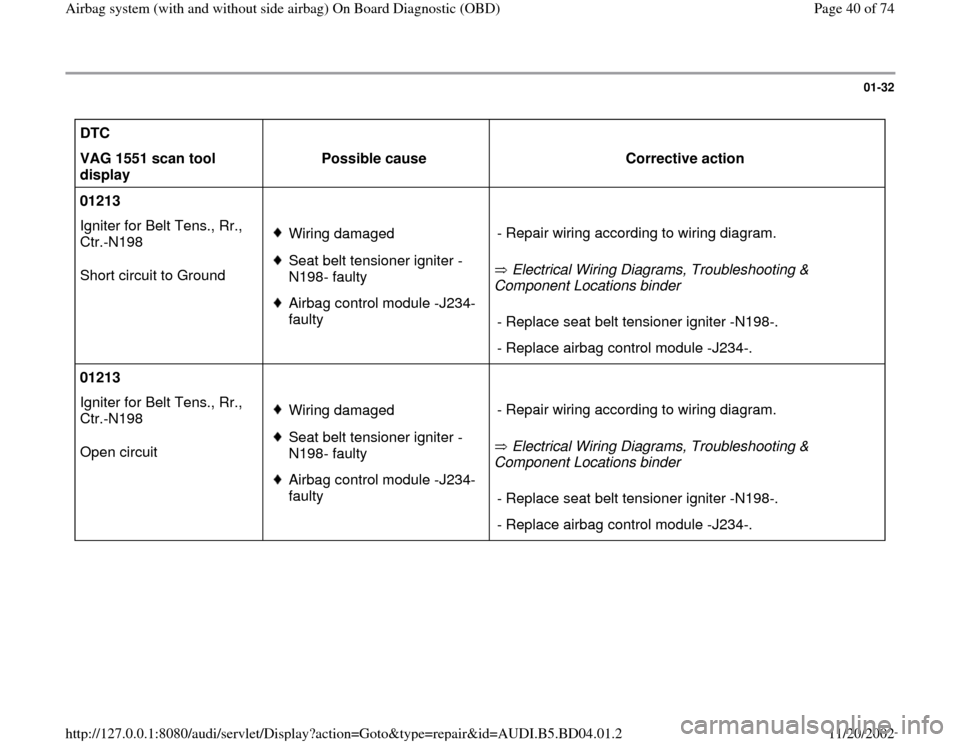

AUDI A4 1997 B5 / 1.G Airbag Service OBD Workshop Manual 01-32 DTC VAG 1551 scan tool display Possible cause Corrective action 01213 Igniter for Belt Tens., Rr., Ctr.-N198 Short circuit to Ground Wiring damaged Seat belt tensio
