1997 AUDI A4 01V Transmission ID Workshop Manual

00-16

Automatic transmission

01V.Z
01V.Z
01V.4

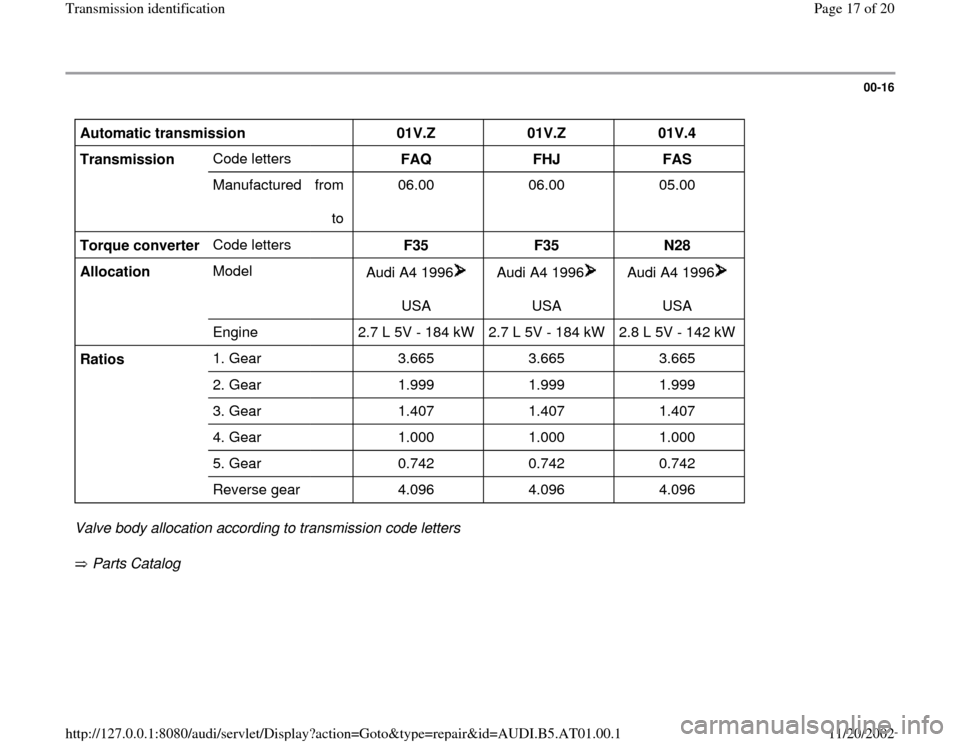

Transmission Code letters
FAQ
FHJ
FAS

Manufactured from
to 06.00 06.00 05.00

Torque converter Code letters
F35
F35
N28
Allocation Model
Audi A4 1996
USA
Audi A4 1996
USA
Audi A4 1996
USA

Engine 2.7 L 5V - 184 kW 2.7 L 5V - 184 kW 2.8 L 5V - 142 kW
Ratios 1. Gear 3.665 3.665 3.665

2. Gear 1.999 1.999 1.999

3. Gear 1.407 1.407 1.407

4. Gear 1.000 1.000 1.000

5. Gear 0.742 0.742 0.742

Reverse gear 4.096 4.096 4.096 Valve body allocation according to transmission code letters
Parts Catalog
Pa
ge 17 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-17

Transmission Code letters
FAQ
FHJ
FAS
Intermediate drive-Va Number of teeth Drive gear 29 29 29


Output gear 35 35 35

Ratio 1.207 1.207 1.207
Final drive-Va Number of teeth Drive pinion 11 11 11

Ring gear 32 32 34

Ratio 2.909 2.909 3.091
intermediate drive-HA Number of teeth Drive gear 41 41 41


Output gear 37 37 37

Ratio 0.902 0.902 0.902
Final drive-HA Number of teeth Drive pinion 9 9 9

Ring gear 35 35 37

Ratio 3.889 3.889 4.111
CAN-bus with CAN-bus with CAN-bus with CAN-bus
E-Gas
1)
with E-Gas with E-Gas with E-Gas
Hydraulic control E18/2 E18/2 E18/2
1) "E-Gas" is the general abbreviation for electronic engine power regulation, more information on this can be found in self-
study program nr. 210.
