1997 AUDI A4 01V Transmission ID Workshop Manual

00-9

Transmission Code letters
EZS
EZZ
Intermediate drive Number of teeth Drive gear 29 29


Output gear 35 35

Ratio 1.207 1.207
Final drive Number of teeth Drive pinion 11 11

Ring gear 34 34

Ratio 3.091 3.091
CAN-bus with CAN-bus with CAN-bus
E-Gas
1)
with E-Gas with E-Gas
Hydraulic control Rear Fog Light Switch -E18-/2 Rear Fog Light Switch -E18-/2
1) "E-Gas" is the general abbreviation for electronic engine power regulation, more information on this can be found in self-
study program No.. 210.
Pa
ge 9 of 20 Transmission identification
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-10
All Wheel Drive (AWD) Automatic transmission

01V.4
01V.4
01V.4
Transmission Code letters
DKB
DTV
EFQ

Manufactured from
to 07.96
02.97 03.97
07.99 08.98

Torque converter Code letters
M28
M28
M28
Allocation Model
Audi A4 1996
USA
Audi A4 1996
USA
Audi A4 1996
USA

Engine 1.8 L 5V - 110 kW 1.8 L 5V - 110 kW 1.8 L 5V - 110 kW
Ratios 1. Gear 3.665 3.665 3.665

2. Gear 1.999 1.999 1.999

3. Gear 1.407 1.407 1.407

4. Gear 1.000 1.000 1.000

5. Gear 0.742 0.742 0.742

Reverse gear 4.096 4.096 4.096 Valve body allocation according to transmission code letters
Parts Catalog
Pa
ge 10 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-11

Transmission Code
letters
DKB
DTV
EFQ
Intermediate
drive-Va Number of
teeth Drive
gear 29 29 29


Output
gear 35 35 35

Ratio 1.207 1.207 1.207
Final drive-Va Number of
teeth Drive
pinion 11 11 11

Ring
gear 34 34 34

Ratio 3.091 3.091 3.091
intermediate
drive-HA Number of
teeth Drive
gear 41 41 41


Output
gear 37 37 37

Ratio 0.902 0.902 0.902
Final drive-HA Number of
teeth Drive
pinion 9 9 9

Ring
gear 37 37 37

Ratio 4.111 4.111 4.111
CAN-bus without CAN-bus without CAN-bus with CAN-bus
E-Gas
1)
without E-Gas without E-Gas with E-Gas
Pa
ge 11 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

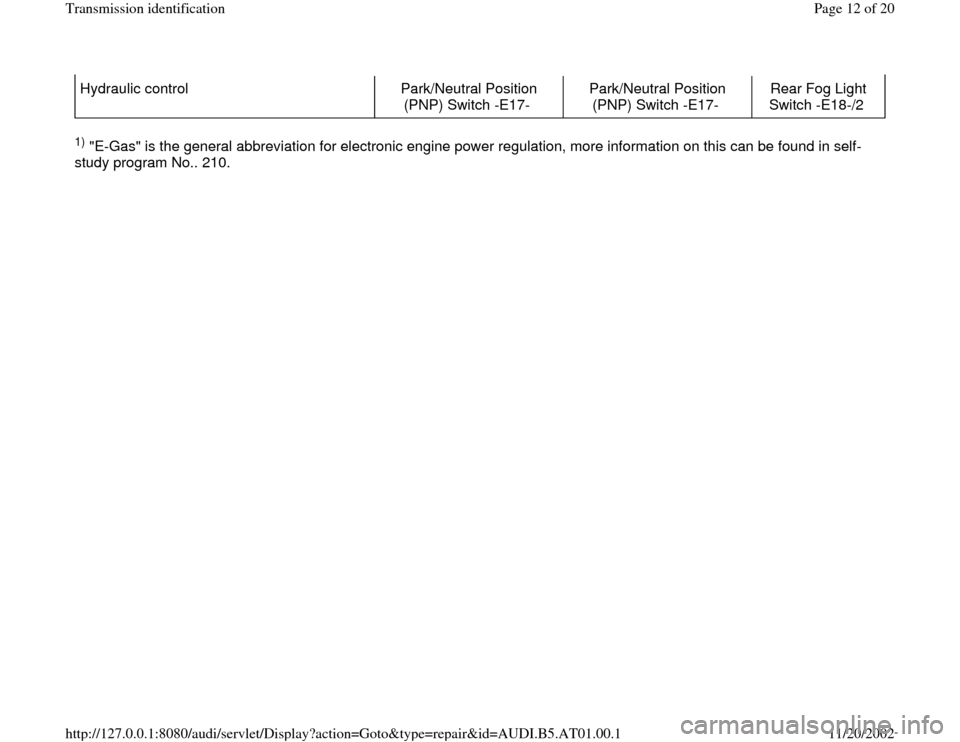

Hydraulic control Park/Neutral Position
(PNP) Switch -E17- Park/Neutral Position
(PNP) Switch -E17- Rear Fog Light
Switch -E18-/2 1) "E-Gas" is the general abbreviation for electronic engine power regulation, more information on this can be found in self-
study program No.. 210.
Pa
ge 12 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-12

Automatic transmission

01V.3
01V.3
01V.4
Transmission Code letters
DRN
ECG
FAL

Manufactured from
to 03.97
08.99 08.99 06.00

Torque converter Code letters
F31
F31
A33
Allocation Model
Audi A4 1996
USA
Audi A4 1996
USA
Audi A4 1996
USA

Engine 2.8 L 5V - 142 kW 2.8 L 5V - 142 kW 1.8 L 5V - 125 kW
Ratios 1. Gear 3.665 3.665 3.665

2. Gear 1.999 1.999 1.999

3. Gear 1.407 1.407 1.407

4. Gear 1.000 1.000 1.000

5. Gear 0.742 0.742 0.742

Reverse gear 4.096 4.096 4.096 Valve body allocation according to transmission code letters
Parts Catalog
Pa
ge 13 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-13

Transmission Code letters
DRN
ECG
FAL
Intermediate drive-Va Number of teeth Drive gear 29 29 29


Output gear 35 35 35

Ratio 1.207 1.207 1.207
Final drive-Va Number of teeth Drive pinion 11 11 11

Ring gear 30 30 34

Ratio 2.727 2.727 3.091
intermediate drive-HA Number of teeth Drive gear 41 41 41


Output gear 33 33 37

Ratio 0.805 0.805 0.902
Final drive-HA Number of teeth Drive pinion 9 9 9

Ring gear 37 37 37

Ratio 4.111 4.111 4.111
CAN-bus with CAN-bus with CAN-bus with CAN-bus
E-Gas
1)
without E-Gas with E-Gas with E-Gas
Hydraulic control E17 E18/2 E18/2
1) "E-Gas" is the general abbreviation for electronic engine power regulation, more information on this can be found in self-
study program No.. 210.
Pa
ge 14 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-14

Automatic transmission

01V.4
01V.2
01V.Z
Transmission Code letters
EKD
EDF
EMP

Manufactured from
to 08.99
04.99 08.99
Torque converter Code letters
N28
D34
D34
Allocation Model
Audi A4 1996
USA
Audi A4 1996
USA
Audi A4 1996
USA

Engine 2.8 L 5V - 142 kW 2.7 L 5V - 184 kW 2.7 L 5V - 184 kW
Ratios 1. Gear 3.665 3.665 3.665

2. Gear 1.999 1.999 1.999

3. Gear 1.407 1.407 1.407

4. Gear 1.000 1.000 1.000

5. Gear 0.742 0.742 0.742

Reverse gear 4.096 4.096 4.096 Valve body allocation according to transmission code letters
Parts Catalog
Pa
ge 15 of 20 Transmission identification11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.00.1

00-15

Transmission Code letters
EKD
EDF
EMP
Intermediate drive-Va Number of teeth Drive gear 29 29 29


Output gear 35 29 35

Ratio 1.207 1.000 1.207
Final drive-Va Number of teeth Drive pinion 11 11 11

Ring gear 34 34 32

Ratio 3.091 3.091 2.909
Intermediate drive-HA Number of teeth Drive gear 41 43 41


Output gear 37 34 37

Ratio 0.902 0.791 0.902
Final drive-HA Number of teeth Drive pinion 9 9 9

Ring gear 37 35 35

Ratio 4.111 3.889 3.889
CAN-bus with CAN-bus with CAN-bus with CAN-bus
E-Gas
1)
with E-Gas with E-Gas with E-Gas
Hydraulic control E18/2 E18/2 E18/2
1) "E-Gas" is the general abbreviation for electronic engine power regulation, more information on this can be found in self-
study program No.. 210.
