Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the brake
pedal is depressed (with the ignition
switch in ONº position and the lock re-
lease button depressed).
(a) Normal driving
1. Start the engine as instructed in How
to start the engineº in Part 3. The trans- mission must be in Pº or Nº.
When the front drive control lever is in L4º
(low-speed position, four-wheel drive),
the driving pattern selector setting has no
effect on gear shift timing. (See Four-
wheel drive systemº in this Chapter for in-
formation of the front drive control lever.)
2. With your foot holding down the brake
pedal, shift the selector lever to Dº.
In Dº position, the automatic transmis-
sion system will select the most suitable
gear for running conditions such as nor-
mal cruising, hill climbing, hard towing, etc. Always turn the overdrive switch on for
better
fuel economy and quieter driving. If
the engine coolant temperature is low or
when the front drive control lever is in L4º
(low-speed position, four-wheel drive),
the transmission will not shift into the
overdrive gear even with the overdrive
switch on. (See Four-wheel drive sys-
temº in this Chapter for information of the
front drive control lever.)
Never put your foot on the accelera-
tor pedal while shifting. CAUTION
!
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(b) Using engine braking
To use engine braking, you can downshift the transmission as follows: Turn off the overdrive switch. The O/D
OFFº indicator light will come on andthe transmission will downshift to the
third gear.
Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than the maximum
allowable speed for second gear, and more powerful engine braking will be obtained.
Shift into the Lº position. The trans- mission will downshift to the first gear
when the vehicle speed drops down to
or lower than the maximum allowable
speed for Lº position and maximum
engine braking will be applied.
Vehicles with cruise controlÐWhen the
cruise control is being used, even if you
downshift the transmission by turning off the overdrive switch, engine braking will
not be applied because the cruise control
is not cancelled. For ways to decrease the
vehicle speed, see Cruise controlº in this
chapter.
MAXIMUM ALLOWABLE SPEEDS
Front drive control lever in H2º or H4º
3RZ-FE engine
2º 109 km/h (68 mph) . . . . . . . . . . . . .
Lº 60 km/h (37 mph) . . . . . . . . . . . . . .
5VZ-FE engine
2º 120 km/h (75 mph) . . . . . . . . . . . . .
Lº 66 km/h (41 mph) . . . . . . . . . . . . . .
Front drive control lever in L4º 3RZ-FE engine
2º 43 km/h (27 mph) . . . . . . . . . . . . . .
Lº 22 km/h (14 mph) . . . . . . . . . . . . . .
5VZ-FE engine
2º 46 km/h (29 mph) . . . . . . . . . . . . . .
Lº 25 km/h (16 mph) . . . . . . . . . . . . . .

62

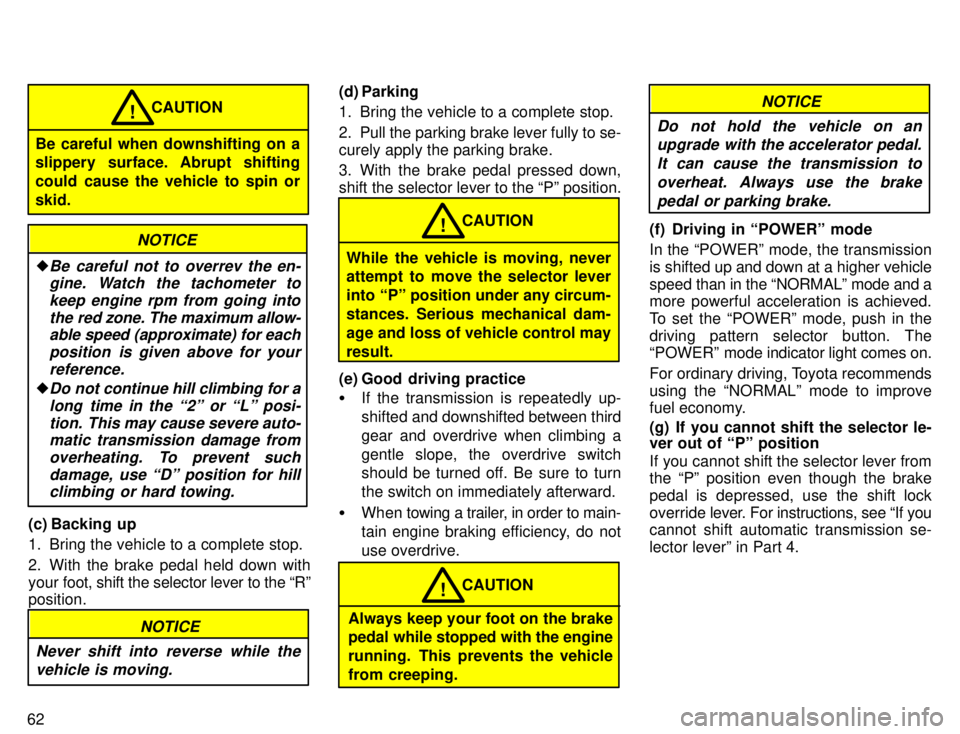

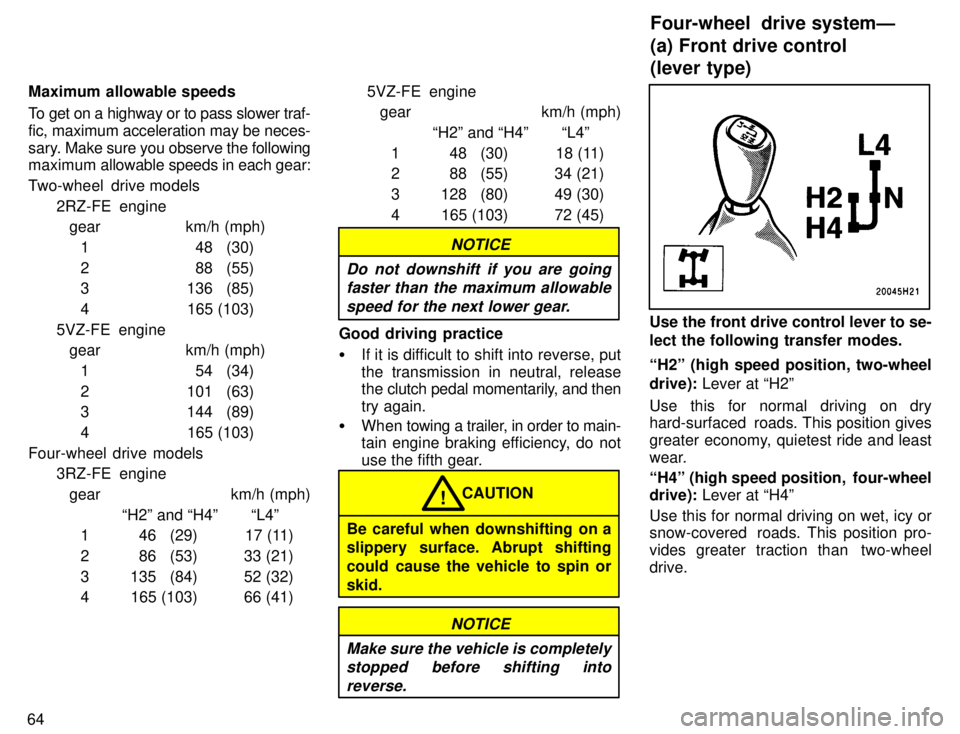

Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin orskid.CAUTION
!
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to
keep engine rpm from going intothe red zone. The maximum allow-able speed (approximate) for each
position is given above for yourreference.
Do not continue hill climbing for a
long time in the 2º or Lº posi-tion. This may cause severe auto-matic transmission damage from
overheating. To prevent such damage, use Dº position for hillclimbing or hard towing.
(c) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the Rº
position.
NOTICE
Never shift into reverse while the vehicle is moving.
(d) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever fully to se- curely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the Pº position.
While the vehicle is moving, never
attempt to move the selector lever
into Pº position under any circum-
stances. Serious mechanical dam-
age and loss of vehicle control mayresult. CAUTION
!
(e) Good driving practice If the transmission is repeatedly up-
shifted and downshifted between third
gear and overdrive when climbing a
gentle slope, the overdrive switch
should be turned off. Be sure to turn the switch on immediately afterward.
When towing a trailer, in order to main-
tain engine braking efficiency, do notuse overdrive.
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping. CAUTION
!
NOTICE
Do not hold the vehicle on an upgrade with the accelerator pedal.
It can cause the transmission tooverheat. Always use the brake pedal or parking brake.
(f) Driving in POWERº mode In the POWERº mode, the transmission
is shifted up and down at a higher vehicle
speed than in the NORMALº mode and a
more powerful acceleration is achieved.
To set the POWERº mode, push in the
driving pattern selector button. The
POWERº mode indicator light comes on.
For ordinary driving, Toyota recommends
using the NORMALº mode to improve
fuel economy.
(g) If you cannot shift the selector le-
ver out of Pº position
If you cannot shift the selector lever from the Pº position even though the brake
pedal is depressed, use the shift lock
override lever. For instructions, see If you
cannot shift automatic transmission se-lector leverº in Part 4.

63
The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving, because it will cause clutch trouble. And do not use the clutch to hold the vehicle
when stopped on an uphill gradeÐuse the
parking brake. Recommended shifting speeds
The transmission is fully synchronized
and upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the follow-
ing speeds: 2RZ-FE engine Low altitude Ð1219 m (4000 ft) or lower
gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
High altitude ÐHigher than 1219 m (4000 ft) Upshifting
gear km/h (mph)
1 to 2 24 (15)
2 to 3 40 (25)/58 (36)*
3 to 4 64 (40)/72 (45)*
4 to 5 72 (45)/85 (53)*
Downshifting gear km/h (mph)
2 to 1 24 (15)
3 to 2 40 (25)
4 to 3 64 (40)
5 to 4 72 (45)
*: Applicable under heavy acceleration conditions. 3RZ-FE engine
Upshifting gear km/h (mph)
1 to 2 24 (15)
2 to 3 40 (25)/58 (36)*
3 to 4 64 (40)/72 (45)*
4 to 5 72 (45)/85 (53)*
Downshifting
gear km/h (mph)
2 to 1 24 (15)
3 to 2 40 (25)
4 to 3 64 (40)
5 to 4 72 (45)
*: Applicable under heavy acceleration conditions.
5VZ-FE engine
gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too late will cause lugging, and possibly, ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause exces-
sive engine wear and high fuel consumption.
Manual transmission

64Maximum allowable speeds
To get on a highway or to pass slower traf- fic, maximum acceleration may be neces-
sary.
Make sure you observe the following
maximum allowable speeds in each gear:
Two-wheel drive models 2RZ-FE enginegear km/h (mph)
1 48 (30)
2 88 (55)
3 136 (85)
4 165 (103)
5VZ-FE engine gear km/h (mph)
1 54 (34)
2 101 (63)
3 144 (89)
4 165 (103)
Four-wheel drive models 3RZ-FE engine
gear km/h (mph) H2º and H4º L4º
1 46 (29) 17 (11)
2 86 (53) 33 (21)
3 135 (84) 52 (32)
4 165 (103) 66 (41) 5VZ-FE engine
gear km/h (mph)
H2º and H4º L4º
1 48 (30) 18 (11)
2 88 (55) 34 (21)
3 128 (80) 49 (30)
4 165 (103) 72 (45)
NOTICE
Do not downshift if you are going faster than the maximum allowable
speed for the next lower gear.
Good driving practice If it is difficult to shift into reverse, put
the transmission in neutral, release
the clutch pedal momentarily, and then
try again.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use the fifth gear.
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin orskid. CAUTION
!
NOTICE
Make sure the vehicle is completely stopped before shifting into
reverse.
Use the front drive control lever to se-
lect the following transfer modes. H2º (high speed position, two-wheel
drive): Lever at H2º
Use this for normal driving on dry
hard-surfaced roads. This position gives
greater economy, quietest ride and least
wear.
H4º (high speed position, four-wheel drive): Lever at H4º
Use this for normal driving on wet, icy or
snow-covered roads. This position pro-
vides greater traction than two-wheeldrive. Four-wheel drive systemÐ (a) Front drive control (lever type)

65
Nº (neutral position):
Lever at Nº
No power is delivered to the wheels. The vehicle must be stopped.
L4º (low speed position, four-wheel
drive): Lever at L4º
Use this for maximum power and traction. Use L4º for climbing or descending steep
hills, off-road driving, and hard pulling in
sand, mud or deep snow.
The four-wheel drive indicator light
comes on when the H4º, Nº or L4º mode is selected.
See (d) Shifting procedure (lever type)º
for further instructions.
Use the front drive control lever and
4WDº button to select the following transfer modes. H2º (high speed position, two-wheel
drive): Lever at Hº, 4WDº button left out
Use this for normal driving on dry
hard-surfaced roads. This position gives
greater economy, quietest ride and least
wear.
H4º (high speed position, four-wheel drive): Lever at Hº, 4WDº button
pushed in Use this for normal driving on wet, icy or
snow-covered roads. This position pro-
vides greater traction than two-wheeldrive. Nº (neutral position):
Lever at Nº
No power is delivered to the wheels. Thevehicle must be stopped.
L4º (low speed position, four-wheel
drive): Lever at L4º
Use this for maximum power and traction. Use L4º for climbing or descending steep
hills, off-road driving, and hard pulling in
sand, mud or deep snow.
The four-wheel drive indicator light
comes on when the H4º, Nº or L4º mode
is selected.
See (d) Shifting procedure (lever/button
type)º for further instructions.
(a) Front drive control
(lever/button type)

66
To engage the free-wheeling hubs,
turn the hubs to LOCKº. To disen-
gage, turn the hubs to FREEº Make sure the triangle mark on the hub
aligns with the other one at the side you
wish to set.
Setting the free-wheeling hubs in FREEº
allows you to disengage the front axle and
driveshaft so that they are not revolving.
This reduces noise and wear when the ve-
hicle is in two-wheel drive.
You should drive with the hubs in LOCKº for at least 16 km (10 miles) each month.
This will assure that the front drive compo-
nents are lubricated.Steel wheels
Aluminum wheels The A.D.D. can be engaged or disen-
gaged by the shifting operations
described in (d) Shifting procedureº.
You should drive in four-wheel drive for at least 16 km (10 miles) each month. This
will assure that the front drive compo- nents are lubricated.
(b) Free-wheeling hubs
(c) A.D.D. (automatic disconnecting differential)

67
SHIFTING BETWEEN H2º AND H4º With free-wheeling hubs
To shift from H2º to H4º,
move the
front drive control lever. Also, engage both the free-wheeling hubs.
This can be done when the vehicle is stopped, or moving straight ahead at
speeds of 40 km/h (25 mph) or less. You need not depress the clutch pedal. If you
have trouble shifting, depress or releasethe accelerator pedal momentarily while
pushing the front drive control lever.
Never move the front drive control
lever if wheels are slipping. Stop
the slipping or spinning before shifting.
Never drive with only one hub en- gaged. CAUTION
!
To shift from H4º to H2º, simply move
the front drive control lever. Also, disen-
gage both the free-wheeling hubs for con-
tinued H2º use.
This can be done at any vehicle speed.
You need not depress the clutch pedal.
If the indicator light does not go off when you shift the transfer into H2º, drive
straight ahead while accelerating or de-celerating, or drive in reverse. With A.D.D.
To shift from H2º to H4º,
reduce your
speed to less than 80 km/h (50 mph) and
move the front drive control lever. You
need not depress the clutch pedal.
If you have trouble shifting in cold
weather, reduce your speed or stop the
vehicle and reshift.
Never move the front drive control
lever if wh eels are slipping. Stop the
slipping or spinning before shifting. CAUTION
!
To shift from H4º to H2º, simply move
the front drive control lever.
This can be done at any vehicle speed.
You need not depress the clutch pedal.
If the indicator light does not go off when you shift the transfer into H2º, drive
straight ahead while accelerating or de-celerating, or drive in reverse. SHIFTING BETWEEN H4º AND L4º
To shift from H4º to L4º,
stop the ve-
hicle or reduce your speed to less than 8
km/h (5 mph). With your foot off the accel- erator pedal, depress the clutch pedal and
move the front drive control lever.
To shift from L4º to H4º, depress the
clutch pedal and move the front drive con-
trol lever.This can be done at any vehicle speed.
(d) Shifting procedure (lever type with manualtransmission)

68SHIFTING BETWEEN H2º AND H4º With free-wheeling hubs
To shift from H2º to H4º,
move the
front drive control lever. Also, engage both the free-wheeling hubs.
This can be done when the vehicle is stopped, or moving straight ahead at
speeds of 40 km/h (25 mph) or less. If you
have trouble shifting, depress or releasethe accelerator pedal momentarily while
pushing the front drive control lever.

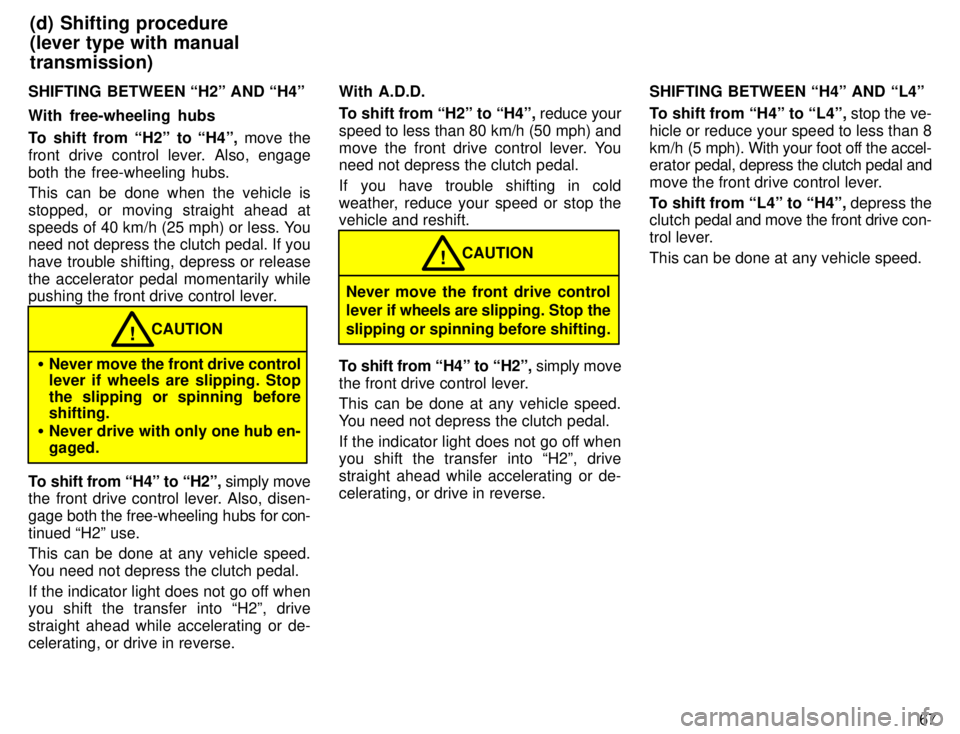

Never move the front drive control
lever if wheels are slipping. Stop
the slipping or spinning before shifting.
Never drive with only one hub en- gaged. CAUTION
!
To shift from H4º to H2º, simply move
the front drive control lever. Also, disen-
gage both the free-wheeling hubs for con-
tinued H2º use. This can be done at any vehicle speed.
If the indicator light does not go off when you shift the transfer into H2º, drive
straight ahead while accelerating or de- celerating, or drive in reverse. With A.D.D.
To shift from H2º to H4º,
reduce your
speed to less than 80 km/h (50 mph) and
move the front drive control lever.
If you have trouble shifting in cold weath-
er, reduce your speed or stop the vehicleand reshift.
Never move the front drive control
lever if wheels are slipping. Stop the
slipping or spinning before shifting. CAUTION
!
To shift from H4º to H2º, simply move
the front drive control lever. This can be done at any vehicle speed.
If the indicator light does not go off when you shift the transfer into H2º, drive
straight ahead while accelerating or de- celerating, or drive in reverse. SHIFTING BETWEEN H4º AND L4º
To shift between H4º and L4º,
stop
the vehicle and put the transmission in
Nº. With your foot holding down the brake
pedal, move the front drive control lever.
(d) Shifting procedure (lever type with automatictransmission)
