1996 PONTIAC FIREBIRD engine

How to Add Coolant to the Radiator
(V8 Engine Only)
NOTICE:
The LTl Engine (Code P) has a specific radiator
fill procedure. Failure to follow this procedure
could cause your engine to overheat and be
severely damaged.
<
I
1. You can remove the radiator pressure cap when the
cooling system, including the radiator pressure cap and upper radiator hose, is
no longer hot. Turn the pressure
cap slowly counterclockwise until it first stops. (Don’t
press down while turning the pressure cap.)
.
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.
ProCarManuals.com

2. Then keep turning the pressure cap, but now gush
down as you turn it, Remove the pressure cap.
/rl CAUTION:
I
1
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it
will burn if the engine parts are hot
enough Don't spill coolant
on a hot engine.
3. After the engine cools, open the air bleed valves on
the heater return hose and water pump inlet.
ProCarManuals.com

4. Fill with the proper mix. Add coolant until you
see a steady stream of coolant coming from the
bleed valves.
.. i L . -8
-.
5. Close the bleed valves.
6. Continue to fill the radiator up to the base of the
7. Rinse or wipe the spilled coolant from the engine
and compartment.
8. Start the engine and allow it to run in idle for
approximately four minutes. By this time, the
coolant level inside the radiator will be lower.
Add
more of the proper mix through the filler neck until
the level reaches the base of the filler neck.
filler
neck.
I. . :-
ProCarManuals.com

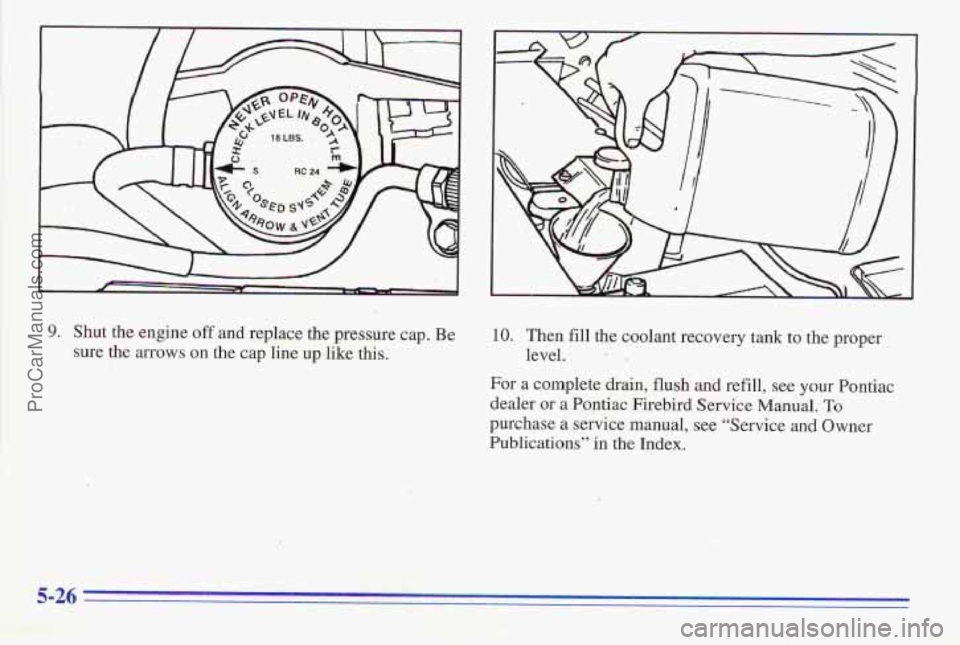

9. Shut the engine off and replace the pressure cap. Be
sure the arrows on the cap line up like this.
10. Then fill the coolant recovery tank to the proper
level.
For a complete
drain, flush and refill, see your Pontiac
dealer or a Pontiac Firebird Service Manual. To
purchase a service manual, see “Service and Owner
Publications”
in the Index.
5-26
ProCarManuals.com

If a Tire Goes Flat
It’s unusual for a tire to “blow out” while you’re driving,
especially
if you maintain your tires properly. If air goes
out of a tire, it’s much more likely to leak out slowly.
But if you should ever have a “blowout,” here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot
off the
accelerator pedal and grip the steering wheel
firmly.
Steer to maintain lane position, and then gently bralie to
a stop well out
of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may
require the same correction you’d use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to
go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.,
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly
to a level place. Turn on your hazard
warning flashers.
I
A CAUTILN:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over
you or other
people. You and they could be
badly injured.
Find
a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put an automatic transmission shift
lever in
PARK (P), or shift a manual
transmission to
FIRST (1) or
REVERSE (a).
3. Turn off the engine.
To be even more certain the vehicle won’t move,
you can put blocks
at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle,
at the opposite end.
5-27
ProCarManuals.com

Compact Spare Tire
Although the compact spare tire was fully inflated when
your
vehicle was new, it can lose air after a time. Check
the inflation pressure regularly. It should be 60 psi
(420 Wa).
After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your
spare tire is correctly inflated. The compact spare is
made
to perform well at posted speed limits for
distances up to 3,000 miles (5 000 km), so you can
finish your trip and have your full-size tire repaired or
replaced where you want. Of course, it’s best to replace
your spare with a full-size tire as soon as you can. Your
spare will last longer and be in good shape in case
you
need it again. When
the compact spare is
on the rear axle, the optional
traction control system will cycle and limit acceleration
for about the first
15 seconds of driving after each
engine start.
I NOTICE:
When the compact spare is installed, don’t take
your vehicle through
an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts
of your vehicle.
5-40
ProCarManuals.com

If You’re Stuck: In Sand, Mud,
Ice or Snow
What you d0n’t want to do when your vehicle is stuck is
to spin your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck, but
you must
use caution.
If you let your tires spin at high speed, they can
explode, and you or others could be
igjlared. And,
the transmission
or other parts of the vehicle can
overheat. That could cause an engine
compartment fire or other damage. When you’re
stuck, spin the wheels
as little as possible. Don’t
spin the wheels above
35 mph (55 km/h) as shown
on the speedometer.
NOTICE:
Spinning your wheels can destroy parts of your
vehicle as well
as the tires. If you spin the wheels
too fast while
shifting your transmission back
and forth,
you can destroy your transmission.
For infomation about using tire chains on your vehicle,
see “Tire Chains” in the Index.
Rocking your vehicle to get it out:
First, turn your steering wheel left and right. That will
clear the area around your front wheels. If your vehicle
I
has traction control, you should turn the system off. (See
“Traction Control System” in the Index.) Then shift
back and forth between REVERSE (R) and a forward
gear (or with a manual transmission, between
FIRST (1)
or SECOND (2) and REVERSE (R)), spinning the
wheels
as little as possible. Release the accelerator pedal
while you
shift, and press lightly on the accelerator
pedal
when the transmission is in gear. If that doesn’t
get you out after a few tries, you may need to be towed
out. If
you do-need to be towed out, see “Towing Your
Vehicle” in the Index. !-
1) . .:>:; i . -, . ,_ I *, ._. .I.. -.
. .. >, !<;,$, ,;..- ... ., . *::’.I
ProCarManuals.com

L
You can be injured and your vehicle could be
damaged if
you try to do service work on a
vehicle without knowing enough about it.
0 Be sure you have sufficient knowledge,
experience, and the proper replacement
parts and tools before you attempt
any
vehicle maintenance task.
Be me to use the proper nuts, bolts and
other fasteners. “English” and “metric”
fasteners can be easily confused. If
you use
the wrong fasteners, parts can later break
or fall off.
You could be hurt.
Fuel
The 8th digit of your vehicle identification number
(VIN) shows the code letter for your engine. You will
find the
VIN at the top left of your instrument panel.
(See “Vehicle Identification Number” in
the Index.)
If YQU don’t have the 5.7L Code P engine, use regular
unleaded gasoline rated at 87
octane or higher.
If you have the 5.7L Code P engine, use premium
unleaded gasoline rated at 9 1 octane or higher for best
performance.’
You may use middle grade or regular
unleaded gasolines, but your vehicle may not accelerate
as well.
At a minimum, the gasoline you use should meet spe’cifications
ASTM D4814 in the United States and
CGSB 3.5-M93 in Canada. Improved gasoline
specifications have been develope’d
by the American
Automobile Manufacturers Association (AAMA)
for
better vehicle performance and engine protection.
Gasolines meeting the
AAMA specification could
provide improved driveability and emission control
system protection compared to other gasolines.
Be sure the posted octane for premium is at least 91
(at least 89 for middle grade and
87 for regular). If the
octane is less than
87, you may get a heavy knocking
noise when
you drive. If it’s bad enough, it can damage
your engine.
If you’re using fuel rated at the recommended octane or
higher and you still hear heavy knocking, your engine
needs service. But don’t worry
if you hear a.little
pinging noise when you’re accelerating or driving up a
hill. That’s normal, and you don’t have to buy a higher
octane fuel to get rid
of pinging. It’s the heavy, constant
knock that means you have
a problem.
ProCarManuals.com
