Brakes
Brake Fluid
Your brake master cylinder reservoir is here. It is filled
with DOT-3 brake fluid.
There are only two reasons why the brake fluid level in
the reservoir might go down. The first is that the brake
fluid goes down
to an acceptable level during normal
brake lining wear. When new linings
are put in, the fluid
level goes back up. The other reason is that fluid is
leaking out
of the brake system. If it is, you should have your brake system fixed, since a leak means that
sooner
or later your brakes won’t work well, or won’t work
at all.
So, it isn’t a good idea to “top off” your brake fluid.
Adding brake fluid won’t correct a leak.
If you add fluid
when your linings
are worn, then you’ll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work is
done on the brake hydraulic system.
If you have too much brake fluid, it can spill on the
engine. The fluid will burn if the engine fs hot
enough. You or others could be burned, and your
vehicle could be damaged. Add brake fluid only when work
is done on the brake hydraulic system.
Refer to the Maintenance Schedule to determine when to
check your brake fluid. See “Periodic Maintenance
Inspections’’
in the Index.
ProCarManuals.com

NOTICE:
Using the wrong fluid can badly damage
brake system parts. For example, just
a few
drops of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced. Don’t let someone put in the
wrong
kind of fluid.
If you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can be
damaged. Be careful not
to spill brake fluid
on your vehicle.
If you do, wash it off
immediately. See “Appearance Care”
in the Index.
I
Brake Wear
Unless you have the four-wheel disc brake option, your
Pontiac has front disc brakes and rear drum brakes.
Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or
be heard all the time your vehicle is moving (except when
you are pushing on the brake pedal fiy).
The brake wear warning sound means that sooner
or later your brakes won’t work well. That could
lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied
or lightly applied.
This does not
mean something is wrong with your brakes.
Free movement
of brake calipers and properly torqued
wheel nuts are necessary to help prevent brake
pulsation. When tires are rotated, inspect brake calipers
for movement, brake pads for wear, and evenly torque
wheel nuts in the proper sequence to
GM specifications.
If you have rear drum brakes, they don’t have wear
indicators, but if you ever hear a rear brake rubbing
noise, have the rear brake linings inspected. Also, the
6-35
ProCarManuals.com

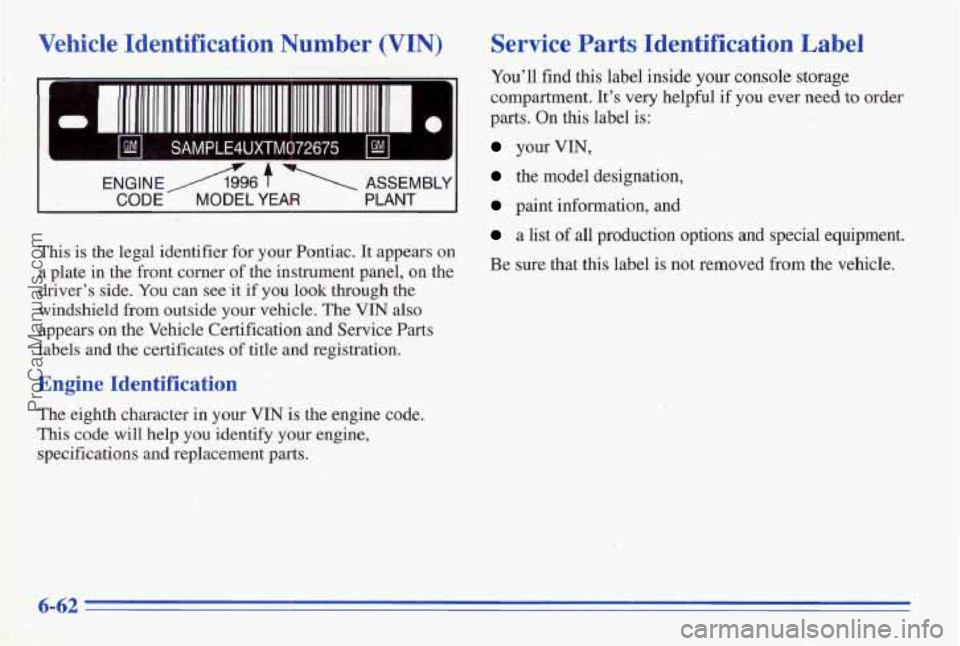

Vehicle Identification Number (VIN) Service Parts Identification Label
You’ll find this label inside your console storage
compartment. It’s very helpful if you ever need
to order
parts. On this label is:
your VIN,
the model designation,
paint information, and
a list of all production options and special equipment.
Be sure that this label is
not removed from the vehicle.
This is
the legal identifier for your Pontiac. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side.
You can see5t if you look through the
windshield from outside your vehicle. The
VIN also
appears
on the Vehicle Certification and Service Parts
labels and
the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts.
6-62
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination
of fuses, circuit
breakers and fusible thermal links in the wiring itself.
This greatly reduces the chance of fires caused by
%?'-:There are two fuse centers
on your vehicle. One is in the
8; -1- . klectrical problems.
left side of your instrument panel. The
other
is in the engine compartment, Open the cover
on either
of the boxes to expose the fuses.
Look at the silver-colored band inside the fuse. If the
band
is broken or melted, replace the fuse, Be sure you
replace a bad fuse with a new one
of the correct size.
If you ever have a problem on the road and don't have a
spare
fuse, you can borrow one. Just pick some 'feature
of your car that you can get along without -- like the
radio or cigarette lighter
-- and use its fuse, if it is the
size you need. Replace it as soon as you can.
6-64
ProCarManuals.com

Capacities and Specifications
Engine
Type VIN Engine Code
K ...................... V6
VTN Engine Code P ...................... V8
Fuel Delivery .................... Fuel Injection
Valve Arrangement
.................... In-Head
Piston Displacement
..........................
VINEngine Code K ............ 231 CID (3.8L)
VIN Engine Code
P ............ 350 CID (5.7L)
VIN Engine Code K .............. 1-6-5-4-3-2
VIN Engine Code P ......... 1-8-4-3-6-5-7-2
Wheel Nut Torque ............ 100 lb-ft (140 N-m)
Windshield Wiper Blade Replacement
Type ............ ................. hook
Length ........ ... 24 inches (610 mm)
Firing Order
Capacities (Approximate)
The following approximate capacities are given in
English and metric conversions.
Air Conditioning?
............. See the refrigerant
information label under the hood.
Automatic Transmission
Drain and Refill ............... 10 pints (4.7 L)*
Overhaul
VIN Engine Code
K ......... 17.6 pints (8.3 L)*
VIN Engine Code P ........ 21 ..6 pints (10.2 L)*
VIN Engine Code K V)
With Manual Transmission .... 12.5 quarts (11.8 L)
With' Automatic "ransmissjon . 12.3 qums (1 1.6 L)
VIN Engine Code P
With Manual Transmission ... 15.3 quarts (14.5 L)
With Automatic Transmission 15.1 quarts (14.3
L)
Cooling System
6-69
ProCarManuals.com

Capacities (Approximate) (Continued)
Crankcase
Oil and Filter Change
3800 (WN K) ............ 4.5 quarts (4.3 L)**
5.7 L (VIN P) ............ 5.0 quarts (4.7 L)**
Fuel Tank .................. 15.5 gallons (58.7 L)
Five-Speed ................. 6.8 pints (3.2 L)*
Six-Speed .................. 8.0 pints (3.8 L)*
Rear Axle Lubricant ............ 3.5 pints (1 .TL)
Manual Transmission
+Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your Pontiac dealer.
*Recheck fluid level after filling. See “Automatic
Transmission
Fluid” or “Manual Transmission Fluid”
in the Index.
**Recheck the oil level after filling. See “Engine Oil” in
the Index.
Vehicle Dimensions
Wheelbase
Front Tread
Rea’ Tread
Length
Firebird / Formula
Trans
Am
Width
Height
101.1 inches (2 566 mm)
60.7 inches (1 542 mm)
60.7 inches (1 540 mm)
195.6 inches (4 968 mm)
197.0 inches ( 5 005 mm)
74.5 inches (1 893 mm)
52.10 inches (1 323, nun)
ProCarManuals.com

Replacement Parts Air Conditioning Refrigerants
Air Cleaner Filter Not all air conditioning refrigerants are the same.
VIN Engine Code P .................. A1163C refrigerant, be sure the proper refrigerant is used.
VIN Engine Code P (with WS6 Option) A1097C
Battery
............................... .75-60
Engine
Oil Filter
..... .;+ VIN Engine Code K .................. A1163C If the air conditioning system in your vehicle needs I . . '. .~ ,..I . ,. ,
If you're not sure, ask your Pontiac dealer. ...
. VIN Engine Code K ..................... PF47
VIN Engine Code
P .................... PF25
Fuel Filter
............................. GF578
PCV Valve
VIN Engine Code
K ................. CV892C
VIN Engine Code P ................. CV895C
Radiator Cap
........................... RC24
Spark Plug
VIN Engine Code K ....... -41-921 (0.060" Gap)
VIN Engine Code P ....... e41-943 (0.050" Gap)
Specification
................... 180°F (82°C)
Thermostat Temperature
I 6r't
ProCarManuals.com
