1996 PONTIAC BONNEVILLE oil viscosity

Even if you have a low oil level, the light will go off for
15 to 20 seconds. Then, if the oil level is low, and it has
been at least eight minutes
since your engine was last
running, the
CHECK OIL LEVEL light will come on
for
20 to 40 seconds. The eight-minute delay allows the
majority of the oil to drain back into the oil pan and
prevent a false low condition.
If the CHECK OIL LEVEL warning comes on, the oil
level should be checked at the oil dipstick. If the level is
low, the engine
oil should be brought up to the proper
level. See “Engine Oil” in the Index. After restoring the\

proper level and waiting for the eight-minute drainback,
the key can be turned to the
RUN position and the
CHECK OIL LEVEL warning light should only come
on as a bulb check.

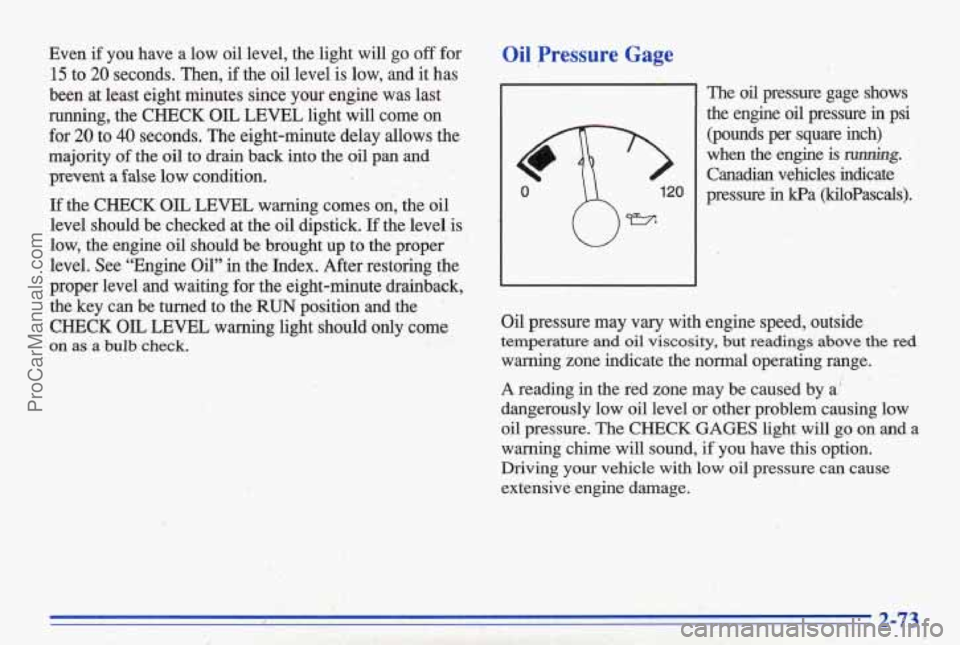

Oil Pressure Gage
The oil pressure gage shows
the engine
oil pressure in psi
(pounds per square inch)
when
the engine is rwmhg.
Canadian vehicles indicate
pressure in kPa (kiloPascals).
Oil pressure may vary with engine speed, outside
temperature and oil viscosity, but readings above the red
warning zone indicate the normal operating range.
A reading in the red zone may be caused by a,’
dangerously low
oil level or other problem causing low
oil pressure.
The CHECK GAGES light will go on and. a
warning ch@e
will sound, if you have this option.
Driving your
vehicle with low oil pressure can cause
extensive ,engine, damage.
ProCarManuals.com

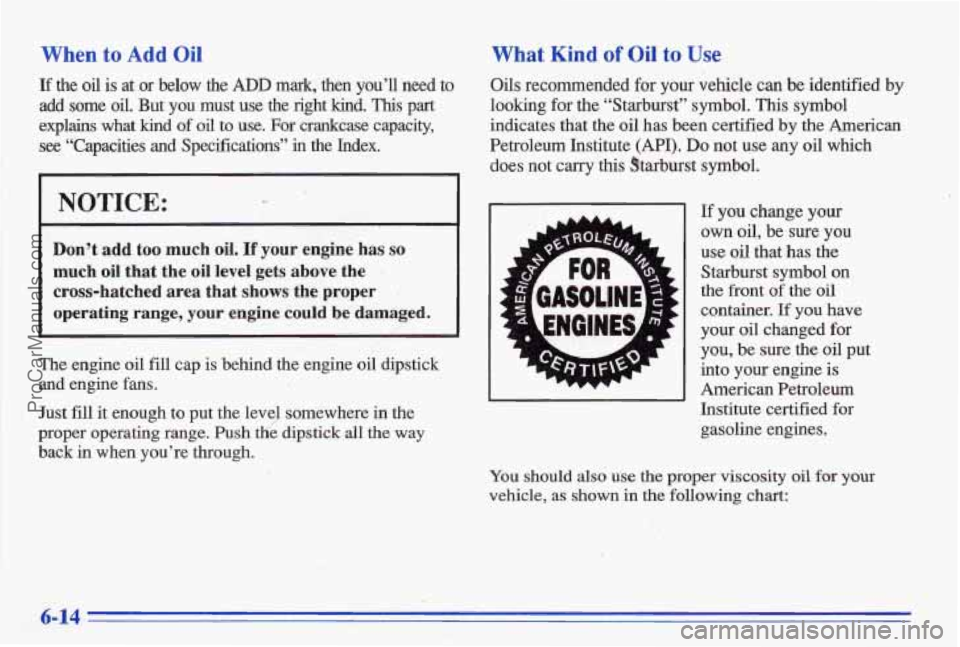

When to Add Oil What Kind of Oil to Use
If the oil is at or below the ADD mark, then you’ll need to Oils recommended for your vehicle can be identified by
add some oil. But you must use the right kind. This part looking for the “Starburst” symbol. This symbol
explains what
kind of oil to use. For crankcase capacity, indicates that the oil has been certified by the American
see “Capacities and Specifications” in the Index. Petroleum Institute (API). Do not use any oil which
E
does not carry this Starburst symbol.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the
:
operating range, your engine could be damaged. cross-hatched
area that shows the proper I
The engine oil fill cap is behind the engine oil dipstick
and engine fans.
Just fill it enough to put the level somewhere
in the
proper operating range. Push tKe dipstick all the way
back in when you’re through.
If you change your
own
oil, be sure you
use oil that has the
Starburst
symbol on,
the front, of the oil
container.
If you have
your oil changed for
you, be
sure. the oil put
into
your engine is
American Petroleum
Institute certified for
gasoline engines. I
You should also use the proper viscosity oil for your
vehicle, as shown in the following chart:
ProCarManuals.com

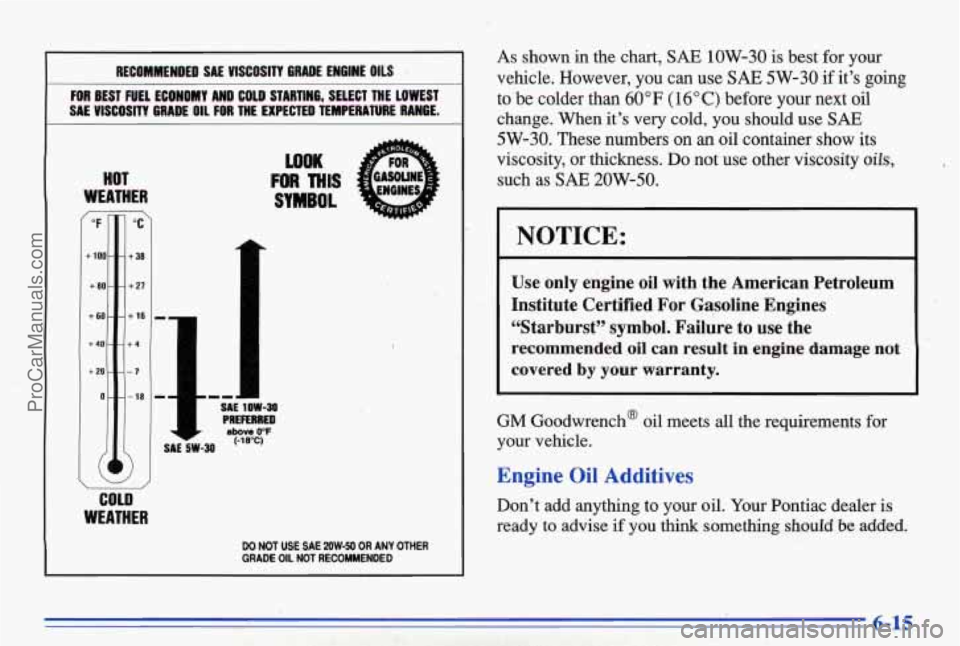

I RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS 1
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
I SAE VISCOSITY GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
/

COLD
I WEATHER
SAE 5W-30
WOK
FOR THIS 4
SYMBOL
SAE 10W-30 PREFEMEO abow (PF (-18°C)
DO NOT USE SAE MW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
As shown.in the chart, SAE 1OW-30 is best for your
vehicle. However,
you can use SAE 5W-30 if it’s going
to be colder than 60 OF (1 6 O C) before your next oil
change. When it’s very cold, you should use
SAE
5W-30. These numbers on an oil container show its
viscosity, or thickness. Do not use other viscosity
oils,
such as SAE 20W-50.
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
“Starburst” symbol. Failure to use the
recommended oil can result in engine damage
not
covered by your warranty.
GM Goodwrench@ oil meets all the requirements for
your vehicle.
Engine Oil Additives
Don’t add anything to your oil. Your Pontiac dealer is
ready to advise if you
think something should be added.
6-15
ProCarManuals.com

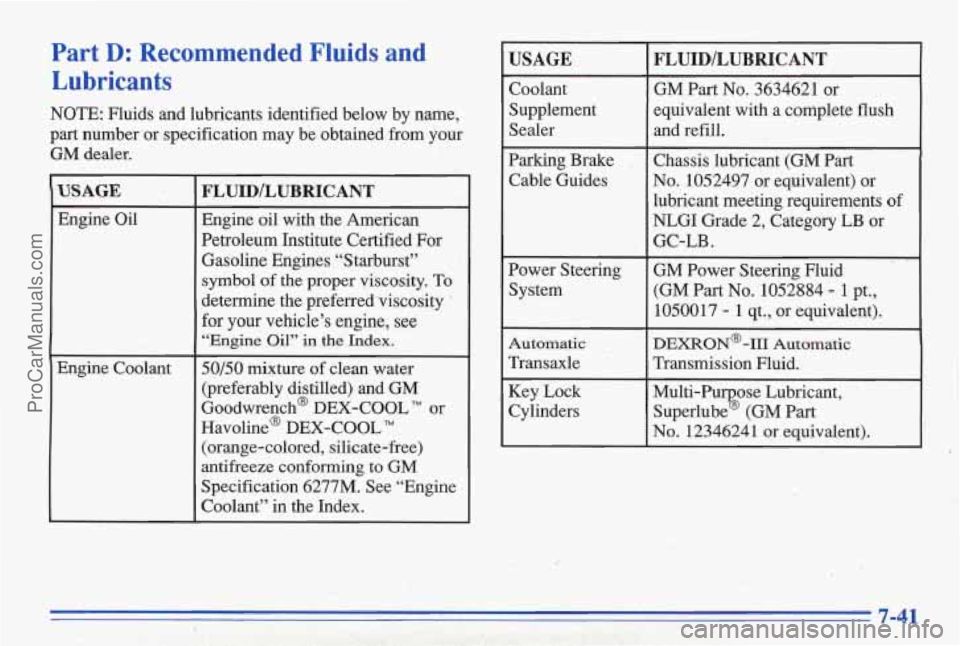

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
I
FLUID/LUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines
“S tarburst”
symbol of the proper viscosity.
To
determine the preferred’viscosity .
for your vehicle’s engine, see
‘‘Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and GM
Goodwrench@ DEX-COOL
or
Havoline’ DEX-COOL TM
(orange-colored, silicate-free)
antifreeze conforming to
GM
Specification 6277M. See “Engine
Coolant” in the Index.
1 ’ ’. ’ rl ~. - , .--. ,
- -L
USAGE
Coolant
Supplement
Sealer
Parking Brake Cable Guides
Power Steering System
Automatic
Transaxle
Key Lock Cylinders
FLUID/LUBRICANT
GM Part No. 3634621 or
equivalent with a complete flush and refill.
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements of
NLGI Grade 2, Category LB or
GM Power Steering Fluid
1050017 - 1 st., or equivalent).
DEXRON@ -III Automatic
Transmission Fluid.
Multi-Pu ose Lubricant,
Superlube
%I (GM Part
No. 12344241 or equivalent).
GC-LB.
L’
(GM
Part NO. 1052884 - 1 Pt.,
7-41
