[SR31750(ALL)05/95]7.
Before placing the child into the child seat, forcibly tilt the
seat from side to side and in forward directions to make
sure that the seat is securely held in place. See Figure 7.
[SR31801(ALL)06/95]
17-1/2 pica
art:0050282-A
Checking that the seat is secure
[SR31850(ALL)05/95]8.
Double check the retractor is in the automatic locking mode.
Try to pull more belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See Figure 8.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
49
[SR31901(ALL)06/95]
17-1/2 pica
art:0050283-A
Checking the retractor
[SR31950(ALL)06/95]9.
Check to make sure that the seat is properly secured prior to
each use. If the retractor is not locked, repeat steps 6
through 8.
[SR32001(ALL)05/95]
NOTE: To remove retractor from the automatic lock mode,
allow seat belt to retract fully to its stowed position
and the retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult usage.
[SR32050(ALL)05/95]
Installing a Child Safety Seat at the Rear Center
Seating Position with Locking Adjustable Lap Belt
[SR32101(ALL)05/95]1.
Lengthen the lap belt. To lengthen the belt, hold the tongue
so that its bottom is perpendicular to the direction of
webbing while sliding the tongue up the webbing.
[SR32150(ALL)05/95]2.
Place the child safety seat in the center seating position.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

50
[SR32201(ALL)05/95]3.
Route the tongue and webbing through the child seat
according to the child seat manufacturer's instructions.
[SR32250(ALL)05/95]4.
Insert the belt tongue into the proper buckle for the center
seating position until you hear a snap and feel it latch. Make
sure the tongue is securely fastened to the buckle by pulling
on tongue.
[SR32301(ALL)05/95]5.
Push down on the child seat while pulling on the loose end
of the lap belt webbing to tighten the belt.
[SR32350(ALL)05/95]6.
Before placing the child into the child seat, forcibly tilt the
child seat from side to side and in forward directions to
ensure that the seat is held securely in place. If the child seat
moves excessively, repeat steps 5 through 6 or properly
install the child seat in a different seating position.
*
[SR32800(ALL)05/95]
Attaching Safety Seats With Tether Straps
*
[SR33000(ALL)05/95]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SR33101(ALL)11/93]
You can attach a tether strap to the front passenger or second
row seats by using the built-in tether anchors provided on the
back of the seats as described below.
[SR33201(ALL)11/93]
Follow the child seat manufacturer's instructions to attach the
tether strap to the tether anchor.
[SR33301(ALL)06/95]
RWARNING
Use only the tether attachment locations shown below.
The tether anchor may not perform properly if the wrong
mounting location is used.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

54
[SR34201(ALL)06/95]
13-1/2 pica
art:0050178-A

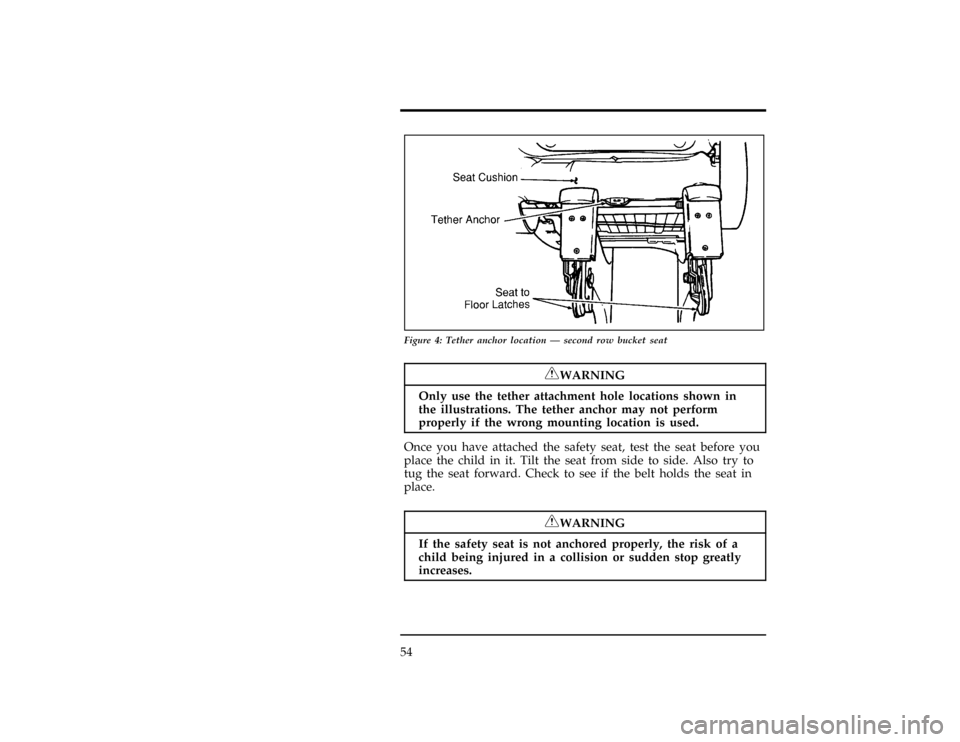

Figure 4: Tether anchor location Ð second row bucket seat
*
[SR34301(ALL)05/95]
RWARNING
Only use the tether attachment hole locations shown in
the illustrations. The tether anchor may not perform
properly if the wrong mounting location is used.
[SR34380(ALL)05/95]
Once you have attached the safety seat, test the seat before you
place the child in it. Tilt the seat from side to side. Also try to
tug the seat forward. Check to see if the belt holds the seat in
place.
[SR34401(ALL)05/95]
RWARNING
If the safety seat is not anchored properly, the risk of a
child being injured in a collision or sudden stop greatly
increases.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Starting Your Windstar
57
%*
[ST04200(ALL)03/95]
Fuel-Injected Engines
[ST04300(ALL)02/95]
Since your vehicle has a fuel-injected engine,the most
important thing to remember is to avoid pressing down on the
acceleratorwhile cranking the engine to start. Only use the
accelerator when you have problems getting your vehicle
started. SeeStarting a Cold EngineandStarting a Warm Engine
later in this chapter for details about when to use the
accelerator while you start your vehicle.
%*
[ST04400(ALL)05/94]
Preparing to Start Your Vehicle
[ST04500(ALL)02/95]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. See
Guarding Against Exhaust Fumes in this chapter for more
instructions.
*
[ST04600(ALL)01/93]
Before you start your vehicle, always:
*
[ST04700(ALL)01/93]1.
Make sure you and all your passengers buckle your safety
belts. SeeSafety beltsin the Index for more details.
*
[ST04800(ALL)03/95]2.
Make sure the headlamps and other accessories are turned
off when starting.
[ST04900(ALL)02/95]3.
Make sure that the gearshift lever is in Park (P) and the
parking brake is set before you turn the key.
[ST05100(ALL)02/95]
Before you start your vehicle, you should test the warning lights
on the instrument cluster to make sure that they work. Refer to
theWarning Lights and Gaugeschapter.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

Warning Lights and Gauges
69
% [LG01400(ALL)02/95]
Anti-lock Brake System (ABS) Warning Light
*
[LG01500(ALL)12/93]
To check the anti-lock brake warning light, turn the ignition key
to the ON position. The ABS warning light should glow
momentarily.
*
[LG01600(ALL)10/93]
NOTE: If it does not glow at all or stays on for a long time,
have your vehicle's electrical system checked
immediately.
[LG01700(ALL)11/93]
6 pica art:0050147-B
The anti-lock brake warning light
*
[LG01800(ALL)05/95]
RWARNING
If the anti-lock brake system warning light remains on or
comes on while driving, have the braking system checked
by a qualified service technician as soon as possible.
[LG01820(ALL)06/95]
NOTE: If a fault occurs in the anti-lock system, and the brake
warning light is not lit, the anti-lock system is
disabled but normal brake function remains
operational.
% [LG01900(ALL)04/95]
Safety Belt Warning Light and Chime
*
[LG02000(ALL)03/95]
This warning light and chime remind you to fasten your safety
belt. The following conditions will take place:
[LG02010(ALL)02/95]
n
If the driver does not fasten the safety belt before the
ignition is turned to ON, the chime will sound for four (4) to
eight (8) seconds and the light will illuminate for one (1) to
two (2) minutes, or until the safety belt is fastened.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

70
[LG02021(ALL)02/95]
n
If the driver fastens the safety belt before the ignition is
turned to ON, the chime will not sound and the light will
not illuminate.
[LG02050(ALL)02/95]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and the chime turn off.
[LG02100(ALL)11/93]
6 pica art:0050148-B
The safety belt warning light
%*
[LG02200(ALL)03/95]
Check Engine Warning Light
*
[LG02301(ALL)05/95]
The Powertrain On-Board Diagnostic II (OBD II) system consists
of the hardware and software necessary to monitor the
operation of the powertrain. The OBD II system is designed to
check the function of the vehicle's powertrain control system
during normal operation. If an emission problem is detected, the
Check Engine Warning Light (in the cluster) is turned on.
[LG02400(ALL)11/93]
6 pica art:0050065-B
The check engine warning light
*
[LG02410(ALL)05/95]
Modification or additions to the vehicle may cause incorrect
operation of the OBD II system. Additions such as burglar
alarms, cellular phones, and CB radios must be carefully
installed. Do not install these devices by tapping into or running
wires close to powertrain control system wires or components.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
83
%*[LG9580(ALL)09/93]
Electronic Cluster (If Equipped)
[LG09600(ALL)03/94]
The Electronic Cluster works only when your ignition is in the
ON position. Each time you start your vehicle, the displays go
through a self-test by lighting up all segments for about one
second and then turning off all segments for about one second,
before displaying actual gauge readings. (The turn signal and
high beam indicators do not light during the self-test. The LOW
OIL light may remain on throughout the self-test and for several
seconds after normal readings are displayed.) This self-test
demonstrates that all of the display segments are working
properly.
[LG09620(ALL)03/94]
The electronic cluster has three major functions to provide you
with information about your vehicle's operating status:
[LG09650(ALL)10/93]
n
Warning and Indicator Lights
[LG09661(ALL)10/93]
n
Electronic Gauges
[LG09670(ALL)12/93]
n
The Fuel Computer
[LG10801(ALL)12/93]
Warning and Indicator Lights
%*
[LG10820(ALL)02/95]
Safety Belt Warning Light and Chime
*
[LG10823(ALL)03/95]
This warning light and chime remind you to fasten your safety
belt. The following conditions will take place:
[LG10826(ALL)02/95]
n
If the driver does not fasten the safety belt before the
ignition is turned to ON, the chime will sound for four (4) to
eight (8) seconds and the light will illuminate for one (1) to
two (2) minutes, or until the safety belt is fastened.
[LG10829(ALL)02/95]
n
If the driver fastens the safety belt before the ignition is
turned to ON, the chime will not sound and the light will
not illuminate.
[LG10832(ALL)02/95]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and the chime turn off.
