1996 FORD THUNDERBIRD engine

188 [RE02500( BC )05/95]
full page art:0010334-DThe 3.8L SFI engine
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

189 [RE02650(MBC )05/95]
full page art:0010666-G

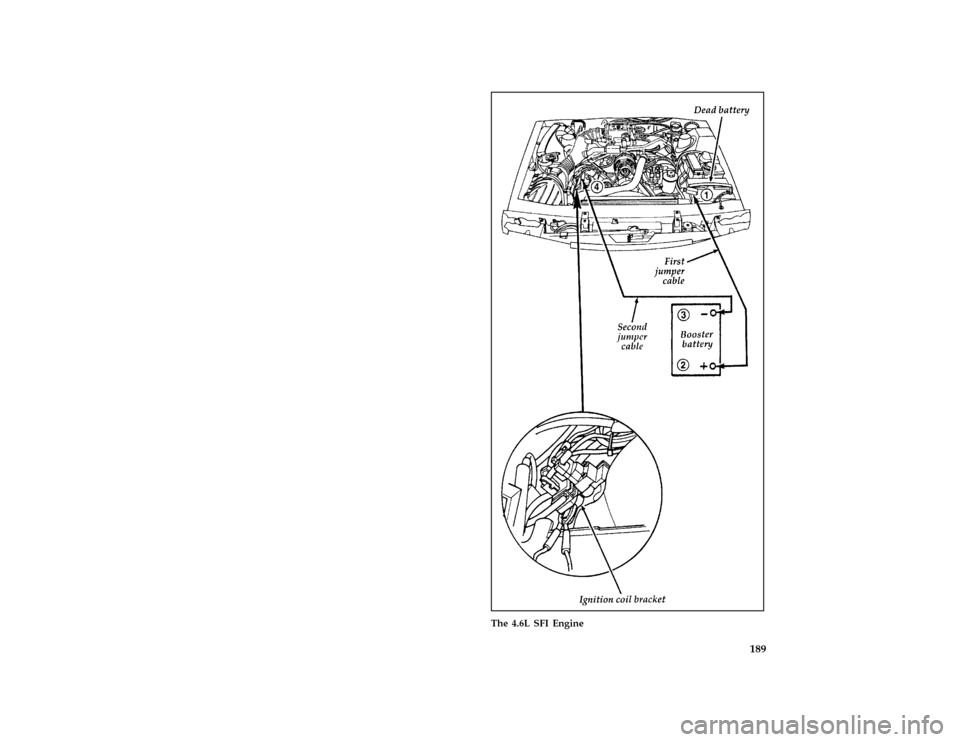

The 4.6L SFI Engine
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

190
*
[RE02900( ALL)03/95]
Jump-Starting
*
[RE03000( ALL)03/95]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[RE03100( ALL)03/95]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[RE03200( ALL)03/95]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
%*
[RE03300( ALL)03/95]
Removing jumper cables
*
[RE03400( ALL)03/95]
1.Always remove the jumper cables in the
reverse order.Remove the negative (s) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[RE03500( ALL)03/95]
2. Remove the negative (s) cable from the
booster battery.
*
[RE03600( ALL)03/95]
3. Remove the positive (+) cable from the
booster battery.
*
[RE03700( ALL)05/95]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[RE03800( ALL)04/95]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
You may need to use a battery charger to fully
recharge the battery.
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

194 %
*
[RE07300( ALL)03/95]
Preparing to Change the Tire
*
[RE07525( BCGV)03/95]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
[RE07550( BCGV)05/95]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park). To prevent the
vehicle from moving when you change a tire, be
sure the parking brake is set, then block the
wheel (both directions) that is diagonally
opposite (other side and end of the vehicle) to
the tire being changed.
*
[RE07560( ALL)05/95]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[RE07875( ALL)05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[RE07900( ALL)05/95]
2. Get out the spare tire and jack.
[RE08000( BC )11/92]
3. Remove any optional wheel covers or
hubcaps with the tapered end of a wheel nut
wrench. Insert the handle of the wrench and
twist it against the inner wheel cover flange.
For more about removing wheel covers, see
the information later in this chapter.
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

195
*
[RE08100( ALL)01/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts. SeeAnti-Theft Wheel Lug
Nutslater in this chapter for information on
removing anti-theft lug nuts.
%*
[RE08150( ALL)05/95]
Removing and Replacing the Tire
[RE08250( BC )12/94]
1. Find the underbody notches closest to the
wheel to be removed. Center the jack
between (2) underbody notches and turn the
handle of the jack clockwise until the wheel
is completely off the ground.
*
[RE08400( ALL)05/95]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

201
*
[RE13500(MBC )03/95]
Replacing the anti-theft lug nut
*
[RE13600(MBC )03/95]
Insert the key over the locking lug nut. Place the
lug nut wrench over the lug nut key and, while
applying pressure on the key, install the lug nut.
*
[RE13800( ALL)02/95]
If the Engine Cranks But Does
Not Start or Does Not Start After
a Collision
*
[RE13810( ALL)04/95]
The Fuel Pump Shut-off Switch
*
[RE13900( ALL)03/95]
If the engine cranks but does not start or if you
have had a collision, the fuel pump shut-off
switch may have been triggered. The shut-off
switch is a device that stops the fuel pump
when your vehicle has been involved in a
substantial jolt.
*
[RE14000( ALL)01/95]
For information on how to check and reset the
fuel pump shut-off switch, seeFuel pump shut-off
switchin the Index.
%
*
[RE14100( ALL)05/95]
Towing Your Vehicle
*
[RE14201( ALL)05/95]
If you need to have your vehicle towed, contact
a professional towing service or, if you are a
member, your roadside assistance center.
Recommended towing options include wheel lift
towing or flat bed towing.
[RE14210( BC)01/96]
DO NOT TOW WITH SLINGBELT EQUIPMENT
WHEN TOWING YOUR THUNDERBIRD FROM
THE REAR. Ford Motor Company has not
developed or approved a T-hook sling-type
procedure. When slingbelt towing from the front,
the towbar will deform the soft fascia (bumper).
However, it will return to an acceptable shape.
In both cases, wheel lift or flatbed equipment is
recommended.
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

213
*
[HS09400( ALL)05/95]
Consumers wishing to obtain further information
about the program can obtain an information
booklet from your dealer or contact the
Provincial Administrator, Canadian Motor
Vehicle Arbitration Plan, at the address or
telephone number shown below.
*
[HS09500( ALL)05/95]
O & P Services
595 Bay Street Ð Suite 300
Toronto, Ontario
M5G 2C2
Telephone 1 (800) 207-0685
[HS09600( ALL)05/95]
This plan is not available in the province of
Quebec.
%
*
[HS09700( ALL)05/95]
Getting Help Outside the U.S.
and Canada
*
[HS09800( ALL)05/95]
Before you export your vehicle to a foreign
country, contact the appropriate foreign embassy
or consulate to make sure local regulations do
not prevent you from registering your vehicle.
Officials at the embassy can also help you decide
whether you should import your vehicle to that
country.
*
[HS09900( ALL)05/95]
Officials at the embassy or consulate can tell you
where to get unleaded fuel. If you cannot get
unleaded fuel or can get only fuel with an
anti-knock index that is lower than your vehicle
needs, contact a district or owner relations office
before you leave the U.S. or Canada.
*
[HS10000( ALL)05/95]
Use of leaded fuel in your vehicle without a
proper conversion may damage the effectiveness
of your emissions control system and may cause
engine knocking or serious engine damage. Ford
Motor Company is not responsible for any
damage that is caused by use of improper fuel.
*
[HS10100( ALL)05/95]
You may also have difficulty importing your
vehicle back into the U.S. if you use leaded fuel.
File:rchsb.ex
Update:Mon Feb 19 10:47:39 1996

216
*
[AC00300( ALL)04/95]
A wide selection of accessories is available
through your local authorized dealer. These fine
accessories have been engineered specifically to
fulfill your automotive needs. They are custom
designed to complement the style and
aerodynamic appearance of your Ford-built
vehicle. In addition, each accessory is made from
high quality materials and meets or exceeds
Ford's rigid engineering and safety specifications.
That is why Ford brand accessories are
warranted for up to 3 years or 36,000 miles
(60,000 km), whichever comes first. See your
dealer for complete warranty information and
accessory availability.
*
[AC00350( ALL)03/95]

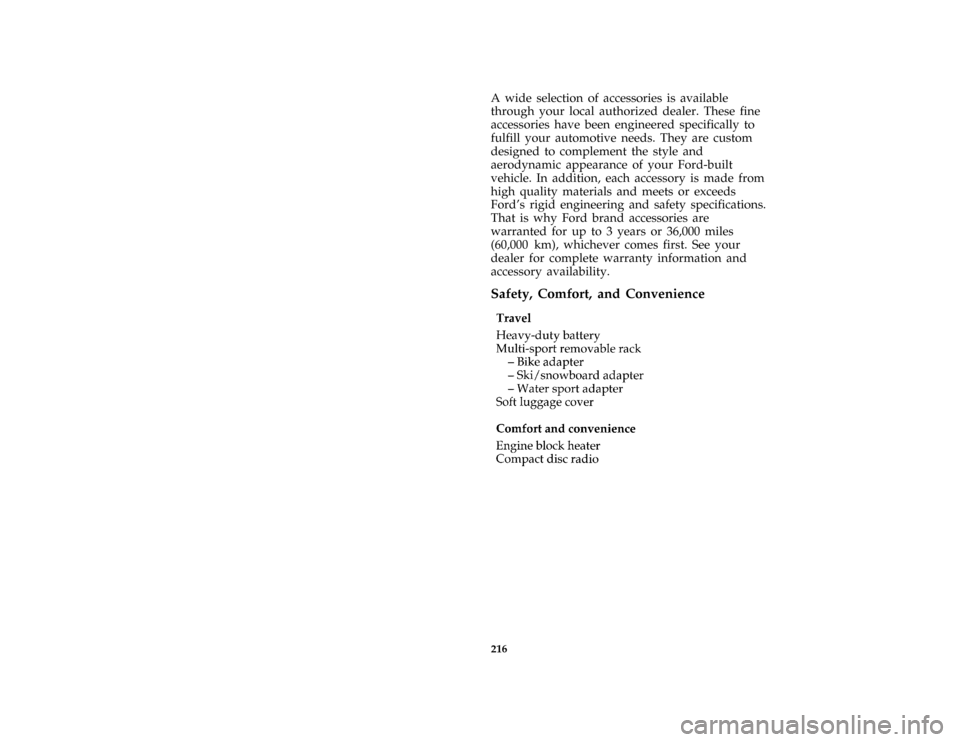

Safety, Comfort, and Convenience
[AC00430( BC )03/94]
fourteen pica chart:0010542-KFile:rcacb.ex
Update:Mon Feb 19 10:47:21 1996
