Introductory Information
*
[IN00300( ALL)04/95]
Ford's Commitment to You
*
[IN00400( ALL)04/95]
At Ford Motor Company, excellence is the
continuous commitment to achieve the best
result possible. It is dedication to learning what
you want, determination to develop the right
concept, and execution of that concept with care,
precision, and attention to detail. In short,
excellence means being the standard by which
others are judged.
*
[IN00500( ALL)04/95]
Our Guiding Principles
*
[IN00600( ALL)04/95]
q
Quality comes first.For your satisfaction, the
quality of our products and services must be
our number one priority.
*
[IN00700( ALL)04/95]
q
You are the focus of everything we do.Our
work must be done with you in mind,
providing better products and services than
our competition.
*
[IN00750( ALL)04/95]
q
Continuous improvement is essential to our
success.We must strive for excellence in
everything we do: in our products Ð in their
safety and value Ð and in our services, our
human relations, our competitiveness, and
our profitability.
*
[IN00800( ALL)04/95]
q
Employee involvement is our way of life.
We are a team. We must treat one another
with trust and respect.
*
[IN00900( ALL)04/95]
q
Dealers and suppliers are our partners.We
must maintain mutually beneficial
relationships with dealers, suppliers, and our
other business associates.
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

12
*
[SR02400(BEF )05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR02500(BEF )05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR02600(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR02800(BEF )03/95]
RWARNING
Never wear the shoulder belt under the
arm. Never swing it around the neck over
the inside shoulder. Never use a single
belt for more than one person or across
more than one seating position. Each
seating position in your vehicle has a
specific safety belt assembly which is
made up of one buckle and one tongue
that are designed to be used as a pair.
Failure to follow these precautions could
increase the risk and/or severity of injury
in a collision.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

15
*
[SR03135(BEF )05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR03137(BEF )05/95]
To fasten the belt
*
[SR03140(BEF )05/95]
Pull the combination lap/shoulder belt from the
retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If it is, remove the twist. Insert
the belt tongue into the proper buckle until you
hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR03145( EF )05/95]
one third page art:0020639-D*
[SR03160(BEF )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

17 [SR07400(BEF )05/95]
one third page art:0020638-C
Fastening occupant safety lap belts
[SR07500(BEF )04/95]
To fasten the belt, pull the belt across your hips
and insert the tongue into the correct buckle on
your seat until you hear a snap and feel it latch.
Make sure the buckle is securely fastened by
pulling tongue.
*
[SR07600(BEF )03/91]
Adjust the belt so that it fits snugly and as low
as possible around the hips:
*
[SR07700(BEF )02/95]
q
If you need to lengthen the belt, unfasten it
and repeat the procedure above.
*
[SR07800(BEF )03/95]
q
If you need to shorten the belt, pull on the
loose end of the webbing.
[SR08500(BEF )05/95]
To unfasten the belt:
[SR08525(BEF )05/95]
1. Push the release button on the buckle. This
allows the tongue to unlatch from the
buckle.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

33
*
[SR14600(BEF )05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR14700(BEF )05/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR14800(BEF )05/95]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SR14900( F )05/95]
RWARNING
Do not install a child seat in a center
facing jump seat.
*
[SR15000(BEF )05/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

35
*
[SR15800(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR15900(BEF )01/95]
Safety Seats for Children
*
[SR16000(BEF )05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SR16015(BEF )02/95]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps seeAttaching
Safety Seats With Tether Strapsin this chapter.
[SR16025(BEF )05/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position making sure the tongue is securely
fastened in the buckle and for a shoulder/lap
belt combination with a sliding tongue make
sure the retractor is in the ªautomatic locking
mode.º
*
[SR16095(BEF )05/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SR16100(BEF )05/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

39 [SR16365(BEF )04/95]
half page art:0011239-B
Routing the lap/shoulder belt
*
[SR16370(BEF )04/95]
4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. Figure 3. Make sure tongue is
latched securely to buckle by pulling on
tongue.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

43
*
[SR16410(BEF )04/95]

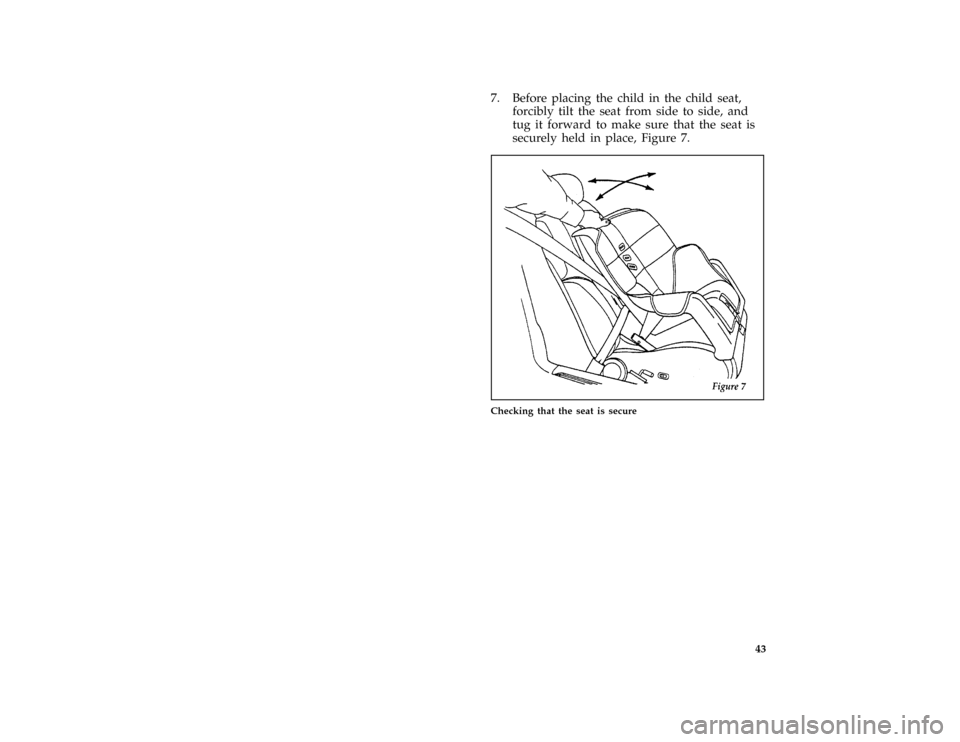

7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place, Figure 7.
*
[SR16412(BEF )04/95]
half page art:0011244-A
Checking that the seat is secure
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996
