1996 FORD F150 cooling

328
*
[SV20001( ALL)01/95]
Use Ford Premium Cooling System Fluid or an
equivalent engine coolant that meets Ford
Specification ESE-M97B44-A. Do not use alcohol
or methanol antifreeze and do not use engine
coolant mixed with alcohol or methanol
antifreeze. If you do not use the proper coolant,
the aluminum radiator on your vehicle will
corrode.
*
[SV20100( ALL)01/95]
Leave the engine coolant in all year. Make sure
that the coolant will not freeze at the
temperature level in which you drive during
winter months. Keep a mixture of engine coolant
in your engine that has a protection rating of at
least-34ÊF (-37ÊC), orwhatever protection rating
is appropriate for the climate in which you live.
*
[SV20125( ALL)03/95]
To find out how much engine coolant mixture
your vehicle's coolant system can hold, seeRefill
capacities for fluidsin the Index.
*
[SV20151( ALL)01/95]
You may add water by itself only in an
emergency, but you should replace it with a
50/50 or appropriate mixture as soon as
possible.
*
[SV20200( ALL)01/95]
Have your dealer check the engine cooling
system for leaks if you have to add a quart
(liter) of engine coolant more than once a month.
%*
[SV20500( ALL)11/94]
Checking hoses
*
[SV20600( ALL)10/89]
Inspect all engine and heater system hoses for
deterioration, leaks and loose clamps before
adding or replacing engine coolant. Make
whatever repairs or replacements that are
necessary using Motorcraft parts or their
equivalents.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

329
*
[SV20700( ALL)05/95]
Engine coolant drain and flush
*
[SV20800( ALL)10/89]
To drain your vehicle's engine coolant:
*
[SV20900( ALL)03/94]
1. Turn off the engine and let it cool. Fully
depressurize the engine cooling system by
covering the radiator cap with a thick cloth
and turning it slowly counterclockwise to the
first stop. Step back while the pressure
releases.
*
[SV20950( ALL)05/90]
2. Remove the cap.
*
[SV21000(B FM)05/90]
3. Attach a small hose to the drain tube at the
bottom of the radiator.
*
[SV21200( ALL)05/90]
4. Let the engine coolant drain into a suitable
container. Disconnect the lower radiator hose
at the radiator connector and drain any
remaining engine coolant into a container.
*
[SV21225( ALL)05/94]
5. Reconnect the lower radiator hose and close
the radiator drain cock.
*
[SV21250( ALL)10/94]
Proper procedures for flushing the cooling
system can be found in theTruck Service Manual.
*
[SV21300( ALL)02/95]
Engine coolant refill procedure
*
[SV21400( ALL)10/89]
After you have drained the engine cooling
system:
*
[SV21500( ALL)01/89]
1. Fill the radiator with a 50/50 mixture of the
specified engine coolant concentrate and
water. Allow several minutes for trapped air
to escape (bubble out) and for engine coolant
to flow through the radiator.
*
[SV21900( ALL)03/94]
2. Replace the radiator cap to its fully installed
position, then back off to the first stop. This
will prevent high pressure from building up
in the cooling system during this part of the
fill procedure.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

383
*
[SV52675( F )05/90]

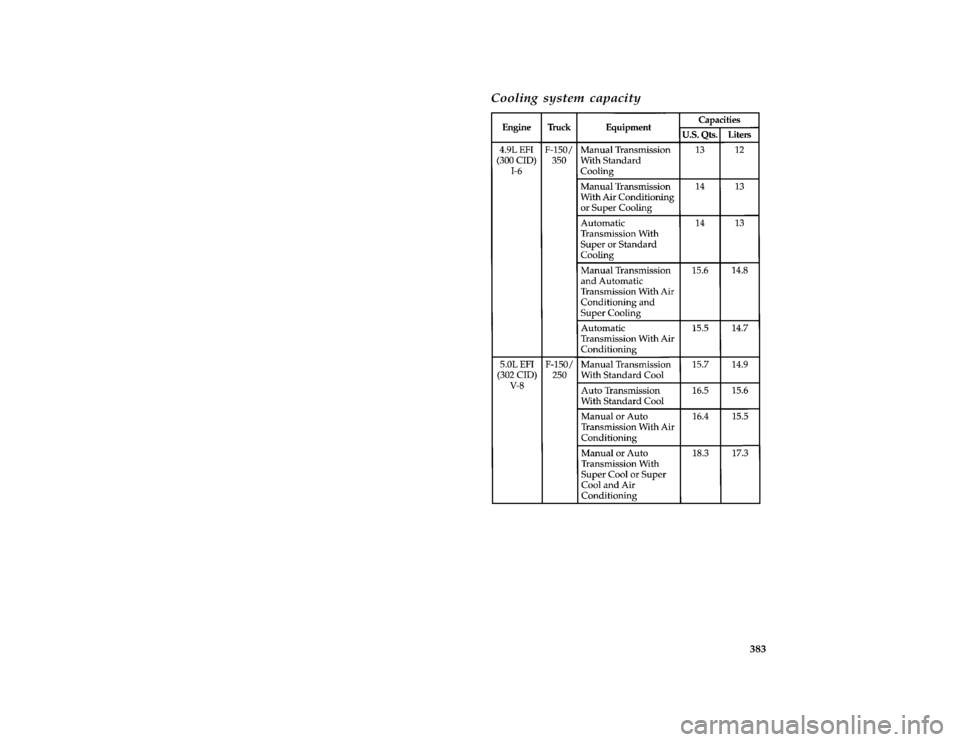

Cooling system capacity
*
[SV52700( F )03/94]
thirty pica chart:0020427-E
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

393 %
*
[SV57350( ALL)01/95]
Engine
*
[SV57400( ALL)01/95]
q
Start engine every 15 days. Run at fast idle
until it reaches normal operating temperature.
*
[SV57500( ALL)01/95]
q
With your foot on the brake, shift through all
the gears while the engine is running.
%*
[SV57600( ALL)01/95]
Fuel system
*
[SV57700( ALL)07/94]
q
Fill fuel tank with high-quality unleaded fuel
until the first automatic shutoff of the fuel
pump nozzle.
*
[SV57900( ALL)03/95]
NOTE: During extended periods of vehicle
storage (60 days or more), fuel may
deteriorate due to oxidation. This can
damage rubber and other polymers in
the fuel system and may also clog
small orifices.
*
[SV58000( ALL)01/95]
Ford Gas Stabilizer should be added whenever
actual or expected storage periods exceed 60
days. Follow the instructions on the label. The
vehicle should then be operated at idle speed to
circulate the additive throughout the fuel system.
*
[SV58050( EF )05/94]
NOTE: Read the7.3L Diesel Engine Owner
Guide Supplementfor information
regarding vehicle storage for your
diesel-powered vehicle.
*
[SV58100( ALL)01/95]
A volatile corrosion inhibitor added to the fuel
system will protect the fuel system's inner
surfaces from corrosion. Follow the instructions
packaged with the product.
%*
[SV58200( ALL)01/95]
Cooling system
*
[SV58300( ALL)01/95]
q
Protect against freezing temperatures.
