1996 FORD F150 engine

6rear edge of the driver's door. You can
determine whether the ambulance manufacturer
followed Ford's recommendations by directly
contacting that manufacturer.NOTE: Ford
Ambulance Preparation Packageis only
available on certain 7.3L Diesel Econoline and
F-Series vehicles.
*
[IN05050( EF )02/89]
NOTICE TO OWNERS OF
DIESEL-POWERED VEHICLES
*
[IN05070( EF )04/89]
Read the7.3L Diesel Engine Owner's Guide
Supplementfor information regarding correct
operation and maintenance of your
diesel-powered light truck.
%
*
[IN05100( ALL)05/95]
Your Vehicle Identification
Number (VIN)
*
[IN05200( ALL)05/95]
Your Vehicle Identification Number (VIN) is the
same as the warranty number that appears on
your owner card. You should include this
number any time you write to Ford Motor
Company about your vehicle.
*
[IN05300(BEF )05/95]
The Vehicle Identification Number is attached to
your vehicle in the following places:
*
[IN05350( EF )05/90]
Complete Ford Built Vehicles
*
[IN05400(BEF )05/95]
q
on the metal tag attached to the top of the
instrument panel on the driver's side Ð you
can see the tag by looking through the
windshield from outside your vehicle.
*
[IN05450(BEF )10/89]
one inch art:0010558-A
Vehicle Identification Number (VIN/Serial Number)
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

9 %
*
[IN06800(BEF )01/95]
q
Use only the type of engine oil that Ford
recommends.SeeEngine oil recommendations
in the Index. Do not use special ªbreak-inº
oils.
%
*
[IN07100(BEF )04/95]
Cleaning the Outside of Your
Vehicle
%*
[IN07200(BEF )04/95]
Washing and Polishing Your Vehicle
*
[IN07300(BEF )04/95]
Wash the outside of your vehicle, including the
underside, with a mild detergent.
*
[IN07400(BEF )04/95]
DO NOT:
*
[IN07500(BEF )04/95]
q
Wash your vehicle with hot water
*
[IN07600(BEF )04/95]
q
Wash your vehicle while it sits in direct
sunlight
*
[IN07700(BEF )04/95]
q
Wash your vehicle while the body is hot
*
[IN07800(BEF )05/95]
Pollen, bird droppings and tree sap can damage
the paint, especially in hot weather. Wash your
vehicle as often as necessary to keep it clean.
*
[IN07900(BEF )05/95]
Take similar precautions if your vehicle is
exposed to chemical industrial fallout.
*
[IN08000(BEF )04/95]
Paint damage resulting from fallout is not
related to a defect in paint materials or
workmanship and therefore is not covered by
warranty. Ford, however, believes that continual
improvement in customer satisfaction is a high
priority. For this reason, Ford has authorized
their dealers to repair, at no charge to the
owner, the surfaces of new vehicles damaged by
environmental fallout within 12 months or 12,000
miles (20,000 km) of purchase, whichever comes
first. Customers may be required to bring their
vehicle in for inspection by a Ford
representative.
*
[IN08100(BEF )04/95]
Polish your vehicle to remove harmful deposits
and protect the finish.
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

30
*
[SR13600(BEF )03/95]
Disposal of supplemental air bag equipped
vehicles
*
[SR13700(BEF )03/95]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer, or refer to the procedures in the 1995
Ford Service Manual. Information on how to
order a service manual is available at an
authorized Ford or Lincoln-Mercury dealer. You
can also order a service manual using the order
form in theAccessorieschapter of your Owner
Guide.
%*
[SR13800(BEF )05/95]
Service and information labels
*
[SR13900(BEF )05/95]
Service and information labels are attached to
the sun visors, the headliner above the sun
visors (Canadian vehicles), and the radiator
support in the engine compartment.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

32
*
[SR14200(BEF )02/94]

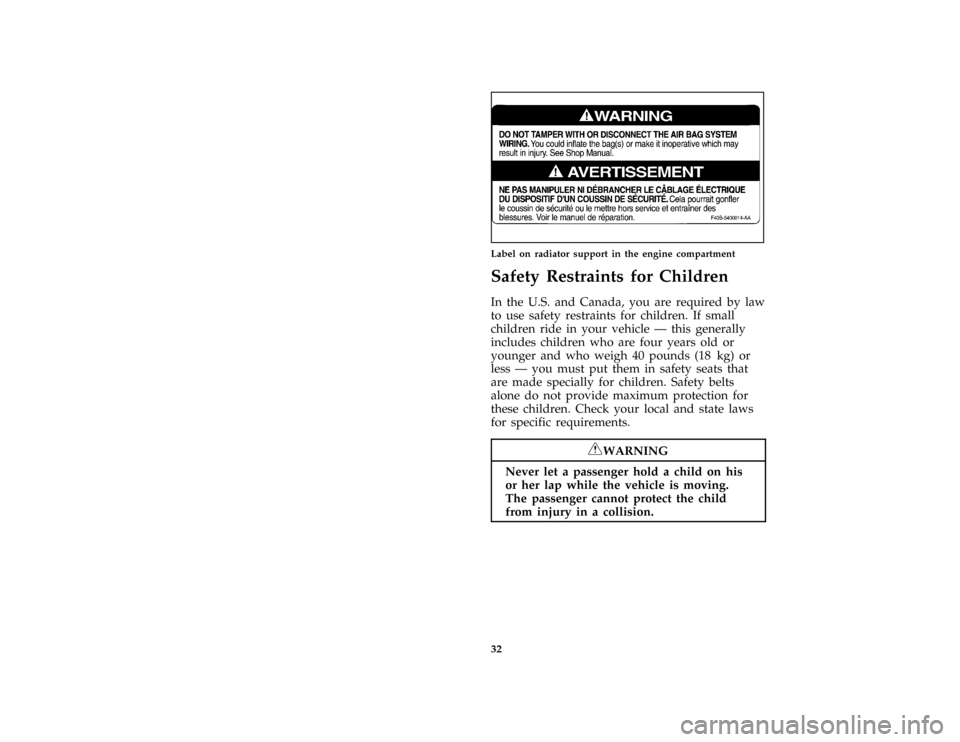

one third page art:0010605-D
Label on radiator support in the engine compartment
%*
[SR14300(BEF )05/95]
Safety Restraints for Children
*
[SR14400(BEF )02/95]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
*
[SR14500(BEF )05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

49
Starting Your F-Series
*
[ST01700( ALL)03/95]
Ignition
%*
[ST01800( ALL)01/95]
Understanding the Positions of the Ignition
*
[ST02000( ALL)05/90]

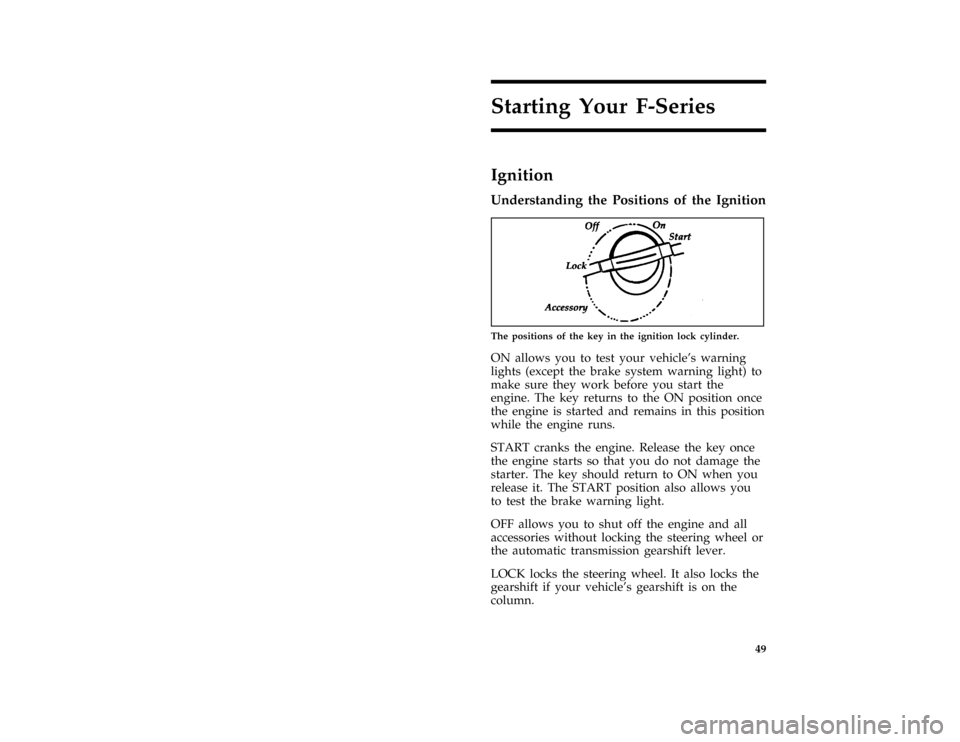

quarter page art:0020004-B
The positions of the key in the ignition lock cylinder.
*
[ST02200( ALL)03/95]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
*
[ST02300( ALL)03/95]
START cranks the engine. Release the key once
the engine starts so that you do not damage the
starter. The key should return to ON when you
release it. The START position also allows you
to test the brake warning light.
*
[ST02400( ALL)03/95]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
[ST02500(B F )05/95]
LOCK locks the steering wheel. It also locks the
gearshift if your vehicle's gearshift is on the
column.
File:ltstf.ex
Update:Thu May 9 15:26:52 1996

50
*
[ST02600(B F )05/95]
RWARNING
LOCK position does not lock the gearshift
on floor-mounted gearshifts. If the
parking brake is not set and the gearshift
is moved out of Park (automatic
transmission) or out of gear (manual
transmission), your vehicle may move
unexpectedly.
[ST02635(B F )05/95]
With the transfer case in N (Neutral), the vehicle
is free to move with either the automatic
transmission in P (Park) or with the manual
transmission in any driving gear.
*
[ST02650(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[ST02700( ALL)01/95]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
%*
[ST02800( ALL)05/95]
If the key is stuck in the LOCK position, move
the steering wheel left or right until the key
turns freely.
%*
[ST02900( ALL)03/95]
ACCESSORY allows some of your vehicle's
electrical accessories such as the radio and the
windshield wipers to operate while the engine is
not running.
*
[ST02950(B F )01/95]
In order to turn the key from the ON or OFF
position to the ACCESSORY position, you must
push the key release button if your vehicle's
manual transmission gearshift is mounted on the
floor.
File:ltstf.ex
Update:Thu May 9 15:26:52 1996

53
*
[ST04750( ALL)01/93]
RWARNING
Do not leave children, unreliable adults,
or pets alone in your vehicle. They could
accidentally injure themselves or others
through inadvertent operation of the
vehicle. Further, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe and possibly fatal injuries to
people as well as animals.
%
*
[ST04800( ALL)03/95]
Fuel-Injected Engines
*
[ST04850( EF )04/94]
NOTE: For owners of diesel-powered vehicles,
refer to theDiesel Engine Owners Guide
Supplementfor information on starting
your vehicle.
*
[ST04900(BEF )03/95]
When starting a fuel-injected engine,the most
important thing to remember is to avoid
pressing down on the accelerator before or
during starting. Only use the accelerator when
you have problems getting your vehicle started.
SeeStarting Your Enginein this chapter for
details about when to use the accelerator while
you start your vehicle.
*
[ST05000(B F )01/95]
Because your vehicle's engine is electronically
controlled by a computer, some control
conditions are maintained by power from the
battery. If you ever disconnect the battery, install
a new battery, or experience a dead battery, you
must allow the computer to ªrelearnº its idle
conditions before your vehicle will idle at its
best. To let the engine do this, apply the parking
brake, put the gearshift in Park (automatic
transmission) or Neutral (manual transmission),
turn off all the accessories, and start the vehicle.
Let the engine idle for at least one minute.
File:ltstf.ex
Update:Thu May 9 15:26:52 1996

54
*
[ST05100(BEF )03/95]
If you do not let the engine relearn its idle, the
idle quality of your vehicle may be adversely
affected until the idle is relearned. Your vehicle
will eventually relearn its idle while you drive
it, but it takes much longer than if you use the
previous procedure.
[ST05150( ALL)02/95]Starting your vehicle
%*
[ST05200( ALL)05/94]
Preparing to Start Your Vehicle
*
[ST05300( ALL)05/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
*
[ST05400( ALL)01/95]
Before you start your vehicle, do the following:
*
[ST05500(BEF )01/95]
1. Make sure you and all your passengers
buckle your safety belts. SeeSafety Restraints
in the Index for more details.
*
[ST05600( ALL)03/95]
2. Make sure the headlamps and other
accessories are turned off when starting.
*
[ST05700(B F )10/94]
3.If you have an automatic transmission,
make sure that the gearshift lever is in P
(Park) and the parking brake is set before
you turn the key.
*
[ST05800(B F )03/91]
4.If you have a manual transmission,make
sure that the parking brake is fully set, push
the clutch pedal to the floor, and put the
gearshift into Neutral before you turn the
key. (Remember, the starter will operate only
if the clutch pedal is pushed in all the way).
File:ltstf.ex
Update:Thu May 9 15:26:52 1996
