1996 FORD F150 flat tire

215
*
[DR29350( ALL)05/94]
Do not tow a trailer until your vehicle has been
driven at least 500 miles (800 km).
*
[DR29401( ALL)06/92]
Vehicle Loading/Towing
Information
*
[DR29450(BEF )03/91]
Your vehicle's load capacity is designated by
weight, not volume, so you cannot necessarily
use all available space with large or heavy loads.
Maximum safe vehicle weights as well as tire,
rim sizes and inflation pressures are specified for
your vehicle at the assembly plant on the Safety
Compliance Certification Label. The Certification
Label is located on the left front door lock facing
or the door latch post pillar.
*
[DR29501( ALL)12/91]
Trucks, unlike passenger cars, are basically
custom vehicles designed to carry a load. Most
owners start with a base vehicle and add
production and dealer installed and/or
aftermarket components to suit their tastes and
purposes. Even trucks that are purchased for
personal transportation only are likely to have
considerable optional equipment, such as step
bumpers and light bars, for example.
*
[DR29525( ALL)05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[DR29551( ALL)03/91]
Each additional item of equipment affects how
much cargo a vehicle can carry. If a vehicle is
overloaded, performance will suffer and service
concerns may arise.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

219
*
[DR31050( ALL)06/92]
Passenger car type tires when installed on light
trucks and multipurpose passenger vehicles are
rated at 10% lower load carrying capacity due to
the differences in vehicle usages.
*
[DR31101(BEF )07/92]
The vehicle must not be loaded to both the front
and rear GAWR because the GVWR will be
exceeded. The GAWR of the front and rear axles
exceed the GVWR when added together to allow
flexibility in fore and aft loading of cargo.
*
[DR31110( ALL)06/92]
With the tires inflated to the specified pressure
the total weight of your vehicle must not exceed
the GVWR and GAWR specified on the Safety
Compliance Certification Label. This includes full
fuel tank(s), vehicle equipment, and occupants as
well as the cargo load.
*
[DR31120( ALL)06/92]
GCWR (Gross Combined Weight Rating)
*
[DR31130( ALL)06/92]
GCWR is the maximum combined weight of the
towing vehicle (including passengers and cargo)
and the loaded trailer. The GCWR is specified
by the manufacturer to indicate the combined
maximum loaded weight that the vehicle is
designed to tow.
*
[DR31140( ALL)06/92]
Maximum Trailer Weight Rating
*
[DR31150( ALL)06/92]
The maximum weight of a trailer the vehicle is
permitted to tow. The maximum trailer weight
rating is specified by the manufacturer and is
determined by subtracting the vehicle curb
weight for each engine/transmission
combination, any required option weight for
trailer towing and the weight of the driver from
the GCWR for the towing vehicle.
*
[DR31160( ALL)06/92]
Maximum Trailer Weight
*
[DR31170( ALL)06/92]
The maximum weight of a trailer the loaded
vehicle is permitted to tow. The maximum
weight of the trailer is determined by subtracting
the weight of the loaded towing
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

258
%*
[RE03600( ALL)03/95]
Changing a Tire
*
[RE03700( ALL)01/95]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
*
[RE03800( ALL)03/95]
The Conventional Spare Tire
*
[RE03900(BEF )01/95]
If you have the conventional spare tire, you can
use it as a spare or as a regular tire. This spare
tire is identical to the other tires that come with
your vehicle, although the wheel may not match.
*
[RE04275(BEF )05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[RE04280(BEF )10/94]
Extended use of other than matching size spare
tires on a Traction-Lok axle could result in a
permanent reduction in effectiveness. This loss of
effectiveness does not affect normal driving and
should not be noticeable to the driver.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

271
*
[RE21151(BEF )10/92]

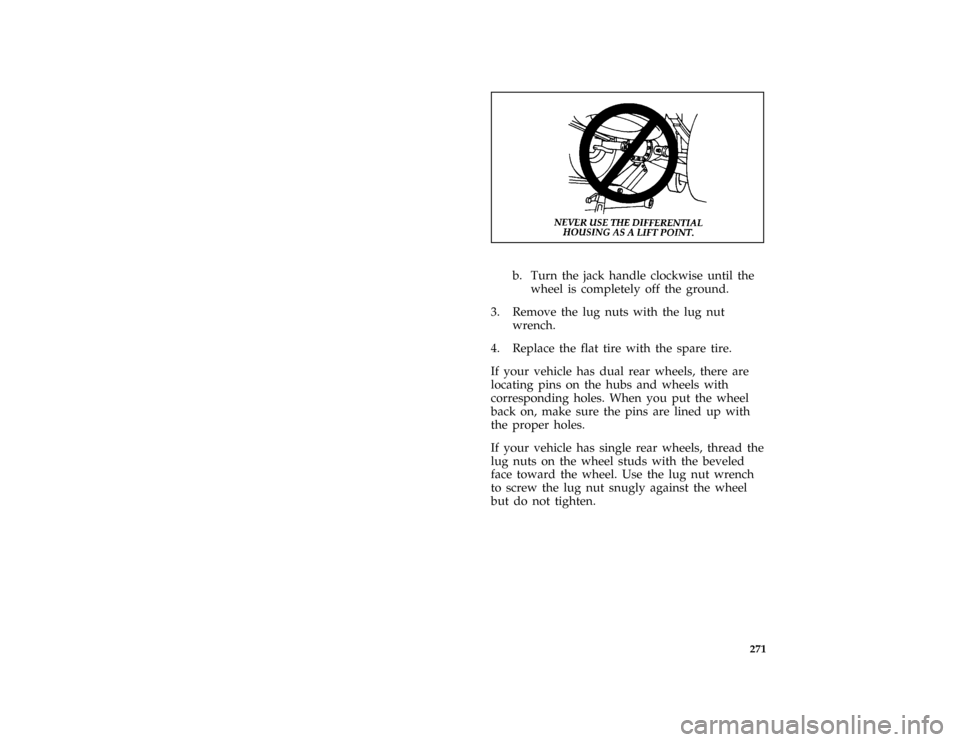

one third page art:0020939-B
*
[RE21200( F )08/91]
b. Turn the jack handle clockwise until the
wheel is completely off the ground.
*
[RE21400(BEF )01/95]
3. Remove the lug nuts with the lug nut
wrench.
*
[RE21500(BEF )01/95]
4. Replace the flat tire with the spare tire.
*
[RE21600( EFM)01/89]
If your vehicle has dual rear wheels, there are
locating pins on the hubs and wheels with
corresponding holes. When you put the wheel
back on, make sure the pins are lined up with
the proper holes.
[RE21800( EF )02/95]
If your vehicle has single rear wheels, thread the
lug nuts on the wheel studs with the beveled
face toward the wheel. Use the lug nut wrench
to screw the lug nut snugly against the wheel
but do not tighten.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

274 [RE23615(BEF )02/95]8. Put the tire, jack, and wrench away. (Make
sure jack is securely fastened so it doesn't
rattle when you drive.) The carrier is
designed to hold the temporary spare which
comes with your vehicle. The stowage of a
full size tire in the spare tire carrier may
damage the tire or the vehicle. The flat full
size tire should be stowed securely in the
vehicle until it can be repaired.
*
[RE23700(BEF )01/95]
9. Unblock the wheels.
*
[RE24100( EFM)06/93]
On vehicles equipped with dual rear wheels
retighten the wheel lug nuts to the specified
torque at 100 miles (160 km), and again at 500
miles (800 km) of new vehicle operation and at
the intervals specified in theMaintenance Schedule
and Recordbooklet.
*
[RE24200( ALL)10/89]
Also retighten to the specified torque at 500
miles (800 km) of operation after any wheel
change or any time the lug nuts are loosened.
*
[RE24301( ALL)05/95]
RWARNING
Failure to retighten wheel lug nuts at
mileages specified could allow wheels to
come off while the vehicle is in motion.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

281
Customer Assistance
%*
[HS00205( ALL)06/94]
Roadside Assistance
*
[HS00210( ALL)05/95]
Ford Motor Company has set up a 24-hour,
seven-day-a-week hotline with trained operators
that put you in touch with the help you need if
you experience a problem with your vehicle.
This complimentary service is provided to you
throughout your warranty period of 3 years or
36,000 miles (3 years or 60,000 km), whichever
comes first. To purchase Roadside Assistance
coverages beyond this period, through Ford
Auto Club, contact your Ford or
Lincoln-Mercury dealer (not available in
Canada).
*
[HS00215( ALL)06/94]
Roadside Assistance will cover the following:
*
[HS00220( ALL)06/94]
q
Mount your spare if you have a flat tire.
*
[HS00225( ALL)06/94]
q
Jump-start your battery if it is dead.
*
[HS00230( ALL)06/94]
q
Unlock your vehicle if you are locked out.
*
[HS00235( ALL)06/94]
q
Bring you fuel if you run out.
*
[HS00240( ALL)06/94]
q
Tow your vehicle if you are stranded. Even
non-warranty related tows, like accidents or
getting stuck in mud or snow, are covered
(some exclusions apply, such as impound
towing and repossession).
*
[HS00245( ALL)06/94]
How to use Roadside Assistance
*
[HS00250( ALL)06/94]
Your Roadside Assistance identification card can
be found in the Owner Guide portfolio in your
glove compartment. Complete the card and place
it in your wallet for quick reference.
File:lthsf.ex
Update:Thu May 9 15:20:42 1996

319
*
[SV12300(BEF )05/95]
Comparisons With EPA Fuel Economy
Estimates
*
[SV12400(BEF )05/95]
EPA fuel economy figures are obtained from
laboratory tests under simulated road conditions
and may not reflect the actual conditions you
experience or your style of driving. The EPA
fuel economy estimate is not a guarantee that
you will achieve the fuel economy shown.
*
[SV12450( F )03/93]
NOTE: There are no EPA fuel economy
estimates for vehicles over 8500 lbs.
(3,855 kg) GVW.
*
[SV12500( ALL)05/95]
Improving Fuel Economy
*
[SV12600( ALL)05/95]
Fuel economy is affected by a number of
variables which can reduce efficiency. You can
improve fuel economy by understanding these
variables and minimizing their effect.
*
[SV12700( ALL)05/95]
The following decrease fuel economy:
*
[SV12800( ALL)05/95]
q
Lack of regular, scheduled maintenance
*
[SV12900( ALL)05/95]
q
Driving with your foot on the brake
*
[SV13000( ALL)05/95]
q
Sudden stops
*
[SV13100( ALL)05/95]
q
Excessive speed
*
[SV13200( ALL)05/95]
q
Extended engine idling
*
[SV13300( ALL)05/95]
q
Heavy loads
*
[SV13400( ALL)05/95]
q
Underinflated tires
*
[SV13500(BEF )05/95]
q
Extended use of the A/C, defroster, rear
window defroster and other accessories
*
[SV13550(BEF )05/95]
q
Aftermarket add-ons such as bike, ski or
luggage racks, bug deflectors, etc.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

332 %
*
[SV24500(BEF )03/95]
Wiper Blades
*
[SV24600(BEF )03/95]
Check the windshield wiper blades at least twice
a year. Also check them whenever they seem
less effective than usual. Such substances as tree
sap and some hot wax treatments used by
commercial car washes reduce the effectiveness
of wiper blades.
*
[SV24700(BEF )03/95]
If the blades do not wipe properly, clean both
the windshield and the wiper blades. Use
undiluted windshield washer solution or a mild
detergent. Rinse thoroughly with clear water. Do
not use fuel, kerosene, paint thinner, or other
solvents to clean your wiper blades. These will
damage your blades.
*
[SV24800(BEF )02/95]
To make reaching the wiper blades easy, simply
turn the ignition switch to ACC and turn your
wipers on. Wait for them to reach a vertical
position and turn the ignition to OFF. Do not
move the wipers manually. Moving the wipers
manually may damage them.
*
[SV24900(BEF )03/01]
Wiper blade replacement
*
[SV25000(BEF )03/95]
If the wiper blades still do not work properly
after you clean them, you may need to replace
the wiper blade assembly or the blade element.
When replacing the wiper blade assembly, blade
refill, or wiper arm always use a Motorcraft part
or equivalent. To replace the blades, follow the
instructions that come with them.
*
[SV25200( ALL)03/95]
Tires
*
[SV25300( ALL)03/95]
Look at your tires each time you fill your fuel
tank. If one tire looks lower than the others,
check the pressure in all of them. Always follow
these precautions:
*
[SV25400( ALL)04/95]
q
Keep your tires inflated to the pressures that
are recommended.(SeeChecking the pressure
of the tireslater in this chapter.)
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
