1996 FORD BRONCO Owners Manual

129
*
[FV26001(BEF )05/95]
RWARNING
Never adjust the driver's seat or seatback
when the vehicle is moving.
*
[FV26100(BEF )05/95]
RWARNING
Do not pile cargo higher than the
seatbacks to avoid injuring people in a
collision or sudden stop.
*
[FV26200(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, always drive and ride with your
seatback upright and the lap belt snug
and low across the hips.
*
[FV26300(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[FV26400(BEF )10/89]
Reclining Bucket Seats
*
[FV27301(BEF )02/92]
You can tilt the seat back of your bucket seats
backward.
*
[FV27401(B F )03/93]
1. On the outboard side of the seat, lift the
recliner handle up and hold it in place.
*
[FV27501(BEF )10/89]
2. Lean against the back of the seat and adjust
it to the position you want.
*
[FV27601(BEF )10/89]
3. Release the handle to lock the seat back in
place.
*
[FV27701(BEF )10/89]
4. To return the seat back upright, lift the
handle and lean forward.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

130
*
[FV27800(B F )02/92]

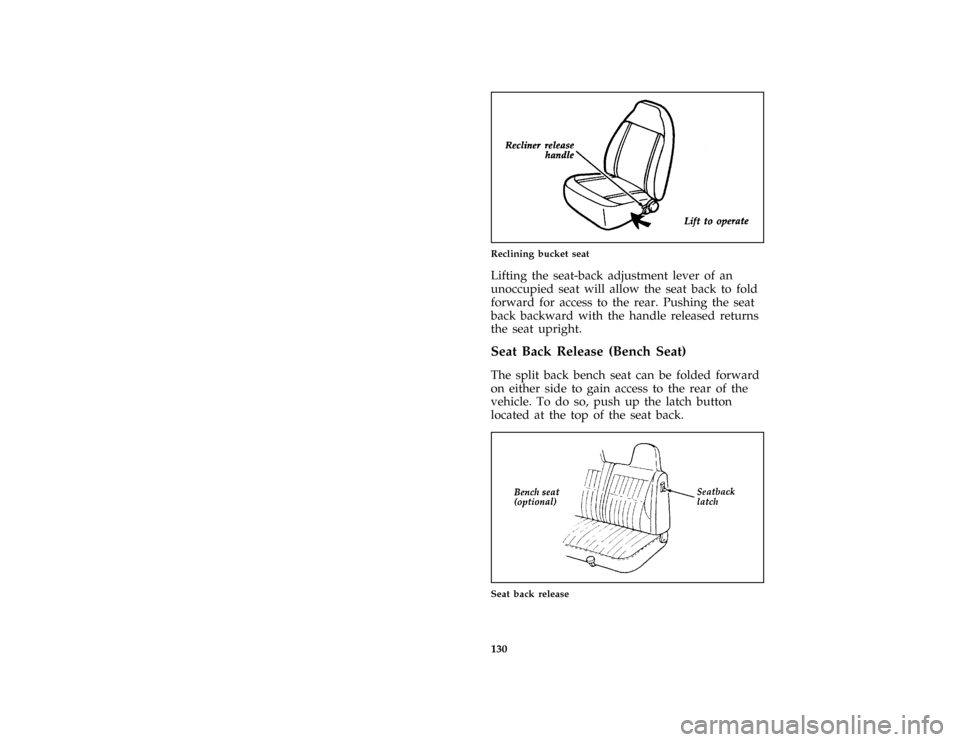

one third page art:0020222-B
Reclining bucket seat
*
[FV28001(B F )10/90]
Lifting the seat-back adjustment lever of an
unoccupied seat will allow the seat back to fold
forward for access to the rear. Pushing the seat
back backward with the handle released returns
the seat upright.
*
[FV30501(B F )01/89]
Seat Back Release (Bench Seat)
[FV30801(B )12/91]
The split back bench seat can be folded forward
on either side to gain access to the rear of the
vehicle. To do so, push up the latch button
located at the top of the seat back.
[FV31000(B )05/95]
one third page art:0020227-D
Seat back release
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

131
*
[FV31101(B F )05/95]
RWARNING
A seatback which is folded forward even
a small degree may not lock properly in
the event of a sudden stop or collision.
[FV43500(B )01/89]
Rear Flip Fold Seat
[FV43600(B )01/89]
To fold the seat forward:
[FV43700(B )01/89]
1. The seat back latch is at the lower rear right
hand side of the seat. Lift the latch handle to
unlock the seat back.
[FV43800(B )03/90]
2. Fold the seat back over the seat cushion
until it locks into place.
[FV43900(B )03/90]
3. Unlock the seat from the floor striker by
lifting the seat latch handle at the center rear
edge of the seat.
[FV44000(B )03/90]
4. Lift the seat and fold forward.
[FV44100(B )12/89]
To remove and reinstall the rear flip-fold
seat:
[FV44200(B )01/89]
1. Remove the torque rod by releasing it from
the right hand floor bracket (by pushing
forward and up).
[FV44300(B )01/89]
2. Remove the pin spring retainers and the pins
from both the floor brackets.
[FV44400(B )01/89]
3. Remove the seat assembly from your Bronco.
Reverse this procedure to install the rear
flip-fold seat.
[FV44500(B )05/90]
NOTE: It is important that you do not damage
the seat belt hardware while removing
or installing the rear flip-fold seat.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

132 [FV44600(B )01/89]

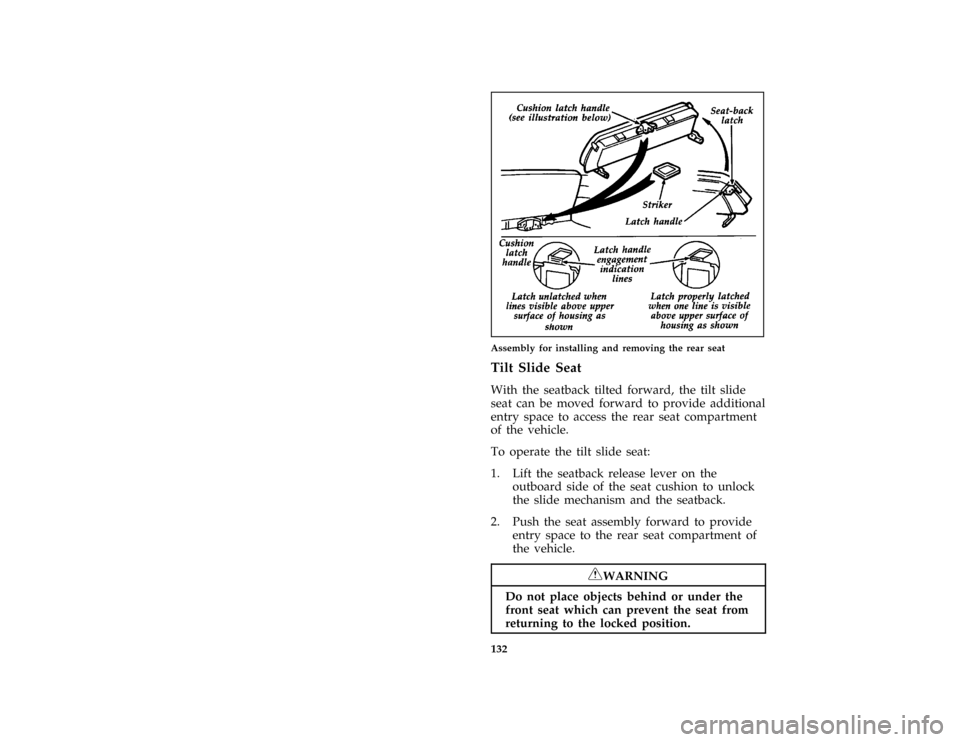

half page art:0020238-AAssembly for installing and removing the rear seat
*
[FV45901(B F )05/93]
Tilt Slide Seat
*
[FV46020(B F )05/93]
With the seatback tilted forward, the tilt slide
seat can be moved forward to provide additional
entry space to access the rear seat compartment
of the vehicle.
*
[FV46025(B F )05/94]
To operate the tilt slide seat:
*
[FV46030(B F )05/93]
1. Lift the seatback release lever on the
outboard side of the seat cushion to unlock
the slide mechanism and the seatback.
*
[FV46035(B F )03/93]
2. Push the seat assembly forward to provide
entry space to the rear seat compartment of
the vehicle.
*
[FV46043(B F )08/94]
RWARNING
Do not place objects behind or under the
front seat which can prevent the seat from
returning to the locked position.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

133
*
[FV46045(B F )05/93]
Relocking the seat after a tilt slide operation:
*
[FV46051(B F )05/93]
3. Push the seat backrest to its upright latched
position. Continue to push the seat rearward
to return it to its latched position. (This can
be done from inside the rear seat
compartment or from outside the vehicle.)
*
[FV46053(B F )10/94]
NOTE: The seat can no longer be moved
rearward when in its latched position.
*
[FV46055(B F )07/94]

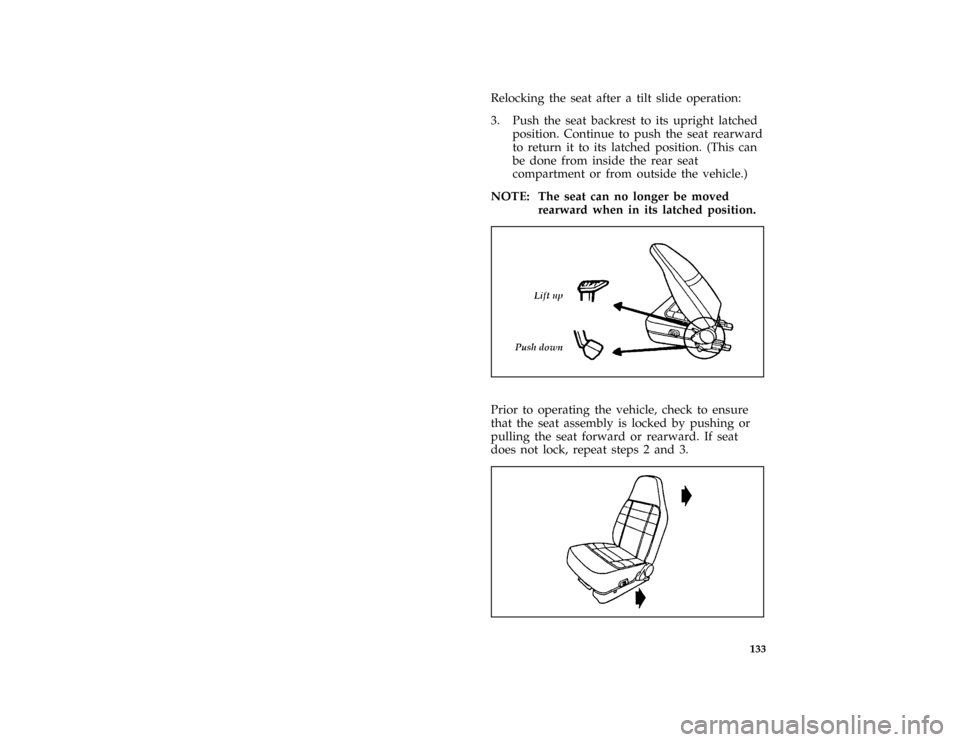

one third page art:0021018-B
*
[FV46065(B F )05/95]
Prior to operating the vehicle, check to ensure
that the seat assembly is locked by pushing or
pulling the seat forward or rearward. If seat
does not lock, repeat steps 2 and 3.
*
[FV46070(B F )07/94]
one third page art:0021019-B
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

134
*
[FV46075(B F )03/93]
To operate the seat adjuster:
*
[FV46080(B F )05/93]
4. To adjust the seats forward or rearward,
locate the release lever at the right lower
front area of the seat cushion. Move the
release lever to the right and hold until the
desired seat position is obtained, then release
the lever to relock the seat.
*
[FV46085(B F )07/94]

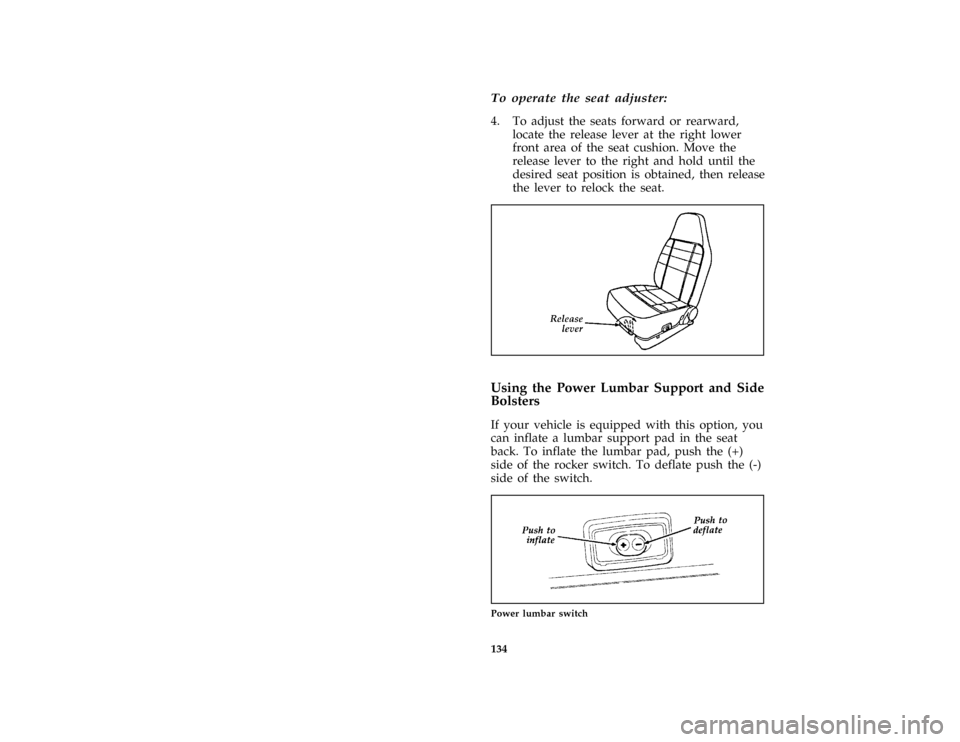

one third page art:0021020-B
*
[FV47000(BEF )03/94]
Using the Power Lumbar Support and Side
Bolsters
*
[FV47400(BEF )12/91]
If your vehicle is equipped with this option, you
can inflate a lumbar support pad in the seat
back. To inflate the lumbar pad, push the (+)
side of the rocker switch. To deflate push the (-)
side of the switch.
*
[FV47500(BEF )06/92]
quarter page art:0020860-B
Power lumbar switch
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

135
*
[FV47600(BEF )04/95]
Cleaning the Seats
*
[FV47620(BEF )05/95]
Leather and vinyl
*
[FV47625(BEF )05/95]
For routine cleaning, wipe the surface with a
soft, damp cloth. For more thorough cleaning,
wipe the surface with a leather and vinyl cleaner
or a mild soap.
*
[FV47630(BEF )04/95]
Wipe the surface with a damp, soft cloth, then
dry and buff with a dry, soft cloth.
*
[FV47640(BEF )04/95]
Fabric
*
[FV47650(BEF )04/95]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[FV47660(BEF )04/95]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
*
[FV50000(BEF )01/95]
Mirrors
*
[FV50200(BEF )03/91]
With the door closed and the seat adjusted for
comfort and proper vehicle control, move the
mirrors for best view by tilting up or down, left
or right. Do not adjust the mirrors while the
vehicle is in motion.
*
[FV50325(BEF )05/95]
RWARNING
Make sure you can see clearly through the
rearview mirror at all times. Do not allow
anything to block your vision. If you can't
see through the mirror, you could be
involved in an accident and injure
yourself or others.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

136 %
*
[FV50700(B F )01/95]
Automatic Dimming Inside Rearview
Mirror (If equipped)
*
[FV50850(B F )03/93]
half page art:0021008-A
Automatic dimming inside rearview mirror
*
[FV50900(B F )03/93]
This mirror is equipped with an electrochromic
glare control feature that automatically darkens
the mirror, reducing glare from the headlamps
of vehicles behind you. A forward facing light
sensor measures the ambient light just as your
eyes do. When the rear facing light sensor in the
glass senses glare, such as from following
headlights, it energizes a chemical layer in the
glass causing it to darken and absorb light. As
the glare subsides, the mirror glass returns to its
normal clear state.
*
[FV51050(B F )03/94]
To turn the mirror on, push the On/Off switch,
located on the bottom of the mirror, to latch it
in the ON position. The button will be latched in
the up position and at night a low intensity
green light will be visible from the button when
the mirror is turned on. To turn the mirror off,
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
