1996 CADILLAC FLEETWOOD check engine

Downloaded from www.Manualslib.com manuals search engine 2. Insert a screwdriver into the slot as shown and press
down to release
the wiper blade assembly from
the arm.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap it into place to install.

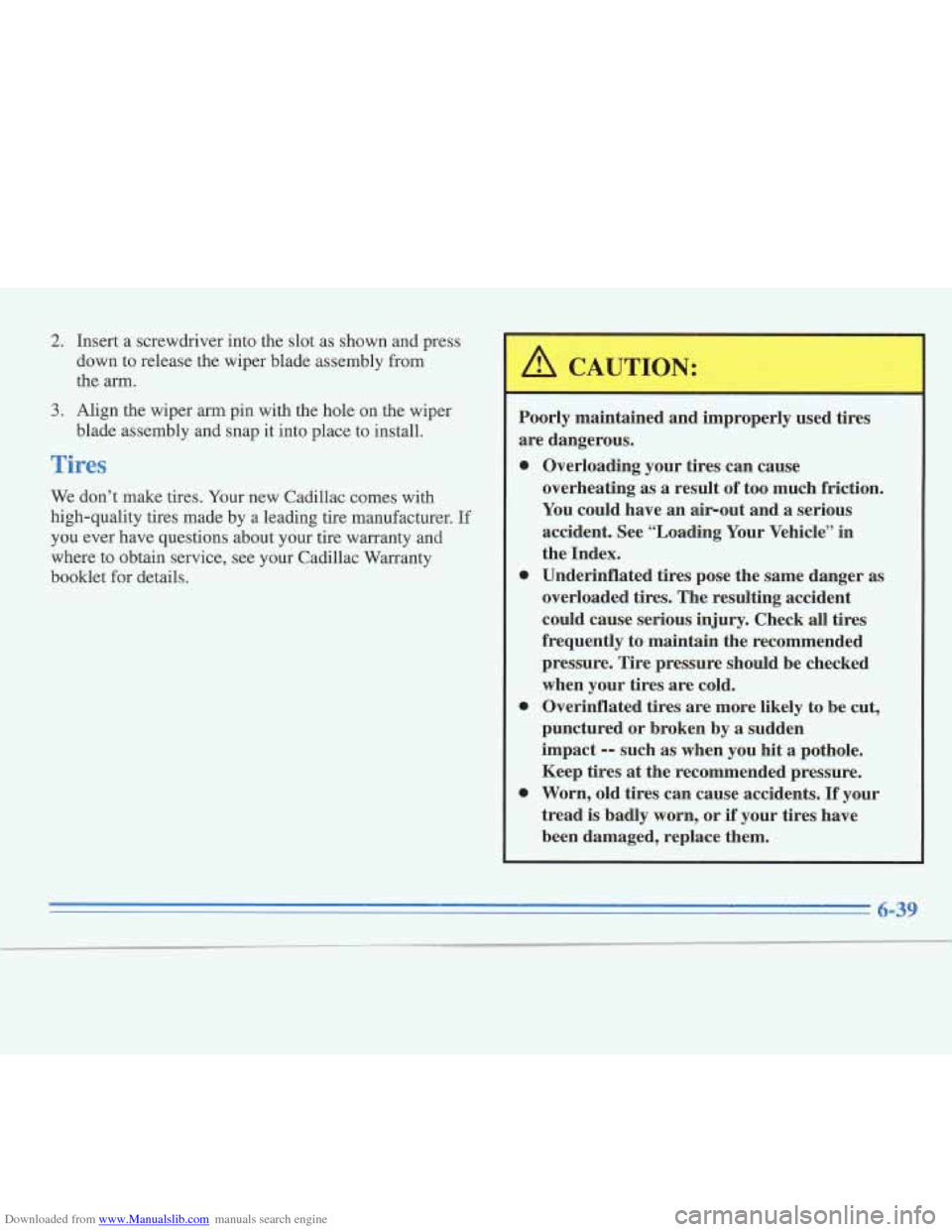

Tires
We don’t make tires. Your new Cadillac comes with
high-quality tires made by a leading tire manufacturer. If
you ever have questions about your tire warranty and
where to obtain service, see your Cadillac Warranty
booklet for details.
A CAUTION:
0
0
0
0
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause
overheating as
a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in
the Index.
Underinflated tires pose the same danger
as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
Overinflated tires are more likely to be cut,
punctured or broken
by a sudden
impact
-- such as when you hit a pothole.
Keep tires
at the recommended pressure.
Worn, old tires can cause accidents.
If your
tread is badly worn, or if your tires have
been damaged, replace them.
6-39

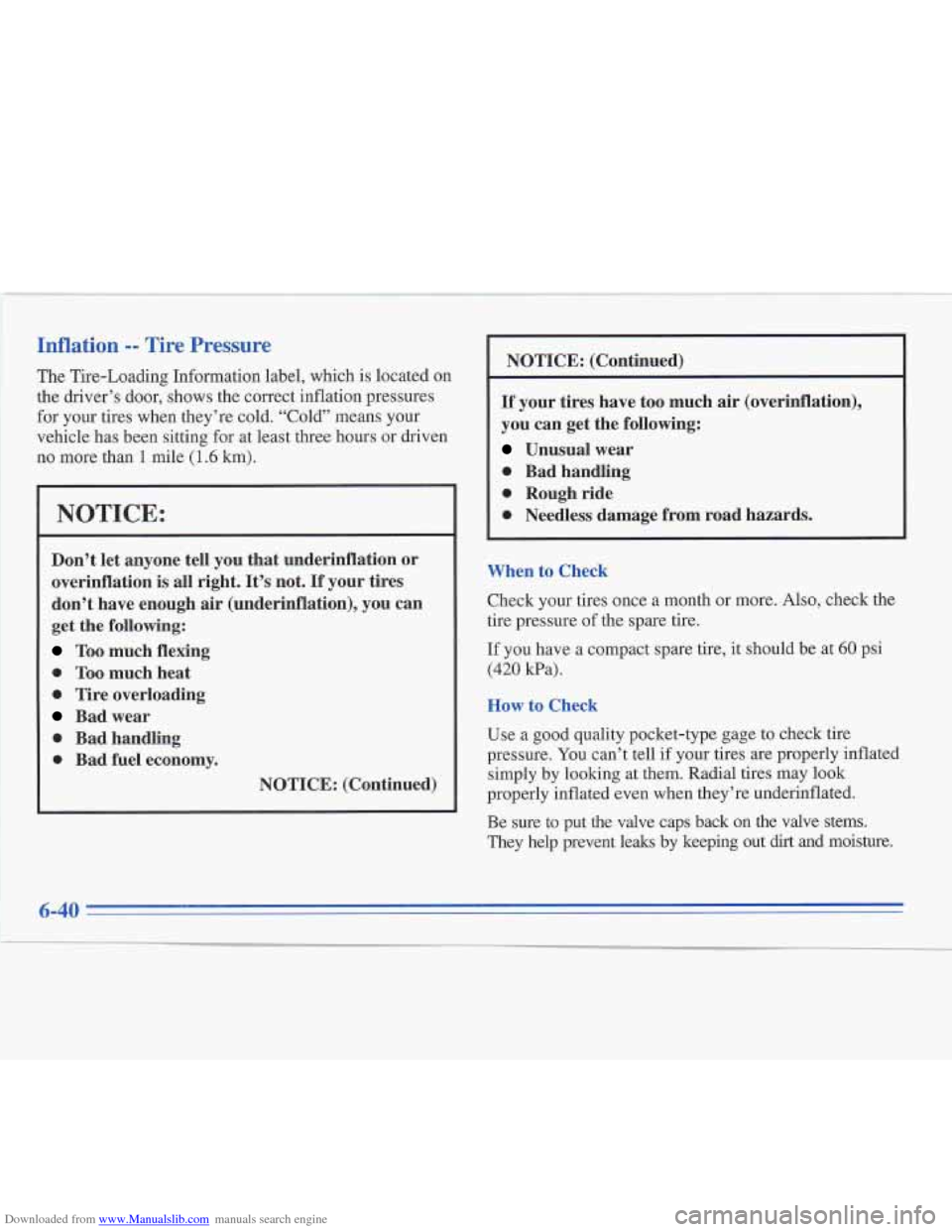

Downloaded from www.Manualslib.com manuals search engine Inflation -- Tire Pressure
The Tire-Loading Information label, which is located on
the driver’s door, shows the correct inflation pressures
for your tires when they’re cold. “Cold” means your
vehicle has been sitting for at least three hours or driven
no more than 1 mile
(1.6 km).
NOTICE: ~~~ ~~
Don’t let anyone tell you that underinflation or
overinflation is all right. It’s not. If your tires
don’t have enough
air (underinflation), you can
get the
following:
Too much flexing
0 Too much heat
0 Tire overloading
Bad wear
0 Bad handling
0 Bad fuel economy.
NOTICE: (Continued) NOTICE: (Continued)
If your
tires have too much air (overinflation),
you can get the following:
Unusual wear
0 Bad handling
0 Rough ride
0 Needless damage from road hazards.
When to Check
Check your tires once a month or more. Also, check the
tire pressure
of the spare tire.
If you have a compact spare tire, it should be at
60 psi
(420 Ea).
HQW to Check
Use a good quality pocket-type gage to check tire
pressure. You can’t tell
if your tires are properly inflated
simply by looking at them, Radial tires
may look
properly inflated even when they’re underinflated.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks by keeping out
dirt and moisture.

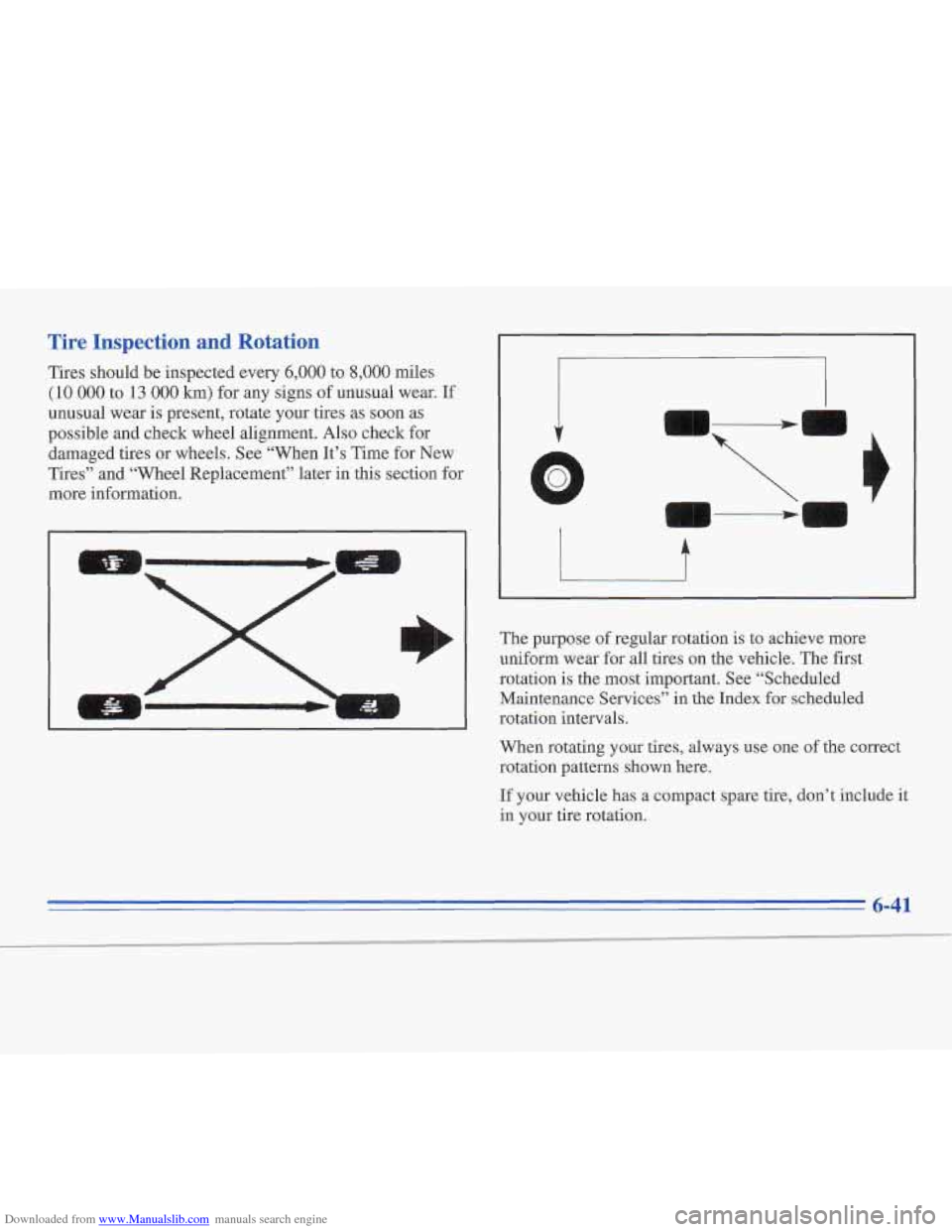

Downloaded from www.Manualslib.com manuals search engine Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles
(10 000 to 13 000 km) for any signs of unusual wear. If
unusual wear is present, rotate your tires as soon as
possible and check wheel alignment. Also check for
damaged tires or wheels. See “When It’s Time for New
Tires” and “Wheel Replacement” later in this section for
more information.
J.
Q
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first
rotation is the most important. See “Scheduled
Maintenance Services” in the Index for scheduled
rotation intervals.
When rotating your tires, always use one
of the correct
rotation patterns shown here.
If your vehicle has a compact spare tire, don’t include it
in your tire rotation.
6-41

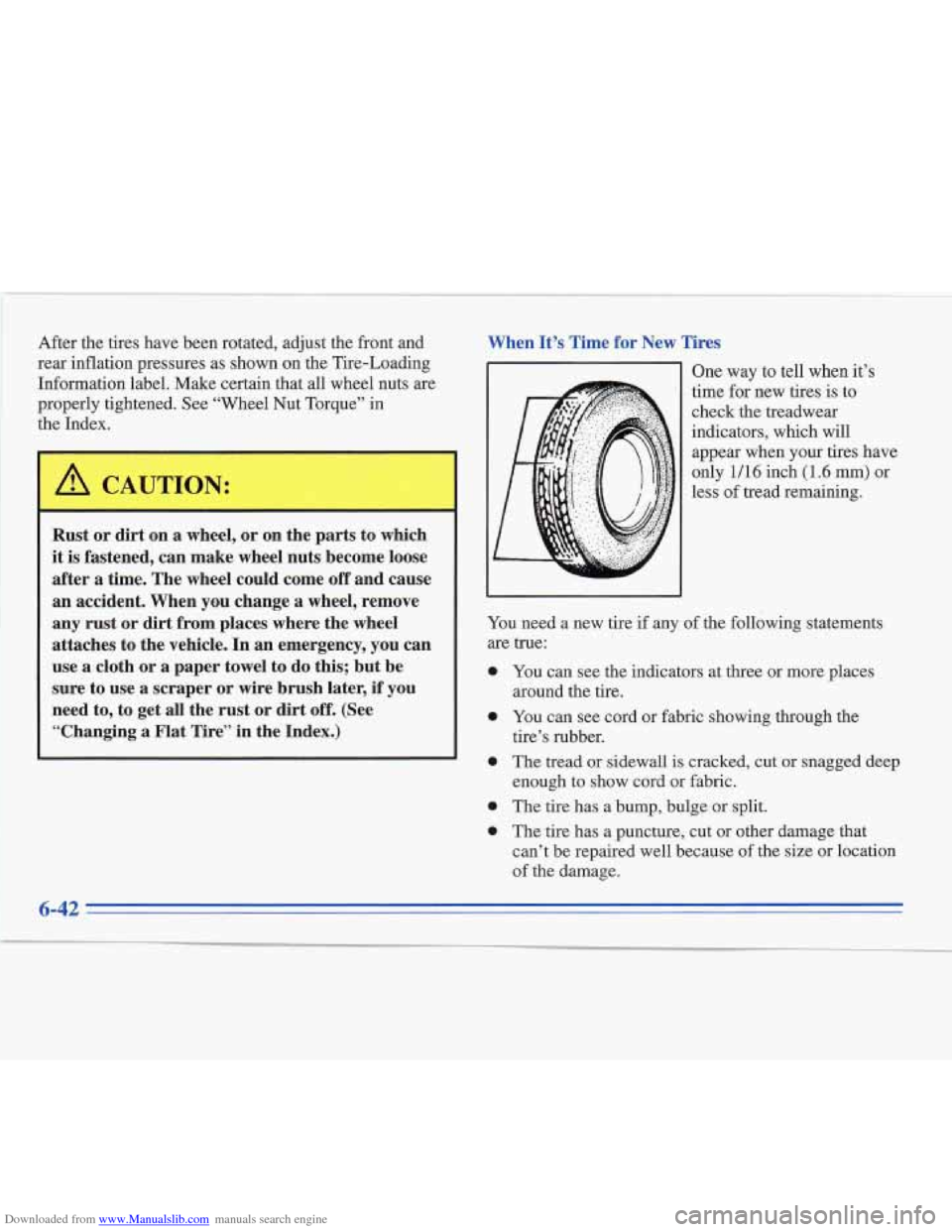

Downloaded from www.Manualslib.com manuals search engine After the tires have been rotated, adjust the front and
rear inflation pressures
as shown on the Tire-Loading
Information label. Make certain that all wheel nuts are
properly tightened. See “Wheel Nut Torque” in
the Index.
A CAUTION:
Rust or dirt on a wheel, or on the parts to which
it
is fastened, can make wheel nuts become loose
after a time. The wheel could come off and cause
an accident. When you change a wheel, remove
any rust
or dirt from places where the wheel
attaches to the vehicle. In an emergency, you can
use
a cloth or a paper towel to do this; but be
sure to use a scraper or wire brush later,
if you
need to, to get all the rust or
dirt off. (See
“Changing
a Flat Tire” in the Index.) When It’s Time
for New
Tires
... .
One way to tell when it’s
time for
new tires is to
check the treadwear
indicators, which will
appear when
your tires have
only 1/16 inch (1.6
mm) or
less
of tread remaining.
You need a new tire if any of the folllowing statements
are true:
0
0
0
0
0
You can see the indicators at three or more places
around the tire.
You can see cord or fabric showing through the
tire’s rubber.
The tread or sidewall is cracked, cut or snagged deep
enough
to show cord or fabric.
The tire has a bump, bulge
or split.
The tire has a puncture, cut or other damage that
can’t be repaired well because
of the size or location
of the damage.
6-42

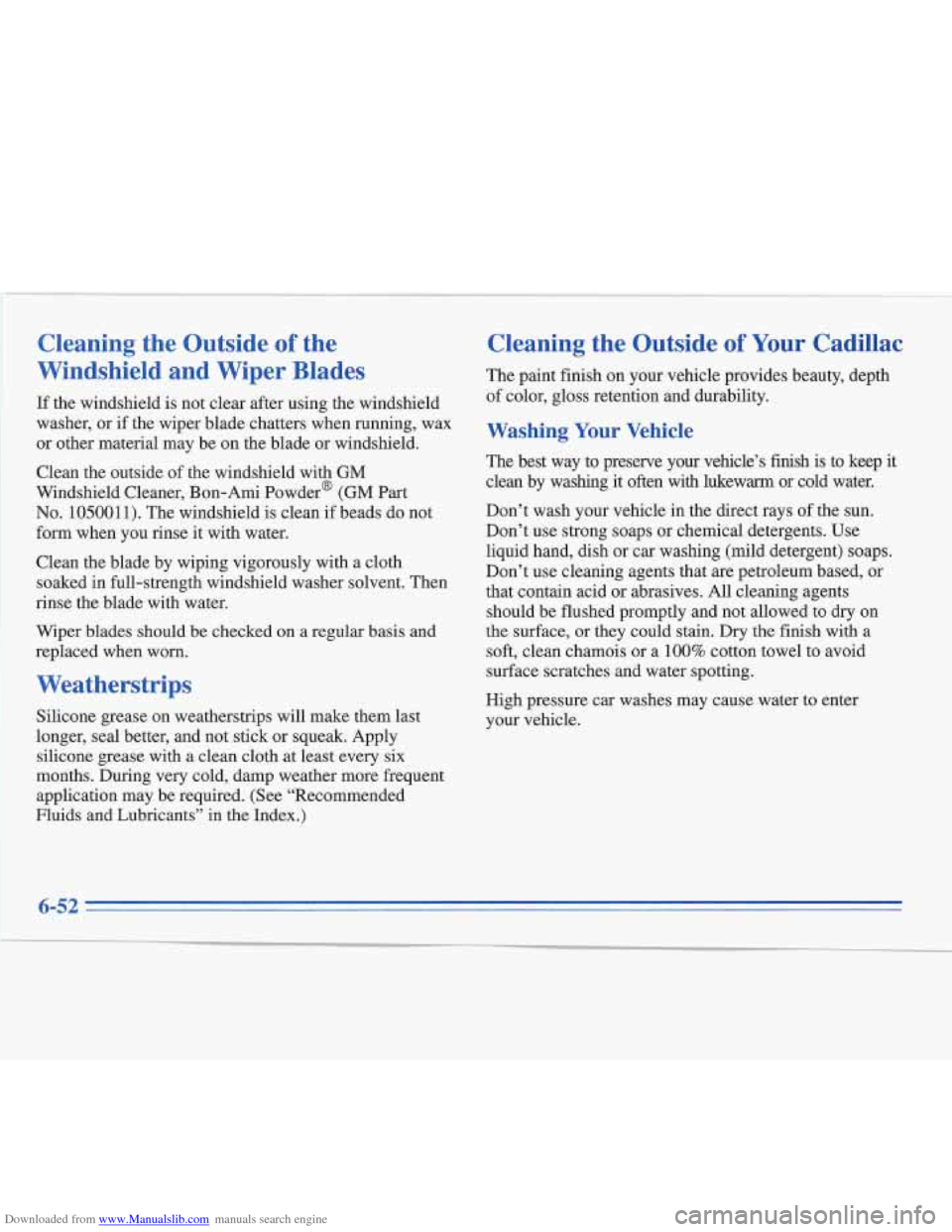

Downloaded from www.Manualslib.com manuals search engine Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running, wax
or other material may be on the blade or windshield.
Clean the outside of the windshield with
GM
Windshield Cleaner, Bon-Ami Powder@ (GM Part
No. 105001 1). The windshield is clean if beads do not
form when you rinse it with water.
Clean the blade by wiping vigorously with a cloth
soaked
in full-strength windshield washer solvent. Then
rinse the blade with water.
Wiper blades should be checked on a regular basis and
replaced when worn.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth at least every six
months. During very cold, damp weather more frequent
application may be required. (See “Recommended
Fluids and Lubricants” in the Index.)
Cleaning the Outside of Your Cadillac
The paint finish on your vehicle provides beauty, depth
of color, gloss retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle’s finish is to keep it
clean by washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays of the sun.
Don’t use strong soaps or chemical detergents. Use
liquid hand, dish or car washing (mild detergent) soaps.
Don’t use cleaning agents that are petroleum based, or
that contain acid or abrasives. All cleaning agents
should be flushed promptly and not allowed to
dry on
the surface, or they could stain. Dry the finish with a
soft, clean chamois or a
100% cotton towel to avoid
surface scratches and water spotting.
High pressure car washes may cause water to enter
your vehicle.

Downloaded from www.Manualslib.com manuals search engine Electrical System
Add-on Electrical Equipment
1 NOTICE:
Don’t add anything electrical to your Cadillac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as they should.
I I
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Cadillac, see “Servicing
Your Air Bag-Equipped Cadillac”
in the Index.
Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on and
off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a
fuse. If the motor overheats due to
heavy snow, etc., the wipers will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is
too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
6-57

Downloaded from www.Manualslib.com manuals search engine Plan Ahead When Possible
Whenever possible, schedule an appointment for your
vehicle’s warranty work. Your Cadillac dealer can then
prepare to meet your alternative transportation needs
and minimize inconveniences typically associated with
warranty repairs.
Owner Responsibilities
There are only two things which you will be responsible
for during the use of your courtesy vehicle.
You are
required to provide insurance coverage and replenish the
fuel used.
In many cases your own auto insurance policy may
provide primary coverage for the courtesy vehicle,
similar to rental car agreements. Please, check with your
insurance company to be certain what’s covered.
This service is provided to you under the terms of the
New Vehicle Warranty, therefore, it is imperative that
your vehicle be picked up from the dealership at the
completion of the warranty service. Vehicles not picked
up in a timely fashion may incur rental fees charged to
the customer.
GM Participation in BBB AUTO
LINE -- Alternative Dispute
Resolution Program*
*This program may not be available in all states,
depending on state law. Canadian owners refer
to your
Warranty and Owner Assistance Information booklet.
General Motors reserves the right to change eligibility
limitations and/or to discontinue its participation
in
this program.
Both Cadillac and your Cadillac dealer are committed to
making sure
you are completely satisfied with your new
vehicle. Our experience has shown that, if a situation
arises where you feel your concern has not been
adequately addressed, the Customer Satisfaction
Procedure described earlier in this section is
very successful.
There may be instances where an impartial third party
can assist in arriving at a solution to a disagreement
regarding vehicle repairs or interpretation of the New
Vehicle Limited Warranty.
To assist in resolving these
disagreements, Cadillac voluntarily participates
in BBB
AUTO
LINE.
7-8

Downloaded from www.Manualslib.com manuals search engine Brake Adjustment
.................................. 6-30
Fluid
....................................... 6-26
Master Cylinder
.............................. 6-26
Parking
..................................... 2-22
PedalTravel
................................. 6-30
Replacing System Parts
........................ 6-30
System Warning Light
......................... 2-56
Trailer
...................................... 4-37
Wear
....................................... 6-29
Brake
to Shift Light ............................. 2-65
Brakes, Anti-Lock
............................... 4-6
Braking
........................................ 4-5
Braking
in Emergencies .......................... 4- 10
Break-In, New Vehicle
.......................... 2-14
Bulb Replacement
.............................. 6-3 1
Capacities and Specifications
.................... 6-63
Carbon Monoxide
.................... 2.27.4.28. 4.35
Cassette Tape Player
......................... 3.5. 3.8
Cassette Tape Player Care
........................ 3-17
CD Player Theft-Deterrent Feature
................. 3- 13
Center Front Passenger Position
................... 1-24
Center High-Mounted Stop Lamp
.................. 6-37
Center Rear Passenger Position
.................... 1-29
Certification Label
.............................. 4-30
Chains. Safety
................................. 4-37
Chains. Tire
................................... 6-47
ChangeOilLight
............................... 2-64
Changing a Flat Tire
............................. 5-20
ChargeLight
.................................. 2-55 Check
Engine Light
............................. 2-60
Checking Your Restraint Systems
.................. 1-44
Chemical Paint Spotting
.......................... 6-54
Child Restraints
................................ 1-32
Securing in the Center Rear Seat Position
.......... 1-36
Securing in the Rear Outside Seat Position
......... 1-34
Securing in the Right Front Seat Position
.......... 1-38
TopStrap
................................... 1-33
Wheretoput
................................ 1-32
Cigarette Lighter
............................... 2-46
Circuit Breakers and Fuses
....................... 6-58
Cleaner, Air
................................... 6-14
Cleaning Aluminum Wheels
............................ 6-53
Fabric
...................................... 6-49
Glass
....................................... 6-51
Inside of Your Cadillac
........................ 6-48
Instrument Panel
............................. 6-51
Leather
..................................... 6-51
Outside of Your Cadillac ....................... 6-52
Stains
...................................... 6-49
Tires
....................................... 6-54
Vinyl
....................................... 6-50
Weatherstrips
................................ 6-52
Wheels
..................................... 6-53
Windshield and Wiper Blades
................... 6-52
WoodPanels
................................. 6-51
Climate Control System
........................... 3-1
Clock. Setting the ................................ 3-4
Comfort Controls
................................ 3-1
Compact Disc Care
............................. 3-17
Special Problems
............................. 6-50
