1996 AUDI S4 01E Transmission Remove And Install Workshop Manual

34-18


Transmission, removing and
installing

Removing

Special tools, testers and auxiliary items
required:

Engine-/Transmission lifter V.A.G 1383 A

Transmission support 3282
Pa
ge 1 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

34-19


3282/12 Adjustment plate VAG1306 Drip tray
Pa
ge 2 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

34-20

- Obtain radio code on vehicles with coded
radio.

- With ignition switched off disconnect battery
Ground strap.

- Loosen bolts (arrows) and remove engine cover panels (arrows -A-
through -C-).

- Detach air intake duct. To do this, pull off retainer catch -1-, loosen
clamps -2- and unscrew bolts -3-.
Pa
ge 3 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

34-21

- Remove coolant system expansion reservoir
and lay to one side.

- Unplug connector for oxygen sensor on left (arrow -2-) and move wire
for oxygen sensor clear.

- Unplug connector for oxygen sensor on right -1- and move wire for
oxygen sensor clear.
Pa
ge 4 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

34-22


- Unscrew two bolts securing heat shield -2- on exhaust pipe (right and
left).
- Unscrew nuts -3- on exhaust pipe (right and left).
- Unscrew engine/transmission securing bolts accessible from above.

- Remove noise insulation (arrows).
Pa
ge 5 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

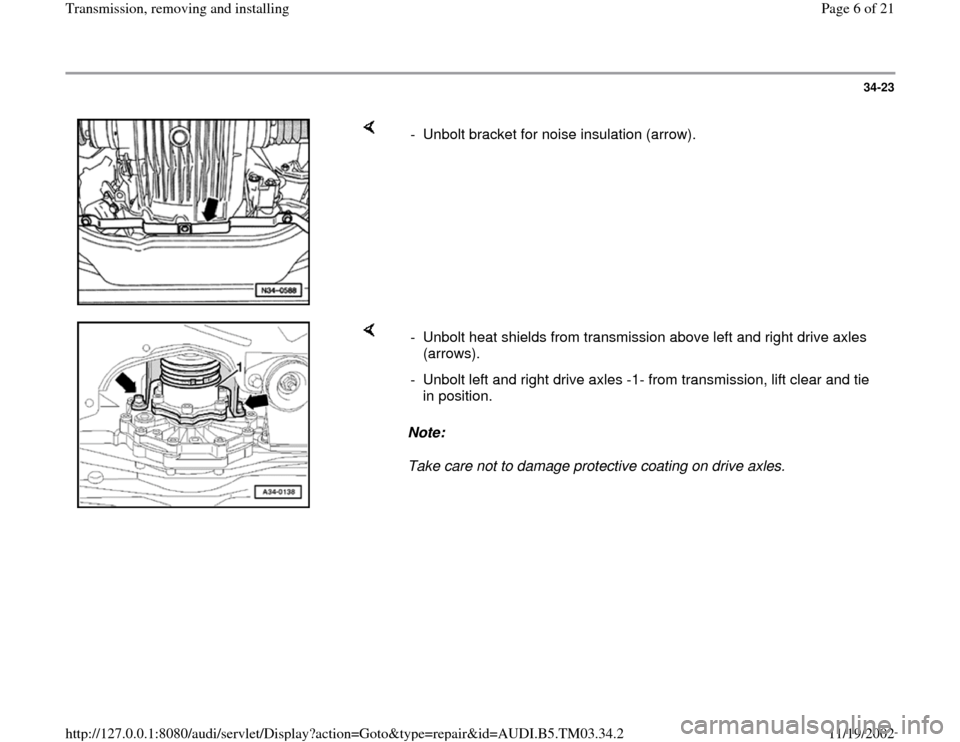

34-23


- Unbolt bracket for noise insulation (arrow).

Note:
Take care not to damage protective coating on drive axles. - Unbolt heat shields from transmission above left and right drive axles
(arrows).
- Unbolt left and right drive axles -1- from transmission, lift clear and tie
in position.
Pa
ge 6 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

34-24

- Loosen exhaust system clamps and push
clamps towards rear.

- Remove heat shield for driveshaft from cover for Torsen differential
(arrows).

- Unbolt driveshaft -1- from transmission and rest it on heat shield -2-.
- Secure driveshaft to fuel pipe bracket -3- with wire (arrow).
Pa
ge 7 of 21 Transmission, removin
g and installin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM03.34.2

34-25


- Remove bolts (arrows) and remove transverse mount -A-.
- Completely remove brackets -B- at right and left exhaust pipe. To do
this, bolts -2- and -3- must be removed.

- Unscrew and remove bolts -1- and -2- on right and left and remove
support -A-.
