Page 9 of 16
94-9
The illustration shows the left headlight: - Change headlight beam adjustment by turning adjusting screws -A-
and/or -B- (use Phillips-head screwdriver or hex-wrench).
Bosch
A - Lateral adjustment
B - Height adjustment
Note:
The lateral adjustment must be set to "0." - Use screwdriver for lateral adjustment -1-.
Pa
ge 9 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 10 of 16
94-10

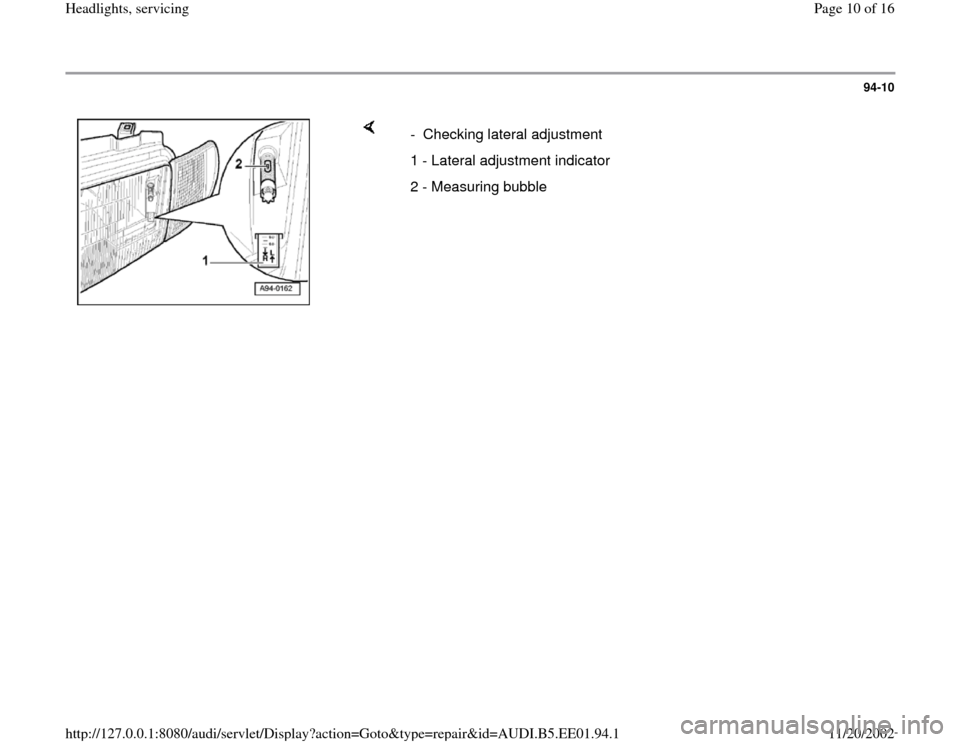

- Checking lateral adjustment
1 - Lateral adjustment indicator
2 - Measuring bubble
Pa
ge 10 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 11 of 16
94-11
Headlight beam adjusting motor (high
intensity gas discharge -Xenon-
headlights), removing and installing
Note:
Always adjust headlights after headlight beam
adjusting motors are removed, installed or
replaced Page 94
-8 .
Removing
- For right headlight, remove back portion of
intake air duct.
- Remove cover from headlight housing.
Installing - Release headlight beam adjusting motor -1- on right headlight by
rotating clockwise and on left headlight by rotating counterclockwise.
- Release ball joint from its socket by pushing laterally to left on right
headlight and push to right on left headlight.
- Disconnect harness connector -2-.
- Install in reverse order of removal.
Pa
ge 11 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 12 of 16
94-12
High intensity gas discharge (Xenon)
headlight bulbs, replacing
Replacing Xenon bulb for low beam
Removing
- Remove cover from headlight housing.
WARNING!
HIGH VOLTAGE!
Disconnect the battery Ground (GND) strap
before working on parts of the Xenon
headlight which are labeled with the yellow
high voltage symbol.
Notes:
Before disconnecting the battery, determine the
correct coding for the anti-theft radio.
After reconnecting the battery, check and
activate the vehicle's electrical equipment
(radio, clock, comfort and convenience
features, etc.) as outlined in this Repair Manual
or the Owner's Manual.
Pa
ge 12 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 13 of 16
94-13
Installing - Remove harness connector -1- on Xenon headlight and retaining ring -
2- by rotating counterclockwise.
- Insert new bulb into housing without touching glass with bare hands.
- Place retaining ring -1- on catches -3- of Xenon lamp -2- with two
recesses (arrows) and secure by turning clockwise.
- Reconnect harness connector and close housing cover.
Pa
ge 13 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 14 of 16
94-14
Replacing high beam bulbs
Removing
- Remove back portion of intake air duct on right
headlight.
- Remove cover from headlight housing.
Installing - Disconnect harness connector -1-.
- Release bulb retaining spring -2- and remove from housing.
- Insert new bulb into housing without touching glass with bare hands.
- Secure bulb with bulb retaining spring.
- Reconnect harness connector and close housing cover.
- Secure housing cover with bulb retaining spring.
Pa
ge 14 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 15 of 16
94-15
Ignitor for gas discharge lamps -N195-
(Xenon), removing and installing
WARNING!
HIGH VOLTAGE!
Disconnect the battery Ground (GND) strap
before working on parts of the Xenon
headlight which are labeled with the yellow
high voltage symbol.
Notes:
Before disconnecting the battery, determine the
correct coding for the anti-theft radio.
After reconnecting the battery, check and
activate the vehicle's electrical equipment
(radio, clock, comfort and convenience
features, etc.) as outlined in this Repair Manual
or the Owner's Manual.
Removing
- Remove cover from headlight housing.
- Remove harness connector -1- on Xenon bulb by rotating
counterclockwise.
Pa
ge 15 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1
Page 16 of 16
94-16

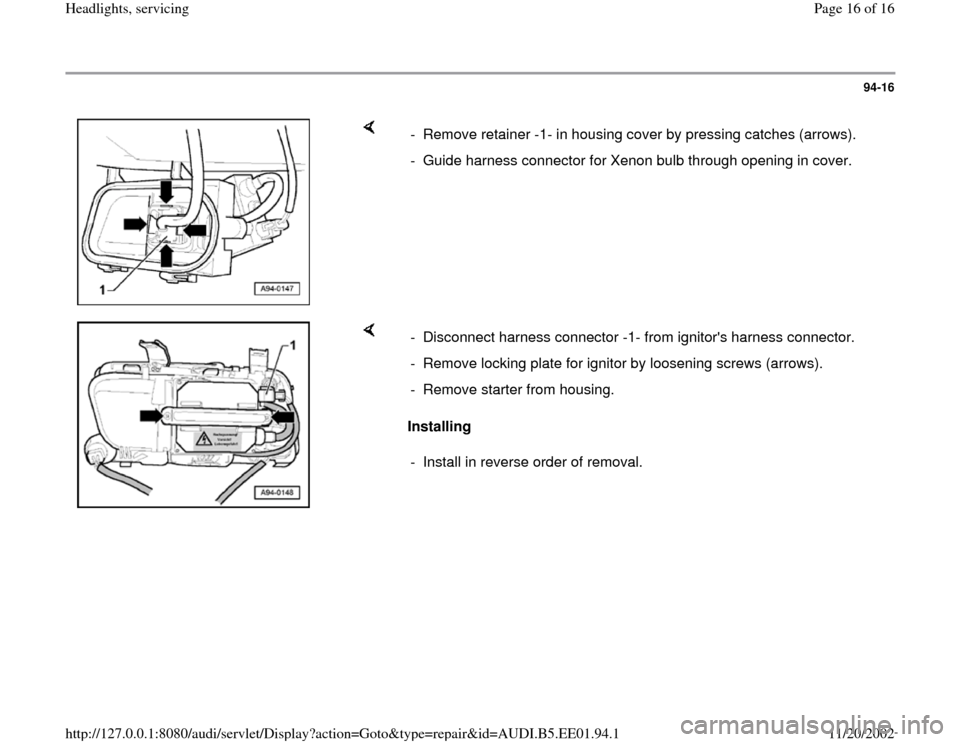

- Remove retainer -1- in housing cover by pressing catches (arrows).
- Guide harness connector for Xenon bulb through opening in cover.
Installing - Disconnect harness connector -1- from ignitor's harness connector.
- Remove locking plate for ignitor by loosening screws (arrows).
- Remove starter from housing.
- Install in reverse order of removal.
