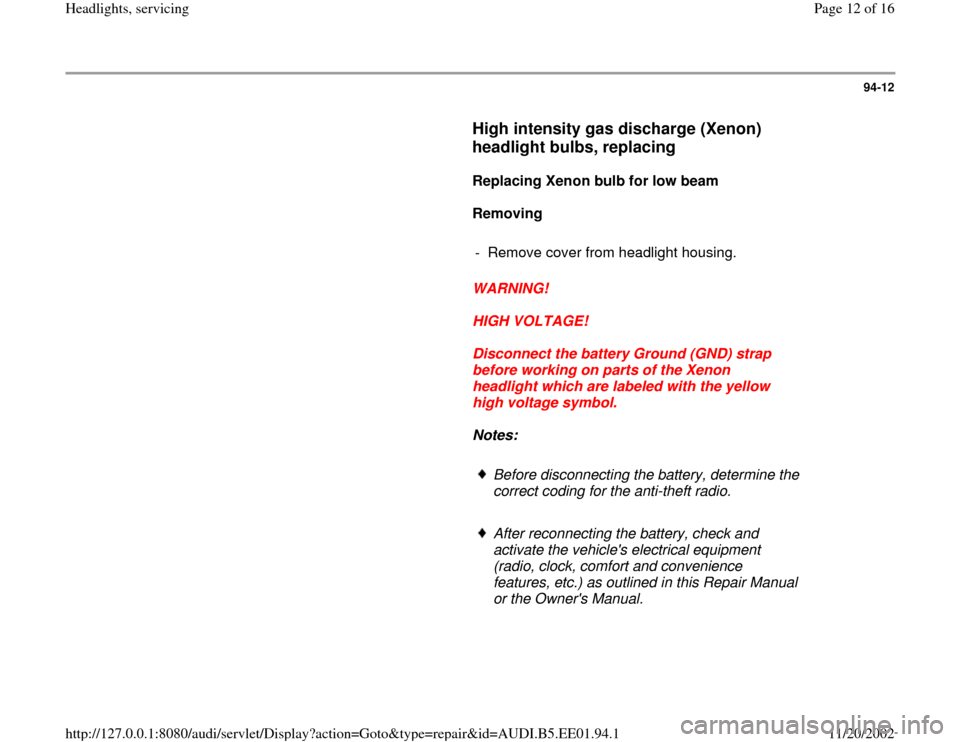

94-12
High intensity gas discharge (Xenon)
headlight bulbs, replacing
Replacing Xenon bulb for low beam
Removing
- Remove cover from headlight housing.
WARNING!
HIGH VOLTAGE!
Disconnect the battery Ground (GND) strap
before working on parts of the Xenon
headlight which are labeled with the yellow
high voltage symbol.
Notes:
Before disconnecting the battery, determine the
correct coding for the anti-theft radio.
After reconnecting the battery, check and
activate the vehicle's electrical equipment
(radio, clock, comfort and convenience
features, etc.) as outlined in this Repair Manual
or the Owner's Manual.
Pa
ge 12 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1

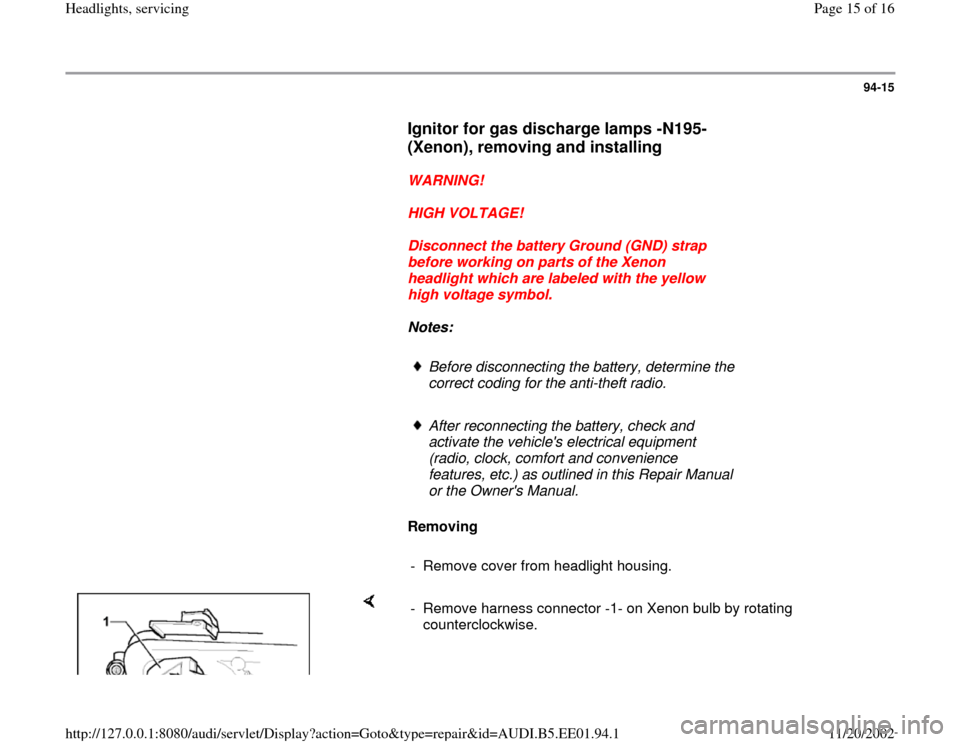

94-15
Ignitor for gas discharge lamps -N195-
(Xenon), removing and installing
WARNING!
HIGH VOLTAGE!
Disconnect the battery Ground (GND) strap
before working on parts of the Xenon
headlight which are labeled with the yellow
high voltage symbol.
Notes:
Before disconnecting the battery, determine the
correct coding for the anti-theft radio.
After reconnecting the battery, check and
activate the vehicle's electrical equipment
(radio, clock, comfort and convenience
features, etc.) as outlined in this Repair Manual
or the Owner's Manual.
Removing
- Remove cover from headlight housing.
- Remove harness connector -1- on Xenon bulb by rotating
counterclockwise.
