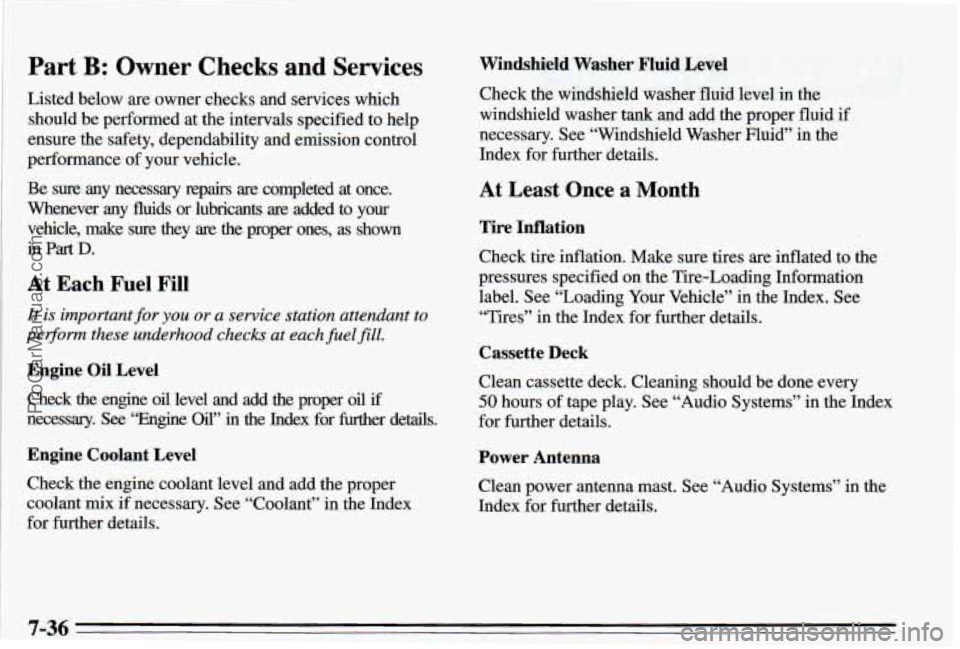

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at
once.
Whenever any fluids or lubricants are added to your
vehicle, make
sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each
fuel fill.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary.
See “Engine Oil” in the hdex for further details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix if necessary. See “Coolant” in the Index
for further details.
Windshield Washer Fluid LeveI
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the
Index for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label. See “Loading Your Vehicle”
in the Index. See
“Tires” in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
Power Antenna
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
7-36 ProCarManuals.com

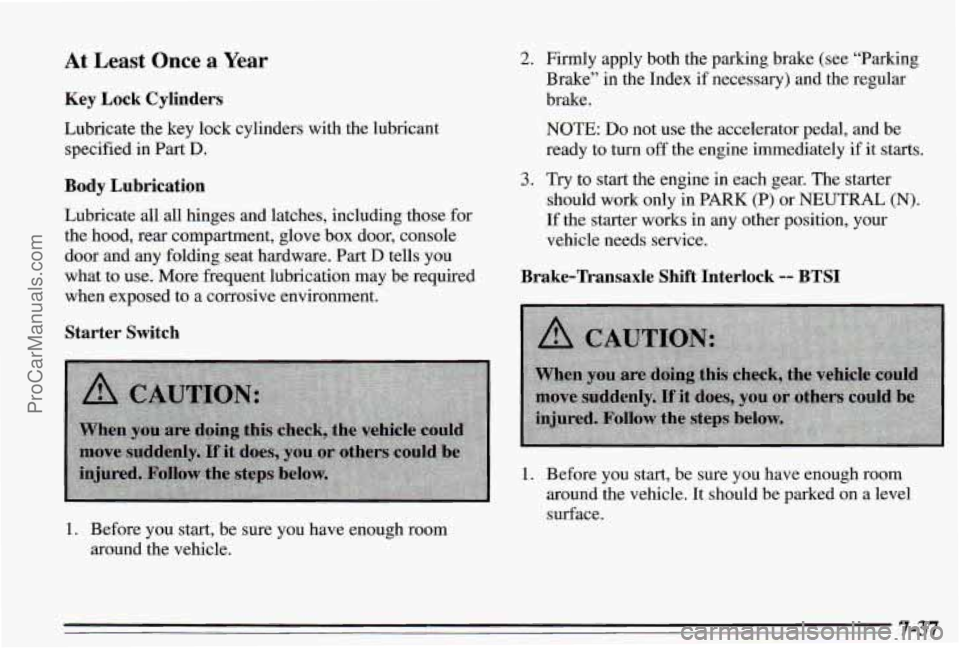

At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication
Lubricate all all hinges and latches, including those for
the hood, rear compartment, glove box door, console
door and any folding seat hardware. Part
D tells you
what
to use. More frequent lubrication may be required
when exposed to a corrosive environment.
Starter Switch
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index
if necessary) and the regular
brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately
if it starts.
3. Try to start the engine in each gear. The starter
should work only in
PARK (P) or NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
Brake-Transaxle Shift Interlock -- BTSI
1. Before you start, be sure you have enough room
around the vehicle. It should be parked
on a level
surface.
7-37 ProCarManuals.com

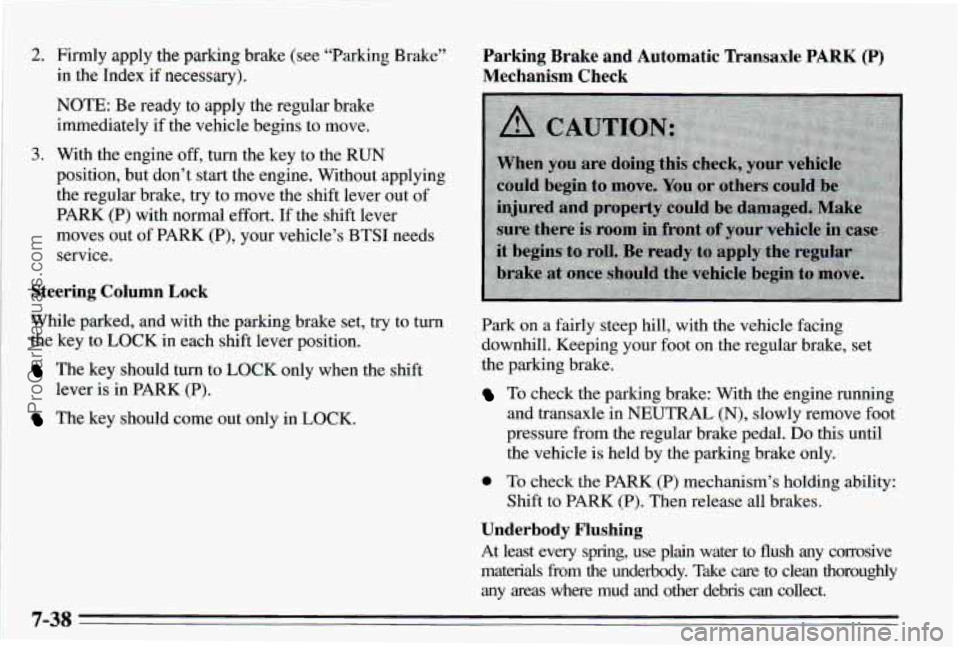

2. Firmly apply the parking brake (see “Parking Brake”
in the Index
if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake,
try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of
PARK (P), your vehicle’s BTSI needs
service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to LOCK in each shift lever position.
The key should turn to LOCK only when the shift
The key should come out only in LOCK.
lever
is in PARK (P).
Parking Brake and Automatic Transaxle PARI( (F)
Mechanism Check
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set
the parking brake.
To check the parking brake: With the engine running
and transaxle in
NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal. Do this until
the vehicle is held by the parking brake only.
0 To check the PARK (P) mechanism’s holding ability:
Shift to PARK (P). Then release all brakes.
Underbody Flushing
At least every spring, use plain water to flush any corrosive \
materials fi-om the underbody. Take care to clean thoroughly any areas where
mud and other debris can collect.
7-38
ProCarManuals.com

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs
are
completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly. Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its job, have
it repaired.
Steering, Suspension and Front-Wheel-
Drive Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear, or lack of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals
if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged, missing or out-of-position parts as well as open seams,
holes, loose connections, or other conditions which could cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Accelerator and cruise control cables should not
be lubricated.
Brake System Inspection
Inspect the complete system. Inspect brake lines and hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts, including
calipers, parking brake, etc. Check parking brake
adjustment. You may need to have your brakes inspected
more often if your driving habits or conditions result in
frequent braking.
7-39 ProCarManuals.com

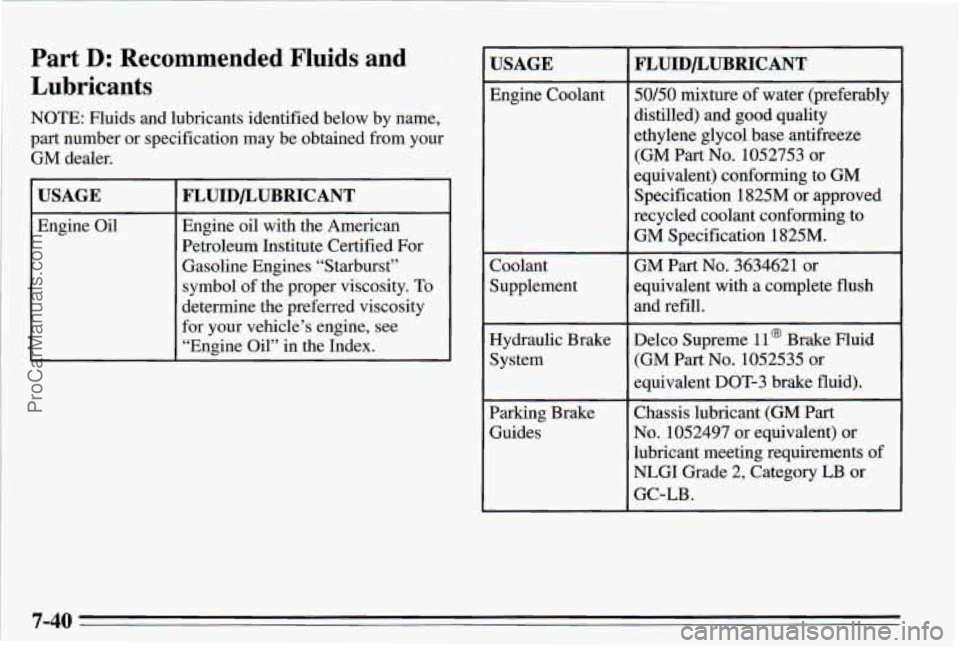

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
FLUIDJLUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol
of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
USAGE
Engine Coolant
Coolant
Supplement
Hydraulic Brake
System
Parking Brake
Guides
FLUID/LUBRICANT
50/50 mixture of water (preferably
distilled) and good quality
ethylene glycol base antifreeze
(GM Part No. 1052753 or
equivalent) conforming to
GM
Specification 1825M or approved
recycled coolant conforming to
GM Specification 1825M.
GM
Part No. 3634621 or
equivalent with a complete flush
and refill.
Delco Supreme
1 l@ Brake Fluid
(GM
Part No. 1052535 or
equivalent DOT-3 brake fluid).
Chassis lubricant (GM
Part
No. 1052497 or equivalent) or
lubricant meeting requirements of
NLGI Grade
2, Category LB or
GC-LB.
ProCarManuals.com

USAGE
Power Steering
System
_____
Automatic Transaxle
Key Lock
Cylinders
Automatic Transaxle
Shift
Linkage
Chassis
Lubrication
Windshield
Washer Solvent
~~
FLUID/LUBRICANT
GM Hydraulic Power Steering
Fluid (GM Part
No. 1052884 or
equivalent).
DEXRON@-111 Automatic
Transmission Fluid. Lubricate with Multi-Purpose
Lubricant (GM Part
No. 12345120)
or synthetic
SAE 5W-30
engine oil.
Engine oil.
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515) or
equivalent.
USAGE
Hood Latch
Assembly
a. Pivots and
Spring
Anchor
b. Release Pawl
Hood and Door
Hinges, Fuel
Door Hinge and
Trunk Access
Panel Hinges
Weatherstrip Conditioning
F’LUID/LUBRICANT
a. Engine oil.
b. Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters, valves and spark plugs.
7-A1 ProCarManuals.com

Section 9 Index
.
ABS ......................................... 4-6
Accessory Outlet
............................... 2-42
Adding Automatic Transaxle Fluid
..................... 6- 18
BrakeFluid
................................. 6-26
Electrical Equipment
............... 2-14,3-14, 6-63
Engine Coolant
............................... 6-20
Engineoil
.................................. 6-12
Power Steering Fluid
......................... 6-23
Windshield Washer Fluid
...................... 6-24
AimingHeadlamps
............................. 6-29
AirBag
....................................... 1-23
How Does It Restrain
......................... 1-26
How It Works
............................... 1-25
Location
................................... l-28
Readiness Light ........................ 1-24, 2-51
Servicing
................................... 1-28
What Makes It Inflate
......................... 1-26
What Will You See After It Inflates
.............. 1-27
When Should It Inflate
........................ 1-26
Aircleaner
.................................... 6-15
Air Conditioning
................................ 3-3
Air Conditioning Refrigerants
..................... 6-72
Air Conditioning with Electronic Controls ............ 3-1
SoundEquipment
............................ 3-14
Alignment and Balance. Tires
..................... 6-52
Aluminum Wheels. Cleaning
...................... 6-60
Antenna. Fixed Mast
............................ 3-16
Antenna. Power Mast Care
....................... 3-16
Antifreeze
..................................... 6-19
Anti-Lock Brake System Active Light
.............. 2-54
Anti-Lock Brake System Warning Light
......... 2-53. 4.7
Anti-Lock Brakes
............................... 4-6
Anti-Theft Feature. Theftlock
..................... 3-15
Appearance Care and Materials
.................... 6-62
Armrest. Storage
............................... 2-41
Ashtrays, Rear
................................. 2-45
Audio System, Steering Wheel Touch Controls
....... 3-17
Audio Systems
.................................. 3-5
Auto-Down Window ............................ 2-27
Automatic Door Locks
............................ 2-4
Automatic Transaxle
............................ 2-16
First Gear (1) Position
........................ 2-19
Neutral
(N) Position .......................... 2-17
Overdrive (D) Position
........................ 2-18
Park (P) Position
........................ 2-16. 7-38
Reverse (R) Position
.......................... 2-17
Second Gear (2) Position
...................... 2-19
Appearancecare
............................... 6-54
Ashtrays. Front
................................. 2-44
9-1 ProCarManuals.com

Shifting .................................... 2- 16
Third Gear (3) Position
........................ 2-18
Automatic Transaxle Fluid
........................ 6- 16
Adding
.................................... 6-18
Checking ................................... 6-16
Battery
...................................... 6-28
Charge Light
................................ 2-50
Jump Starting
................................ 5-2
Replacement. Remote Lock Control
............... 2-7
Saver
...................................... 2-36
Warnings
.................................... 5-2
BBB Auto Line
................................. 8-3
Blizzard
...................................... 4-25
Brake Adiustment
................................. 6-27
Fliid. Adding
............................... 6-26
Master Cylinder
............................. 6-25
System Parts, Replacing
....................... 6-27
System Warning Light
........................ 2-52
Trailer
..................................... 4-33
Transaxle Shift Interlock
....................... 2-24
Transaxle Shift Interlock, Maintenance
........... 7-37
Brakes, Anti-Lock
............................... 4-6
Braking
........................................ 4-5
Braking, In Emergencies
.......................... 4-9
Break-In,
New Vehicle .......................... 2-12
Parking
.................................... 2-21
PedalTravel
................................ 6-27
Wear
...................................... 6-26 BTSI (Brake Transaxle Shift Interlock)
.............. 2-24
Bulb Replacement
.............................. 6-70
BTSI (Brake Transaxle Shift InterIock). Maintenance . . 7-37
Canada. Vehicles First Sold In
11 .. .......................
Canadian Roadside Assistance ...................... 8-7
Capacities and Specifications
...................... 6-71
Carbon Monoxide
.................... 2.25.4.26. 4.32
Care
of the Head-Up Display ..................... 3-15
Cassette Tape Player
............................. 3-9
Cassette Tape Player Care ........................ 3-15
CDPlayer
..................................... 3-10
Center Console
................................. 2-41
Center High-Mounted Stoplamp Bulb Replacement
.... 6-42
Center Passenger Position
........................ 1-29
Certification Label
.............................. 4-27
Chains, Safety
................................. 4-32
Chains, Tire ................................... 6-54
Changing
a Flat Tire ............................. 5-23
Charging System Light
.......................... 2-50
Checking Your Restraint Systems
.................. 1-54
Automatic Transaxle Fluid
..................... 6-16
Engine Coolant
.............................. 6-20
EngineOil
.................................. 6-11
Power Steering Fluid
......................... 6-22
Restraint Systems
............................ 1-54
Chemical Paint Spotting
.......................... 6-61
Checking
BrakeFluid
................................. 6-25
Things Under the Hood
......................... 6-7
ProCarManuals.com
