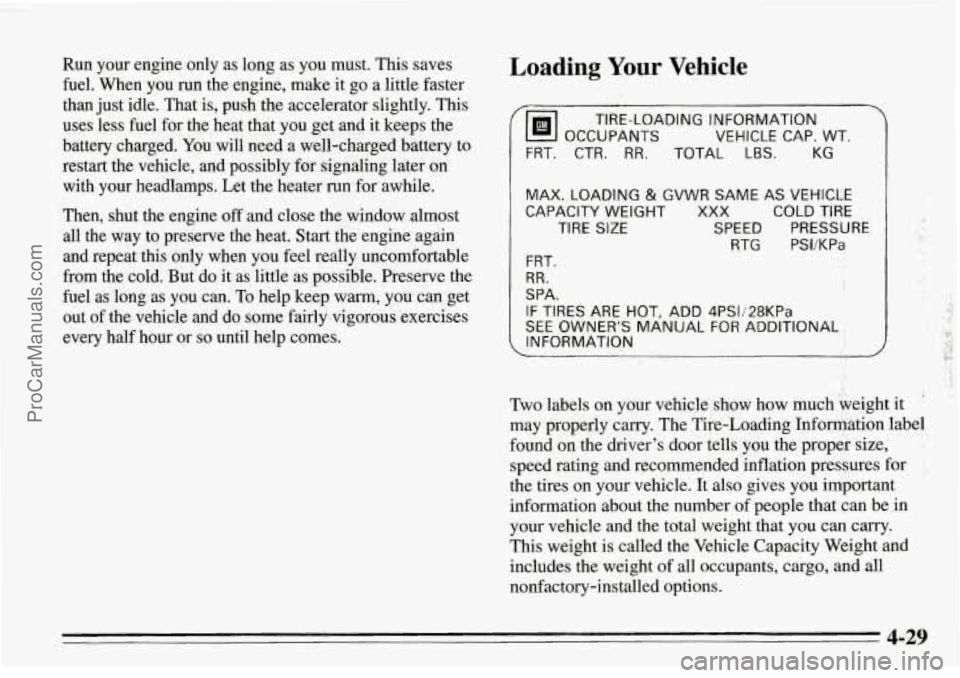

Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for awhile.
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can.
To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or
so until help comes.
Loading Your Vehicle
TIRE-LOADING INFORMATION
VEHICLE CAP. WT.
FRT. CTR. RR. TOTAL LBS.
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE SIZE SPEED PRESSURE
RTG PSI/KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PS1/28KPa
SEE OWNER’S MANUAL FOR ADDITIONAL
\INFORMATION
Two labels on your vehicle show how much ‘weight it ’
may properly carry. The Tire-Loading Information label
found on the driver’s door tells you the proper size,
speed rating and recommended inflation pressures for
the tires
on your vehicle. It also gives you important
information about the number of people that can be in
your vehicle and the total weight that you can carry.
This weight is called the Vehicle Capacity Weight and
includes the weight of all occupants, cargo, and all
nonfactory-installed options.
4-29
ProCarManuals.com

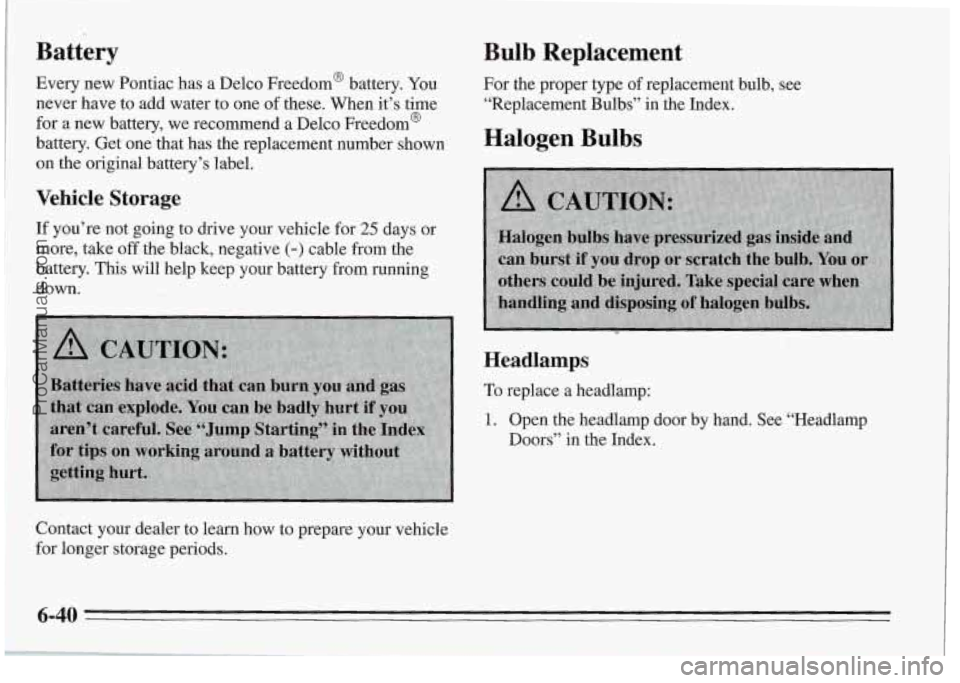

Battery
Every new Pontiac has a Delco Freedom@ battery. You
never have to add water to one
of these. When it’s time
for a new battery, we recommend a Delco Freedom@
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, take
off the black, negative (-) cable from the
battery.
This will help keep your battery from running
down.
Bulb Replacement
For the proper type of replacement bulb, see
“Replacement Bulbs” in the Index.
Halogen Bulbs
Headlamps
To replace a headlamp:
1. Open the headlamp door by hand. See “Headlamp
Doors” in the Index.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
6-40
ProCarManuals.com

NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling,
speedometer/odometer calibration, headlamp
aim, bumper height, vehicle ground clearance,
and tire or tire chain clearance to the body and
chassis.
Used Replacement Wheels
Tire Chains
NOTICE:
If your Pontiac has P235/55R16, or P245/50ZR16
size tires, don’t use tire chains; they can dqpage
your vehicle.
If you have other tires, use tire chains only where
legal and only when you must. Use only
SAE
Class “S” type chains that are the proper size for
your tires. Install them on the rear tires and
tighten them as tightly
as possible with the ends
securely fastened. Drive slowly and follow the
chain manufacturer’s instructions.
If you can
hear the chains contacting your vehicle, stop and
retighten them.
If the contact continues, slow
down until
it stops. Driving too fast or spinning
the wheels with chains
on will damage your
vehicle.
6-55
ProCarManuals.com

Headlamps
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the larnps to
go on and
off, or in some cases to remain off. If this happens, have
your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is
too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Main Fuse Block
IC3 20 30 4EIl
FUSE USAGE CHART
AIR BAG TURN B - U HVAC RADIO ACCY
5m 60 70 80 PCM IGN STOP/HAZARD PWR ACCY COURTESY
GAGES TAIL LTS CIGAR/HORN DEFOG/SEATS
CRANK ACCY RADIO
SEE OWNER'S MANUAL FOR MORE INFORMATION PRINTED IN U.S.A 10264033 2
1.
2.
3.
4.
AIR BAG: SIR Components
TURN B-U: Backup Lamps; Daytime Running
Lamps Module (Canada);Turn Flasher; Transmission
Range Switch;Traction Control Switch
HVAC: Heat Control Selector Switch (Heatedfir
Conditioner); Rear Defogger
RADIO ACCY: Power Antenna; Disc Changer
6-67
ProCarManuals.com

Fuses
1. ABS BAT Electronic Brake Control Module
2. FOG LTS: Fog Lamps
3. R HDLP DR: Headlamp Doors Module
4. L HDLP DR: Headlamp Doors Module
5. ABS IGN: Anti-Lock Brake System
6. FANS/ACTR: Coolant Fan Relays; EVAP Canister
Purge So1enoid;Exhaust Gas Recirculation; Reverse
Lockout So1enoid;Skip
Shift Solenoid; Heated
Oxygen Sensors
(V8 Engine)
7. AIR PUMP: Air Pump Relay
8. PCM: Powertrain Control Module
9. INJECTOR: Fuel Injectors
10. INJECTOR: Fuel Injectors
11. IGNITION: VIN Engine Code S: Camshaft Position
Sensor;Crankshaft Position Sensor; Ignition Control
Modu1e;Automatic Transmission; Ignition Coil (V-8 Engine); Ignition Coil Module (V-8 Engine)
12. A/C-CRUISE: Air Conditioning Compressor Relay;
Cruise Control Switches and Module
ProCarManuals.com

Replacement Bulbs
Ashtray* ............................. 194
Automatic Transmission Indicator
.......... 73
Backup .............................. 1156
Center High-Mounted Stoplamp
........... 92 1
161
Dome
................................. 906
Door Courtesy
.......................... 74
Fog
.................................. 885
Front Parking and Turn Signal
........... 3057
Headlamp .......................... H-6545
Cluster ...............................
Console .............................. 194
GloveBox ............................ 194
Heater and A/C Control ................... 37
Indicator Lights ....................... PC74
Interior Door Handle
..................... 74
License ............................... 144
Reading
............................ 212-2
Rear Courtesy
......................... 562
Sidemarker
............................ 194
Tailonly
............................. 194
TaiVStopEurn ........................ 2057
Turn Signal-hdicators ................... 161
Thd~ ................................ 562
*Manual transmission only .
ProCarManuals.com

At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, headlamp door
assemblies, rear compartment, console doors and any
folding seat hardware.
Part D tells you what to use.
More frequent lubrication may be required when
exposed to
a corrosive environment.
Starter Switch
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index if necessary) and the regular
brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine
in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL
(N), push the clutch down halfway
and
try to start the engine. The starter should work
only when the clutch
is pushed down all the way to
the floor. If the starter works when the clutch isn’t
pushed
all the way down, your vehicle needs service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to LOCK in each shift lever position.
With an automatic transmission, the key should turn
to LOCK only when the shift lever is in PARK (P).
With a manual transmission, the key should
turn to LOCK only when the shift lever is in
REVERSE (R).
7-46
_I
ProCarManuals.com

.
Second Gear (2) Position ...................... 2-25
Third Gear (3) Position
........................ 2-25 Shifting .................................... 2-23
Axle, Rear 6-29
....................................
...................................... Battery 6-40
Replacement. Remote Lock Control ............... 2-8
Warnings
................................ 5.2. 5.4
Low Maintenance ............................ 6-40
BBBAutoLine
................................. 8-3
Blizzard
...................................... 4-27
Boot Cover, Installing ........................... 2-82
Brake
............................................
Adjustment ................................. 6-39
Fluid, Adding
............................... 6-38
Master Cylinder
............................. 6-36
System Parts, Replacing ....................... 6-39
System Warning Light
........................ 2-69
Transmission Shift Interlock
.................... 2-36
System Warning Light
........................ 2-69
Brakes, Anti-Lock
............................... 4-6
Braking
........................................ 4-5
Braking, In Emergencies
......................... 4- 1 1
Break-In, New Vehicle
.......................... 2-14
Parking .................................... 2-32
PedalTravel
................................ 6-39
Trailer ..................................... 4-35
Wear ...................................... 6-38
Brakes, Trailer 4-35
.................................
Bulb Replacement .............................. 6-7 1
Center High Mounted Stop Lamp ................ 6-42
Front Turn Signal Lamps
...................... 6-43
Rear Sidemarker Lamps ....................... 6-45
Headlamps ................................. 6-40
RearLamps
................................. 6-44
Canadian Roadside Assistance .................... 8-7
Capacities and Specifications
...................... 6-72
Cassette Tape Errors .............................. 3-8
Cassette Tape Player
............................. 3-5
Cassette Tape Player Care
........................ 3-15
CDPlayer ..................................... 3-10
CD Player Anti-Theft Feature
..................... 3-12
Center Console
................................. 2-60
Certificatioflire Label .......................... 4-30
Chains, Safety
................................. 4-35
Changing a Flat Tire ............................. 5-30
Check Gauges Light
............................. 2-79
Checking Your Restraint Systems
.................. 1-40
Automatic Transmission ....................... 6-22
Brake Huid
................................. 6-37
Carbon Monoxide ......................... 4.28. 4.34
Cargocover
................................... 6-62
Center High Mounted Stop Lamp Bulb
Replacement ................................. 6-42
Chains, Tire ................................... 6-55
Checking
.............................. Engine Coolant 6-31
9-2
..... .......... . ..... - ... -8- L.
ProCarManuals.com
