1995 GMC SIERRA light

NOTICE:
Holding a cigarette lighter in with your hand while it is heating
can make it overload, damaging the lighter and the heating
element.
Just push the lighter all the way in and let go. When it’s
done, it will pop back by itself.
L
To remove the front ashtray, pull on the front of the ashtray insert. Then
slide the insert
out of the ashtray door.
You may also have two auxiliary power outlets next to the cigarette lighter.
Use these outlets to power mobile telephones
or other de\:ices designed to
operate with vehicle electrical systems.
To use a rear ashtray.
if you have them. pull
at the top of the
ashtray door to flip the
door open.
To remove a rear ashtray. if you have them, press down on the inside tabs
and open the door
fully.
NOTICE:
If you store paper or other things that burn in your ashtrays,
they could be set
on fire by cigarettes or other smoking
materials. That could cause
a fire and possibly damage your
vehicle.
Do not store papers and other things that burn in your
ashtrays
Storage Compartments
Your vehicle has a variety of storage compartments designed to store small
items.
2-59
ProCarManuals.com

A

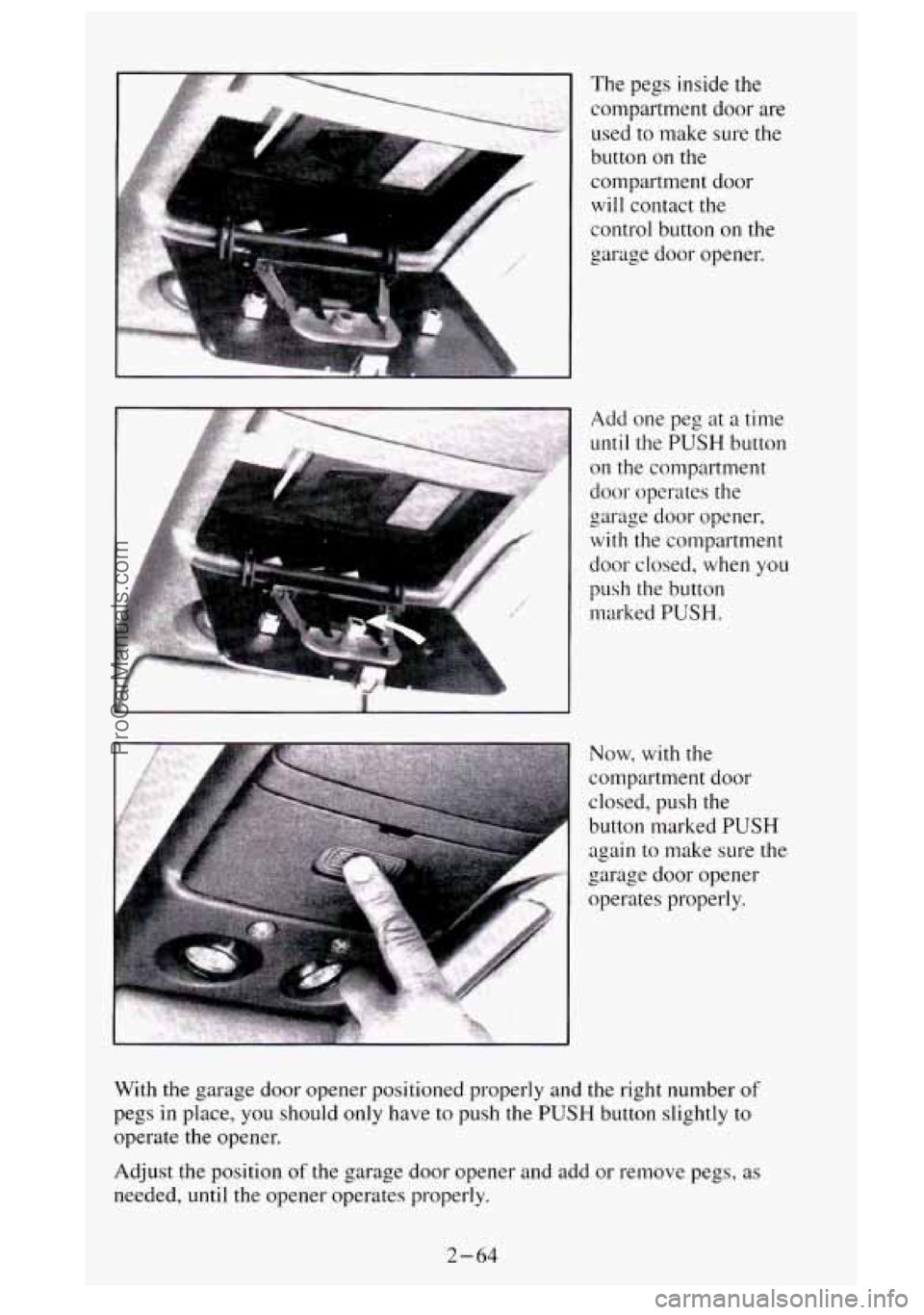

The pegs inside the
compartment door are
used to make sure the
button
on the
compartment door
will contact the
control button
on the
garage door opener.
Add one peg at a time
until the PUSH button
on the compartment
door operates the
garage door opener,
with the compartment
door closed, when
you
push the button
marked
PUSH.
Now, with the
compartment door
closed, push the
button marked
PUSH
again to make sure the
garage door opener
operates properly.
With
the garage door opener positioned properly and the right number of
pegs in place, you should only have to push the PUSH button slightly to
operate the opener.
Adjust the position
of the garage door opener and add or remove pegs, as
needed, until the opener operates properly.
2-64
ProCarManuals.com

instrument Panel
18 17 16 15
1. Dome Lamp Switch
2. Lamp and Light Controls
3. Air Vents
4. Multifunction Lever
5. Instrument Cluster
6. Gearshift Lever
7. Audio System
8. Comfort Control System
9. Glove
Box
14 13
instrument Cluster
12 1' 3 3
IO. Storage Tray
1 I. IP Cupholder
12. Ashtray, Auxiliary Outlets
I 3. Storage Area or Optional
Cassette Tape Player
14. Rear Window Defogger Switch
IS. Tilt Lever
16. Parking Brake Release Handle
17. Hood Release
18. Fuse
Block
Your instrument cluster is designed to let you know at a glance how your
vehicle is running. You'll
know how fast you're going, about how much
fuel you have and many other things you'll need to know to drive safely and
economically.
2-68
ProCarManuals.com

Tachometer
. :i
Your tachometer
displays the engine
speed
in revolutions
per minute (rpm).
1 NOTICE:
Do not operate the engine with the tachometer in the red area\
,
your engine
or other parts could be damaged.
Damage to your engine or vehicle caused
by operating the
engine
in the red area isn’t covered by your vehicle warranty.
Warning Lights and Indicators
This part describes the warning lights and gages that may be on your
vehicle. The pictures will help you locate them.
Warning lights and gages can signal that something is wrong before
it
becomes serious enough to cause an expensive repair or replacement.
Paying attention to your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a problem
with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you start the engine just
to let
you know they’re working. If you are familiar
with this section, you should
not be alarmed when
this happens.
Gages can indicate when there may be or is a problem with one of your
vehicle’s functions. Often gages and warning lights work together to let you
know when there’s
a problem with your vehicle.
When one
of the warning lights comes on and stays on when you are
driving, or when one
of the gages shows there may be a problem, check the
section that tells you what
to do about it. Please follow this manual‘s advice.
Waiting to
do repairs can be costly - and even dangerous. So please get to
know your warning lights and gages. They’re a big help.
2-70
ProCarManuals.com

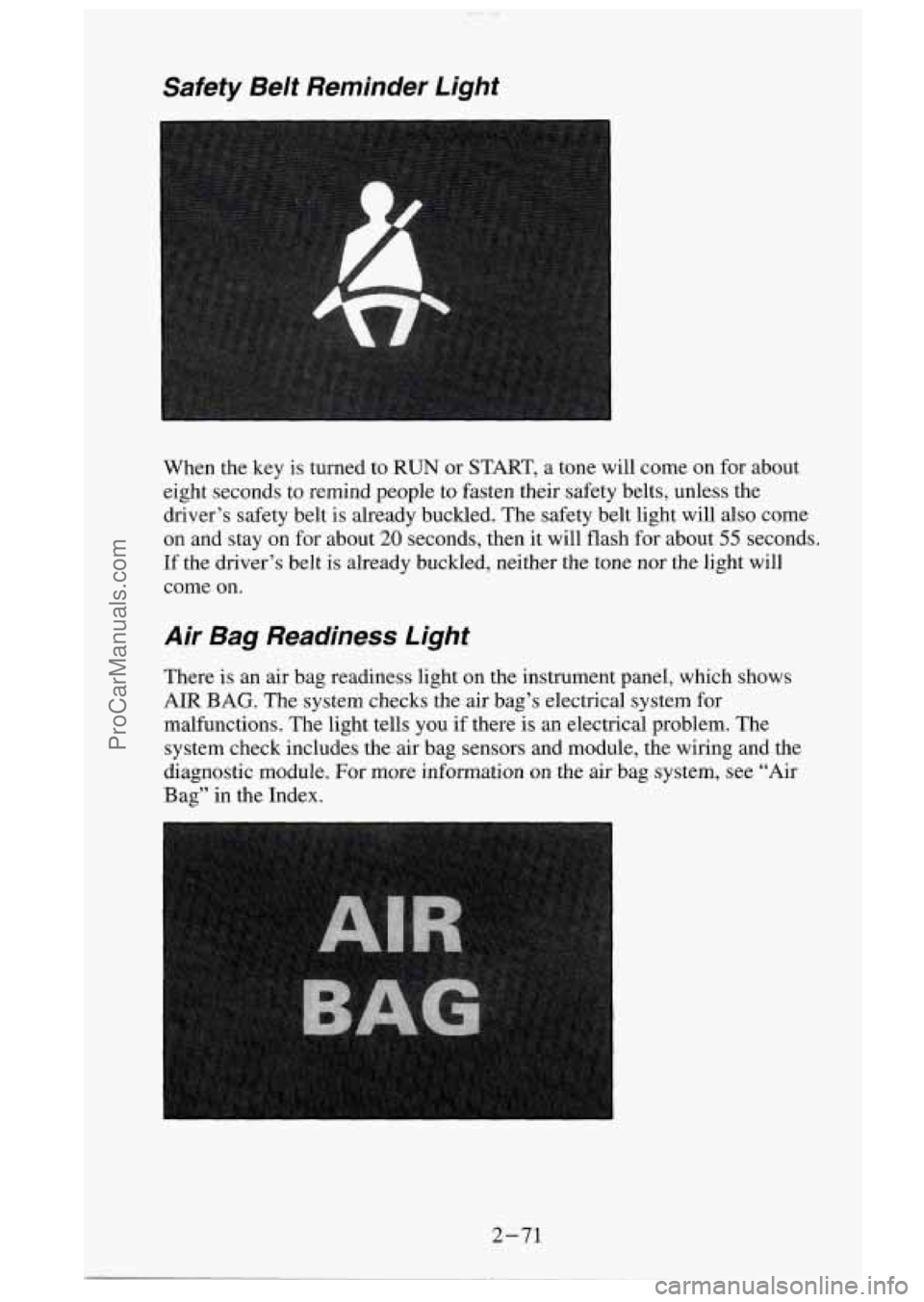

Safety Belt Reminder Light
When the key is turned to RUN or START, a tone will come on for about
eight seconds to remind people to fasten their safety belts, u\
nless the
driver’s safety belt is already buckled. The safety belt light will also come
on and stay on for about 20 seconds, then it will flash for about 55 seconds.
If the driver’s belt is already buckled, neither the tone nor \
the light will
come on.
Air Bag Readiness Light
There is an air bag readiness light on the instrument panel, which shows
AIR BAG. The system checks the air bag’s electrical system for
malfunctions. The light tells you if there is an electrical problem. The
system check includes the air bag sensors and module, the wiri\
ng and the
diagnostic module.
For more information on the air bag system, see “Air
Bag” in the Index.
2-71
ProCarManuals.com

You will see this light flash for a few seconds when you turn your ignition
to
RUN or START. Then the light should go out. This means the system is
ready.
If the air bag readiness light doesn’t come on when you start your vehicle,
or stays on, or comes on when you are driving, your air bag system may not
work properly. Have your vehicle serviced right away.
Brake System Warning Light
Your vehicle‘s hydraulic brake system is divided into two parts. If one part
isn’t working, the other part can still work and stop you.
For good braking,
though, you need both parts working well.
If the warning light comes on, there could be a brake problem. Have your
brake system inspected right away.
This light should come
on briefly as you start the vehicle. If it doesn‘t come
on
then, have it fixed so it will be ready to warn you if there’s a problem.
If the light comes on while you are driving, pull off the road and stop
carefully. You may notice that the pedal is harder to push.
Or, the pedal may
the vehicle towed for service. (See “Towing
Your Vehicle’’ in the Index.)
b 00 closer to the floor. It may take longer to stop. If the light is still on, have
A CAUTION:
Your brake system may not be working properly if the brake
system warning light is on. Driving with the brake system
warning light on can lead to an accident. If the light is st\
ill on
after you’ve pulled off the road and stopped carefully, have\
the
vehicle towed for service.
2-72
ProCarManuals.com

The brake system warning light will also come on when you set your
parking brake, and
it will stay on if your parking brake doesn’t release fully.
If it stays on after your parking brake is fully released, it means you have a
brake problem.
Anti-Lock Brake System Warning Light
ANTI-
LOCK
With the anti-lock brake system, this light will come on when you start your
engine and may stay on for several seconds. That‘s normal.
If the light
doesn’t come on, have
it fixed so it will be ready to warn you if there is a
problem.
If the light stays on. or comes on when you’re driving, your vehicle needs
service.
If the regular brake system warning light isn‘t on, you still have
brakes, but you don‘t have anti-lock brakes.
If the regular brake system
warning light is
also on, you don’t have anti-lock brakes and there’s a
problem with your regular brakes. See “Brake System Warning Light”
earlier
in this part.
2-73
ProCarManuals.com

Water in Fuel Light
I.
This red light will come on to warn you if there is water in the diesel fuel
system. For more information on how this light works. see "Diesel Fuel
Requirements
and Fuel System" in the Index.
Service Throttle Soon Light
SERVICE
THROTTLE
SOON
On diesel engines, a computer monitors the operation of the electronic
accelerator.
As a check to show you it's working, this orange light comes on
for
a few seconds after the ignition is turned on. Normally, it will not come
back
on unless the ignition has been off' for SO seconds or more. If the light
does not come on at all, and the ignition has been off for 30 seconds or
more, have the light fixed right away. If the light stays on after the engine
starts, or comes on while you are driving. the computer
is indicating that
your vehicle has
a problem. You should take your vehicle in for service
soon.
2-74
