1995 CHEVROLET TRACKER check engine

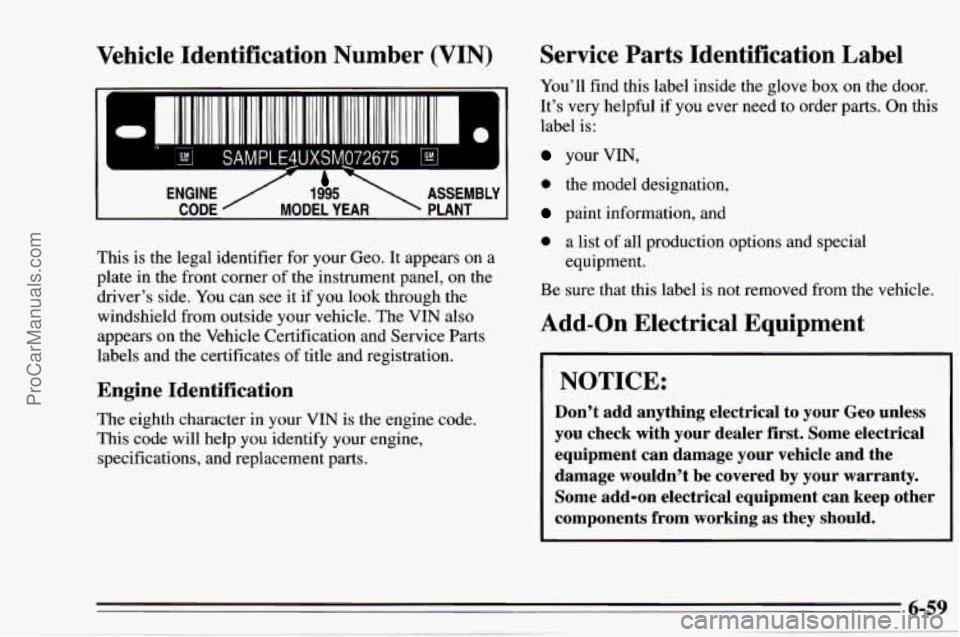

Vehicle Identification Number (VIN)
lli Iiilll Ill1 iilllllilll
1
I
SAMPLE4UXSMJ72675 45s- 1
(. CODE MODEL YEAR PLANT
ENGINE
/ 1995 ASSEMBLY I
Service Parts Identification Label
You’ll
find this label inside the glove box on the door.
It’s
very helpful if you ever need to order parts. On this
label is:
your VIN,
This is the legal identifier for your Geo. It appears on
a
plate in the front corner of the instrument panel, on the
driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications, and replacement parts.
0 the model designation,
paint information, and
0 a list of all production options and special
equipment.
Be sure that this label
is not removed from the vehicle.
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Geo unless
you check with your dealer first. Some electrical equipment can damage your vehicle and the
damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other
components from working as they should.
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by fuses, circuit breakers and thermal links
in the wiring itself. This greatly reduces the chance of
fires caused by electrical problems.
The main fuse box in your engine compartment is on the
right side. It protects all electrical loads.
For access to the main fuses, pull off
the cover. A spare
fuse
is also inside the fuse box. Another
fuse box is under the left
side of the instrument
panel.
The fuses here protect each separate circuit
including headlamps. If you have electrical failure,
check here first.
ProCarManuals.com

7 8
9
10 11
12
13
14 Lighter;
Radio
Ignition System; Warning and Indicator Lights
Turn Signal Lamps; Back-up Lamps
WiperNasher
Rear Defogger
Heater
Rear Wheel Anti-Lock Main Relay
Electronic Fuel Injection Main Relay Replacement Bulbs
Back-up .................................... 1156
Center High-Mounted Stop
...................... 921
Dome
............ GM Part No. 9605 1559 or equivalent
Front Parking and Turn Signal
............... 1157 NA
Headlamp (Halogen) .......................... 9004
GM Part
No. 944173 1 or equivalent
GM Part
No. 96052599 or equivalent
Heater
or Air
Conditioning Control ...................
Indicator and Warning
Brake
........... GM Part No. 9433184 or equivalent
Check Engine
..... GM Part No. 9433184 or equivalent
4WD ........... GM Part No. 9433184 or equivalent
................ GM Part No. 9433184 or equivalent
Safety Belt
....... GM Part No. 9433184 or equivalent
Turn Signal
...... GM Part No. 9433 184 or equivalent
Charging System
. . GM Part No. 9433184
or equivalent
Engine Oil Pressure GM Part
No. 9433184 or equivalent
Headlamp High Beam
Instrument Cluster GM Part
No. 9605 1561 or equivalent
6-63
ProCarManuals.com

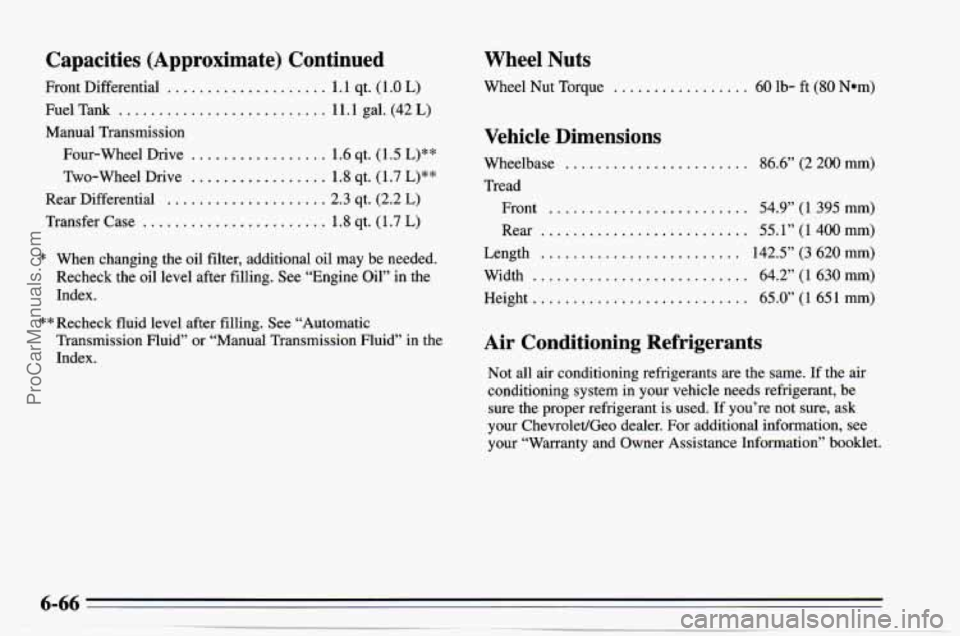

Capacities (Approximate) Continued
Front Differential .................... 1.1 qt. (1 .O L)
Fuel Tank .......................... 11.1 gal. (42 L)
Manual Transmission
Four-wheel Drive
................. 1.6 qt. (1.5 L)**
Two-Wheel Drive ................. 1.8 qt. (1.7 L)**
Rear Differential .................... 2.3 qt. (2.2 L)
Transfer Case ....................... 1.8 qt. (1.7 L)
* When changing the oil filter, additional oil may be needed.
Recheck the oil level after filling. See “Engine Oil” in the
Index.
** Recheck fluid level after filling. See “Automatic
Transmission Fluid” or “Manual Transmission Fluid” in the
Index.
Wheel Nuts
Wheel Nut Torque ................. 60 lb- ft (80 Nom)
Vehicle Dimensions
Wheelbase ....................... 86.6” (2 200 mm)
Tread Front
......................... 54.9” (1 395 mm)
Rear
.......................... 55.1” (1 400 mm)
Length
......................... 142.5” (3 620 mm)
Width
........................... 64.2” (1 630 mm)
Height
........................... 65.0” (1 65 1 mm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air
conditioning system
in your vehicle needs refrigerant, be
sure the proper refrigerant is used. If you’re not sure, ask
your Chevrolet/Geo dealer.
For additional information, see
your “Warranty and Owner Assistance Information” booklet.
ProCarManuals.com

Maintenance Schedule
I Schedule I Definition
Follow Maintenance Schedule I if any one of these is
true for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
driving
in stop-and-go traffic).
Most trips include extensive idling (such as frequent
0 You frequently tow a trailer or use a carrier on top of
your vehicle.
Schedule
I should also be followed if the vehicle is used
for delivery service, police, taxi, or other commercial
application.
Schedule I Intervals
Every 3,000 Miles (5 000 km) or 3 Months,
Whichever Occurs First
Engine Oil and Filter Change
Free-Wheeling Hubs Inspection (If Equipped)
Every 6,000 Miles (10 000 km) or 6 Months,
Whichever Occurs First
Tire Rotation
Every 15,000 Miles (25 000 km)
Air Cleaner Filter Inspection, if driving in dusty
Front Wheel Bearing Repack (or at each brake
Manual Transmission Fluid Change (or every
Engine Idle Speed Check
Valve Lash (Clearance) Adjustment
Propeller Shafts and U-Joints Inspection (or every conditions
relining, whichever occurs first)
15 months, whichever occurs first)
15 months, whichever occurs first)
ProCarManuals.com

Maintenance Schedule
Every 30,000 Miles (50 000 km)
Air Cleaner Filter Replacement
Spark Plug Replacement
Engine Accessory Drive Belt Inspection (or every
Fuel Filter Replacement (or every
30 months,
Cooling System Service (or every
30 months,
24 months, whichever occurs first)
whichever occurs first) whichever occurs first)
Every 50,000 Miles (83 000 lug)
Automatic Transmission Service (severe conditions
Positive Crankcase Ventilation
(PCV) Valve
Exhaust Gas Recirculation (EGR) System Inspection
only)
Replacement
Every 60,000 Miles (100 000 km)
Engine Timing and Distributor Check
Fuel Tank Cap Gasket Replacement
Emission System Hoses Inspection
Camshaft Timing Belt Replacement
Brake Fluid Service Spark Plug Wire Replacement (or every
60 months,
Wiring Harness and Connectors Inspection (or every
whichever
occurs first)
60 months, whichever occurs first)
Every 80,000 Miles (133 000 km)
Heated Oxygen Sensor Replacement
Every 90,000 Miles (150 000 km)
Camshaft Timing Belt Inspection
Every 100,000 Miles (166 000 km)
Fuel Injector Inspection
Evaporative Emissions Canister Replacement
Engine Control Module (ECM) and Associated
Sensors Inspection
7-5
ProCarManuals.com

Maintenance Schedule
Schedule I1 Definition 'I
Follow Schedule I1 only if none of the conditions from
Schedule
I is true.
Schedule I1 Intervals
Every 7,500 Miles (12 500 km)
whichever occurs first)
every
3 months, whichever occurs first)
Engine
Oil and Filter Change (or every
7.5 months,
Free-Wheeling
Hubs Inspection (If Equipped) (or
Tire Rotation
Every 15,000 Miles (25 000 km)
Front Wheel Bearing Repack (or at each brake
relining)
Engine Idle Speed Check
Valve Lash (Clearance) Adjustment
Propeller Shafts and U-Joints Inspec :ti
15 months, whichever occurs first)
on (or every
7-6
I- ProCarManuals.com

Maintenance Schedule
Every 30,000 Miles (50 000 km)
Engine Accessory Drive Belt Inspection (or every
24 months, whichever occurs first)
Cooling System Service (or every
30 months,
whichever occurs first)
Spark Plug Replacement
Air Cleaner Filter Replacement
Fuel Tank, Cap and Lines Inspection
Manual Transmission Fluid Change (or every
30 months, whichever occurs first)
Fuel Filter Replacement (or every
30 months,
whichever occurs first)
Every 50,000 Miles (83 000 km)
Automatic Transmission Service (severe conditions
Positive Crankcase Ventilation (PCV) Valve
Exhaust Gas Recirculation (EGR) System Inspection
only)
Replacement
Every 60,000 Miles (100 000 km)
Engine Timing and Distributor Check
Fuel Tank Cap Gasket Replacement
Emission System Hoses Inspection
Camshaft Timing Belt Replacement
Spark Plug Wire Replacement (or every
60 months,
Wiring Harness and Connectors Inspection (or every
Brake Fluid Service
whichever occurs first)
60 months, whichever
occurs first)
Every 90,000 Miles (150 000 km)
Camshaft Timing Belt Inspection
Every 100,000 Miles (166 000 km)
Fuel Injector Inspection
Evaporative Emissions Canister Replacement
Engine Control Module (ECM) and Associated
Sensors Inspection
