Downloaded from www.Manualslib.com manuals search engine There are three fuse centers on your vehicle. One is in
the right side of your instrument panel. Turn the knob
and pull the door to access the fuses.
The other two fuse blocks are in the engine
compartment. One
is part of the Forward Lamp wiring
harness
(A), and the other is part of the ECM-Engine
wiring harness
(B).
Look at the silver-colored band inside the fuse. If the
band
is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one
of the correct size.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one of the correct value. Just
pick some feature
of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use
its fuse, if it is the size you need. Replace it as soon as
you can.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the switch. An electrical overload will cause the lamps
to
go on and off, or in some cases to remain off. If this
happens, have your headlamp wiring checked right
away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a
fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
6-68

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Fuse Block

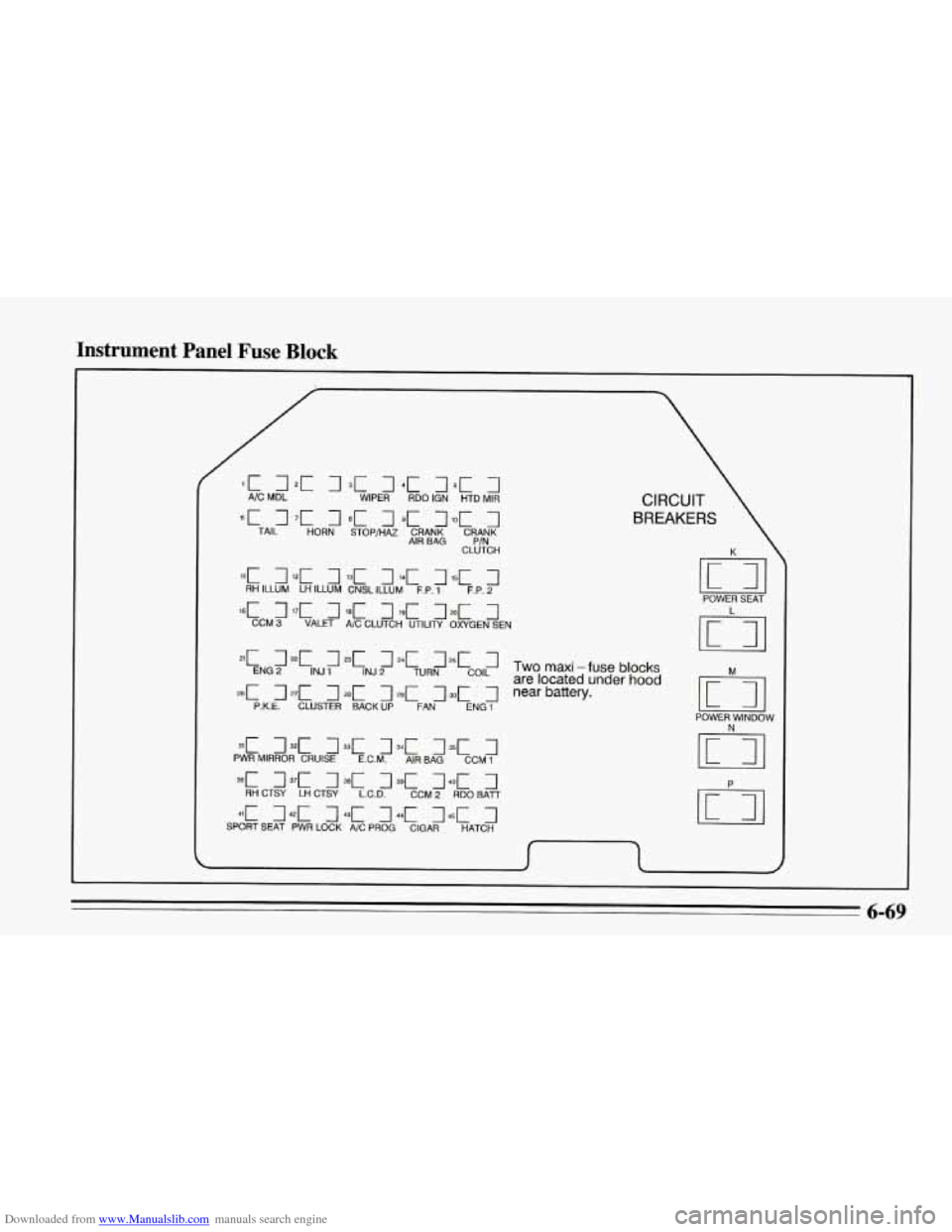

IC 7 21 7 3c 7 4c 7 5c 7 AK: MDL WIPER RDO IGN HTD MIR
6c 7 TAIL 7c 7 HORN 8C 7 STOP/HAZ 9c 7 CRANK AIR BAG
1oc 7 CRANK
CLUTCH P/N
111 7 =c 7 131 7 141 7 15c 7
161 7 17c 7 18C 7 19c 7 2oc 7
RH ILLUM
LH ILLUM CNSLILLUM F.P. 1 F.P. 2
CCM3 VALET A/C CLUTCH UTILITY OXYGEN SEN
21c 722C 7 4 7 24c 7251 7
26C 7 27c 7 2ac 7 29c 7 301 7
311 7 3zc 7 =c 7 34c 7351 7
361 7 371 7 38C 7 391 7401 7
411 742c 7 431 7441 7~C 7
ENG2 lNJl INJ 2 TURN COIL
P.K.E. CLUSTER BACKUP
FAN ENG 1
PWR MIRROR CRUISE E.C.M. AIR BAG CCM 1
RHCTSY LHCTSY L.C.D. CCMP RDOBAlT
SPORTSEAT PWR LOCK A/C PROG CIGAR HATCH
CIRCUIT
BREAKERS
Two maxi -fuse blocks are located under hood
near battery.
- POWER SEAT
POWER WINDOW
P
6-69

Downloaded from www.Manualslib.com manuals search engine 28. Back-up Lamps Switch; Transmission Position
Switch; One to Four Shift Solenoid
29. Cooling Fan Relay Coil
#I, #2, #3
30. Camshaft Sensor (LT5); Canister Purge Solenoid;
Throttle Position Sensor Buffer Module (LT5);
EGR Circuit (LT1); Secondary Air Inlet Solenoid
(LT5); Ignition Control Module (LT5); HVAC
Solenoid Assembly; Mass Airflow Sensor (LT 1);
One
to Four Shift Relay
3 1. Power Mirror Adjuster Control; Lighted Rearview
Mirror; Visor Vanity Mirrors
32. Cruise Control Engage Switch; Daytime Running
Lamps Module; Low Tire Pressure Warning
Module; Cruise Control Cut-Off Relay
33. Engine Control Module
34. Air Bag System
35. Central Control Module
36. Footwell Courtesy Lamps; Door Courtesy Lamps;
Glove Compartment Lamps; Lighted Rearview
Mirror
37, Bose@ Amplifier Relay; Power Antenna Relay;
Cargo Compartment Lamps
38. Instrument Cluster; Tone Generator; Dome Lamp
Relay
39. Central Control Module
40, Radio Receiver (Battery); Radio Control Head;
Passive Keyless Entry Module
41. Sport Seats
42. Power Door Lock Switches; Driver Information
Center; Passive Keyless Entry Module
43. Heater and A/C Programmer
44. Cigarette Lighter; Accessory Plug
45. Hatch or Deck Lid Release Relay
K. Power Seats
L. Blank
M. Power Windows
N. Blank
P. Blank
6-71
