Don’t add anything to your oil. Your Chevrolet dealer is
ready to advise if you think something should be added.
When to Change Engine Oil
See if any one of these is true for you:
0
0
0
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving
in stop and go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top
of
your car.
If any one of these is true for your vehicle, then you
need to change your oil and filter every
3,000 miles
(5 000 km) or 3 months -- whichever comes first.
If none of them is true, change the oil and filter every
7,500 miles (12 500 km) or 12 months -- whichever
comes first.
Engine Coolant Heater
An engine coolant heater can be a big help if you have
to park outside in very cold weather,
0°F (- 18 “C) or
colder.
If your vehicle has this option, see “Engine
Coolant Heater” in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay on your skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment.
If you
change your own oil, be sure to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oil
by putting it in the trash, pouring it on the ground, into
sewers, or into streams
or bodies of water. Instead,
recycle it by taking
it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for help.
6-17

Downloaded from www.Manualslib.com manuals search engine 4. Open the air cleaner and remove the filter.
Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission fluid
level is when the engine oil is changed. Refer to the
Maintenance Schedule to determine when to change your
fluid. See “Scheduled Maintenance Services” in the Index.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at your Chevrolet dealer
Service Department.
If you do it yourself,
be sure to follow all the instructions
here,
or you could get a false reading on the dipstick.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your
transmission fluid.
Wait at least 30 minutes before checking the
transmission fluid level
if you have been driving:
When outside temperatures are above 90°F (32°C).
At high speed for quite a while.
0 In heavy traffic -- especially in hot weather.
0 While pulling a trailer.

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate) Continued
Crankcase With Filter Change
.............. 4.5 qt. (4.3 L)*“:
Fuel Tank ...................... 15.5 gal. (58.7 L)
Manual Transmission
Five-Speed
..................... 5.9 pt. (2.8 L)*
Six-Speed ...................... 8.0 pt. (3.8 L):k
Rear Axle Lubricant ................. 3.5 pt. (1.7L)
?Not all air conditioning refrigerants are the same. If the air
conditioning system
in your vehicle needs refrigerant, be sure
the proper refrigerant is used. If you’re not sure, ask your
Chevrolet dealer.
“Recheck fluid level after filling. See “Automatic
Transmission Fluid” or “Manual Transmission Fluid”
in the
Index.
Vehicle Dimensions
Wheelbase ...................... 101.1 “ (2 566 mm)
Front Tread ........................ 60.7” ( 1542 mm)
Rear Tread
........................ 60.6“ (1 540 mm)
Length
........................ 193.2“ (4 908 mm)
Width
........................... 74.1 “ (1 883 mm)
Height
............................ 5 1.3“ (1 303 mm)
Height (Convertible)
................ 52.0” (1322 mm)
*Recheck fluid level after filling. See “Automatic
Transmission Fluid’ or “Manual Transmission Fluid”
in the
Index.
**Recheck the
oil level after filling. See “Engine Oil” in the
Index.
6-75

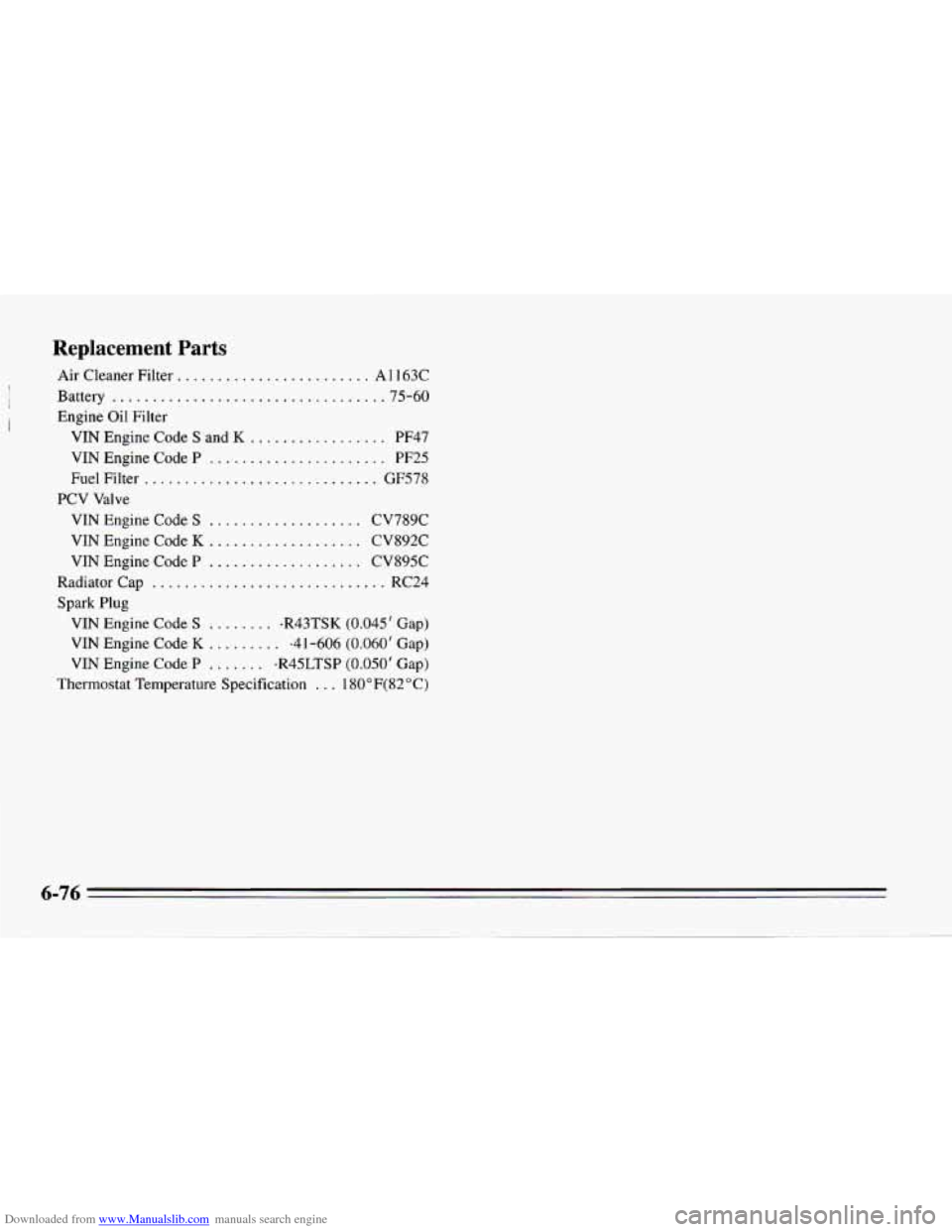

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ........................ A 1 I63C
Battery
.................................. 75-60
Engine Oil Filter
VIN Engine Code
S and K ................. PF47
VIN Engine Code P
...................... PF25
Fuel Filter ............................. GF578
PCV Valve
VIN Engine Code
S ................... CV789C
VIN Engine Code
K ................... CV892C
VIN Engine Code
P ................... CV895C
Radiator Cap
............................. RC24
Spark Plug VIN Engine Code
S ........ -R43TSK (0.045' Gap)
VIN Engine Code
K ......... a41 -606 (0.060' Gap)
VIN Engine Code
P ....... -R45LTSP (0.050' Gap)
Thermostat Temperature Specification
... 1 80°F(82 O C)
6-76

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
Schedule I Definition
Follow Maintenance Schedule I if any one of these is
true for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top of
your car.
Schedule
I should also be followed if the vehicle is used
for delivery service, police, taxi, or other commercial
application.
Schedule I Intervals
Every 3,000 Miles (5 000 km) or 3 Months,
Whichever Occurs First
Engine Oil and Filter Change
Schedule I Intervals
Every 6,000 Miles (10 000 km) or 6 months,
Whichever Occurs First
Chassis Lubrication
At 6,000 Miles (10 000 km) - Then Every
12,000 Miles (25 000 km)
Every
7,500 Miles (12 500 km)
At
7,500 Miles (12 500 km)
Every
15,000 Miles (25 000 km)
Tire Rotation
Rear Axle Fluid Change (Vehicles Tow11
I Trailers)
Rear Axle Fluid Change (Limited-Slip Differential)
Air Cleaner Filter Inspection,
if driving in dusty conditions
Automatic Transmission Service (severe conditions only)
Every 30,000 Miles (50 000 km)
Air Cleaner Filter Replacement
Spark Plug Replacement (Except
5.7L Code P engine)
Spark Plug Wire Inspection
Fuel Tank, Cap and Lines Inspection
Engine Accessory Drive Belt Inspection (or every
24 months, whichever occurs first)
Cooling System Service (or every
24 months,
whichever occurs first)
Every 100,000 Miles (166 000 km)
Spark Plug Replacement (5.7L Code P engine only)
Automatic Transmission Service (normal conditions)
7-4

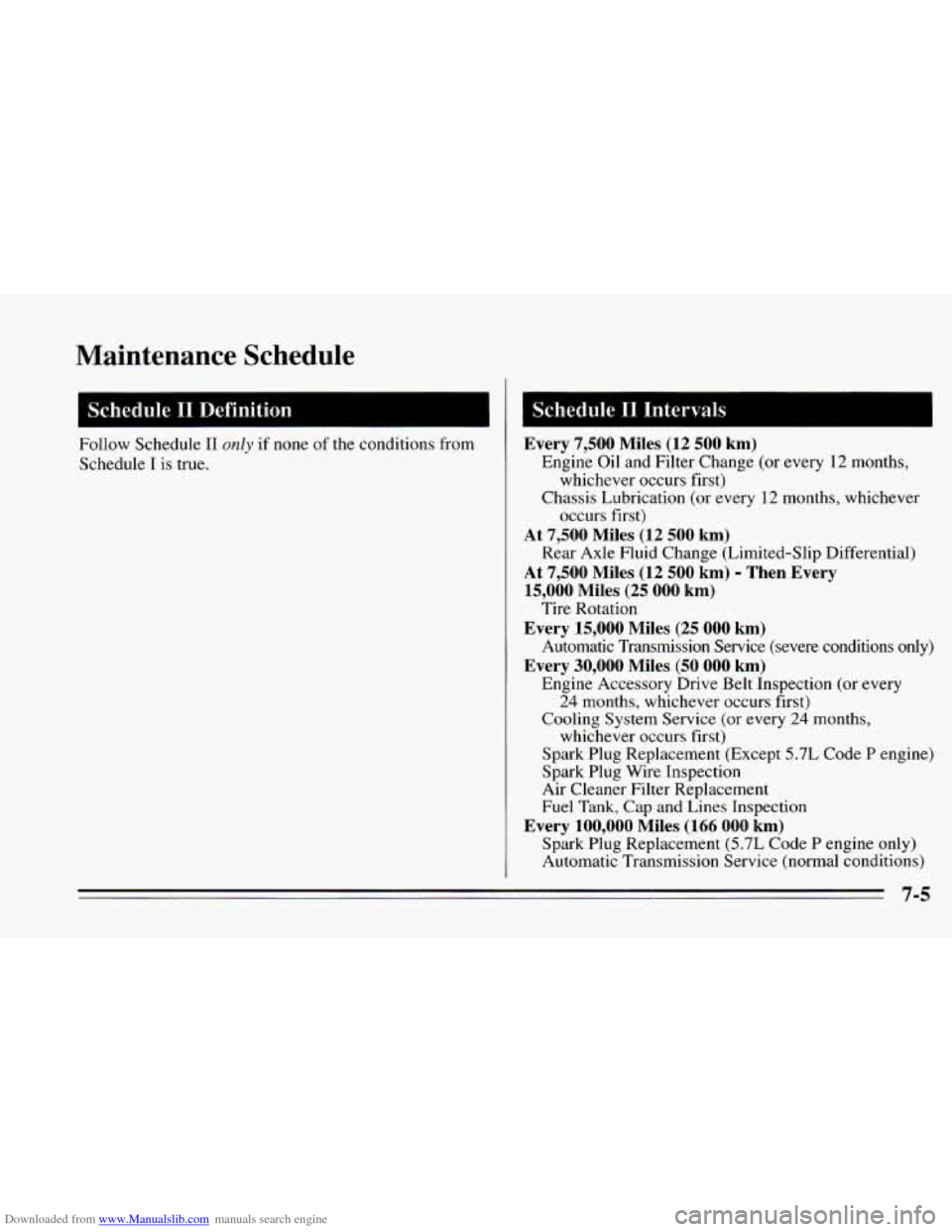

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
Schedule I1 Definition I
Follow Schedule I1 onZy if none of the conditions from
Schedule
I is true.
Every 7,500 Miles (12 500 km)
whichever occurs first)
occurs first)
Engine
Oil and Filter Change (or every 12 months,
Chassis Lubrication (or every
12 months, whichever
At 7,500 Miles (12 500 km)
At 7,500 Miles (12 500 km) - Then Every
15,000 Miles (25
000 km)
Every 15,000 Miles (25
000 km)
Every
30,000 Miles (50 000 km)
Rear Axle Fluid Change (Limited-Slip Differential)
Tire Rotation Automatic Transmission Service (severe conditions
only)
Engine Accessory Drive Belt Inspection (or every
24 months, whichever occurs first)
Cooling System Service (or every
24 months,
whichever occurs first)
Spark
Plug Replacement (Except 5.7L Code P engine)
Spark Plug Wire Inspection
Air Cleaner Filter Replacement
Fuel Tank, Cap and Lines Inspection
Every 100,000 Miles (166 000 km)
Spark Plug Replacement (5.7L Code P engine only)
Automatic Transmission Service (normal conditions)
7-5

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals.
Footnotes
3- The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior
to the
completion of vehicle useful life. We, however, urge that
all recommended maintenance services be performed at
the indicated intervals and the maintenance be recorded.
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
I DATE I ACTUALMILEAGE ISERVICED BEI

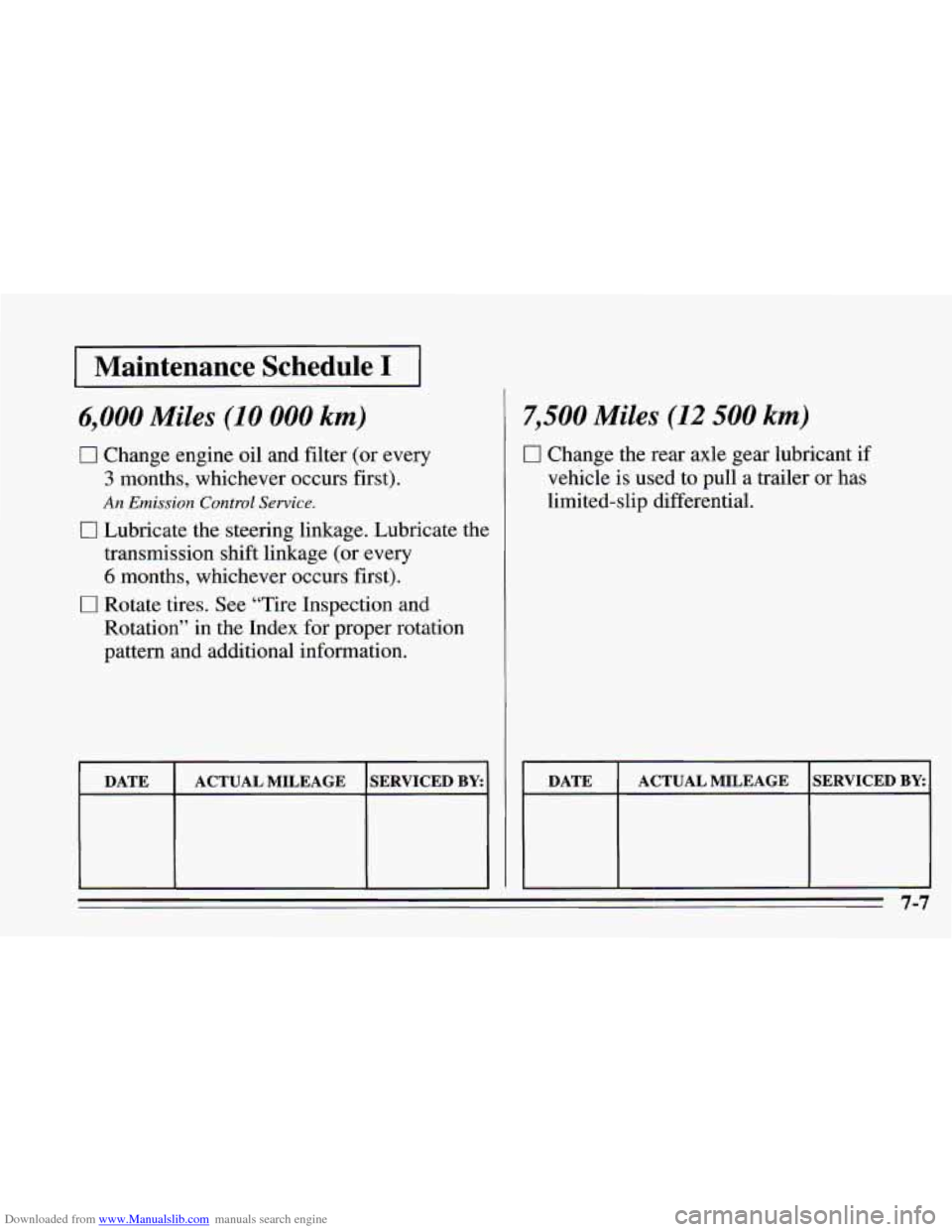

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule I I
6,000 Miles (10 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage. Lubricate the transmission shift linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index
for proper rotation
pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
7,500 Miles (12 500 km)
0 Change the rear axle gear lubricant if
vehicle is used to pull a trailer or has
limited-slip differential.
DATE ACTUAL MILEAGE SERVICED BY:
