1995 CHEVROLET CAMARO heater

Downloaded from www.Manualslib.com manuals search engine If the coolant inside the coolant recovery tank is boiling,
don’t
do anything else until it cools down.
When
it is cool, remove the coolant recovery tank cap
and look at the dipstick. The coolant
level should be
FULL COLD. If it isn’t, you
may have
a leak in the radiator hoses, heater hoses,
radiator, water pump
or somewhere else in the cooling
system.
I NOTICE:
Engine damage from running your engine
without coolant
isn’t covered by your warranty.
If there seems to be no leak, with the engine on check to
see if the electric engine fan is running. If the engine is
overheating, the fan should be running. If it isn’t, your
vehicle needs service.

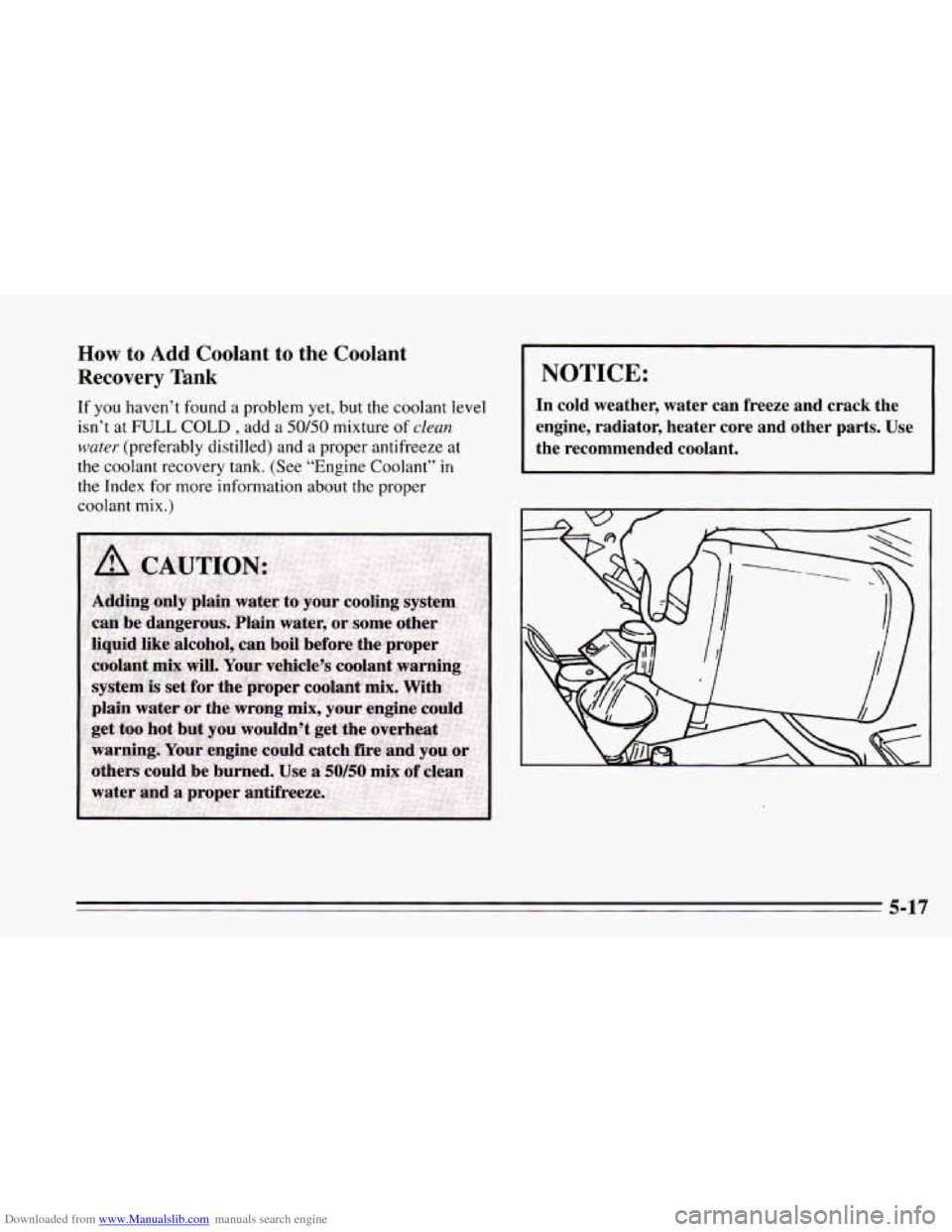

Downloaded from www.Manualslib.com manuals search engine How to Add Coolant to the Coolant
Recovery Tank
If you haven’t found a problem yet, but the coolant level
isn’t at
FULL COLD , add a 50/50 mixture of clean
water (preferably distilled) and a proper antifreeze at
the coolant recovery tank. (See “Engine Coolant” in
the Index for more information about
the proper
coolant mix.)
I NOTICE: I
In cold weather, water can freeze and crack the
engine, radiator, heater core and other parts.
Use
the recommended coolant.
5-17

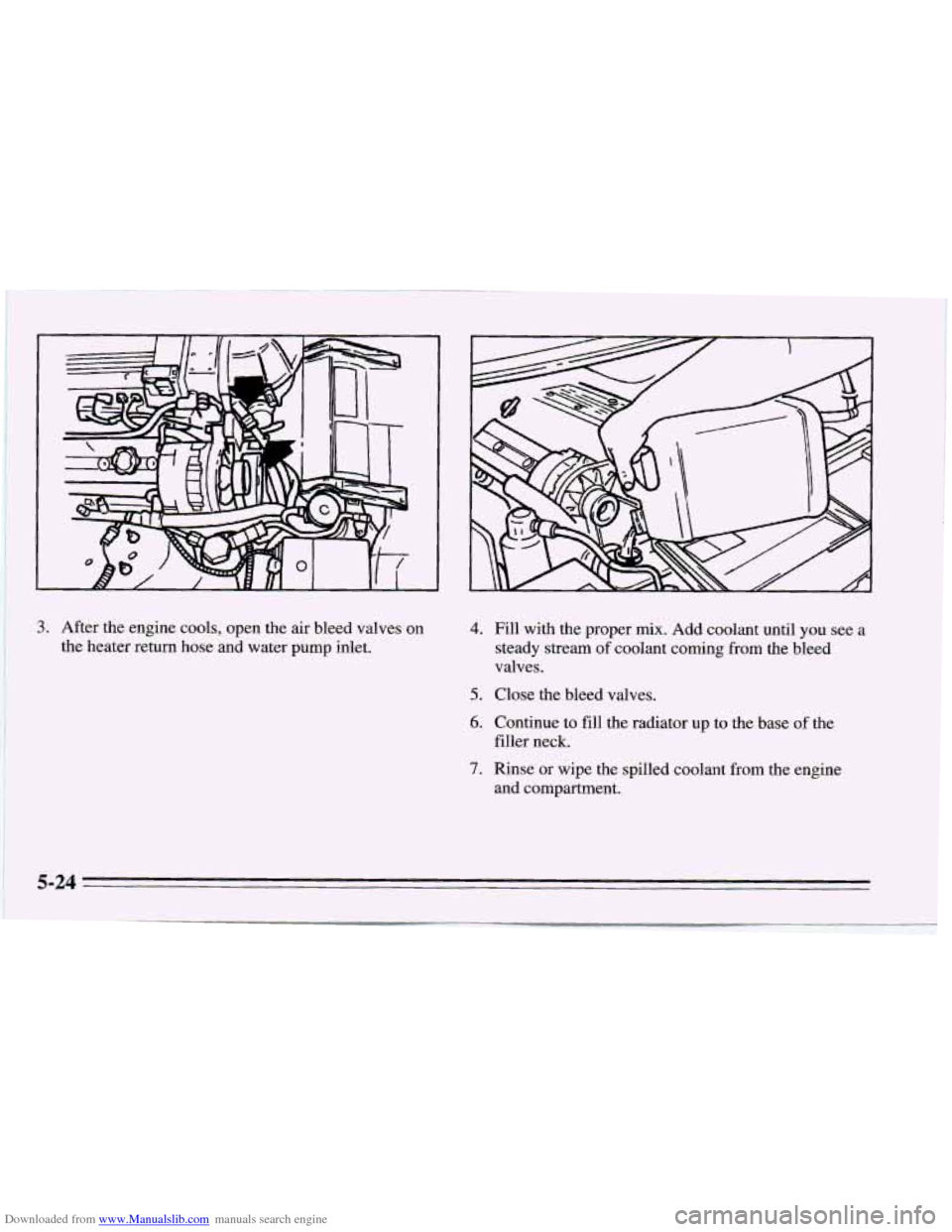

Downloaded from www.Manualslib.com manuals search engine 3. After the engine cools, open the air bleed valves on
the heater return hose and water pump inlet. 4.
5.
6.
7.
Fill with the proper mix. Add coolant until you see a
steady stream of coolant coming from the bleed
valves.
Close the bleed valves.
Continue to fill the radiator up to the base of the
filler neck.
Rinse or wipe the spilled coolant from the engine and compartment.
5-24

Downloaded from www.Manualslib.com manuals search engine Engine Oil Additives
Don’t add anything to your oil. Your Chevrolet dealer is
ready to advise if you think something should be added.
When to Change Engine Oil
See if any one of these is true for you:
0
0
0
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving
in stop and go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top
of
your car.
If any one of these is true for your vehicle, then you
need to change your oil and filter every
3,000 miles
(5 000 km) or 3 months -- whichever comes first.
If none of them is true, change the oil and filter every
7,500 miles (12 500 km) or 12 months -- whichever
comes first.
Engine Coolant Heater
An engine coolant heater can be a big help if you have
to park outside in very cold weather,
0°F (- 18 “C) or
colder.
If your vehicle has this option, see “Engine
Coolant Heater” in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay on your skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment.
If you
change your own oil, be sure to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oil
by putting it in the trash, pouring it on the ground, into
sewers, or into streams
or bodies of water. Instead,
recycle it by taking
it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for help.
6-17

Downloaded from www.Manualslib.com manuals search engine Engine Coolant
The following explains your cooling system and how to
add coolant when it
is low. If you have a problem with
engine overheating or if you need to add coolant to your
radiator, see “Engine Overheating”
in the Index.
The proper coolant for your Chevrolet will:
Give freezing protection down to -34°F (-37°C).
Give boiling protection up to 262” F ( 128 * C).
Protect against rust and corrosion.
0 Help keep the proper engine temperature.
0 Let the warning lights work as they should.
What to Use
Use a mixture of one-half clean water (preferably
distilled) and one-half antifreeze that meets
“GM
Specification 1825-M,” which won’t damage aluminum
parts.
You can also use a recycled coolant conforming to
GM Specification 1825-M with a complete coolant flush
and refill. If you use this mixture, you don’t need to add
anything else.
I NOTICE:
If you use an improper coolant mix, your engine
could overheat and
be badly damaged. The
repair
cost wouldn’t be covered by your
warranty.
Too much water in the mix can freeze
and crack the engine, radiator, heater core and
other parts.
6-28

Downloaded from www.Manualslib.com manuals search engine Main Fuse Block
FUSE USAGECHART I I
I ”- RADIO
€I 160 ACCY CRANK
WINDOWS BATT WIPER/WASH IP DIMMER IGN
12[--1 11- gn
80 70 60 50
DEFOG/SEATS CIGAR/HORN TAIL LTS GAGES
COURTESY PWR
ACCY STOPIHAZARD PCM ION
RADIO ACCY TURN B- U AIR BAG
SEE OWNER’S MANUAL FOR MORE INFORMATION
PRINTED IN U.S.A 10264034
1. AIR BAG: SIR Components
2. TURN B-U: Backup Lamp; Daytime Running
Lamps Module (Canada); Turn Flasher
3. HVAC: Heater Control Selector Switch (Heater/Air
Conditioner); Rear Defogger
4. RADIO ASSY: BOSE’ Relay
5. PCM IGN: Powertrain Control Module; PASS-Key
II@Decoder Module; Fuel Pump Relay
6.
7.
8.
9.
STOPEIAZARD: Brake Lamp/Cruise Release
Switch; Hazard Flasher
PWR ACCY Power Door Locks; Power Mirrors;
Hatch Release
COURTESY: Audio Alarm Module; Courtesy
Lamps: Console Compartment, Glove
Box, Dome,
Trunk, Rear Courtesy, Rearview Mirror and Radio
GAGES: Audio Alarm Module; Daytime Running
lamps Module (Canada); Diagnostic Energy Reserve
Module; Instrument Cluster; Remote Lock Control
Module
10. TAIL LTS: Exterior Lighting
11. CIGAWORN: Cigarette Lighter; Horn Relay
12. DEFOG/SEATS: Power Seats; Rear Defogger
13. IP DIMMER: Brightness Control
14. WIPEIUWASH: Windshield WiperNasher
15. WINDOWS: Power Windows, Convertible Top
(Circuit Breaker)
Switch (Circuit Breaker)
16. CRANK: Diagnostic Energy Reserve Module
17. RADIO: Radio Amplifier

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Ashtray* ................................. 194
Automatic Transmission Indicator
.............. 73
Backup
................................... 1141
Center High-Mounted Stoplamp ............... 921
Cluster
................................... 161
Console .................................. 194
Dome .................................... 906
Fog ...................................... 885
Front Parking and Turn Signal
............... 2397
GloveBox ................................ 194
Headlamp
(Low Beam) ................... H-4351
Headlamp (High Beam)
................... H-4352
Door Courtesy
.............................. 74
*Manual transmission
only .
Heater and A/C Control ....................... 37
High Beam Indicator ........................ 161
Indicator Lights
............................ 161
Interior Door Handle
......................... 74
License .................................. 194
Reading
................................. 212-2
Rear Courtesy
............................. 562
Sidemarker
............................... 194
TailOnly
................................. 194
Tail/Stop/Turn
............................ 2057
Trunk
.................................... 562
Turn Signal Indicators
....................... 161
6-73

Downloaded from www.Manualslib.com manuals search engine Child Restraints ................................ 1-3 1
Securing in a Rear Seat Position ................. 1-33
Securing
in the Right Front Seat Position .......... 1-34
Top Strap
................................... 1-32
WheretoPut
................................ 1-31
Cigarette Lighter
............................... 2-62
Power Options
................................ 6-69
Circuit
Breaker. Power Windows and Other
Cleaner. Air
................................... 6-18
Cleaning Aluminum Wheels
........................... 6-64
Fabric
..................................... 6-59
Glass
...................................... 6-61
Leather
.................................... 6-61
Outside
of the Windshield and Wiper Blades ....... 6-62
Removeable
Roof Panel ....................... 6-62
Special Problems
............................ 6-60
Stains
...................................... 6-60
The Inside of Your Chevrolet
................... 6-58
Tires
...................................... 6-64
Top of the Instrument Panel
.................... 6-61
Your Convertible Top
......................... 6-64
Vinyl
...................................... 6-60
Clock. Setting the
................................ 3-6
Close-OutPanel ................................ 2-60
Clutch Adjustment
.............................. 6-26
Clutch. Hydraulic
............................... 6-26
Comfort Controls
................................ 3-1
Compact Disc Care
............................. 3- 18
Compact Spare Tire
............................. 5-37
Console. Front
................................. 2-58
Control of a Vehicle
.............................. 4-5
Control. Loss
of ................................ 4- 15
Convertible Top ................................ 2-80
Convertible Top Cleaning
........................ 6-64
Convertible Top.
To Lower Your ................... 2-80
Convertible Top. To Raise Your
.................... 2-83
Convex Outside Mirror
.......................... 2-52
Coolant
....................................... 6-28
Coolant Heater. Engine
..................... 2-20. 6-17
Coolant Recovery Tank
.......................... 5-17
Coolant. How to Add to the Coolant Recovery Tank ... 5-17
Coolant. How to Add to the Radiator (LTl Engine) .... 5-22
Coolant. How to Add to the Radiator (V6 Engine)
..... 5-19
Cooling System
................................ 5-15
Courtesy Lamps ................................ 2-49
Covered Visor Vanity Mirror
...................... 2-62
Cruise Control Erasing Speed Memory
........................ 2-46
Getting Out
of ............................... 2-46
Passing Another Vehicle While Using
............ 2-45
To Increase Speed ............................ 2-44
To Resume a Set Speed
........................ 2-44
ToSet
..................................... 2-43
UseonHills
................................ 2-45
Customer Assistance for the Hearing or
Speech Impaired
............................... 8-2
Customer Assistance Information
................... 8-1
Customer Satisfaction Procedure
.................... 8-1
ToReduceSpeed
............................ 2-45
Damage. Finish
............................... 6-65
Damage. Sheet Metal
............................ 6-65
Daytime Running Lamps
......................... 2-48
Dead Battery ................................... 5-2
9-3
