1995 CHEVROLET ASTRO CARGO VAN spare tire location

Downloaded from www.Manualslib.com manuals search engine 5

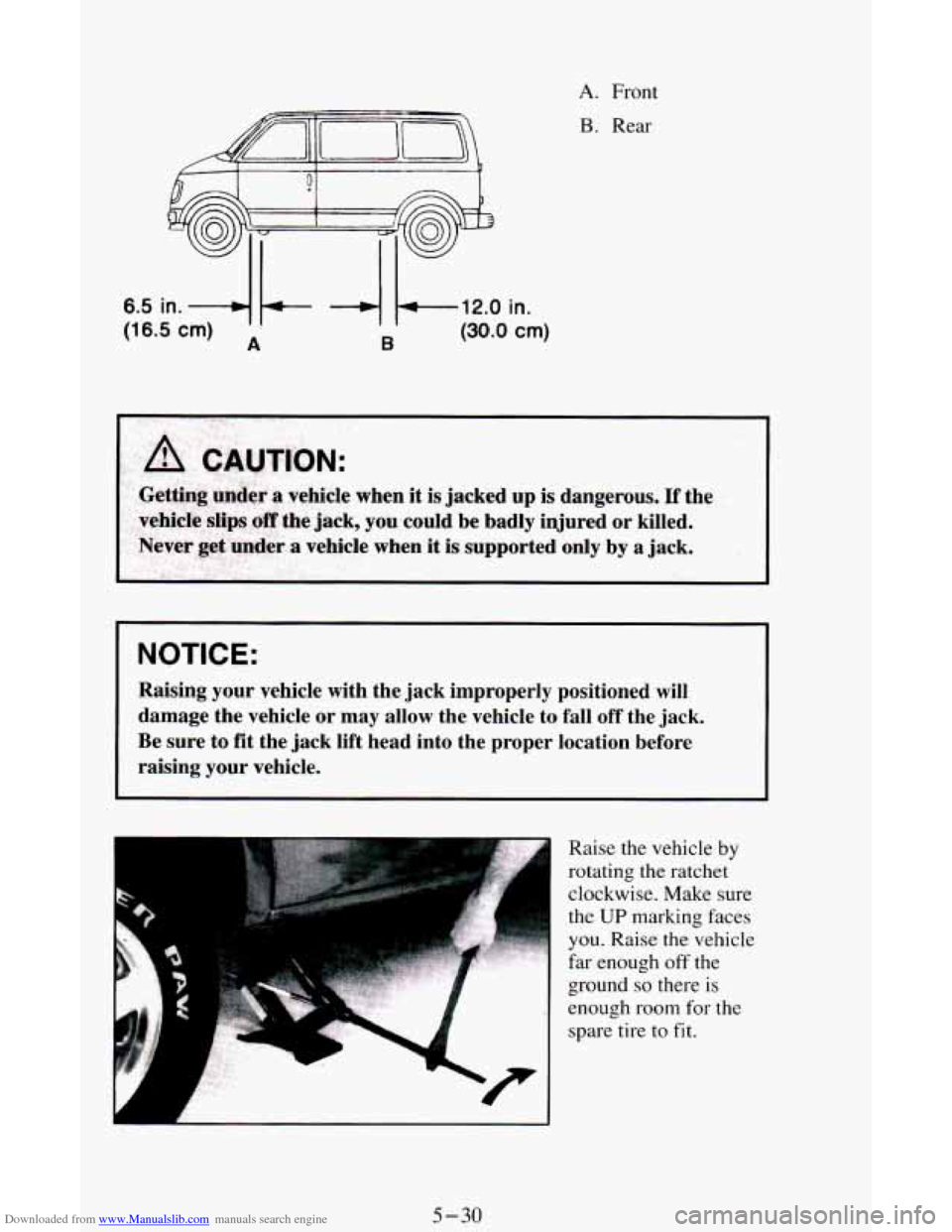

6.5 in. -4 b- -4 k-,l2.0 in.
(16.5 cm) A B (30.0 em)
A. Front
B. Rear
NOTICE:
Raising your vehicle with the jack improperly positioned will
damage the vehicle or may allow the vehicle to fall off the \
jack.
Be sure to fit the jack lift head into the proper location b\
efore
raising your vehicle.
I
Raise the vehicle by
rotating the ratchet
clockwise. Make sure
the
UP marking faces
you. Raise the vehicle
far enough
off the
ground
so there is
enough room for the
spare tire
to fit.
5-30

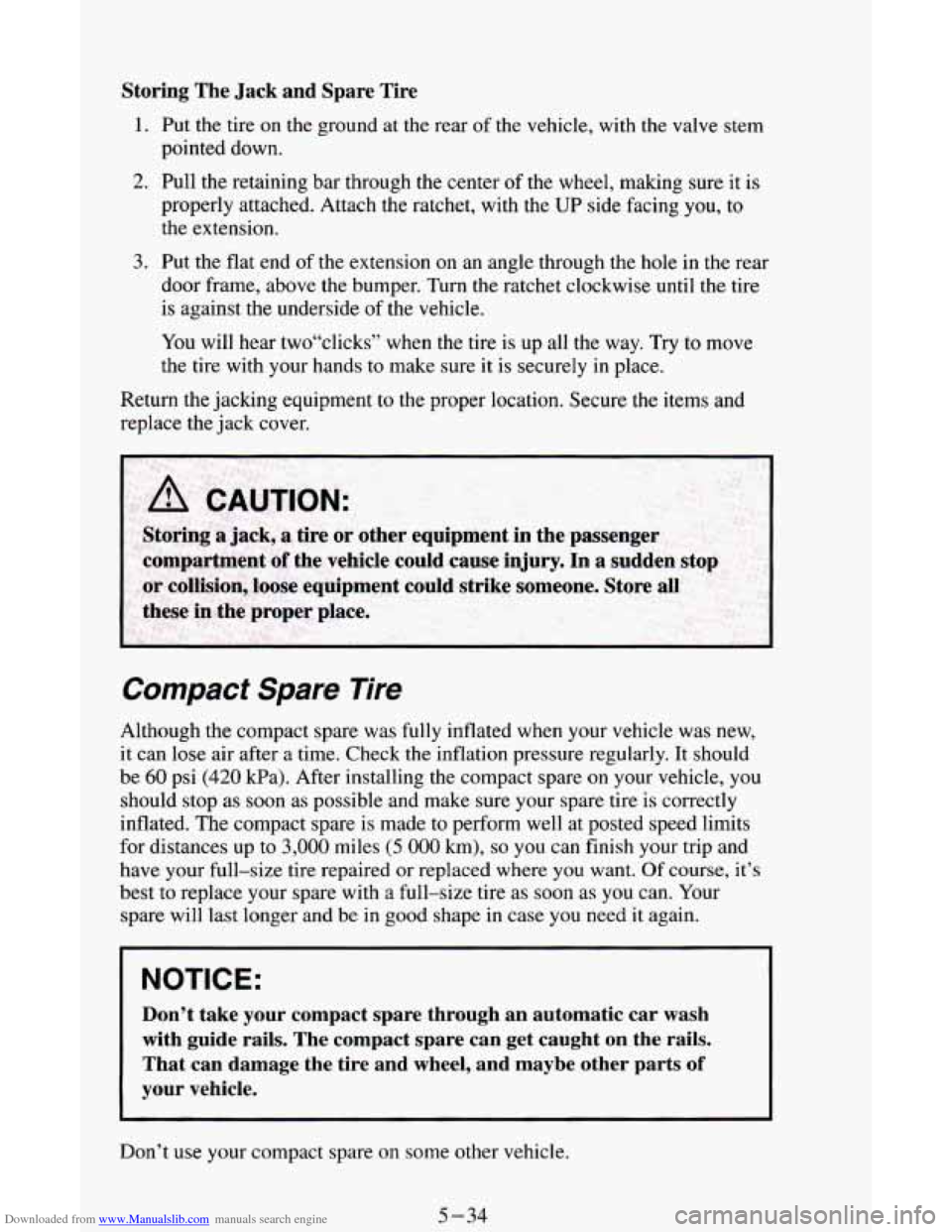

Downloaded from www.Manualslib.com manuals search engine Storing The Jack and Spare Tire
1. Put the tire on the ground at the rear of the vehicle, with the valve stem
pointed down.
2. Pull the retaining bar through the center of the wheel, making sure it is
properly attached. Attach the ratchet, with the UP side facing you, to
the extension.
3. Put the flat end of the extension on an angle through the hole in the rear
door frame, above the bumper. Turn the ratchet clockwise until the tire
is against the underside
of the vehicle.
You will hear two“c1icks” when the tire is up all the way. Try to move
the tire with your hands to make sure it is securely in place.
Return the jacking equipment to the proper location. Secure the items and
replace the jack cover.
Compact Spare Tire
Although the compact spare was fully inflated when your vehicle was new,
it can lose air after
a time. Check the inflation pressure regularly. It should
be
60 psi (420 kPa). After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your spare tire is correctly
inflated. The compact spare is made to perform well at posted speed limits
for distances up to
3,000 miles (5 000 km), so you can finish your trip and
have your full-size tire repaired or replaced where you want. Of course, it’s
best to replace your spare with a full-size tire as soon as you can. Your
spare will last longer and be in good shape in case you need
it again.
I NOTICE:
Don’t take your compact spare through an automatic car wash \
with guide rails. The compact spare can get caught
on the rails.
That can damage the tire and wheel, and maybe other parts
of
your vehicle.
Don’t use your compact spare on some other vehicle.
5-34

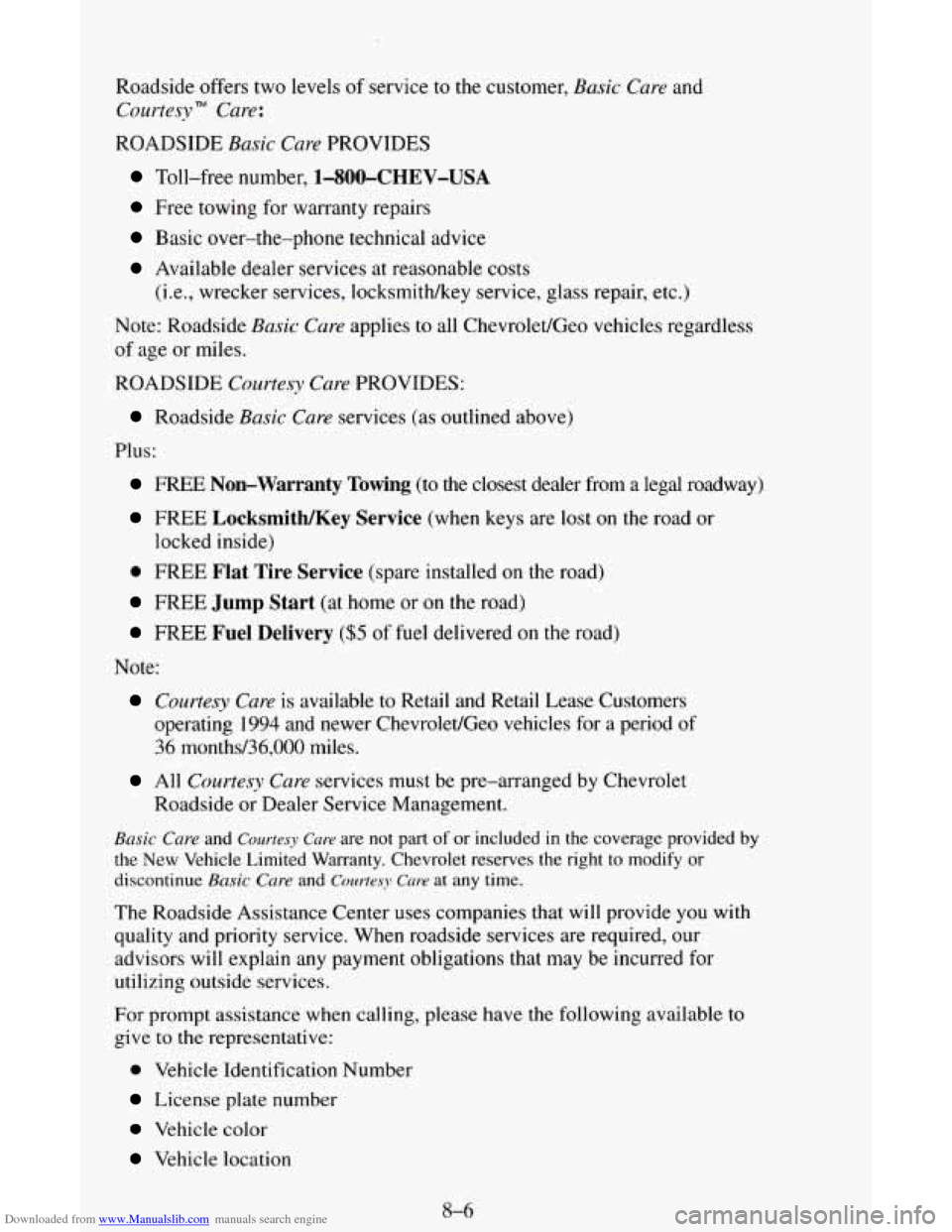

Downloaded from www.Manualslib.com manuals search engine Roadside offers two levels of service to the customer, Basic Care and
Courtesy TM Care:
ROADSIDE Basic Care PROVIDES
Toll-free number, 1-800-CHEV-USA
Free towing for warranty repairs
Basic over-the-phone technical advice
Available dealer services at reasonable costs
(i.e., wrecker services, locksmith/key service, glass repair, etc.)
Note: Roadside
Basic Care applies to all ChevroletIGeo vehicles regardless
of age or miles.
ROADSIDE
Courtesy Care PROVIDES:
Roadside Basic Care services (as outlined above)
Plus:
FREE Non-Warranty Towing (to the closest dealer from a legal roadway)
FREE LocksmithKey Service (when keys are lost on the road or
a FREE Flat Tire Service (spare installed on the road)
FREE Jump Start (at home or on the road)
FREE Fuel Delivery ($5 of fuel delivered on the road)
locked inside)
Note:
Courtesy Care is available to Retail and Retail Lease Customers
operating
1994 and newer ChevroletIGeo vehicles for a period of
36 months/36,000 miles.
All Courtesy Care services must be pre-arranged by Chevrolet
Roadside
or Dealer Service Management.
Basic Care and Courtesy Caw are not part of or included in the coverage provided by
the
New Vehicle Limited Warranty. Chevrolet reserves the right to modify or
discontinue
Basic Cure and Corrrtesy Care at any time.
The Roadside Assistance Center uses companies that will provide you with
quality and priority service. When roadside services are required, our
advisors will explain any payment obligations that may be incurred for
utilizing outside services.
For prompt assistance when calling, please have the following available to
give
to the representative:
a Vehicle Identification Number
License plate number
Vehicle color
Vehicle location
8-6
