Add-on Electrical Equipment Fuses and Circuit Breakers
NOTICE:
Don’t add anything electrical to your Buick unless
you check with your dealer first. Some electrical
equipment can damage your vehicle and the
damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Buick, see “Servicing
Your Air Bag-Equipped Buick”
in the Index. The wiring
circuits
in your vehicle are protected from
short circuits by
a combination of fuses, circuit breakers,
and fusible thermal links in the wiring itself. This
greatly reduces the chance of fires caused
by electrical
problems.
Some fuses are
in a fuse
block on the passenger
side of the instrument panel.
Pull off
the cover labeled
FUSES to expose the fuses.
Additional fuses are
in the underhood electrical centers
on the right and left sides of the engine compartment.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you
replace a bad fuse with a new one of the identical size
and rating.
6-47
ProCarManuals.com
Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is inzportuntfor you or a service station attendant to
pecform these un,derlwocl clwcks at eaclz~fl~el~fi’ll.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix if necessary. See “Coolant”
in the Index for
further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label. See “Loading Your Vehicle” in the Index. See
“Tires”
in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
Power Antenna
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
7-36
ProCarManuals.com
At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication
Lubricate all hinges and latches including those for the
body doors, hood, rear compartment, glove
box door,
console door and any folding seat hardware. Part
D tells
you what to use. More frequent lubrication may be
required when exposed to a corrosive environment.
Starter Switch
I I
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow
the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the regular brake.
NOTE: Do not use the accelerator pedal, and be
ready
to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only
in PARK (P) or NEUTRAL (N). If
the starter works in any other position, your vehicle
needs service.
Brake-Transaxle Shift Interlock -- BTSI
I I
1. Before you start, be sure you have enough room
around the vehicle. It should
be parked on a level
surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index
if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
7-37
ProCarManuals.com

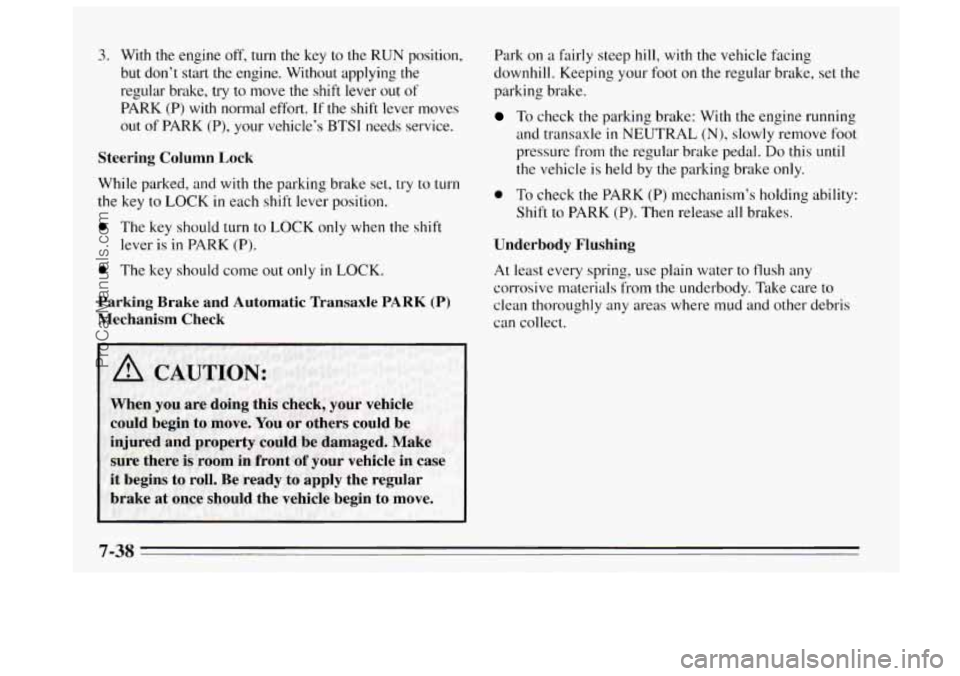

3. With the engine off, turn the key to the RUN position,
but don’t start the engine. Without applying the
regular brake, try to move the shift lever out of
PARK (P) with normal effort. If the shift lever moves
out
of PARK (P), your vehicle’s BTSI needs service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to LOCK in each shift lever position.
0 The key should turn to LOCK only when the shift
lever is
in PARK (P).
0 The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
Mechanism Check
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake: With the engine running
and transaxle
in NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle
is held by the parking brake only.
0 To check the PARK (P) mechanism’s holding ability:
Shift to PARK (P). Then release
all brakes.
Underbody Flushing
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-38
ProCarManuals.com
Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice
a year (for instance, each
spring and fall).
You should let your GM dealer's
service department
or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at once.
Restraint Systems
Now and then, make sure all your belts. buckles, latch
plates, retractors, anchorages and reminder systems are
working properly. Look for any loose parts or damage.
If
you see anything that might keep a restraint system
from doing its job, have
it repaired.
Steering, SuSpension and
Front-Wheel-Drive Axle Boot and
Seal Inspection
Inspect the front and rear suspension and steering system
for damaged, loose or missing parts, signs of wear. or
lack of lubrication. Inspect the power steering lines and
hoses for proper hookup. binding, leaks, cracks, chafing,
etc. Clean and then inspect the drive axle boot seals
for
darnage, tears or leakage. Replace seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken. damaged,
missing or out-of-position parts
as well as open seams.
holes. loose connections,
or other conditions which
could cause a heat build-up
in the tloor pan or could let
exhaust fumes into the vehicle. See "Engine Exhaust"
in
the Index.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding.
and ,for dalnaged or missing parts. Replace parts
as
needed. Accelerator and cruise control cables should not
be lubricated.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup. binding, leaks. cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts. including
calipers, parking brake, etc. Check parking brake
acl-justment. You may need
to have your brakes inspected
more often
if yo~~r driving habits or conditions result in
frequent braking.
7-39
ProCarManuals.com
Checking Automatic Transaxle Fluid
..................... 6- IS
Brake Fluid ................................. 6-23
Engine Coolant
.............................. 6- 18
Engine Oil ................................... 6-8
Power Steering Fluid ......................... 6-20
Restraint Systems
............................ 1-50
Things Under the Hood
........................ 6-6
Chemical Paint Spotting
.......................... 6-44
Child Restraints
................................ 1-37
(2-Door Models)
........................... 1-38
(4-Door Models) ........................... 1-40
Securing
in the Center Rear Seat Position ......... 1-42
Securing in the Right Front Seat Position .......... 1-44
TOP Strap ................................... 1-38
Where to Put ................................ 1-37
Cigarette Lighter ............................... 2-4 I
Power Options ................................ 6-53
City Driving
................................... 4- 17
Cleaner. Air ................................... 6-13
Aluminum Wheels ........................... 6-43
Fabric
..................................... 6-39
Glass ...................................... 6-41
Inside of Your Buick .......................... 6-38
Securing in a Rear Outside Seat Position
Securing
in a Rear Outside Seat Position
Circuit Breaker. Power Windows and Other
Cleaning
Leather
.................................... 6-40
Outside of the Windshield and Wiper Blades ....... 6-41
Outside
01 Your Buick ........................ 6-42
Special Problems
............................ 6-39
Stains ...................................... 6-39
Tires
......................................... 43
Top
of the Instrument Panel .................... 6-41
Vinyl ...................................... 6-40
Clock. Setting The
............................... 3-5
Comfort Controls
................................
Bleed Valves ................................ 5-21
Heater, Engine
......................... 2- 14, 6- 13
How to Add to the Coolant Recovery Tank ........ 5-18
How to
Add to the Radiator .................... 5-20
Temperature Gage ............................ 2-50
Temperature Light
........................... 2-49
Cooling System
................................ 5-16
Courtesy Transportation
........................... 8-5
ProCarManuals.com
Engine Coolant ................................. 6- 17
Adding
.................................... 6-18
Checking ................................... 6-18
Heater
................................ 2- 14. 6. I3
Temperature Gage
............................ 2-50
Temperature Light
........................... 2-49
Engineoil
..................................... 6-7
Additives
................................... 6-12
Checking
.................................... 6-8
What Kind to Use ............................ 6- IO
What to Do with Used Oil ..................... 6-13
When to Change
............................. 6- 12
Ethanol
(In Fuel) ................................ 6-3
Exhaust. Engine
................................ 2-23
Expectant Mothers. Use
of Safety Belts ............. 1-24
Extender. Safety Belt
............................ 1-50
Adding
..................................... 6-9
Fabric Cleaning
............................... 6-39
Fiberglass Springs
.............................. 6-44
Filling Your Tank ................................ 6-5
Filter
. Air Cleaner .............................. 6- 13
Finish Care .................................... 6-42
Finish Damage
................................. 6-43
First Gear. Automatic Transaxle
................... I 3-18
Fixed Mast Antenna ............................. 3- 19 Flashers
. Hazard Warning ......................... 5- I
Flat
Tire. Changing ............................. 5-24
Fluid Capacities
................................ 6-55
Fluid Levels. Maintenance
........................ 7-36
Fluids and Lubricants
............................ 7-40
Foreign Countries
. Fuel ........................... 6-4
Four-Way Manual Seat
........................... 1-2
Freeway Driving
............................... 4-18
French Language Manual
11
Fr011t Seatback Latches ........................... 1-5
Fuel .......................................... 6-3
Filling Your Tank
............................. 6-5
Gage
...................................... 2-44
In Foreign Countries
........................... 6-4
LowLight
.................................. 2-45
Fuse Block. Instrument Panel
..................... 6-48
Fuses and Circuit Breakers
....................... 6-47
.. ...........................
Gage . En. trine Coolant Temperature ............... 2-50
Gasoline
....................................... 6-3
Gasolines for Cleaner Air
......................... 6-4
GAWR
(Gross Axle Weight Rating) ................ 4-26
Gear Positions
................................. 2- IS
Glass. Cleaning ................................ 6-41
GloveBox ..................................... 2-8
GVWR (Gross Vehicle Weight Rating)
.............. 3-26
9-5
ProCarManuals.com
Leaving Your Vehicle ............................. 2-4
Lights Leaving Your Vehicle With the Engine Running
....... 2-21
Air Bag Readiness
...................... 1 . 19. 2.46
Anti-Lock Brake System Active
................ 2-49
Anti-Lock Brake System Warning
........... 2.48. 4.6
Brake System Warning
........................ 2-47
Charging System
............................. 2-45
Cruise
..................................... 2-53
Engine Coolant Temperature
................... 2-50
Low Coolant
................................ 2-50
Low Fuel
................................... 2-45
LowOilLevel
............................... 2-52
Oil Warning
................................. 2-51
Safety Belt Reminder
..................... 1.6. 2.46
Security
.................................... 2-53
Service Engine Soon
.......................... 2-5 1
Lighter ....................................... 2-41
Loading Your Vehicle
........................... 4-26
Locks Automatic Door
.............................. 2-4
PowerDoor
.................................. 2-4
Steering Colulnn. Maintenance
................. 7-38
Torque
..................................... 2-21
Trunk
....................................... 2-7
Window
.................................... 2-25
Loss
of Control ................................ 4- I2
Low Coolant Warning Light ...................... 2-50
Door
....................................... 2-3 LowFuelLight
................................ 2-45
Low Oil Level Light
............................ 2-52
Low Trac Light ................................ 2-49
Lubricants and Fluids
............................ 7-40
Lubrication. Body
.............................. 7-37
Luggage Carrier
................................ 2-38
Maintenance Record
........................... 7-42
Maintenance Schedule
............................ 7-1
Owner Checks and Services
.................... 7-36
Periodic Maintenance Inspections
............... 7-39
Recommended Fluids and Lubricants
............ 7-40
Schedule1
................................... 7-6
Schedule I Definition .......................... 7-4
Schedule11
................................. 7-26
Schedule
I1 Definition .......................... 7-5
Scheduled Maintenance Services ................. 7-3
Maintenance, Normal Replacement Parts
............ 6-56
Maintenance, Underbody
......................... 6-44
Maintenance,
When Trailer Towing ................. 4-34
Malfunction Indicator Lamp (Service Engine
Soon Light) .................................. 2-51
Manual Front Seat
............................... 1-1
Manual Outside Mirror .......................... 2-36
Methanol
(In Fuel) ............................... 6-3
Mirrors
....................................... 2-35
Convex Outside
............................. 2-36
Inside Day/Night Rearview
.................... 2-35
9-7
ProCarManuals.com
