19-30

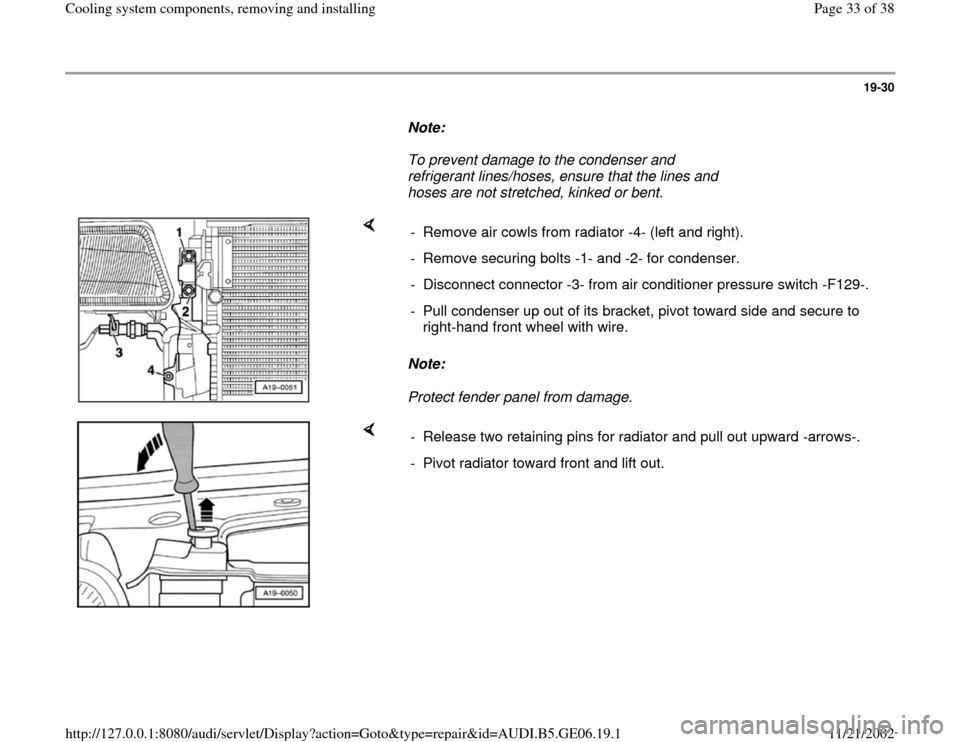

Note:
To prevent damage to the condenser and
refrigerant lines/hoses, ensure that the lines and
hoses are not stretched, kinked or bent.
Note:
Protect fender panel from damage. - Remove air cowls from radiator -4- (left and right).
- Remove securing bolts -1- and -2- for condenser.
- Disconnect connector -3- from air conditioner pressure switch -F129-.
- Pull condenser up out of its bracket, pivot toward side and secure to
right-hand front wheel with wire.
- Release two retaining pins for radiator and pull out upward -arrows-.
- Pivot radiator toward front and lift out.
