Towing
rl
It the car needs to be towed, call a professional towingservice. Never tow the car behind another car with just
a rope or chain. lt is very dange.ous.
Emergency Towing
There are three popular methods of towing a car:
Flat-bed Equipmont-The operator loads the car on theback of a truck. This is the best way of transporting thecar.
Whsol Lift Equipment-The tow truck uses two oivot-ing arms that go under the tires (front or rear) and liftsthem otf the ground. The other two wheels remain onthe ground.
Sling-type Equipmont-The tow truck uses metal cableswith hooks on the ends. These hooks go around partsof the frame or suspension and the cables lift that endof the car off the ground. The car's suspension and bodvcan be seriously damaged if this method of towing is at-tempted.
It the car cannot be transponed by flat-bed, it should betowed with the tfont wheels oft the ground. lf due todamage. the car must be towed with the front wheelson the ground, do the tollowing:
Manual Transmission
a Release the parking brake,a Shift the transmission to Neutral.
Automatic Transmission
a Release the parking brake.a Start the engine.
a Shift to @ oosition, then to S position.
a Turn off the engine.
NOTICE: lmproper towing preparation will damage thetransmission. Follow the above procedure exactly. lf you
cannot shift the transmission or stan the engine (auto-
matic transmission), your car must be transDorted on aflat-bed.
a lt is best to tow the car no tarther than SO miles lgokm). and keep the speed below 3b mph (bE km/h).
NOTICE: Trying to litt or tow your car by the bumperswill cause serious damage. The bumpers are not designedto support the car's weight.
Front:
Real:
TOWING HOOKS

Moonroof
Index
Hatchback
CABLE ASSEMBLYReplacement, page 2O-81SUNSHADEReplacement, page 20-79
MOTORReplacement, page 20-80
GLASS BRACKETReplacement, page 20-81
DRAIN CHANN€L
FRONT DRAII{CHANNEL
a/'#
-4
SUI{SHADE RAIL
Replacement, page 20 8l
FRAME SEAL
FRONT RAILHOLDER
REAR ORAIN TUBE
,**4
U
\a
GUIDE RAIL
FRAME
20-77

Moonroof
Motor, Drain Tube and Frame Replacement
CAUTION: B€ caretul not to damag€ lhe seats, dash-
board and other interior trim.
1. Remove the glass (see page 2O-79) and headliner
(see page 20-98).
2. Disconnect the motor connector, and remove the
clips securing the ceiling light wire harness.
3. Remove the bolts and nuts, then remove the motor,
if necessarv,
NOTE: Make sure both sliders are parallel when in-
stalling the motor.


: 8olt, nut locationg
A

: Bolt, 2
6x1.Omm I9.8 N.m ILd tt.o kgf.-, I,.?- ", _,/
< : CliD locations. 2
CEILIING LIGHT
FRAME
B : Nut, 3
20-80
4.Disconnect the drain tubes.
Remove the bolts, then remove the trame from the
car.
NOTE: You may require assistance when removing
the frame.


: Eolt locations, I
6 x 1.0 mm
DRAIN TUBETo install, slide the draintube over the ftame nozzleat least 10 mm {O.4 in}.
6.
TUBE CI-IP
Pull the drain tubes out the front and rear pillars.
NOTE; Betore pulling out the drain tube, tie a string
to the end of it so it can be reinstalled.
Installation is the reverse ol the removal procedure.
NOTE:
a Clean the surtace of the frame.
a Check the trame seal.
a Check for water leaks.
7.
9.8 N.m (1.0 kgt m,7.2 rbr.ttl )
FRAME
FRONT

Moonroof
lndex
Ssdan
GLASS BRACKETReplacement, page 20-88
SUNSHAOEReplacement, page
MOTORReplacement, page 20-87
('
/\FROi{T DRAIN TUBE
SLIDE STOPP€R LINK
SUNSHADE RAIL
GUIDE RAILReplacement, page 20-88
REAR DRAIN
V
\
e
FRONT ORAIN
REAR RAILHOLDER
SEAL
FRAMERepfacement, page 20-87
20-84
----/_--4
DRAIN CHANNEL

Motor, Drain Tube and Frame Replacement
CAUTION: Be carotul not to damago th€ seats, dash-
board and other int6rior trim,
1. Remove the glass (see page 2O-86) and headliner(see page 20-10O).
Disconnect the motor connector, and remove the
clips securing the ceiling light wire harness.
NOTE: To remove the motor, remove the screws.
Disconnect the drain tubes.
Loosen the front bolts.
Remove the bolts, then remove the trame from the
car.
NOTE:
a You may require assistance when removing the
trame.
a Take care not to bend the sunshade rails.
TUBECLIP
DRAIN TUBETo install, slade the drain tube ov6rthe frame nozzle at least 10 mm lO.4 in).
SUNSHADERAILS
Pullthe drain tubes out of the tront and rear oillars.
NOTE: Before pulling out the drain tube, tie a string
to the end of it so it can be reinstalled.
Installation is the reverse of the removal grocedure.
NOTE:
a Install the tube clips with the ends facing the side to easea Clean the surtace of the frame.
a Check the frame seal.
a Check for water leaks.
a Make sure the sunshade moves smoothlv.
SCREW
4.
\/
Make sure the sliders areparallel when installing themotor,
CONNECTOR
FRAME
BOLT6 x 1.0 mm9.8 N.m (1.O lg{.rn.7.2 tbt.ttl
Loosen the tront bohs
Fo?w!?d
tt.
FRONTDRAIN VALVES
installation of the headliner.
20-87

Moonroof
Remove the frame (see page 20-87).
Remove the drain channel.
NOTE: Take care not to damage, twist or litt the
seal.
4. Remove the motor (see page 20-87).
5. Remove the front drain channel.
6. Remove the nut, then remove the front rail holder.
9.8 N.m {1.O kgf.m,7 .2 tbt-lrl
9, Slide the glass bracket/slider, liJter backward, then remove it.
Glass Bracket/Slider, Lifter, Guide Rails and Cable Assembly Replacement -
1.
2.
3. Remove the screws, then remove the sunshade rail
by sliding it backward.
ITUT6xl.Omm9.8 t{.m {1.0 kgt.m,7.2 tbf.ttl
7. Remove the screws @ attsching the guide rail. then litt the guide rail.
8. Remove the nut. then remove the rear rail holder.
NOTE: Remove the anchor spring.
AI{CHOR
NUT6 x 'l.O mm
REAR RAILHOLDER
NOTE: Install the rear railthe sub-seal to the trame.
SUB-SEAL
holder, then glue
SUNSHADE RAIL
SCREW
20-88

Remove the grab handle (front passenger.s) and grabhole caps (driver's),


: Scrow locations l2l
5. Remove the socket plug (moonroof model).
4.
FRAME
//Gr-@'
I
n{ +=s ,
SOCKETPLUG
HOOKS
_t :
e)
Remove the roof trim (moonroot model).Open the hatch, then remove the rear root trim.Remove the headliner.
ROOF TRIMsocxET
HEADLII{ER
(cont'dl
6. Remove the upper anchor bolts from the front andrear seat belts (see pages 2O-l j 5, I l9).
7. Remove the upper ponion of the quaner pilla. trimpanel, then detach the headliner clio on each side.
A : Clip locotions, 2
8.
HEADLINER
OUARTER PILLARTRIM PANEL
20-99

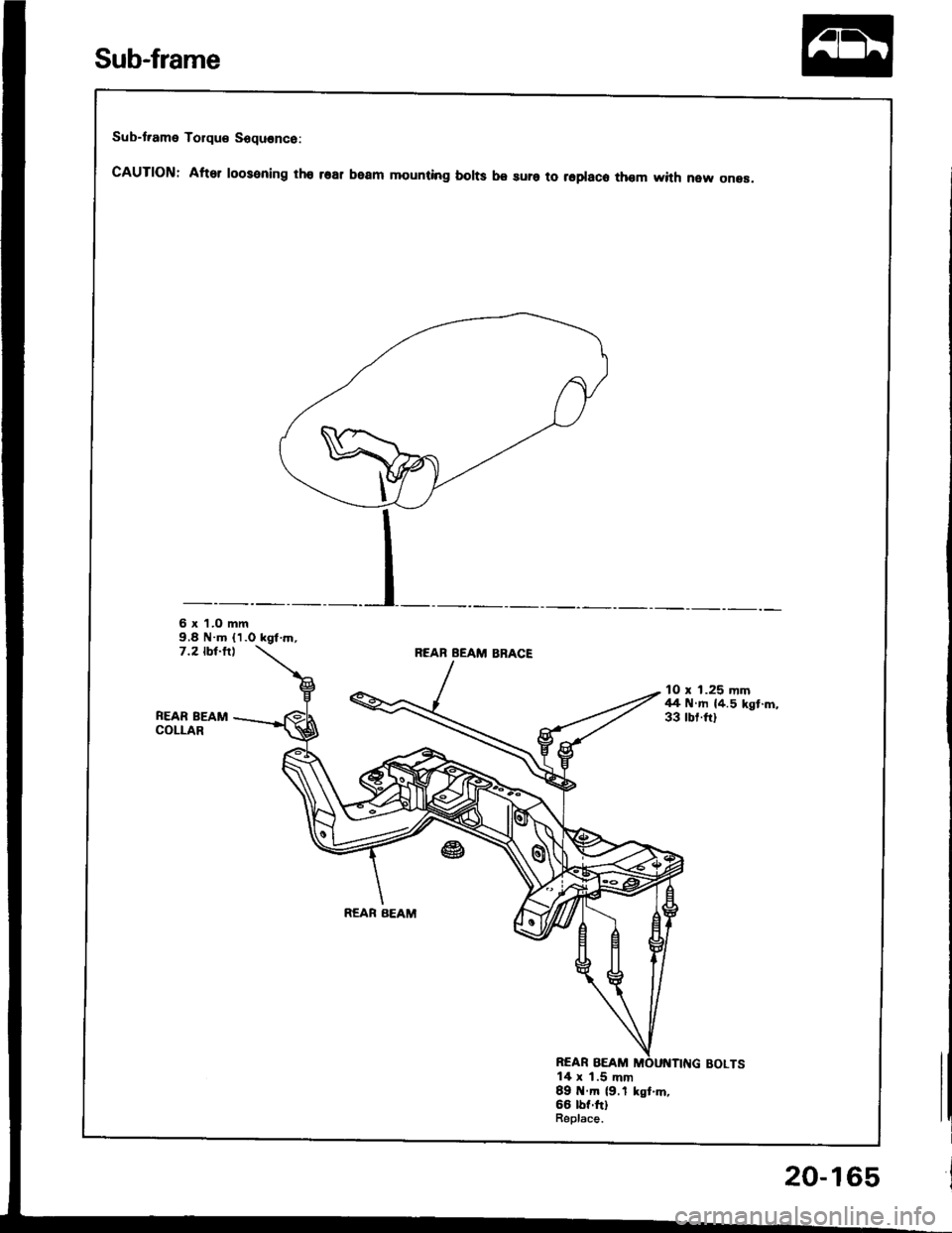

Sub-t.ame Torque Sequence:
cAUTloN: After roosening tho rsar beam mounting borts be sura to repraco thom with new onea.
6 x 'l.O mm9,8 N.m (1.0 kgt.rn,7.2 tbt-fllREAB BEAM BBACE
FEAR BEAMCOLLAR
10 x 1.25 mm44 N.m {4.5 kgt.m,33 rbr.ftl
REAR BEAM
REAR BEAM14 x 1.5 mm89 tt.m (9.1 kst.m,66 lbf.ftlBeplace.
Sub-frame
20-165
