1994 CHEVROLET SUBURBAN Owners Manual

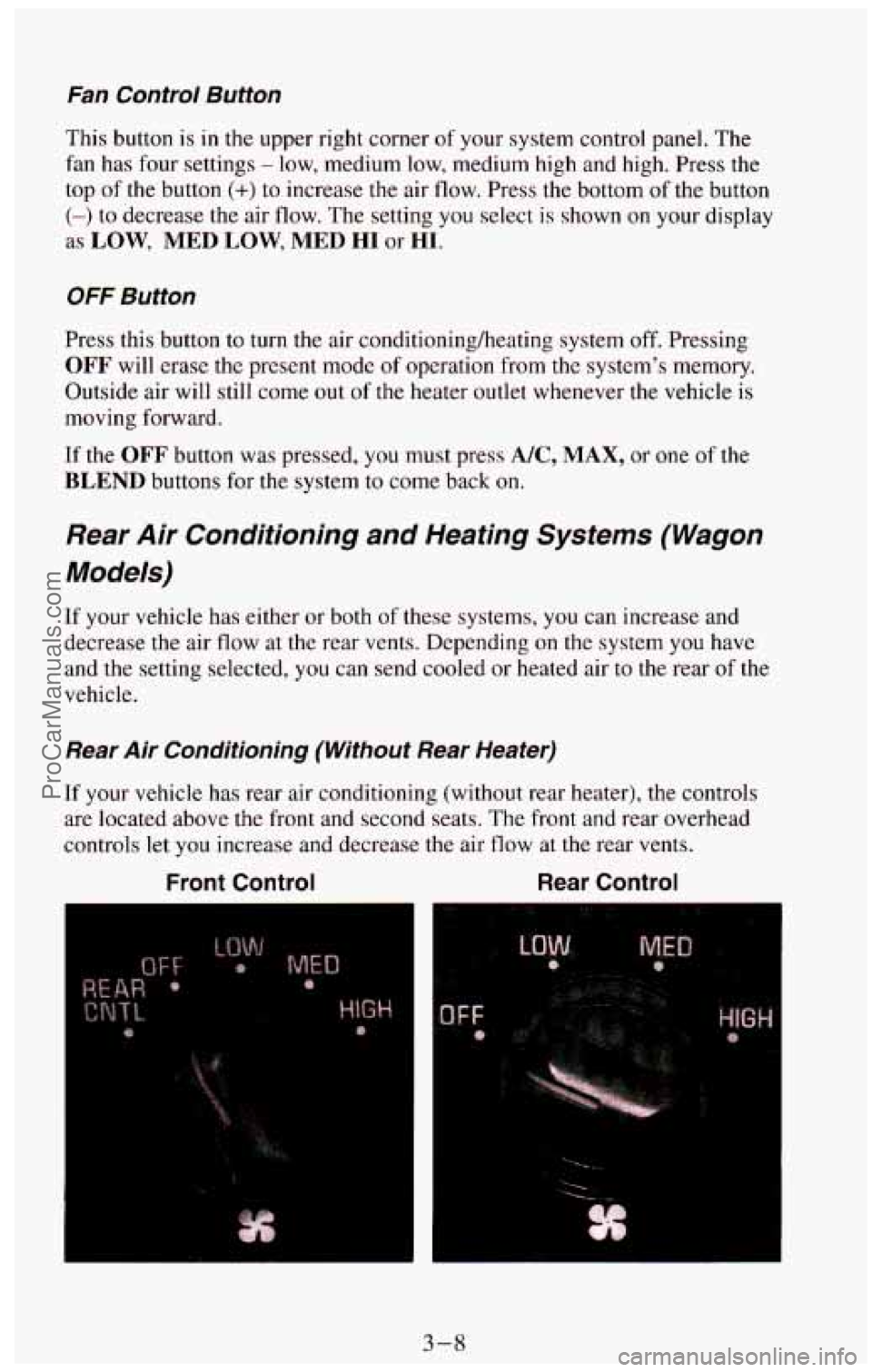

Fan Control Button
This button is in the upper right corner of your system control panel. The
fan has four settings
- low, medium low, medium high and high. Press the
top
of the button (+) to increase the air flow. Press the bottom of the button
(-) to decrease the air flow. The setting you select is shown on your display
as
LOW, MED LOW, MED HI or HI.
OFF Button
Press this button to turn the air conditioningheating system off. Pressing
OFF will erase the present mode of operation from the system’s \
memory,
Outside air will still come out of the heater outlet whenever the vehicle
is
moving forward.
If the OFF button was pressed, you must press A/C, MAX, or one of the
BLEND buttons for the system to come back on.
Rear Air Conditioning and Heating Systems (Wagon
Models)
If your vehicle has either or both of these systems, you can increase and
decrease the air flow at the rear vents. Depending
on the system you have
and the setting selected, you can send cooled
or heated air to the rear of the
vehicle.
Rear Air Conditioning (Without Rear Heater)
If your vehicle has rear air conditioning (without rear heater), the controls \
are located above the front and second seats.
The front and rear overhead
controls let
you increase and decrease the air flow at the rear vents.
Front Control Rear Control
e
F
t
3-8
ProCarManuals.com

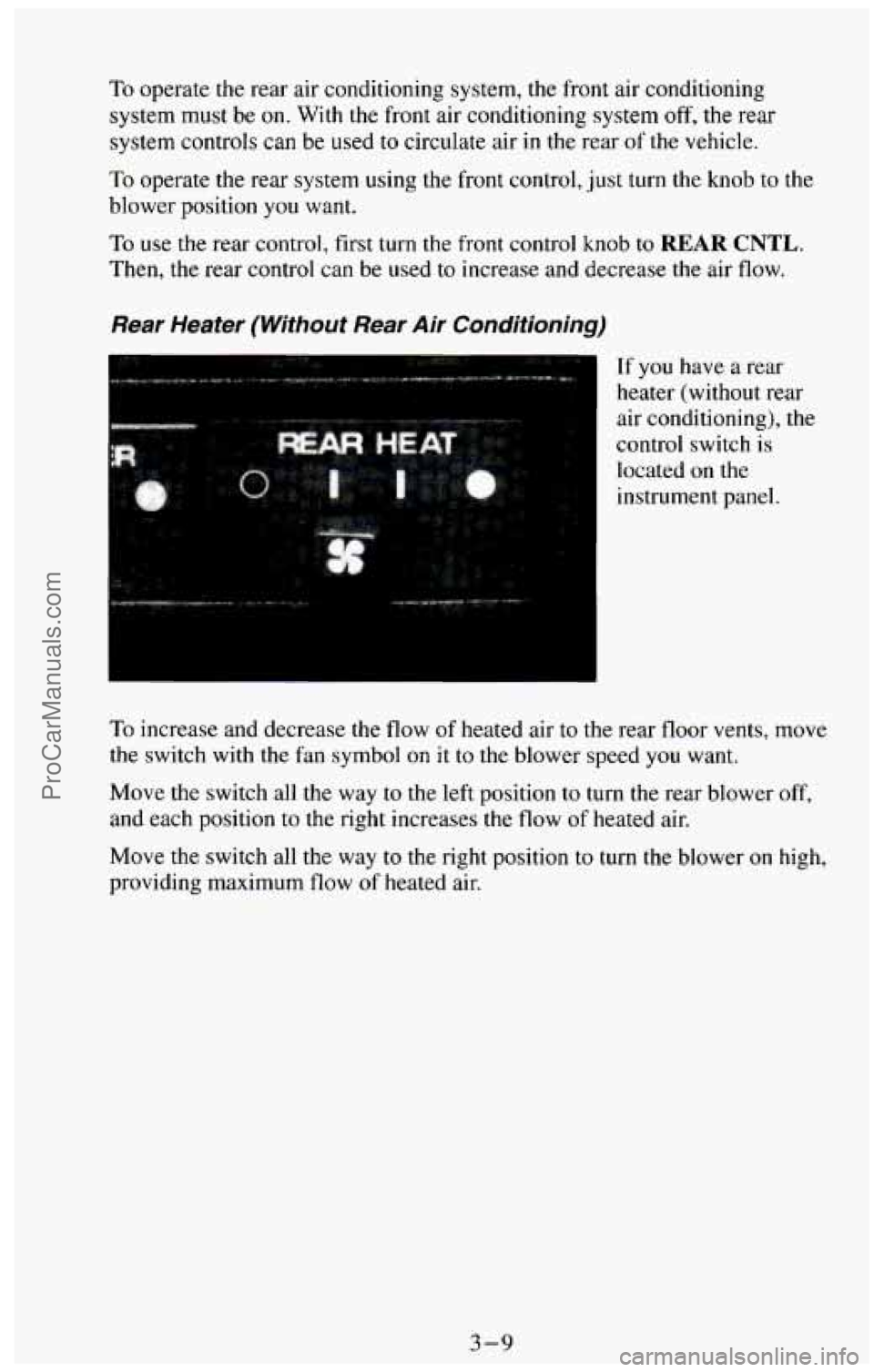

To operate the rear air conditioning system, the front air conditioning
system must be
on. With the front air conditioning system off, the rear
system controls can be used to circulate air in the rear of the vehicle.
To operate the rear system using the front control, just turn the knob to the
blower position you want.
To use the rear control, first turn the front control knob to REAR CNTL.
Then, the rear control can be used to increase and decrease the air flow.
Rear Heater (Without Rear Air Conditioning)
If you have a rear
heater (without rear
air conditioning), the
control switch
is
located on the
instrument panel.
To increase and decrease the flow of heated air to the rear floor vents, move
the switch with the fan symbol
on it to the blower speed you want.
Move the switch all the way to the left position to turn the rear blower off,
and
each position to the right increases the flow of heated air.
Move
the switch all the way to the right position to turn the blower on high,
providing maximum flow of heated air.
3-9
ProCarManuals.com

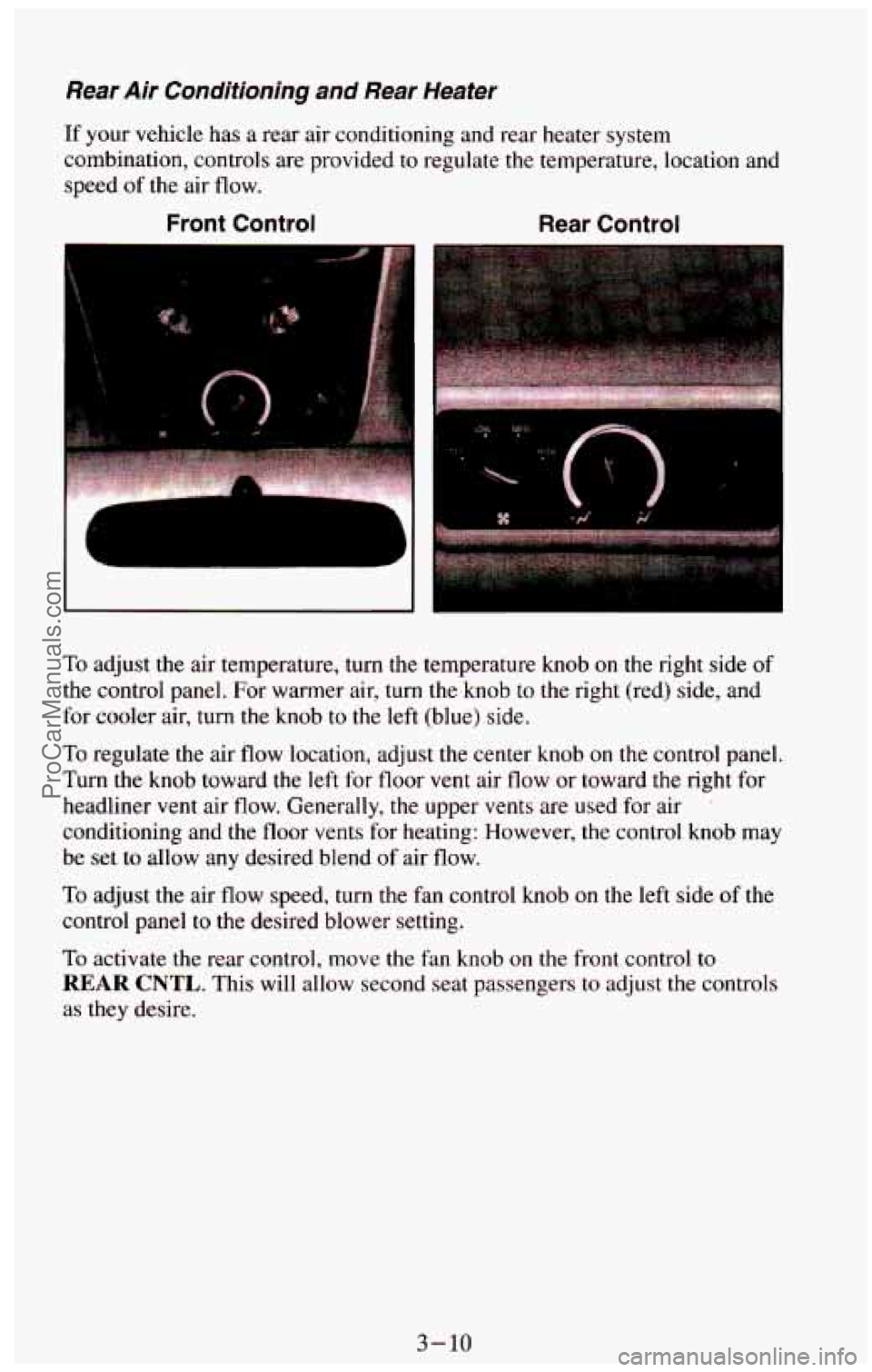

Rear Air Conditioning and Rear Heater
If your vehicle has a rear air conditioning and rear heater system
combination, controls are provided to regulate the temperature, location and
speed
of the air flow.
Front Control Rear Control
1
To adjust the air temperature, turn the temperature knob on the right side of
the control panel. For warmer air, turn the knob to the right (red) side, and
for cooler air, turn the knob to the left (blue) side.
To regulate the air flow location, adjust the center knob on the control panel.
Turn the knob toward the left for tloor vent air flow or toward the right for
headliner
vent air flow. Generally, the upper vents are used for air '
conditioning and the floor vents for heating: However, the control knob may
be set
to allow any desired blend of air flow.
To adjust the air flow speed, turn the fan control knob on the left side of the
control panel to the desired blower setting.
To activate the rear control, move the fan knob on the front control to
REAR CNTL. This will allow second seat passengers to adjust the controls
as they desire.
3- 10
ProCarManuals.com

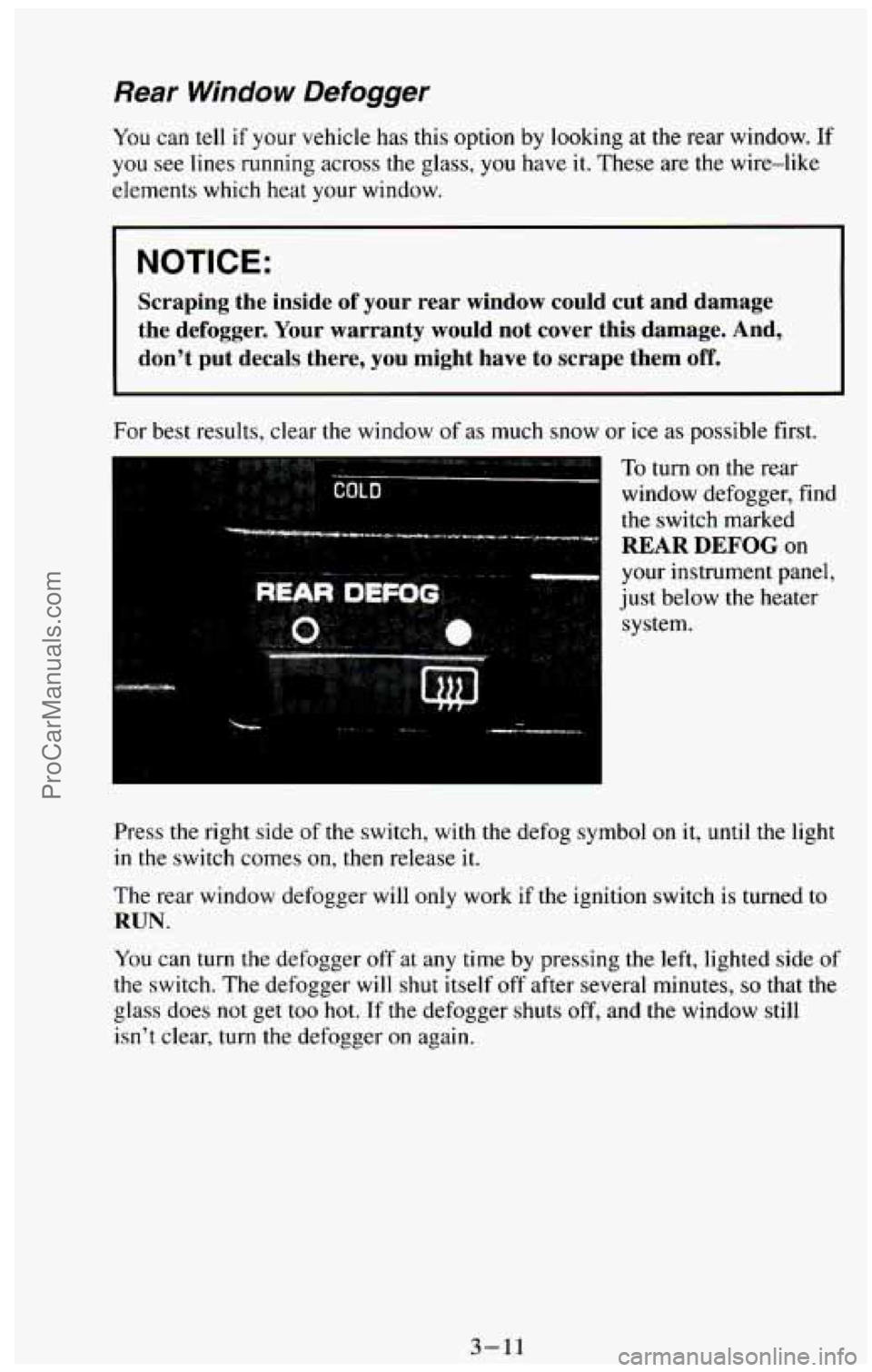

Rear Window Defogger
You can tell if your vehicle has this option by looking at the rear window. If
you see lines running across the glass, you have it. These are the wire-like
elements which heat your window.
1 NOTICE:
Scraping the inside of your rear window could cut and damage
the defogger. Your warranty would
not cover this damage. And,
don't
put decals there, you might have to scrape them off.
For best results, clear the window of as much snow or ice as possible first.
To turn on the rear
window defogger, find
the switch marked
REAR DEFOG on
your instrument panel,
just below the heater
system.
Press the right side of
the switch, with the defog symbol on it, until the light
in the switch comes on, then release it.
The rear window defogger will only work if the ignition switch is turned to
RUN.
You can turn the defogger off at any time by pressing the left, lighted side of
the switch. The defogger will
shut itself off after several minutes, so that the
glass does not get too hot. If the defogger shuts off, and the window still
isn't clear, turn the defogger
on again.
3-11
ProCarManuals.com

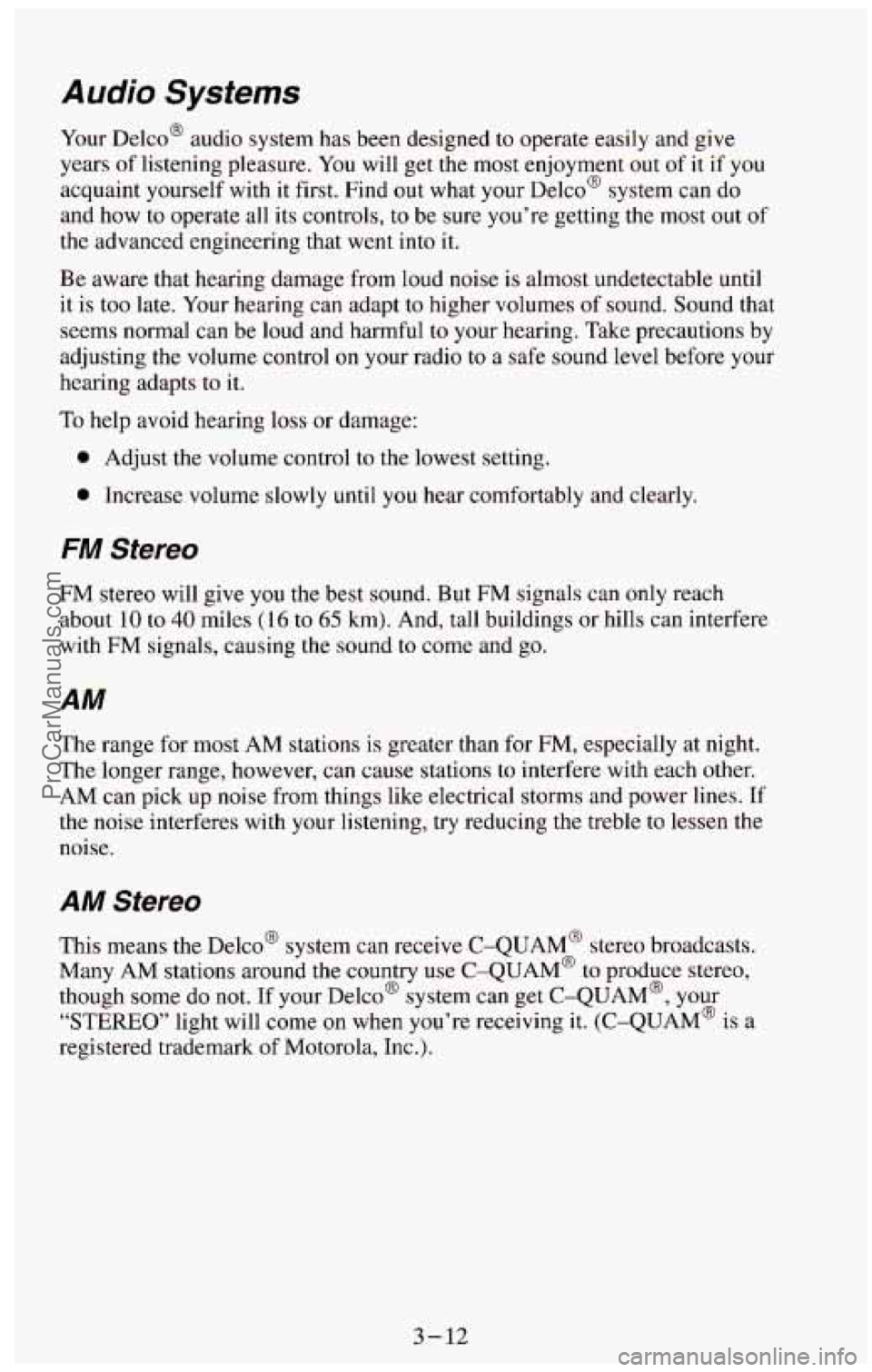

A udia Systems
Your Delco@ audio system has been designed to operate easily and give
years
of listening pleasure. You will get the most enjoyment out of it if you
acquaint yourself with it first. Find out what your Delco@ system can do
and how to operate all its controls, to be sure you’re getting the most out of
the advanced engineering that went into it.
Be aware that hearing damage from loud noise is almost undetectable until
it is too late. Your hearing can adapt to higher volumes of
sound. Sound that
seems normal can be loud and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to
a safe sound level before your
hearing adapts to it.
To help avoid hearing loss or damage:
0 Adjust the volume control to the lowest setting.
0 Increase volume slowly until you hear comfortably and clearly.
FM Stereo
FM stereo will give you the best sound. But FM signals can only reach
about 10 to
40 miles (16 to 65 km). And, tall buildings or hills can interfere
with FM signals, causing the sound
to come and go.
AM
The range for most AM stations is greater than for FM, especially at night.
The longer range, however, can cause stations to interfere with each other.
AM can pick up noise from things like electrical storms and power lines.
If
the noise interferes with your listening, try reducing the treble to lessen the
noise.
AM Stereo
This means the Delco@ system can receive C-QUAM@ stereo broadcasts.
Many
AM stations around the country use C-QUAM@ to produce stereo,
though some
do not. If your Delco@ system can get C-QUAM@, your
“STEREO” light will come on when you’re receiving it. (C-QUAM@ is a
registered trademark of Motorola, Inc.).
3-12
ProCarManuals.com

NOTICE:
Before you add any sound equipment to your vehicle - like a
tape player,
CB radio, mobile telephone or two-way radio - be
sure you can add what you want.
If you can, it’s very important
to do it properly. Added sound equipment may interfere with the
operation of your vehicle’s engine, Delco@ radio or other
systems, and even damage them. And, your vehicle’s systems
may interfere with the operation
of sound equipment that has
been added improperly.
So, before adding sound equipment, check with your dealer and
be sure to check Federal rules covering mobile radio and
telephone units.
How to Operate Your AM ETR Radio
To Play the Radio
Press the PWR-VOL-TONE knob to switch the radio on and off. This
knob does two other things:
It controls the volume. Rotate the VOL knob clockwise to increases the
volume.
The knob behind the PWR-VOL knob is the TONE knob. Rotate this
knob clockwise
for more treble and counterclockwise for more bass.
3-13
ProCarManuals.com

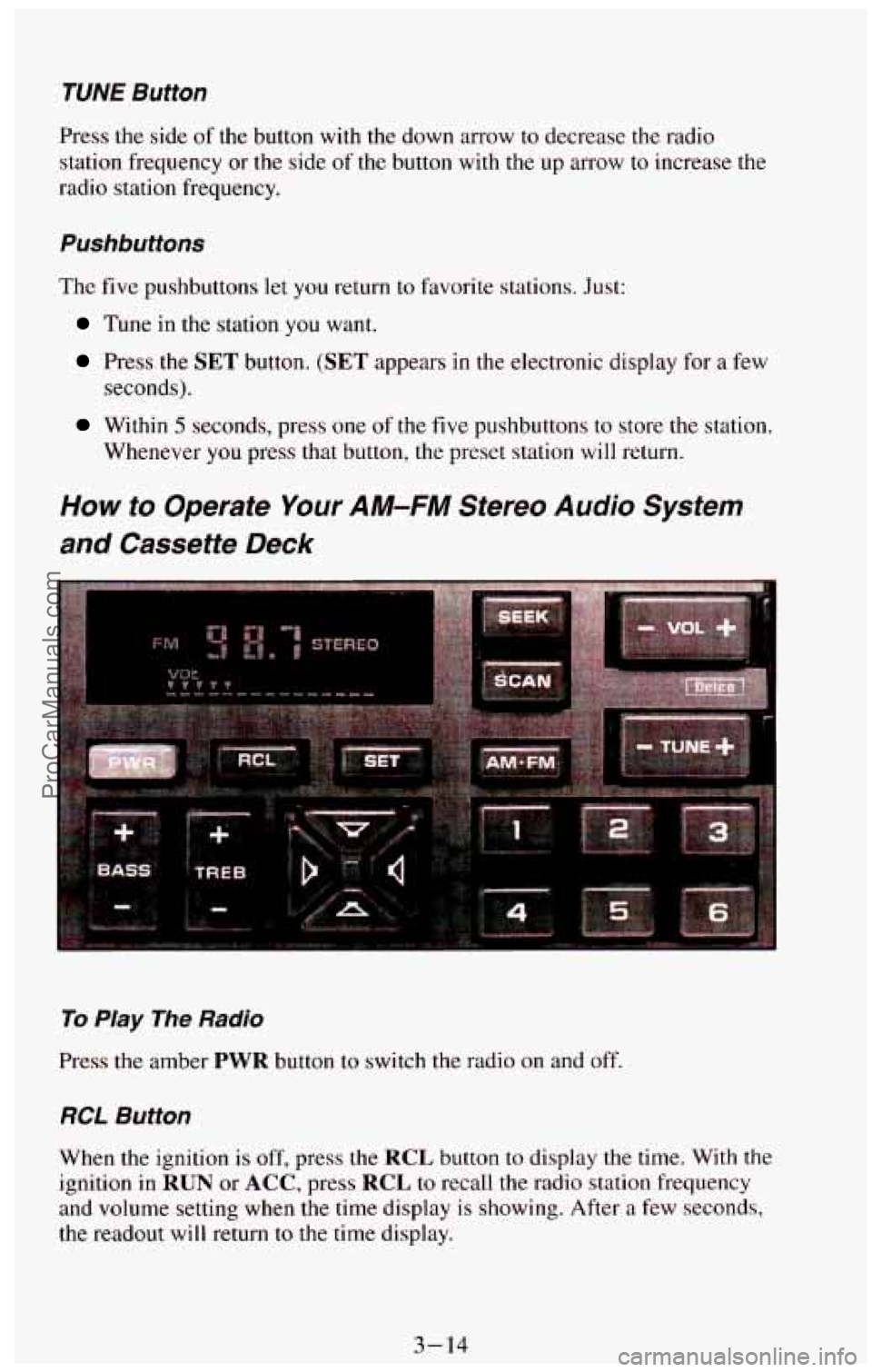

TUNE Button
Press the side of the button with the down arrow to decrease the radio
station frequency or
the side of the button with the up arrow to increase the
radio station frequency.
Pushbuttons
The five pushbuttons let you return to favorite stations. Just:
Tune in the station you want.
Press the SET button. (SET appears in the electronic display for a few
Within 5 seconds, press one of the five pushbuttons to store the station.
seconds).
Whenever you press that button, the preset station will return.
How to Operate Your AM-FM Stereo Audio System
and Cassette Deck
To Play The Radio
Press the amber PWR button to switch the radio on and off.
RCL Button
When the ignition is off, press the RCL button to display the time. With the
ignition
in RUN or ACC, press RCL to recall the radio station frequency
and volume setting when the time display is showing. After
a few seconds,
the readout
will return to the time display.
3-14
ProCarManuals.com

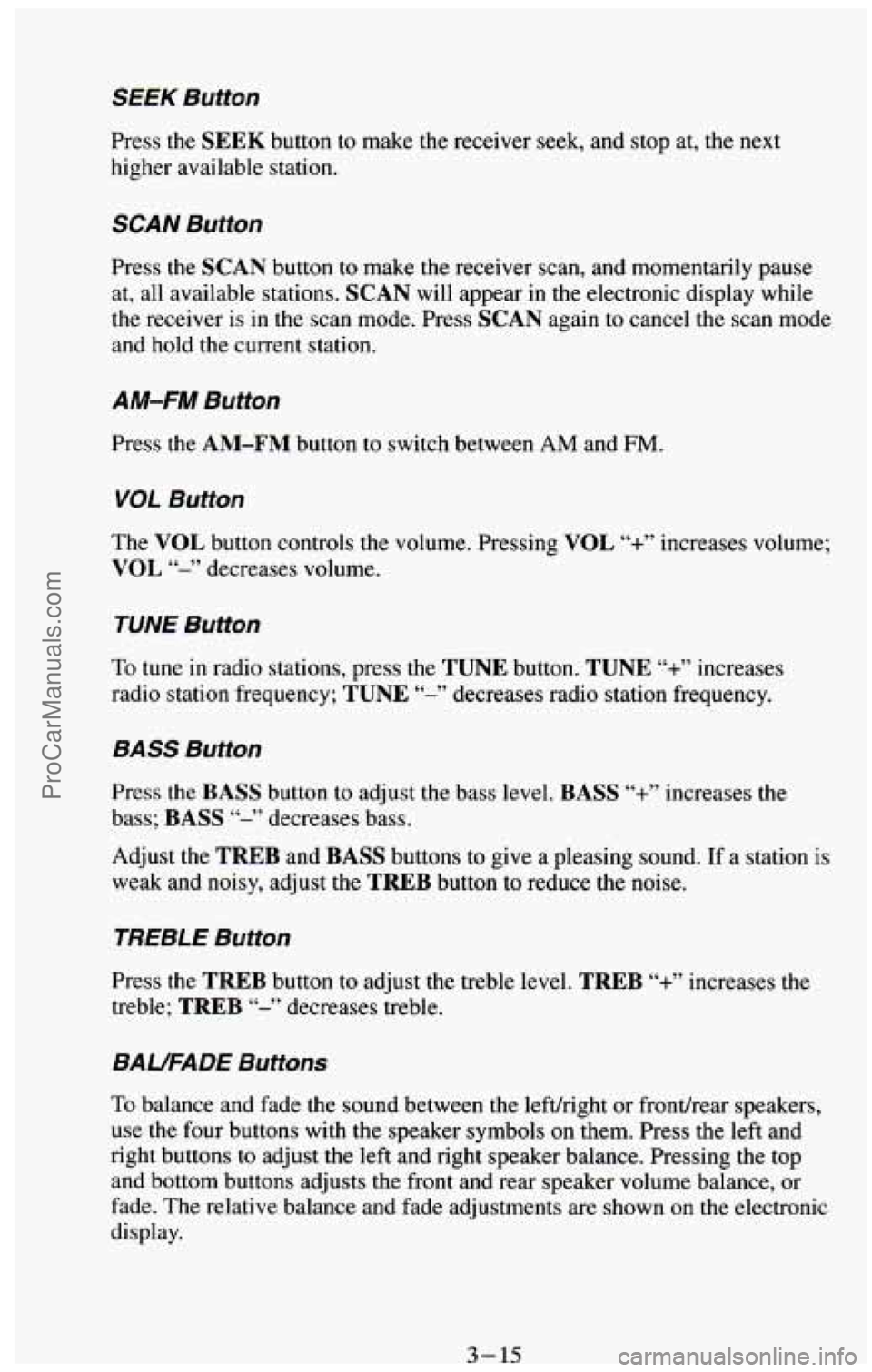

SEEK Button
Press the SEEK button to make the receiver seek, and stop at, the next
higher available station.
SCAN Button
Press the SCAN button to make the receiver scan, and momentarily pause
at, all available stations. SCAN will appear in the electronic display while
the receiver
is in the scan mode. Press SCAN again to cancel the scan mode
and hold the current station.
AM-FM Button
Press the AM-FM button to switch between AM and FM.
VOL Button
The VOL button controls the volume. Pressing VOL "+" increases volume;
VOL "-" decreases volume.
TUNE Button
To tune in radio stations, press the TUNE button. TUNE "+" increases
radio station frequency;
TUNE "-" decreases radio station frequency.
BASS Button
Press the BASS button to adjust the bass level. BASS "+" increases the
bass; BASS "-" decreases bass.
Adjust
the TREB and BASS buttons to give a pleasing sound. If a station is
weak and noisy, adjust the TREB button to reduce the noise.
TREBLE Button
Press the TREB button to adjust the treble level. TREB "+" increases the
treble;
TREB "-" decreases treble.
BAUFADE Buttons
To balance and fade the sound between the lefvright or fronthear speakers,
use the four buttons with the speaker symbols on them. Press the left and
right buttons to adjust the left and right speaker balance. Pressing the top
and bottom buttons adjusts the front and rear speaker volume balance,
or
fade. The relative balance and fade adjustments are shown on the electronic
display.
3- 15 ProCarManuals.com
