CRUISE
ENGAGED
Cruise Engaged Light
This light will come on
when your cruise
control is set to a
selected speed.
Low Coolant Warning Light
If the coolant level in
the radiator is low by
3 quarts (2.8 L) or
more this light will
come on. The light will
stay on until you add
coolant. Continuing to
drive your vehicle with
the “Low Coolant”
warning light on, may
result in damage to
your engine.
See “Engine Coolant” in the Index and have your vehicle serviced as soon
as you can.
This light will come on when the ignition is on, but the engine is not
running, as a check. It doesn’t have to be fixed right away.
141

1
Malfinction Indicator Lamp
(Service Engine Soon Light)
SERVICE
ENGINE
SOON
n
CHECK
Your vehicle could be equipped with either one of these indicators lamps.
A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is on, but
the engine is not running, as a check to show you it is working.
If it does
not come on at all, have it fixed right away.
If it stays on, or it comes on
while you are driving, the computer
is indicating that you have a problem.
You should take your vehicle in for service soon.
NOTICE:
If you keep driving your vehicle with this light on, after a while
the emission controls won’t work as well, your fuel economy
won’t be as good and your engine may not run as smoothly. This
could lead to costly repairs not covered by your warranty.
142
I 1
Cl
ut
-

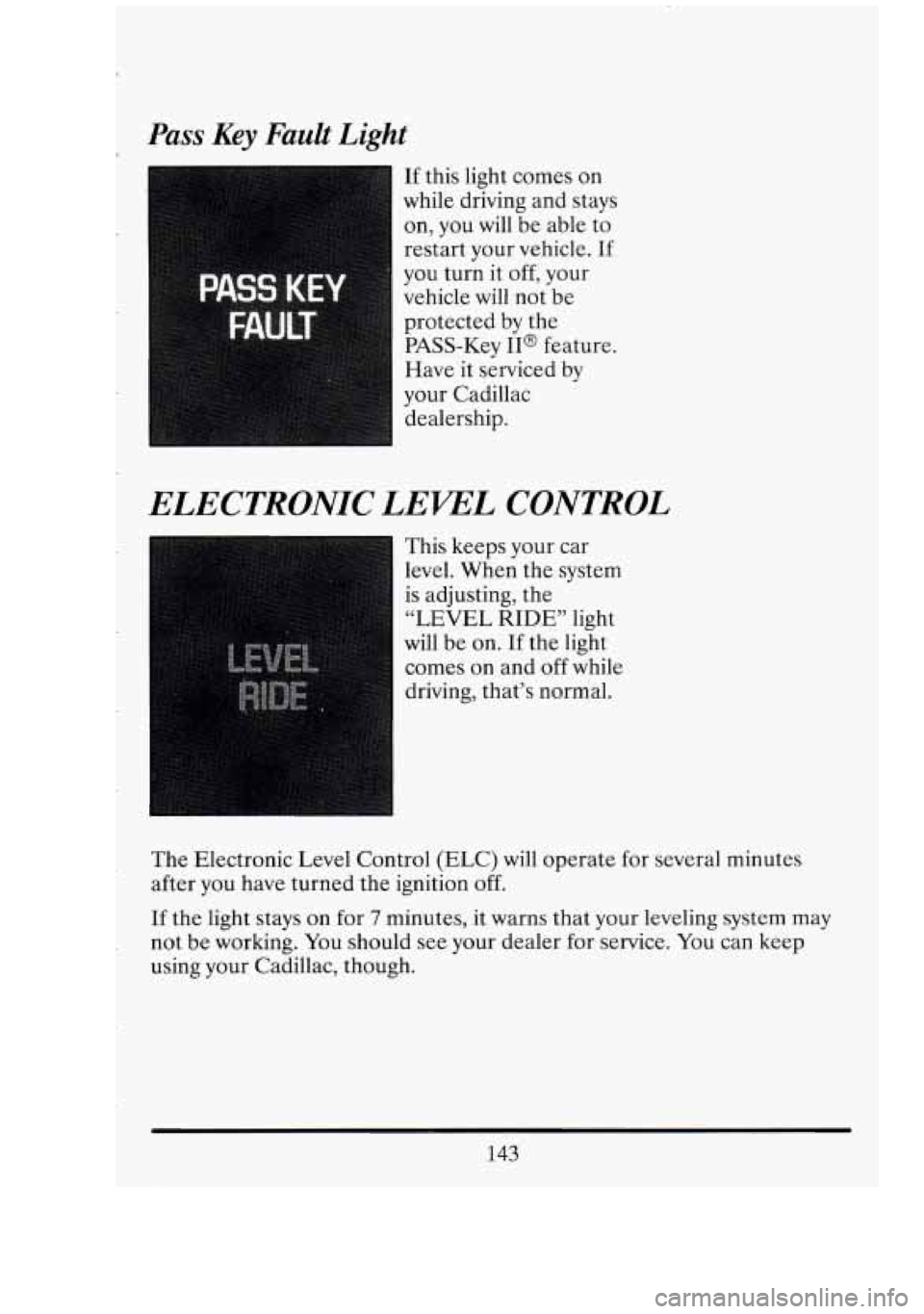

Pass Key Fault Light
If this light comes on
while driving and stays
on, you will be able
to
restart your vehicle. If
you turn it off, your
vehicle will not be
protected by the
PASS-Key
II@ feature.
Have it serviced by
your Cadillac dealership.
ELECTRONIC LEWL CONTROL
I This keeps your car
level. When the system
is adjusting, the
“LEVEL RIDE” light
will be on.
If the light
comes on and
off while
driving, that’s normal.
The Electronic Level Control (ELC) will operate for several minutes
after you have turned the ignition
off.
If the light stays on for 7 minutes, it warns that your leveling system may
not be working. You should see your dealer for service. You can keep
using your Cadillac, though.
143

SECTION 3
COMFORT CONTROLS AND AUDIO SYSTEMS
In this section you’ll find out how to operate the comfort control systems
and audio systems offered with your Cadillac.
YOUR CXLIILUCAIR SYSTEM
This part tells you how to make your Electronic Climate Control (ECC)
work for you.
Outside Air
Outside air always flows through your Cadillac when the car is moving.
Even
if the car is not moving, you can always get outside air to flow
through by selecting any air choice (except the rear window defogger).
The Electronic Climate Control System may automatically recirculate the
inside air
of your vehicle, to provide maximum air conditioning. During
recirculation, a louder blower noise may be heard until the system returns
to outside air.
Air Outlets
The air outlets are
located
in the center
and each side of the
instrument panel. You
can adjust
the direction
of air flow by moving
the control levers. The
lever at the bottom of
the air outlet opens
or
stops the air flow from
that outlet.
146
(1
L
L
I
Ei
n L

ELECTRONIC CLIMTE CONTROL
With this system you can control the ventilation, heating and air
conditioning in your vehicle automatically by setting the desired
temperature. The digital screen displays the outside temperature, the
I
inside temperature setting, fan speed, and the ECC selection you have
selected.
OUT TEMP (Outside Temperature)
Push this to get the outside temperature. Push it again to return to the
regular system display.
TEMP (Inside Temperature)
Sets the interior temperature you want. Press the lower portion (blue
arrow) to lower the inside temperature setting. Press the upper portion
(red arrow) to raise the temperature setting. Once you set the
temperature, the system will automatically maintain the set temperature.
You can change the temperature from 65 F (18 C) to 85 F (29 " C), one
degree at a time. You may also choose
60 " F (16 " C), for maximum
cooling, and 90°F
(33 "C), for maximum heating, the fan will stay on high
speed unless you select a different speed.
In maximum heating most of
the air will
flow out the heater ducts. In maximum cooling, the system will
recirculate the air inside your vehicle instead of pulling air from outside.
147

I
OFF
Nothing is on, but air will flow through your Cadillac if the the car is
moving. The air flow will be felt through the heater ducts.
ECON
Use this in cold or cool weather to save fuel. It won’t cool or remove
humidity from the air. However, the system will try to keep the air at the
chosen temperature.
If it’s so warm outside that you need to cool the air, use the next choice.
I AUTO
With this setting the system automatically controls the temperature, air
distribution and fan speeds. In cold conditions the the fan well not come
on until the system senses that the engine has started to warm up. This
prevents cold air from blowing on you and your occupants.
I
I FAN
The fan speed is controlled automatically if you have the Electronic
Climate Control set
on “AUTO.” However, if you want the fan to run at a
lower speed, push the lower portion of the fan switch.
If you want the blower to run at a fixed higher speed, push the upper
portion of the fan switch until you see
“HI” on the display.
If you want the fan to run at a fixed low speed, push the switch until “LO”
is shown on the display.
If you want the fan speed to be automatic but you like the fan to be
higher or lower than the
“AUTO” settings, just push the switch until
either
“HI AUTO” or “AUTO LO” is displayed.
If the Fahrenheit (F’) or Celsius (C”) symbol begins to flash, or flashes
when you turn
on the ignition, it indicates an electrical problem with your
148
G
I
1
q: LI

I
Electronic Solar Sensor
The Electronic Solar Sensor is part of the Electronic Climate Control
System (ECC). The sensor monitors the sun's solar radiation
by telling
information to automatically make the necessary temperature
adjustments. The sensor is located
in the defroster grille.
I the ECC system at what intensity the sun is. The ECC uses this
Rear Window Defogger
To get fog or ice off the
rear window, push the
Rear Defogger button.
With it,
your rear window and both outside rearview mirrors are warmed.
ni
CTI
'L1 I
150

To turn it off, push the button again. After 10 minutes, it will go off by
itself.
To make it go longer, just push the button again.
NOTICE:
Scraping the inside of your rear window could cut and damage
the heater. Your warranty would not cover this damage. And
don’t put decals there; you might have to scrape them
off.
SOUND SYSTEMS
Your Delco sound system has been designed to operate easily and give
years
of listening pleasure. You will get the most enjoyment out of it if
you acquaint yourself with it first. Find out what your Delco system can
do and how to operate all its controls, to be sure you’re getting the most
out of the advanced engineering that went into it.
Be aware that hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher volumes of sound.
Sound that seems normal can be loud and harmful to your hearing. Take
precautions by adjusting the volume control on your radio to a safe sound
level before your hearing adapts to it.
To help avoid hearing loss or damage:
Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably and clearly.
