1994 CADILLAC DEVILLE tow

Downloaded from www.Manualslib.com manuals search engine How does an air bag restrain?
In moderate to severe frontal or near-frontal collisions, even belted
occupants can contact the steering wheel or the instrument panel.
The air
bag supplements the protection provided by safety belts. Air bags
distribute the force of the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But air bags would not
provide protection in many types of collisions, including rollovers and
rear and side impacts, primarily because an occupant’s motion is not
toward the air bag. Air bags should never be regarded as anything more
than a supplement to safety belt protection
in moderate to severe frontal
and near-frontal collisions.
What will you see after an air bag inflation?
After the air bag has inflated, it will then quickly deflate. This occurs so
quickly that some people may not even realize that the air bag inflated.
Some components
of the air bag module in the steering wheel hub for the
driver’s air bag or the instrument panel for the passenger’s bag may be
hot for a short time, but the portion of the bag that comes into contact
with
you will not be hot to the touch. There will be small amounts of
smoke and dust coming from vents in the deflated air bags. The air bag
will
not impede the driver’s vision or ability to steer the vehicle, nor will it
hinder the occupants from exiting the vehicle.
In many crashes severe enough to inflate an air bag, windshields are
broken by vehicle deformation. Additional windshield breakage may
occur in vehicles with passenger air bags because the windshield acts as a
reaction surface for the inflating air bag.
The air bags are designed to inflate only once. After they inflate, you’ll
need some new parts for your air bag system.
If you don’t get them,
the air bag system won’t be there to help protect you in another crash.
A new system will include air bag modules and possibly other parts.
The service manual has information about the need to replace other
parts.
36

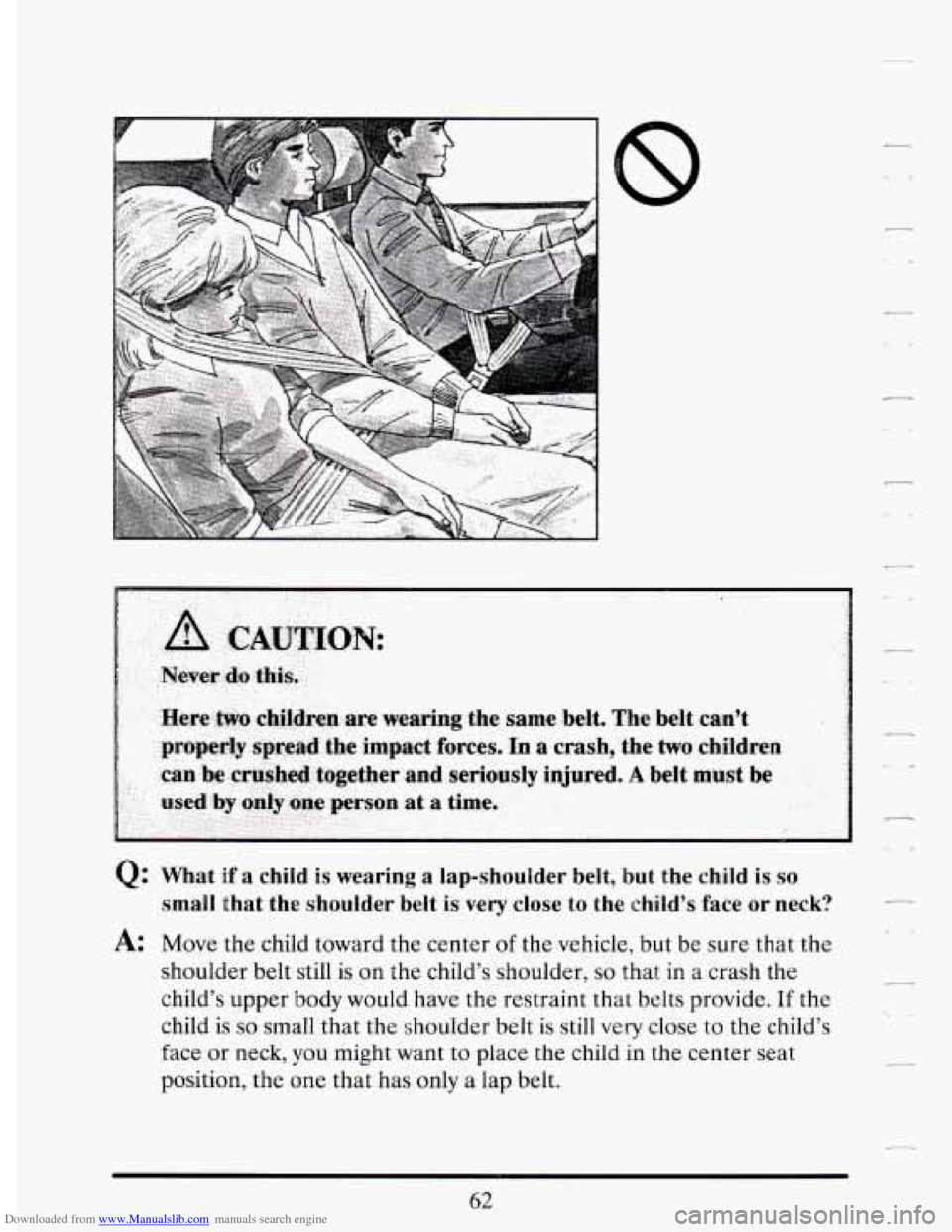

Downloaded from www.Manualslib.com manuals search engine Q: What if a child is wearing a lap-shoulder belt, but the child is so
small that the shoulder belt is very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but be sure that the
shoulder belt still is
on the child’s shoulder, so that in a crash the
child’s upper body would. have the restraint that belts provide.
If the
child
is so small that the shoulder belt is still very close to the child’s
face or neck, you might want to place the child in the center seat
position, the one that has
only a lap belt.
62

Downloaded from www.Manualslib.com manuals search engine IGNITION KEY POSITIONS
This lock gives you five ’’
different positions.
Before you put the key in, your ignition will be
in the “LOCK’ position.
This position locks your ignition, steering wheel and transaxle. It’s an
anti-theft feature.
The other positions let you perform these functions:
ACC: Accessory lets you use things like the radio and the windshield
wipers when the engine is off.
To get into “ACC”, push in the key and turn
it toward you. Your steering wheel.wil1 remain locked, just as it was
before you inserted the key.
OFF: This position lets you turn off the engine.but still turn the steering
wheel. It doesn’t lock the steering wheel like “Lock.” Use “Off”
if you
must have your car
in motion while the engine is off (for example, if your
car is being pushed).
RUN This is the position for driving.
STARE This starts your engine.
86
L

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Holding your key in “Start” for longer than 15 seconds at a time
will cause your battery to be drained much sooner. And the
excessive heat can damage your starter motor.
4. If your engine still won’t start (or starts but then stops), it could be
flooded with too much gasoline.
Try pushing your accelerator pedal all
the
way to the floor and holding it there as you hold the key in “Start”
for about three seconds.
If the engine starts briefly but then stops
again, do the same thing, but this time keep the pedal down for five or
six seconds. This clears the extra gasoline from the engine.
NOTICE:
Your engine is designed to work with the electronics in your
vehicle.
If you add electrical parts or accessories, you could
change the
way the fuel injection system operates. Before
adding electrical equipment, check with your dealer.
If you
don’t, your engine might not perform properly
If you ever have to have your vehicle towed, see the part of this
Manual that tells how to
do it without damaging your vehicle.
See “Towing
Your Cadillac” in the Index.
DMNG THROUGH DEEP STMDING
WATER
I NOTICE:
If you drive too quickly through deep puddles or standing water,
water can come in through your engine’s
air intake and badly
damage your engine.
If you can’t avoid deep puddles or standing
water, drive through them very slowly.

Downloaded from www.Manualslib.com manuals search engine P (Park)
This locks your front wheels. It’s the best position to use when you
start your engine because your vehicle can’t move easily.
A CAUTION:
It can be dangerous to get out of your vehicle if the shift lever is
not fully in “P” (Park) with the parking brake firmly set. Your
vehicle can roll.
Don’t leave your vehicle when the engine is running unless you
have
to. If you have left the engine running, the vehicle can
move suddenly. You or others could be injured.
To be sure your
vehicle won’t move, when you’re
on fairly level ground, always
set your parking brake and move the shift lever to
“P” (Park).
See “Shifting Into
“P” (Park)” in the Index. If you’re pulling a
trailer, see “Towing a Ilrailer” in the Index.
Ensure the shift lever is
fully in “P7’ (Park) range before starting the
engine. Your Cadillac has a brake-transaxle shift interlock. You have to
fully apply your regular brakes before you can shift from “P” (Park) when
the ignition key
is in the “Run” position. If you cannot shift out of “P’7
(Park), ease pressure on the shift lever
- push the shift lever all the way
into “P” (Park) as you maintain brake application. Then move the shift
lever into the gear you wish. See “Shifting Out
of ‘P’ (Park)” in this part.
91

Downloaded from www.Manualslib.com manuals search engine R (Reverse)
Use this gear to back up.
-
NOTICE:
Shifting to ‘6R” (Reverse) while your vehicle is moving forward
could damage
your transaxle. Shift to “R” only after your -
vehicle is stopped. .I
To rock your vehicle back and forth to get out of snow, ice or sand
without damaging your transaxle.
N (Neutral)
In this position, your engine doesn’t connect
restart when you’re already moving, use “N”
“N” when your vehicle is being towed. with
the wheels.
To
(Neutral) only. Also, use
c- Y
A CAUTION:
Shifting out oPCP” (Park) or “N” (Neutral) while your engine is
“racing” (running at high speed) is dangerous. Unless your foot
is firmly on the brake pedal, your vehicle could move very
rapidly. You could lose control and hit people or objects. Don’t
shift out of
“P” (Park) or “N” (Neutral) while your engine is
racing.
I
NOTICE: I
Damage to your transaxle caused by shifting out of “P” (Park)
or “N” (Neutral) with the engine racing isn’t covered by your
warranty.
p_
,

Downloaded from www.Manualslib.com manuals search engine @ Automatic Overdrive
This position
is for normal driving. If you need more power for
passing, and you’re:
- Going less than about 35 mph (56 km/h), push your accelerator
- Going about 35 mph (56 km/h) or more, push the accelerator all
pedal about halfway down.
the way down.
You’ll shift down to the next gear and have more power.
NOTICE:
If your vehicle seems IO start up rather slowly, or if it seems not
to shift gears as you
go faster, something may be wrong with a
transaxle system sensor. If you drive very far that way, your
vehicle can be damaged.
So, if this happens, have your vehicle
serviced right
away. Until then, you can use “2” (Second Gear)
when you are driving less than
35 mph (56 km/h) and @
(Overdrive) for higher speeds.
3 (Third Gear)
This
is like @, but you never go into Overdrive.
Here are some times you might choose
“3” instead of @:
- When driving on hilly, winding roads
- When towing a trailer, so there is less shifting between gears
- When going down a steep hill
93

Downloaded from www.Manualslib.com manuals search engine NOTICE: II I
Driving with the parking brake on can cause your rear brakes \
to Lyav 1’
I
overheat. You may have to replace them, and you could also
damage other parts
of your vehicle.
I IU
If vou are towing a trailer and are parking on any hill: See “Towing a
Trailer” in the Index. That section shows what to do first to keep the
trailer from moving.
SHIFTING INTO “P” (PARK)
96
