1994 BUICK REGAL keyless

Power Door Locks
Push the power door lock
switch
to lock or unlock all
the doors at once.
Automatic Door Locks
Just close your doors and turn on the ignition. All of
your doors will lock when you move your shift lever out
of “P” (Park) or “N” (Neutral). If someone needs to get
out while the vehicle
is running, have that person use the
manual or power lock. When the door is closed again,
it
will lock automatically as long as the shift lever is out of
“P” (Park) or “N” (Neutral). All doors will unlock
automatically when the ignition
is turned off.
If you don’t want the doors to unlock automatically
when you
turn the ignition off, you can remove the fuse
marked Lock Control located in the component center.
See “Fuses and Circuit Breakers” in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get
out and
close
the door.
Remote Trunk Release (Option)
The remote trunk release
button is
in the glovebox. It
works only when the
transaxle
is in Park.
If you have the Remote
Keyless Entry System
Option,
it will also unlock
your trunk.
A CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into
your vehicle. You can’t see or smell
CAUTION: (Continued)
ProCarManuals.com

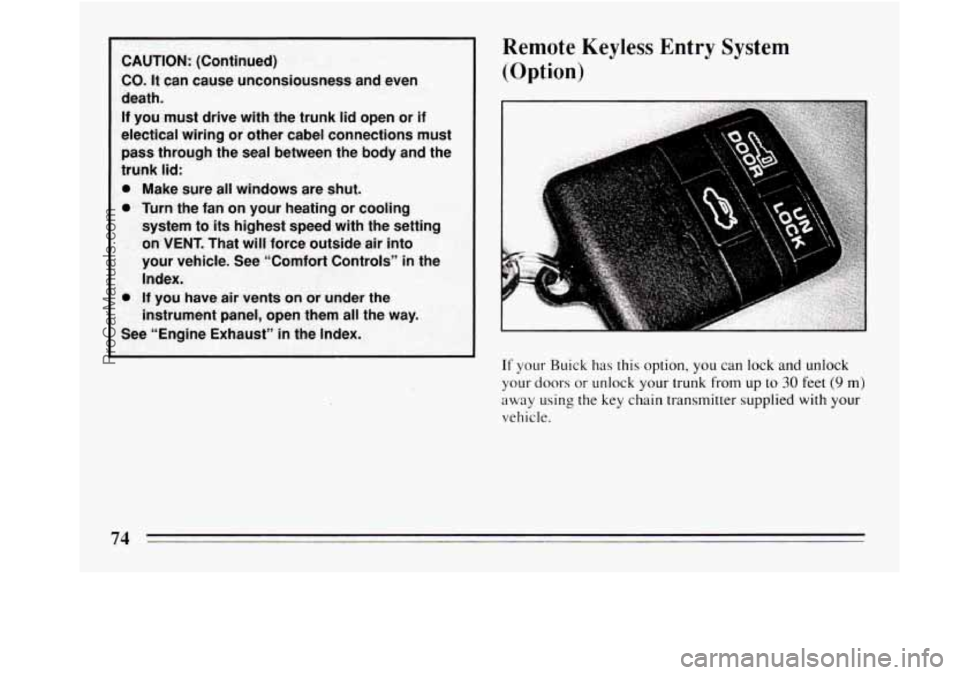

Remote Keyless Entry System
(Option)
If your Buick has this option, you can lock and unlock
your doors or unlock your trunk from up to 30 feet (9 m)
away using the key chain transmitter supplied with y0u.r
vehicle.
74
ProCarManuals.com

Your Remote Keyless Entry System operates on a radio
frequency subject
to Federal Communications
Commission (FCC) Rules. This device complies with
Part
15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause
harmful interference, and
(2) This device must accept
any interference received, including interference that
may cause undesired operation.
Should interference to this system occur, try this:
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
vehicle.
This product has a maximum range.
blocking the signal.
Check the distance. You may be too far from your
0 Check the location. Other vehicles or objects may be
0 See your Buick dealer or a qualified technician for
Changes or modifications to this system by other than an
authorized service facility could void authorization to use this equipment.
service.
Operation
The driver’s door will unlock automatically
when
UNLOCK is pressed. If UNLOCK is pressed twice
quick1y;all doors will unlock. The interior lights will
also come on for approximately
16 seconds or until the
ignition is turned on.
All doors will lock when
DOOR is pressed. If you first
press
UNLOCK and then press DOOR within 16
seconds, the interior lights will go off.
The trunk will unlock when the opened trunk symbol is
pressed, but only when the transaxle is in
PARK.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle. If
a transmitter
is lost or stolen, a replacement can be purchased through
your dealer. Remember to bring the remaining
transmitters with you when you go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle, the remaining transmitters must also be
matched. Once the new transmitter is coded, the lost
transmitter will not unlock your vehicle.
75
ProCarManuals.com

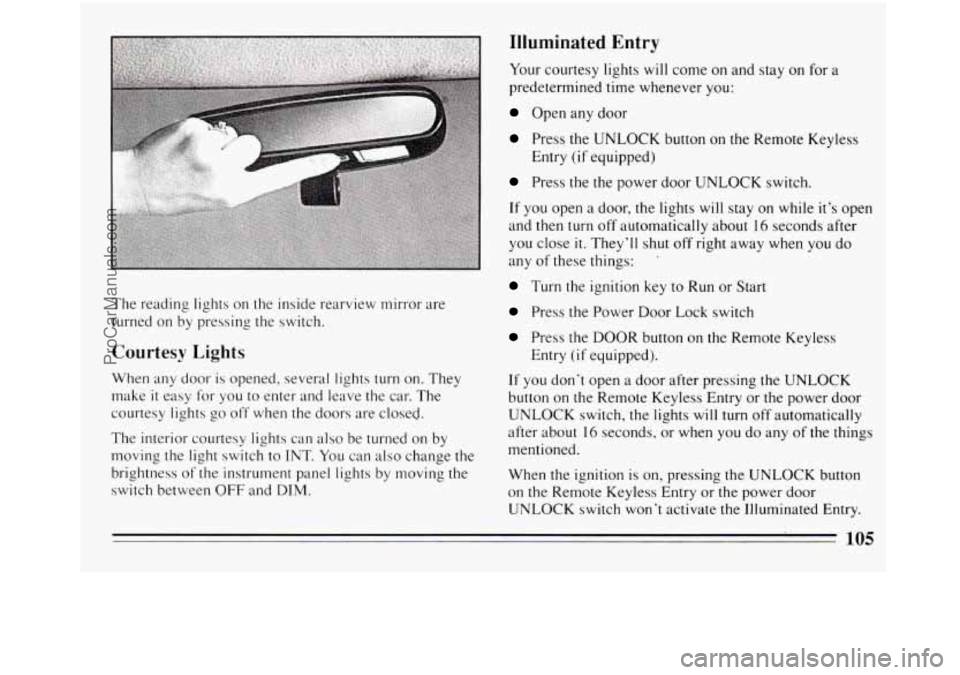

The reading lights on the inside rearview mirror are
turned on by pressing the switch.
Courtesy Lights
When any door is opened, several lights turn on. They
make
it easy for you to enter and leave the car. The
courtesy lights
go off when the doors are closed.
The interior courtesy lights can also be turned on by
moving the light switch to
INT. You can also change the
brightness of the instrument panel lights by moving the
switch between
OFF and DIM.
Illuminated Entry
Your courtesy lights will come on and stay on for a
predetermined time whenever you:
Open any door
Press the UNLOCK button on the Remote Keyless
Press the the power door UNLOCK switch.
If you open a door, the lights will stay on while it’s open
and then turn
off automatically about 16 seconds after
you close
it. They’ll shut off right away when you do
any of these things: ’
Turn the ignition key to Run or Start
Press the Power Door Lock switch
Press the DOOR button on the Remote Keyless
If you don’t open a door after pressing the UNLOCK
button on the Remote Keyless Entry or the power door
UNLOCK switch, the lights will turn off automatically
after about
16 seconds, or when you do any of the things
mentioned.
When the ignition is
on, pressing the UNLOCK button
on the Remote Keyless Entry or the power door
UNLOCK switch won’t activate
the Illuminated Entry.
Entry
(if equipped)
Entry
(if equipped).
105
ProCarManuals.com

Fuse Block
Amp Description
1.
2.
10
10
3. 20
4.
2s
5. IO
6. 15
7. 15
8. 1s
9. 20
10.
1s
11. 5
12. 1s
13. 15 Radio
& Clock, Steering
Wheel Radio Switches.
Headlight Switch, Air Bag Diagnostic Module, ABS
Lamp Driver Module, Daytime Running Lamps
Module (w/DRL), TCC/Brake Switch, Cruise
Control Cut-Out Switch, Instrument Cluster, Chime
Module, Rear Defogger Timer Relay
A/C HI Blower Relay
Wipermasher Switch
Turn Signal Flasher
TCC/Brake Switch, Hazard Flasher
Vanity Mirror, Lights, I/P Compartment Light,
Courtesy Lights, Trunk Courtesy Light,
Dome/Reading Lights, Cigar Lighter.
Air Bag Diagnostic Module
Power Door Locks, Remote Keyless Entry System
Cigar Lighter
Theft Deterrent Decoder Module
Heater, Vent A/C Solenoid Box, A/C LO Blower
Relay
Chime Module, Electronic Brake Control Module.
Theft Deterrent Decoder Module, Radio, Passive
Restraint Timer Relay, Low Oil Level Module
1s.
Amp Description
14. 15 Air Temperature Valve Motors, Instrument Cluster,
Daytime Running Lights Module (w/DRL), HVAC
Control Assembly, Multi-Function Lever, Heated
Oxygen Sensor
#2, Passenger Temperature Control
Electrical Center
#2, ABS Relay
16. 10 Antenna Relay, Outside Mirror Control, Front
Window/Door Lock Switches, Front Door Handle
Switches
17.
Not Used
18. 5 Air Bag Diagnostic Module
5 Electronic Brake Control Module, Underhood
n
CTSY ARBGl DRLKS
@m@
ClLTR VATS HVAC
This fuse panel is inside the
glove
box. Pull the cover
down to access the
fuses.
Some spare fuses and a fuse
puller are included.
255
ProCarManuals.com

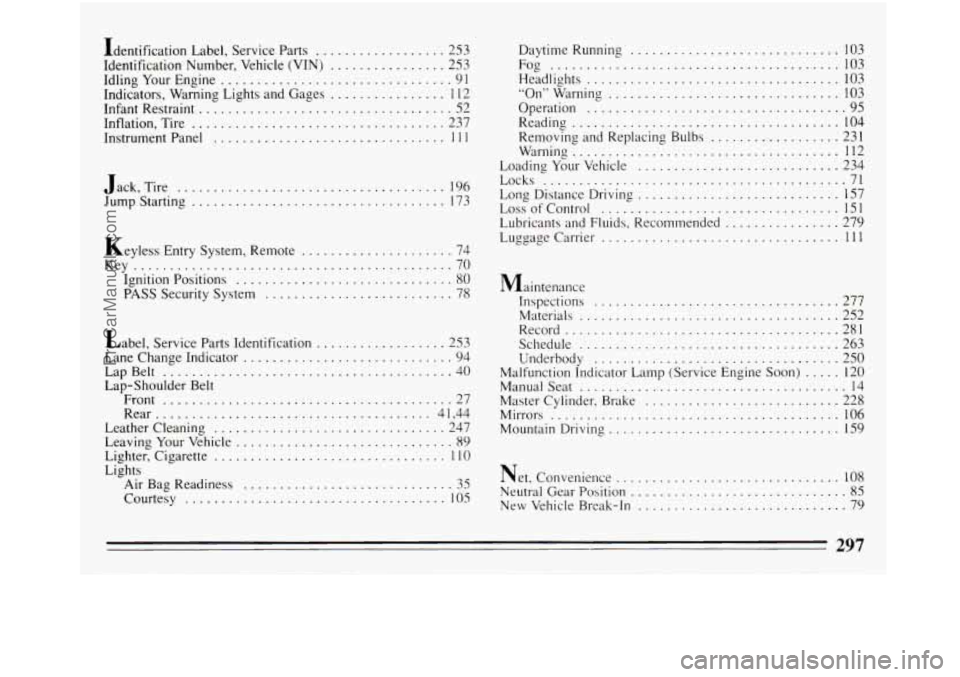

Identification Label. Service Parts .................. 253
Identification Number. Vehicle (VIN)
................ 253
Idling Your Engine
................................ 91
Indicators. Warning Lights and Gages
................ 112
Infant Restraint
................................... 52
Inflation. Tire
................................... 237
Instrument Panel
................................ 1 1 1
Jack. Tire ..................................... 196
Jump Starting ................................... 173
Keyless Entry System. Remote
..................... 74
Key ............................................ 70
Ignition Positions
.............................. 80
PASS Security System .......................... 78
Label. Service Parts Identification
.................. 253
Lane Change Indicator ............................. 94
LapBelt ........................................ 40
Lap-Shoulder Belt
Front
........................................ 27
Rear
...................................... 41. 44
Leather Cleaning ................................ 247
Leaving Your Vehicle
.............................. 89
Lighter. Cigarette ................................ 1 10
Lights
Air Bag Readiness
............................. 35
Courtesy .................................... 105 Daytime Running
............................. 103
Fog
........................................ 103
Headlights
................................... 103
“On” Warning
................................ 103
Operation
.................................... 95
Reading
..................................... 104
Removmg and Replacing Bulbs 231
Wdrning
..................................... 112
Loading Your Vehicle
............................ 234
Locks
.......................................... 71
Long Distance Driving
............................ 157
Loss of Control ................................. 151
Lubricants and Fluids, Recommended
................ 279
k ..................
Luggagecarrier ................................. 111
Maintenance
Inspections
.................................. 277
Materials
.................................... 252
Record
...................................... 281
Schedule
.................................... 263
Underbody
.................................. 250
Malfunction Indicator Lamp (Service Engine Soon)
..... 120
Manualseat ..................................... 14
Master Cylinder. Brake ........................... 228
Mirrors
........................................ 106
Mountain Driving ................................ 159
Net.
Convenience ............................... 108
Neutral Gear Position .............................. 85
New Vehicle Break-In ............................. 79
297
ProCarManuals.com

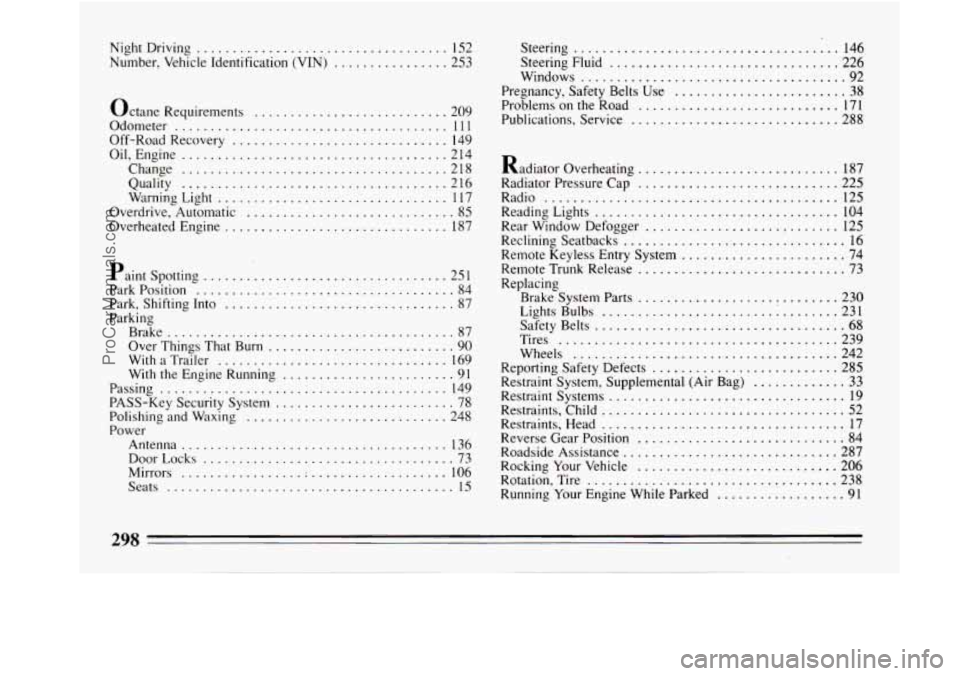

NightDriving ................................... 152
Number. Vehicle Identification (VIN)
................ 253
Octane Requirements
........................... 209
Odometer
...................................... 1 11
Oil. Engine ..................................... 214
Off-Road Recovery
.............................. 149
Change
..................................... 218
Quality
..................................... 2 16
Warning Light
................................ 117
Overheated Engine
............................... 187
Overdrive. Automatic
............................. 85
Paint Spotting
.................................. 251
Park Position
.................................... 84
Parking Park. Shifting Into
................................ 87
Over Things That Burn
.......................... 90
With the Engine Running ........................ 91
Passing
........................................ 14 9
PASS-Key Security System ......................... 78
Polishing and Waxing
............................ 248
Antenna
..................................... 136
DoorLocks
................................... 73
Mirrors
..................................... 106
Seats
........................................ 15
Brake ........................................ 87
With a Trailer
................................ 169
Power Steering
..................................... 146
Steering Fluid
................................ 226
Windows
..................................... 92
Pregnancy. Safety Belts Use ........................ 38
Problems on the Road ............................ 171
Publications. Service
............................. 288
Radiator Overheating
............................ 187
Radiator Pressure Cap
............................ 225
Radio
......................................... 125
Reading Lights
.................................. 104
Rear Window Defogger
................... ! ....... 125
Reclining Seatbacks
............................... 16
Remote Keyless Entry System ....................... 74
Remote Trunk Release
............................. 73
Replacing Brake System Parts
............................ 230
Lights Bulbs
........................ 1 ........ 231
Safety Belts
................................... 68
Tires
....................................... 239
Wheels
..................................... 242
Reporting Safety Defects
.......................... 285
Restraint System. Supplemental (Air Bag)
............. 33
Restraint Systems
................................. 19
Restraints. Child
.................................. 52
Restraints. Head
.................................. 17
Reverse Gear Position
............................. 84
Roadside Assistance
.............................. 287
Rocking Your Vehicle
............................ 206
Rotation. Tire
................................... 238
Running Your Engine While Parked
.................. 91
298
ProCarManuals.com
