1994 BUICK CENTURY Owners Manual

Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be of top quality and work well
together if the vehicle is to have really good braking.
Vehicles we design and test have top-quality GM brake
parts in them, as your Buick does when it is new. When
you replace parts of your braking system -- for example,
when your brake linings wear down and
you have to
have new ones put
in -- be sure you get new genuine
GM replacement parts. If you don’t, your brakes may no
longer work properly. For example, if someone puts in
brake linings that are wrong for your vehicle, the
balance between your front and rear brakes can change,
for the worse. The braking performance
you’ve come to
expect can change
in many other ways if someone puts
in the wrong replacement brake parts.
Battery
Every new Buick has a Delco Freedom’ battery. You
never have to add water to one of these. When it’s time
for a new battery, we recommend a Delco Freedom’
battery. Get one that has the catalog number shown on
the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, take off the black, negative
(-) cable from the
battery. This will help keep your battery from running
down.
Contact your dealer
to learn how to prepare your vehicle
for longer storage periods.
321
ProCarManuals.com

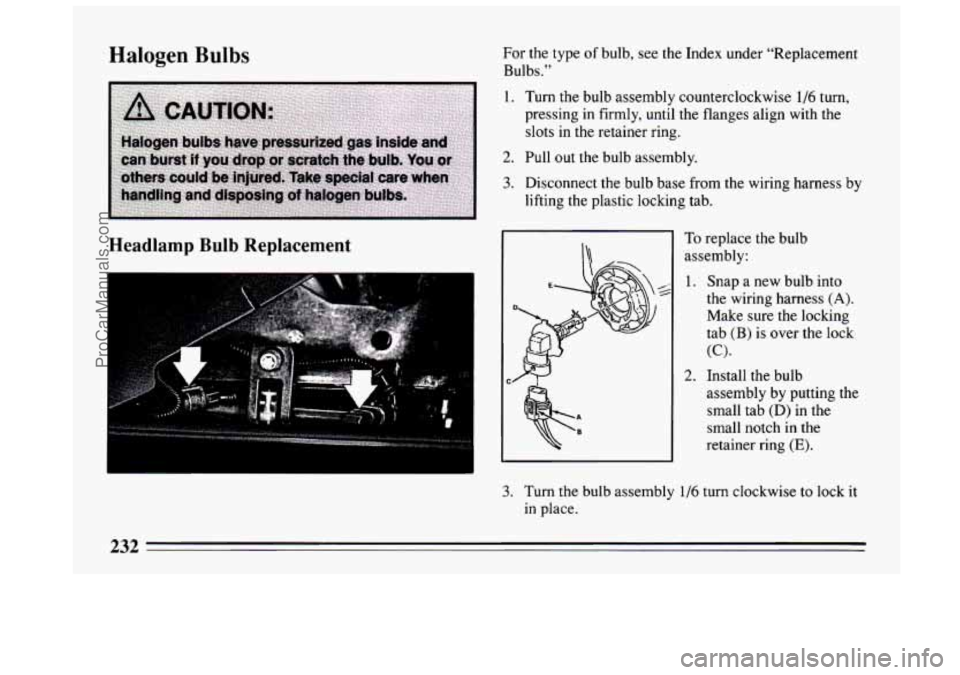

Halogen Bulbs
Headlamp Bulb Replacement
For the type of bulb, see the Index under "Replacement
Bulbs."
1. Turn the bulb assembly counterclockwise 1/6 turn,
pressing in firmly, until the flanges align with the
slots in
the retainer ring.
2. Pull out the bulb assembly.
3. Disconnect the bulb base from the wiring harness by
lifting the plastic locking tab.
To replace the bulb
assembly:
1.
2.
Snap a new bulb into
the wiring harness
(A).
Make sure the locking
tab
(B) is over the lock
(C).
Install the bulb
assembly by putting the
small tab
(D) in the
small notch in the
retainer ring
(E).
3. Turn the bulb assembly 1/6 turn clockwise to lock it
in place.
232
ProCarManuals.com

Front Turn and Parking Bulb and/or Side
Marker Bulb Replacement
1. Raise the hood.
2. Insert a screwdriver into the loop of the spring,
which can be seen just behind the bulb assembly.
3. Pull the spring to the rear and slightly toward the
outside
of the car until the detent releases from the
notch in the headlight mounting frame.
,I'
4. The bulb assembly is now loose. Pull it forward until
the bulb assembly can be reached.
To replace the turn/park bulb:
1. Rotate the bulb socket housing 1/4 turn
counterclockwise.
2. Push in and turn the bulb counterclockwise to
remove
it.
3. Put in the new bulb and turn it clockwise.
4. Snap the wire connector onto the bulb assembly.
233
ProCarManuals.com

. ..‘
To replace the side marker bulb:
1. Remove the socket by turning it counterclockwise
2. Remove the bulb by pulling it straight out of the
and
pulling it straight out.
socket.
3. Insert the new bulb by pressing it straight into the
socket.
4. Insert the socket by pressing it straight into the bulb
hole and turning it clockwise.
I
To reinstall the lamp:
1. Guide the latch spring
through the opening in
the metal inner panel.
2. Engage the two blades on the lamp into the slots on
the headlamp while engaging the two pins at the rear
of the lamp openings into the sockets on the rear of
the lamp. The lamp is now in place.
3. Insert a screwdriver into the loop on the latch spring.
Pull the spring to the rear and slightly center
of the
vehicle until the detent engages into the notch.
Taillight Bulb Replacement (Sedan)
For the type of bulb, see the Index under “Replacement
Bulbs.”
Replacing bulbs in the taillight housing is very difficult,
and we recommend that you see your dealer when you
need a bulb replaced.
ProCarManuals.com

Taillight Bulb Replacement (Wagon)
For the type of bulb, see the Index under “Replacement
Bulbs.”
1. Open the liftgate.
2. Remove the three Phillips head screws.
3. Pull the taillight housing away from the body of the
vehicle.
4. Press the bulb housing release lever and turn the
housing
1/6 turn counterclockwise to remove it.
5. To remove the bulb, push in and rotate it
counterclockwise.
6. Reverse all steps to reassemble the taillight.
235
ProCarManuals.com

Loading Your Vehicle
TIRE-LOADING INFORMATION

OCCUPANTS VEHICLE CAP. WT.
FRT. CTR. RR. TOTAL LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT
XXX COLD TIRE
TIRE SIZE SPEED PRESSURE RTG
PSI/KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PSD28KPa
SEE OWNER‘S MANUAL FOR ADDITIONAL
INFORMATION IlrmlI :$#
~
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on
the rear edge of the driver’s door tells you the
proper size, speed rating and recommended inflation
pressures for the tires
on your vehicle. It also gives you
important information about the number
of people that
can be in your vehicle and the total weight that you can
carry. This weight is called the Vehicle Capacity Weight
and includes the weight
of all occupants, cargo, and all
nonfactory-installed options.
MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR FRT GAWR RR
THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE
U.S. FEDERAL MOTOR VEHICLE
SAFETY, BUMPER, AND THEFT PREVENTION
STANDARDS
IN EFFECT ON THE DATE OF
MANUFACTURE
SHOWN ABOVE.
The other label is the Certification label, found on the
rear edge of the driver’s door. It tells you the gross
weight capacity of your vehicle, called the GVWR
(Gross Vehicle Weight Rating). The GVWR includes the
weight of the vehicle,
all occupants, fuel and cargo.
Never exceed the GVWR for your vehicle, or the Gross
Axle Weight Rating (GAWR) for either the front or rear
axle.
And, if you do have a heavy load, you should spread it
out. Don’t carry more than
160 pounds (72 kg) in the
sedan
trunk or 300 pounds (136 kg) in the six-passenger
wagon rear area.
ProCarManuals.com

I NOTICE:
I
Your warranty does not cover parts or
components that fail because
of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages,
or anything else -- they will go as fast
as the vehicle goes.
If you have to stop or turn quickly,
or
if there is a crash, they’ll keep going.
237
ProCarManuals.com

Tires
We don't make tires. Your new vehicle comes with high
quality tires made by a leading tire manufacturer. These
tires are'warranted by the tire manufacturers and their
warranties are delivered with every new Buick. If your
spare tire is a different brand than your road tires, you
will have
a tire warranty folder from each of these
manufacturers.
