Features & Controls
Turn Signal and lane Change
lndicator
The turn signal has two upward (for
Right) and two downward (for Left)
positions. These positions allow you to
signal a turn or a lane change.
To signal a turn, move the lever all the
way
up or down. When the turn is
finished, the lever will return
automatically.
A green arrow on the instrument panel
will flash in the direction of the turn or
lane change.
To signal a lane change, just raise or
lower the lever until the green arrow
starts to flash. Hold
it there until you
complete your lane change. The lever
will return by itself when you release it.
As you signal a turn or a lane change, if
the arrows don’t flash but just stay on, a
signal bulb may be burned out and other
drivers won’t see your turn signal. If
a bulb is burned out, replace it
to help
avoid an accident. If the green arrows
don’t go on at all when you signal a
turn, check the fuse (see “Fuses and
Circuit Breakers’’
in the Index) and for
burned-out bulbs.
ProCarManuals.com

Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving your vehicle without a trailer.
This can help you avoid situations that
require heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer.
And, because you’re a good deal longer,
you’ll need to
go much farther beyond
the passed vehicle before you can return
to your lane.
Backing Up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, just move that hand to the
left.
To move the trailer to the right,
move your hand to the right. Always
back up slowly and, if possible, have
someone guide you.
Making Turns
When you’re turning with a trailer,
make wider turns than normal.
Do this
so your trailer won’t strike soft
shoulders, curbs, road signs, trees, or
other objects. Avoid jerky
or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle
has to have a different turn signal
flasher and extra wiring. The green
arrows on your instrument panel will
flash whenever you signal
a turn or lane
change. Properly hooked up, the trailer
lights will also flash telling other drivers
you’re about
to turn, change lanes, or
stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer are
burned out. Thus, you may think drivers
behind you are seeing your signal when
ProCarManuals.com

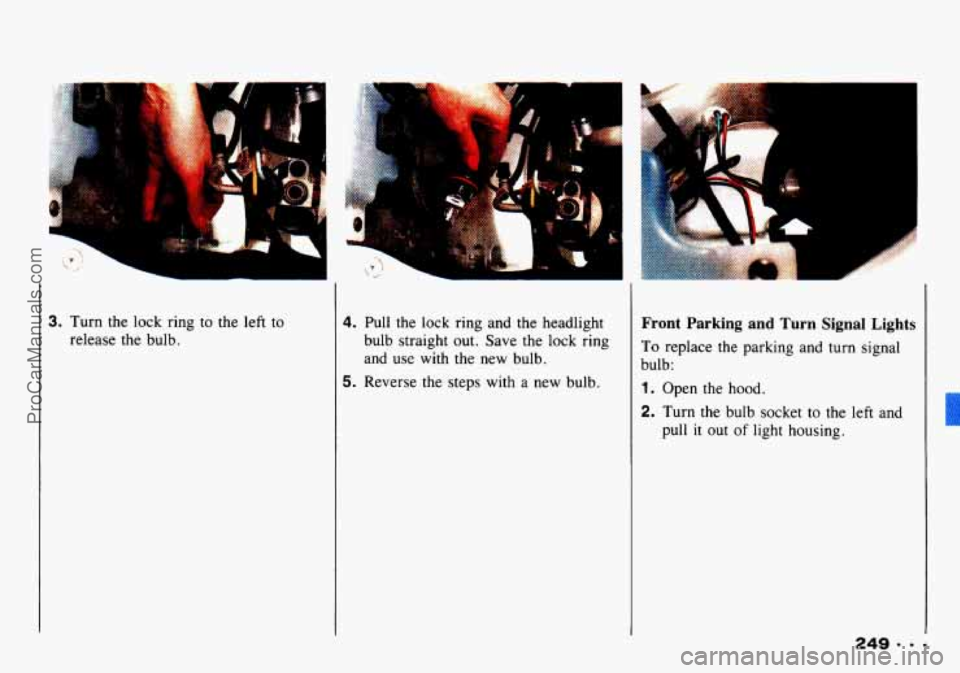

3. Turn the lock ring to the left to
release the bulb.
4. Puli the lock ring and the headlight
bulb straight out. Save the lock ring
and use with the new bulb.
5. Reverse the steps with a new bulb.
Front Parking and Turn Signal Lights
To replace the parking and turn signal
bulb:
1 . Open the hood.
2. Turn the bulb socket to the left and I
pull it out of light housing.
ProCarManuals.com

Service & Appearance
I Replacement Bulbs
Care
Back-up ............................................................. 1156
Dome
............................................................. 9605 1559
Front Parking and Turn Signal
......................................... 1157 NA
Headlight (Halogen) ..................................................... 9004
Heater or Air Conditioning Control
.................................... 96052599
Charging System
................................................... 9433184
Check Engine
..................................................... 9433 184
Engineoil Pressure
................................................ 9433184
Indicator
and Warning
Brake
............................................................ 9433184
4WD
............................................................. 9433184
Headlight HighBeam
............................................... 9433184
Safety Belt
........................................................ 9433184
TurnSignal
....................................................... 9433184
Instrument Cluster
.................................................... 9605 156
License Plate
............................................................ 194
Lighter
............................................................. 9433184
Rear Defogger Switch
............................................. 96061736
Rear Wiper/Washer Switch
........................................... 9606 1736
Rear
Hazard and Turn Signal
........................................... 1156
Rear Parking andstop
................................................... 1157
Sidemarker
................................................. ........ 194
9 - 276
ProCarManuals.com

Index
Add-on Electrical Equipment ...... 272
Adjustment. Brake
............... 13 1
Adjustment. Clutch
............... 238
Air Cleaner
..................... 233
Air Conditioner Controls
.......... 104
Air Filter Replacement
............ 234
Alignment. Wheel
............... 259
Aluminum Wheel Cleaning
........ 269
Antenna
........................ 116
Anti-lock Brakes
................. 129
Anti-lock. To Use
................ 130
Appearance Care
................ 26 1
Appearance Care and Maintenance
Materials
..................... 27 1
Appearance Care. Service and
...... 22 1
Ashtray. Front ................... 77
Assist Grips. Passenger
............ 76
Audio Systems
.................. 106
AM/FM Stereo
................ 108
AM/FM Stereo with
Cassette Tape Player
.......... 110
Automatic Transmission
............ 5 1
Fluid ........................ 234
TorqueLock
.................. 173
Axle. Front (Four-Wheel-Drive)
.... 239
Axle, Rear
...................... 238
Ashtray and
Lighter
............... 77
Ashtrays, Other
.................. 77
Babies. Smaller Children and
(Safety Belts)
................... 30
Backing Up (With a Trailer)
........ 183
Balance. Tire
................... 259
Battery
......................... 247
Bi-Level Heating
................ 103
Bin. Coinholder and
............... 76
Bins. Instrument Panel
............. 75
Brakes
Before Leaving on a Long
Trip
..... 167
Blizzard. If You’re Caught
in a ..... 175
Adjustment
.................. -13 1
Anti-lock
..................... 129
Master Cylinder
............... 245
Parking
....................... 60
PedalTravel
.................. 131
Rear Drum
.................... 130
System Parts. Replacing
......... 247
System Warning Light
........... 84
Trailer
....................... 18 1
Wear Indicators. Disc
........... 130
Braking ........................ 127
Braking in Emergencies
........... 132
“Break-In.
.. New Vehicle .......... 48
Brightness Control
................ 7 1
Bulb Replacement ................ 248
Front Parking and Turn
Signal Light
................. 249
Headlights
.................... 248
Sidemarker Light
.............. 250
Rear Combination Light
......... 25
1 Bulbs. Halogen
.................. 248
Bulbs. Replacement
.............. 276
Canvas TOP
Preparing for Storage
............ 96
Removing and Installing Your
..... 91
Special Care
for ................ 268
Carbon Monoxide (Engine Exhaust)
. . 64
Care of Canvas Top
.............. 268
Cassette Tape Player. Care of Your
. . 115
Cassette Tape. To Play a
.......... 111
Certification Label
............... 252
Chains. Safety (Trailer)
........... 181
Chains. Tire
.................... 261
Changing a Flat Tire
.............. 208
Charging System Light
............. 85
Check Engine Light
............... 85
Capacities
and Specifications
....... 277
Checking Things under the Hood
.... 227
Checking Your Restraint Systems
.... 39
Chemical Paint Spotting ........... 270
Chevrolet/Geo Roadside
Assistance
.................... 319
Chevrolet/Geo Service Publications
Ordering Information
........... 318
Child Restraints
.................. 31
Securing in the Rear Seat
......... 34
Securing in the Right Front Seat .... 36
Top Strap. Right Front
Passenger Position Only
........ 33
325 .
ProCarManuals.com

Halogen Bulbs .................. 248
Halogen Headlight Bulb
Replacement
.................. 248
Hazard Warning Flashers
.......... 190
Haze. Driving in Fog. Mist and ..... 162
Head Restraints
................... 14
Headlights Halogen Bulb Replacement
....... 248
High/Low Beam
................ 70
Lever. Turn Signal/Lights
ControVHeadlight Beam
........ 67
Lights On Reminder
............. 69
Heater Controls ................. 102
Heating
........................ 103
Heating. Bi-Level
................ 103
High Beams
..................... 159
High/Low Beam. Headlight
......... 70
Highway Hypnosis
............... 168
Hill and Mountain Roads
.......... 169
Hill. Approaching a
.............. 146
Hills. Parking
on ................. 171
Hills. Driving on Off-Road
........ 145
Hitches (Trailer)
................. 180
Hood Release
................... 227
Hook-Ups. Front Towing
.......... 198
Hook-Ups. Rear Towing .......... 199
Hooks. Recovery
................ 2 18
Horn ........................... 67 Hubs. Free-Wheeling
.............. 58
Automatic
..................... 59
Manual
........................ 59
Hydroplaning
................... 16.1
Hypnosis. Highway .............. 168
Ice. Driving on Snow or .......... 174
Identification
Engine
....................... 272
Label. Service Parts
............ 272
Number. Vehicle
............... 272
Ignition Switch
................... 48
Incline. Driving across an
......... 152
Incline. Stalling on an
............. 154
Indicators. Warning Lights. Gages and
..................... 82
Inflation
- Tire Pressure .......... 254
Inspections. Periodic Maintenance
. . 303
Instrument Panel And Clusters
................... 80
Bins .......................... 75
Cleaning the Top of the
.......... 266
Fuse Block
.................... 275
Interior Lights
.................... 7 1
Jump Starting .................. 19 1
Keys ................ .... 44
Label. Certification
.............. 252
Label. Tire-Loading Information
.... 252 Lamp. Malfunction Indicator
. . ... 85
Lane Change Indicator. Turn
Signal and
..................... 68
Lap-Shoulder Belt (Safety Belt)
...... 24
Leather Cleaning
................ 265
Leaving the Freeway
............. 165
Leaving Your Vehicle with the Engine Running
................. 62
Levers Controls (Comfort Control System)
.................... 102
Turn SignaULights ControUHeadlight Beam
........ 67
Windshield Wiper/Washer
........ 72
Lighter. Cigarette
................. 77
Lights Brake System Warning
........... 84
Charging System
................ 85
Check Engine
.................. 85
Dome ......................... 71
Engine Oil Pressure
............. 85
Interior ........................ 71
Malfunction Indicator
............ 85
Oil Pressure. ................... 86
On Reminder ................... 69
Operation of ................... 69
Safety Belt Reminder ............ 23
Traffic
....................... 120
Warning. Gages and Indicators
.... 82
9 328
ProCarManuals.com

9 9 330
Parking Brake
......................... 60
Downhill ..................... 172
Manual Transmission ............ 63
On a Hill with a Trailer.
When
You Are Ready to
Leave After ................. 185
On Hills ...................... 171
On Hills (With a Trailer) ........ 184
Over Things That Bum ........... 64
Uphill ........................ 172
Your Vehicle ................... 63
Parking and Turn Signal Light
Bulb Replacement. Front
........ 249
Parts, Replacement ............... 277
Passenger
Assist Grips
.................... 76
Positions (Safety Belt) ............ 28
Rear Seat (Safety Belt) ........... 28
Right Front Position (Safety Belt) . . 28
Passing ........................ 136
Passing (With a Trailer) ........... 183
Passing Signal .................... 70
Pavement Markings .............. 12 1
Pedal Travel. Brake .............. 13 1
Periodic Maintenance Inspections ... 303
Pockets. Front Seat Side ............ 75
Power Steering .................. 132
Power Steering Fluid ............. 243
Pregnancy. Safety Belt Use during ... 27
Pressure. Tire ................... 254
Problems on the Road ............. 189
Product Service Publications
(PSP’s)
....................... 32 1
Publications. Service ............. 320
Radiator Pressure Cap ........... 243
Radiator. How to Add Coolant ...... 206
Radio Reception. Understanding .... 115
Radio. To Play the
AM/FM Stereo
................ 108
AM/FM Stereo with
Cassette Tape Player
.......... 1 10
Rain. Driving in the .............. 160
Rainy Weather Tips. Some Other ... 161
RearAxle ...................... 238
Rear Drum Brakes ............... 13 1
Rear Vent Windows ............... 66
Rear Window
Defogger
..................... 105
Opening and Closing Your ........ 90
Removing and Installing Your ..... 91
Wiper/Washer .................. 73
Rearview Mirror. Inside ............ 74
Rearview Mirror. Inside Day/Night . . 74
Reception. Understanding Radio .... 1 15
Reclining Front Seatback ........... 13
Recommended Fluids and
Lubricants
................ 27 1. 305
Recovery Hooks. Using the ........ 218
Recovery. Off-Road .............. 135
Recreational Towing ............. 186
Towing Your Geo from the Front . . 187
Towing Your Geo from the Rear . . 186
Release. Hood ................... 227
Remote Areas. Traveling to ........ 142
Replacement Bulbs ............... 276
Replacement Parts ............... 277
Replacing Safety Belts after a Crash . . 39
Reporting Safety Defects
To General Motors
............. 318
To the Canadian Government ..... 318
To the United States Government . . 3 17
Restraint Systems. Checking Your ... 39
Restraint. Where to Put the Child .... 32
Restraints. Child .................. 34
Restraints. Head .................. 14
Road Signs ..................... 118
Color of ...................... 118
Shapeof ...................... 119
Symbols on ................... 120
Road. On the .................... 168
Road. Problems On the ............ 189
Roads. Hill and Mountain ......... 169
Roadside Assistance Program.
Chevrolet/Geo
............. - - .. 319
ProCarManuals.com

Transfer Case .................... 59
Transfer Case (Four-wheel Drive) . . 239
Transmission Fluid. Automatic ..... 234
Transmission Fluid. Manual ....... 237
Transmission. Automatic ........... 5 1
Transmission. Five-Speed Manual ... 54
Transmission. Manual ............. 54
Traveling to Remote Areas ......... 142
Trip Odometer ................... 8 1
Trip. Before Leaving on a Long ..... 167
Turn Signal and Lane Change
Indicator
...................... 68
Turn Signal Light Bulb
Replacement. Front Parking and
. . 249
Turn SignaULights Control/
Headlight Beam Lever. The
....... 67
Turn Signals When Towing a
Trailer
....................... 183
Underbody Maintenance .......... 270
Unfolding the Rear Seats ........... 17
Uphill. Driving ................... 147
Uphill. Parking .................. 172
Used Oil. What to Do with ......... 233
Utility Vehicle Driving
Guidelines
.................... 140 Vehicle
Control
of a ................... 126
Damage Warnings ................ 7
Dimensions ................... 279
Driving Guidelines. Utility ....... 140
Environment and Your .......... 282
Identification Number ........... 272
Leaving with the Engine
Running
..................... 62
Loading Your ................. 252
Parking Your ................... 63
Storage ....................... 247
Symbols ....................... 18
Towing Your. ................. 196
Towing, Recreational ........... 186
Vent Windows, Rear .............. 66
Ventilation ..................... 103
Ventilation System, Flow-Through . . 106
Ventilation Tips ................. 106
Vinyl Cleaning .................. 265
Vision, Night ................... 158
Visors, Sun ...................... 76
warnine Devices. Other .......... 190
Warning Flashers. Hazard 190
Warning Lights. Gages and
Indicators
...................... 82
Y
.........
Warnings. Safety .................. 6
Warnings. Vehicle Damage .......... 7
Washer Fluid. Windshield ......... 244
Washers (Windshield) ............. 72
Washing Your Vehicle ............ 267
Water. Driving in ................ 156
Weatherstrip Service ............. 269
Weight
Total on Your Vehicle’s Tires
.... 180
Trailer ....................... 179
Trailer Tongue ................ 180
Welcome to Geo ................... 4
Wheel Alignment ................ 259
Wheel Nut Torque ............... 278
Wheels
Cleaning Aluminum
............ 269
Replacement .................. 259
Used Replacement .............. 260
Windows ........................ 66
Defogging and Defrosting ....... 104
Opening and Closing Your Rear .... 90
Rear Vent ..................... 66
Rear WiperIWasher ............. 73
Removing and Installing Your
Rear ........................ 91
333 . .
ProCarManuals.com
