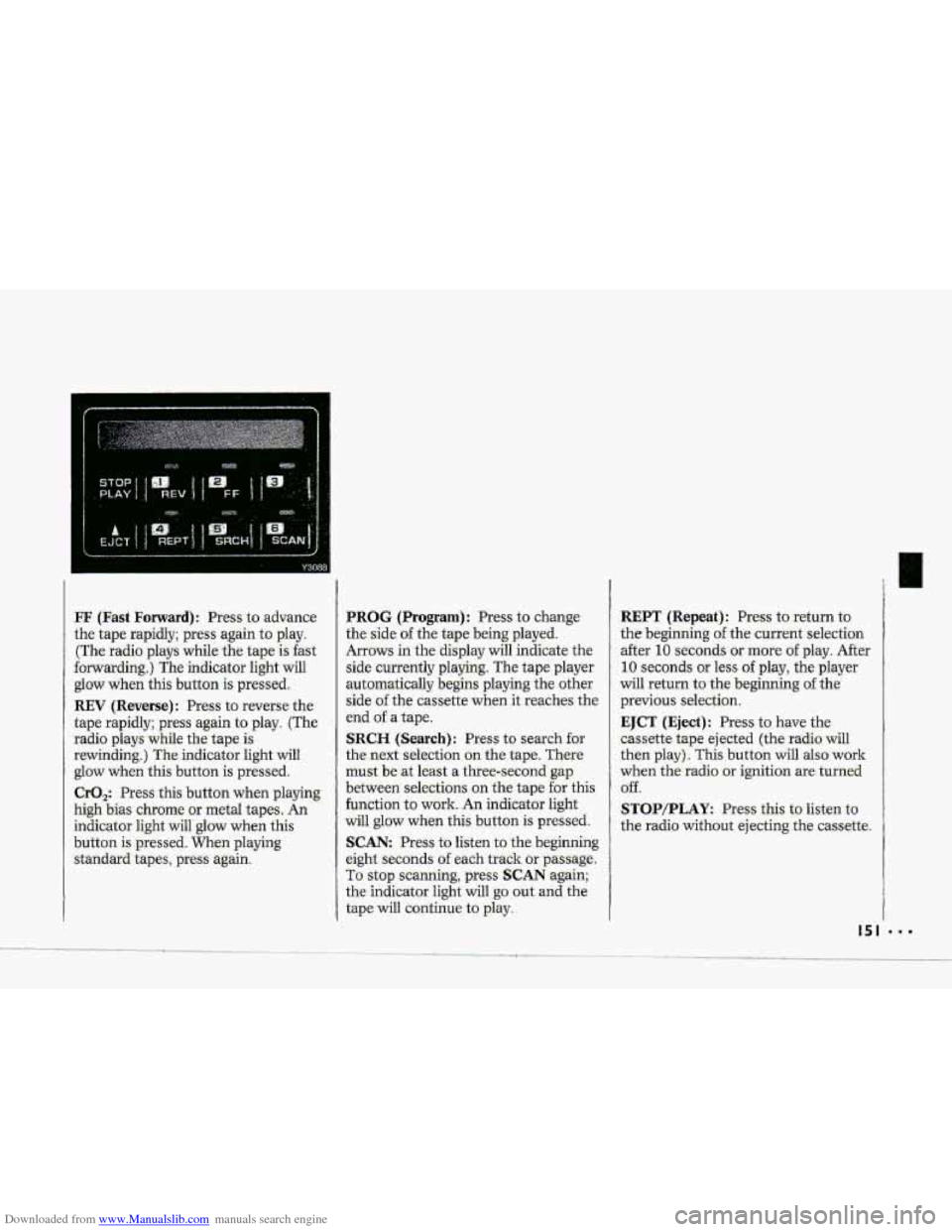

FF (Fast Forward): Press to advance
the tape rapidly; press again to play.
(The radio plays while the tape
is fast
forwarding.) The indicator light will
glow when this button is pressed.
REV (Reverse): Press to reverse the
tape rapidly; press again
to play. (The
radio plays while the tape is
rewinding.) The indicator light will
glow when this button is pressed.
CrO,: Press this button when playing
high bias chrome or metal tapes. An
indicator light will glow when this
button is pressed. When playing
standard tapes, press again.
PROG (Program) : Press to change
the side of the tape being played.
Arrows in the display will indicate the
side currently playing. The tape player
automatically begins playing the other
side
of the cassette when it reaches the
end
of a tape.
SRCH (Search): Press to search for
the next selection on the tape. There
must be at least a three-second gap
between selections on the tape
for this
function
to work. An indicator light
will glow when this button is pressed.
SCAN: Press to listen to the beginning
eight seconds
of each track or passage.
To stop scanning, press
SCAN again;
the indicator light will
go out and the
tape
will continue to play.
REPT (Repeat): Press to return to
the beginning
of the current selection
after
10 seconds or more of play. After
10 seconds or less of play, the player
will return to the beginning
of the
previous selection.
EJCT (Eject): Press to have the
cassette tape ejected (the radio will
then play). This button will also work
when the radio
or ignition are turned
Off.
STOPIPLAY: Press this to listen to
the radio without ejecting the cassette.

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems

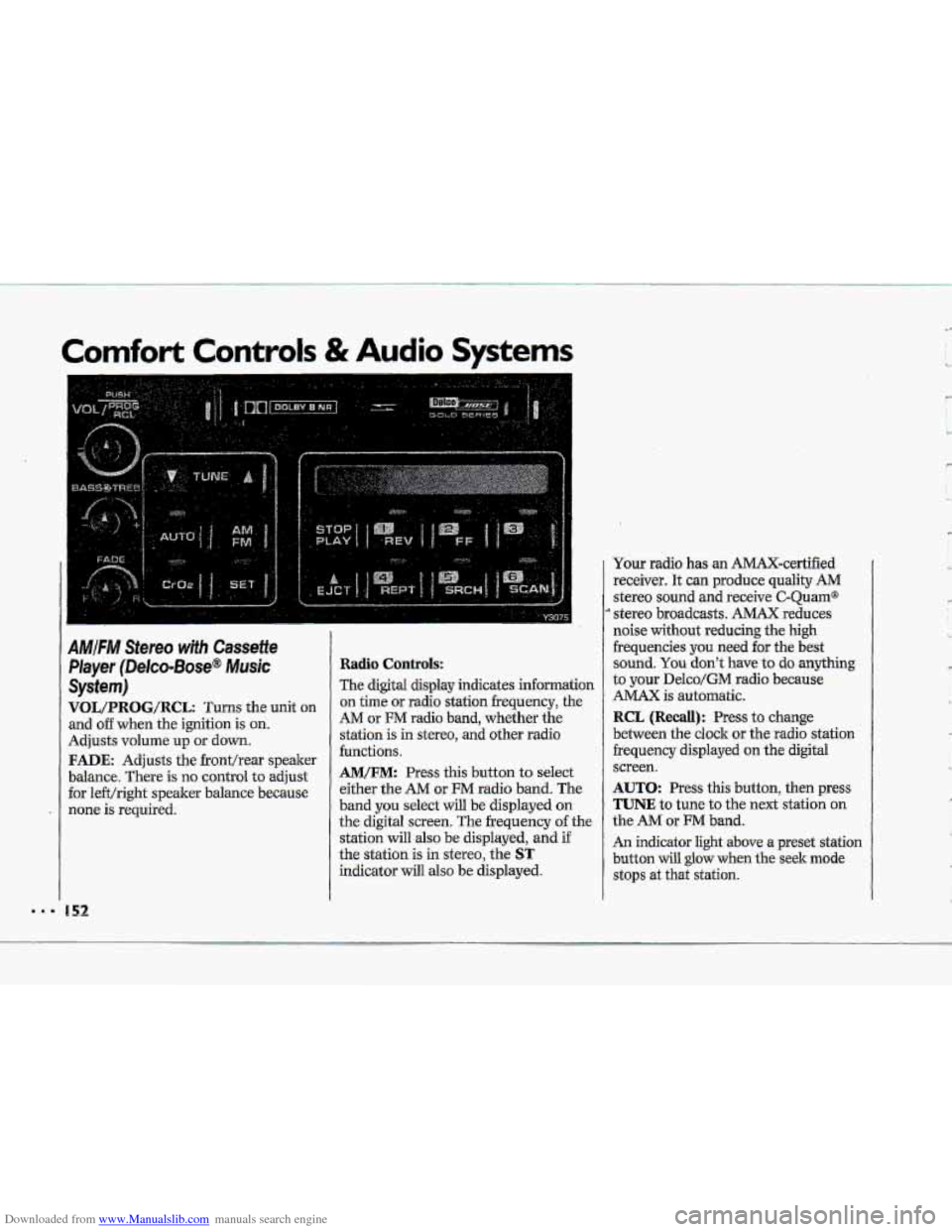

AMIFIW Stereo wifh Cassette
Player (Delco-Bose@ Music
System)
VOL/PRBG/R@L: Turns the unit on
and o€€ when the ignition is on.
Adjusts volume up or down.
FADE: Adjusts the fronthear speaker
balance. There is no control
to adjust
for le€t/right speaker balance because
none is required.
Radio Controls:
The digital display indicates information
on time or radio station frequency, the
AM or FM radio band, whether the
station is in stereo,
and other radio
functions.
AM/FM: Press this button to select
either the
AM or FM radio band. The
band
you select will be displayed on
the digital screen. The frequency of the
station
will also be displayed, and if
the station is in stereo, the
ST
indicator will also be displayed. Your radio
has an AMAX-certified
receiver. It can produce quality
AM
stereo sound and receive C-Quam@
stereo broadcasts. AMAX reduces
noise
without reducing the high
frequencies you
need for the best
sound.
You don't have to do anything
to your Delco/GM radio because
AMAX is automatic.
RCL (Recall): Press to change
between the clock or the radio station
frequency displayed
on the digital
screen.
AUTO: Press this button, then press
TUNE to tune to the next station on
the AM or FM band.
An indicator light above a preset station
button will
glow when the seek mode
stops at that station.
'w
' ,- I
c
L,
R
'k

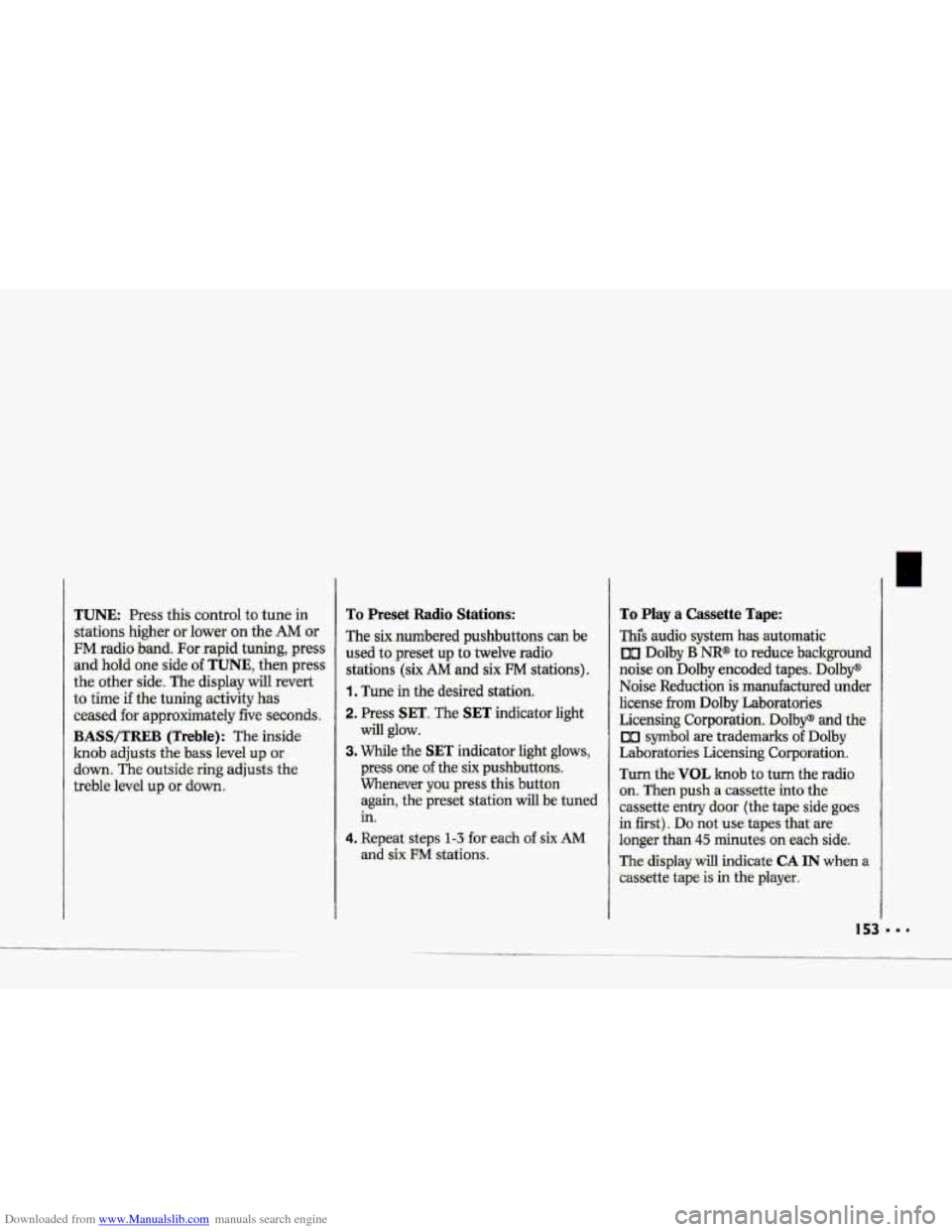

Downloaded from www.Manualslib.com manuals search engine TUNE: Press this control to tune in
stations higher
dower on the AM or
%M radio b-and. For rapid tuning, press
and hold one side of TUNE, theirpress
the other
side. The di-splay will revert
to time if the tuning -activity has
ceased for approximately five seconds.
BASS/TREB (Treblej: -The. inside
knob adjusts the
bass .level up or
down. The outside rin,g adjusts the
treble ievel
up or down.
To Preset Radio Stations:
The six numbered pushbuttons can be
used to preset-up
to twelve Eadio,.
stations (six AM ad six FM.stations).
1. Tune in the desired station.
2. Press SET. The SET indicator light
3. While the SET indicator light glows,
press one of the six .pushbuttons.
Whenever
you.press this button
again, the preset station will 'be tuned
in.
and six FM stations.
will
glow.
4. Repeat
steps 1-3 for each of six AM
To Play a Cassette Tape:
TGs audio system has automatic
UI Ddby B NR@ to reduce backpurid
noise on Dolby encoded tapes*
Dolby@
Noise Redudtion is.manufactwed under
license
fr~m Dolby Laboratories
Licensing Corporation. Dolby" and the
00 symbol are trademarks of Dolby
Laboratories Licensing- Corporation.
Turn the.VOL
knob to. turn t.he fadio:
on. Then
push a cassette into the
cassette entry door (the tape
side goes
in first).. Do not use tapes that .are
longer than
45 minutes on each side.
The,
display will indicate CA IN when a
cassette tape.& in the player.

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems
'I

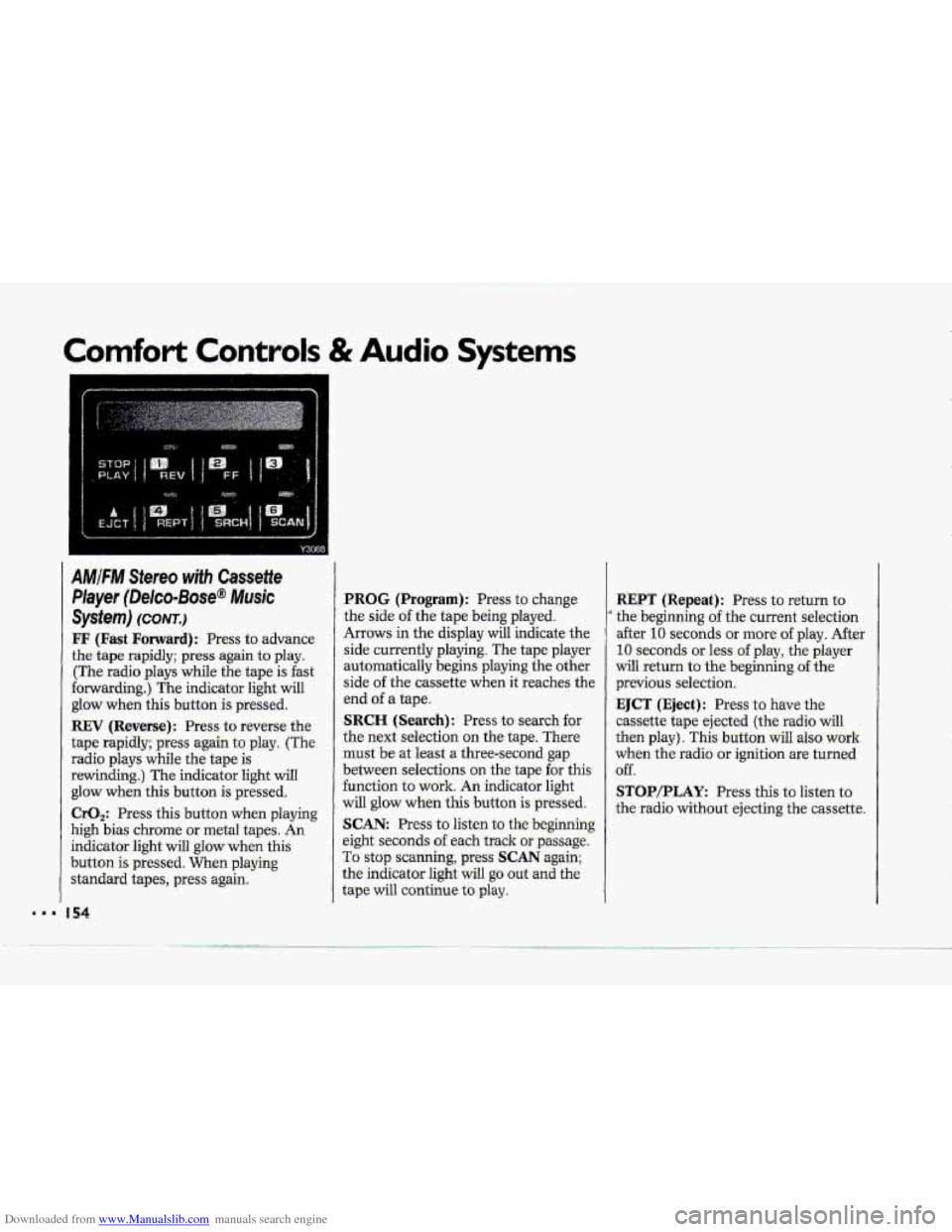

AMIFM Stereo with Cassette
Player (Delco-Bose@ Music
System) ~conrr.)
FF (Fast Forward): Press to advance
the tape rapidly; press again to play.
(The radio plays while the tape is fast
forwarding.) The indicator light will
glow when this button
is pressed.
REV (Reverse): Press to reverse the
tape rapidly; press again to play. (The
radio plays while the tape
is
rewinding.) The indicator light will
glow when this button is pressed.
CrO,: Press this button when playing
high bias chrome
or metal tapes. An
indicator light will glow when this
button
is pressed. When playing
standard tapes, press again.
I54
PROG (Program): Press to change
the side
of the tape being played.
Arrows in the display will indicate the
side currently playing. The tape player
automatically begins playing the other
side
of the cass-ettg. W&n it xeahez, the
end
of a tape.
SRCH (Search): Press to search for
the next selection on the tape. There
must be at least a three-second gap
between selections on the tape for this
function to work. An indicator light
will glow when this button is pressed.
SCAN: Press to listen to the beginning
eight seconds
of each track or passage.
To stop scanning, press SCAN again;
the indicator light will
go out and the
tape will continue
to play.
.. --
REPT (Repeat): Press to return to
' the beginning of the current selection
after
10 seconds or more of play. After
10 seconds or less of play, the player
will return to the beginning of the
previous selection.
EJCT (Eject): Press to have the
cassette tape ejected (the radio
will
then play). This button wilI also work
when the radio or ignition are turned
off.
STOP/PLAY: Press this to listen to
the radio without ejecting the cassette.

Downloaded from www.Manualslib.com manuals search engine i
F
I
p4
I
AMIFM Stereo with CassettelCD
Player (Delco-Bose@ Musk
System)
SCV/VOL: The inside lcnob turns the
unit on and
off when the ignition is on
and adjusts volume up or down.
SCV (Speed-Compensated Volume):
This three-position control ring will
automatically compensate for the
increase in road noise levels
at higher
speeds. At normal driving speed, set
the volume control
as desired.
Switching to
L (Low) or H (High)
causes the volume
to increase as your
speed increases.
The high position will give you a higher
maximum volume than the low
position. The
high position will also
increase the volume faster.
Use the low
position when driving with the roof
panel
on, or the convertible top up and
the windows closed. The high position
is best when driving with the roof panel
off, or the convertible top down and the
windows open.
SCV will be indicated
on the display when on. This feature
can be turned
off by turning the control
ring to the
OFF position.
FADE Adjusts the fronthear speaker
balance. There is
no control to adjust
for left/right speaker balance because
none is required.
... .... ... .. ...
.... ... ... .... . :.. .. .... .. ..

Downloaded from www.Manualslib.com manuals search engine .I.
Comfort Controls & Audio Systems

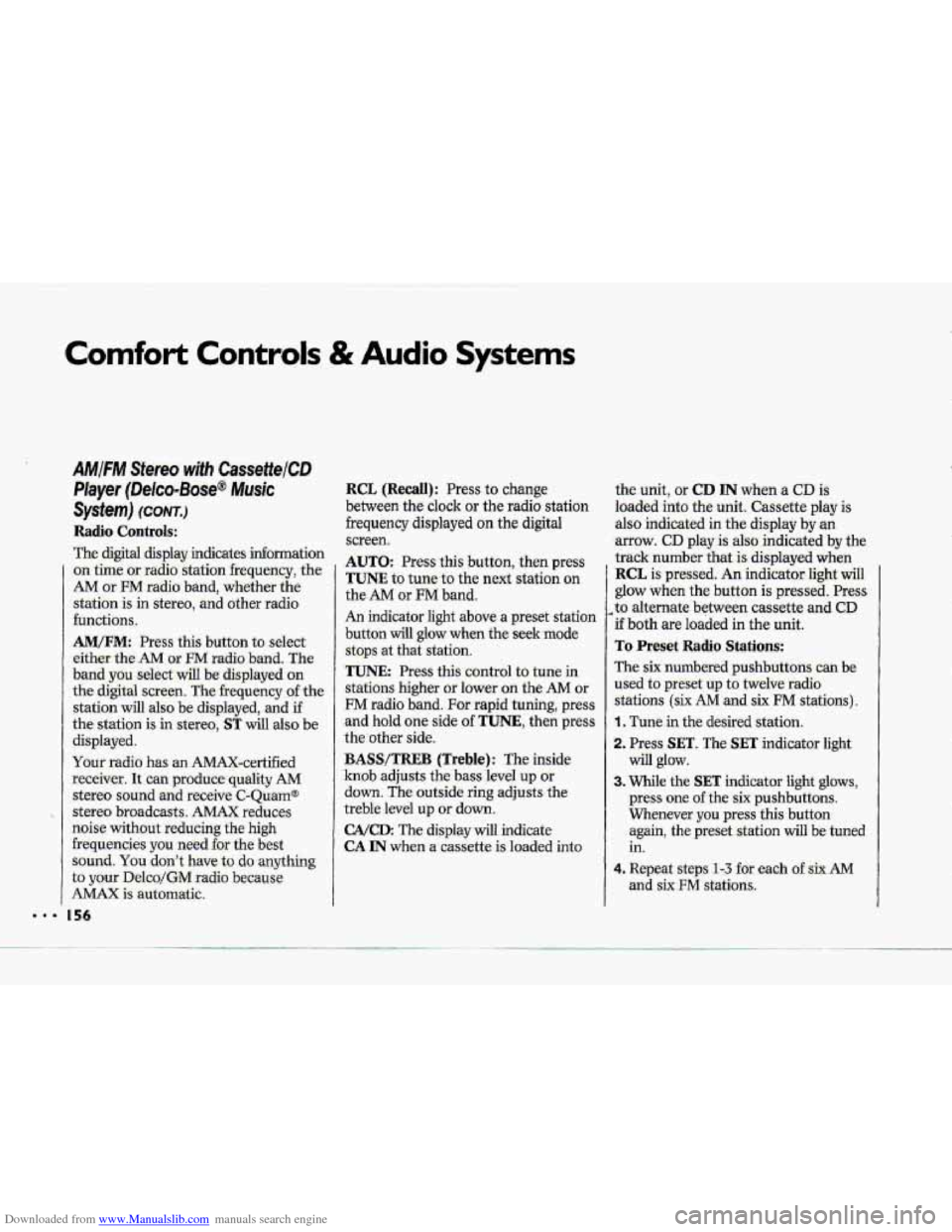

AMIFM Stereo with CassettelCD
Player (Delco-Bose@ Music
System) (CONT.)
Radio Contro~s:
-The digitd display indicates information
on- time or radio station frequency, the
AM or FM radio- band, whether the
station
is in stereo, and other radio
functions..
AMtFM: Press this button to select
either
-the AM OF FM radio- band. The
band you -select-will be displayed on
the digital screen. The frequency -of the
station will also
be displayed, and if
the station is in. stereo,
ST will-:also be
displayed.
Ywr radio has an AMAX-certified
.receiver. .It can produce quality AM
stereo sound and receive C-Qu.am@
stereo broadcasts. AMAX reduces
noise with0u.t reducing
the high
frequencies. you need
for the best
sound. You don't Jiave,to do anything
to your Delco/GM radio because.
AMAX is automatic.
156
RCL (Recall): Press to change
between the clock or the radio station
frequency displayed
on the digital
screen.
AUTO: Press this button, then press
TUNE to tune to the next station on
the
AM or FM band.
An indicator light above a preset station
b-utton will glow when the seekmode
stops .at that station.
TUNE: Press this control to tune in
stations higher or lower
on the AM or
FM radio band. .For rapid tuning, press
and hold one side of TUNE, then press
the other side.
BASS/TREB (Treble): The inside
knob adjusts the bass level up or
down. The outside ring adjusts the
treble bel up or down,
GA/cD: The .display will indicate
CA IN when a cassette is loaded into the unit, or
CD IN when a CD is
loaded into the unit. Cassette play is
also indicated in
the display by an
arrow. CD play.is also .indicated by the
track number
that is displayed when
RCL is pressed. An indicator light will
glow when the button is pressed. Press
,to alternate between cassette and CD
if both are loaded in the unit.
To Preset Radio Stations:
The six numbered pushbuttons can be.
used to preset up to twelve radio
:stations
(six AM and six FM stations).
1. Tune in the desired station.
-2. Press: SET. The SET indicator light
3. While the SET indicator light glows,
press one of the six pushbuttons.
Whenever
you press this button
again,
the preset station will be tuned
in.
will glow.
4. Repeat steps 1 --? for each o€.sirr AM

Downloaded from www.Manualslib.com manuals search engine c
A
4

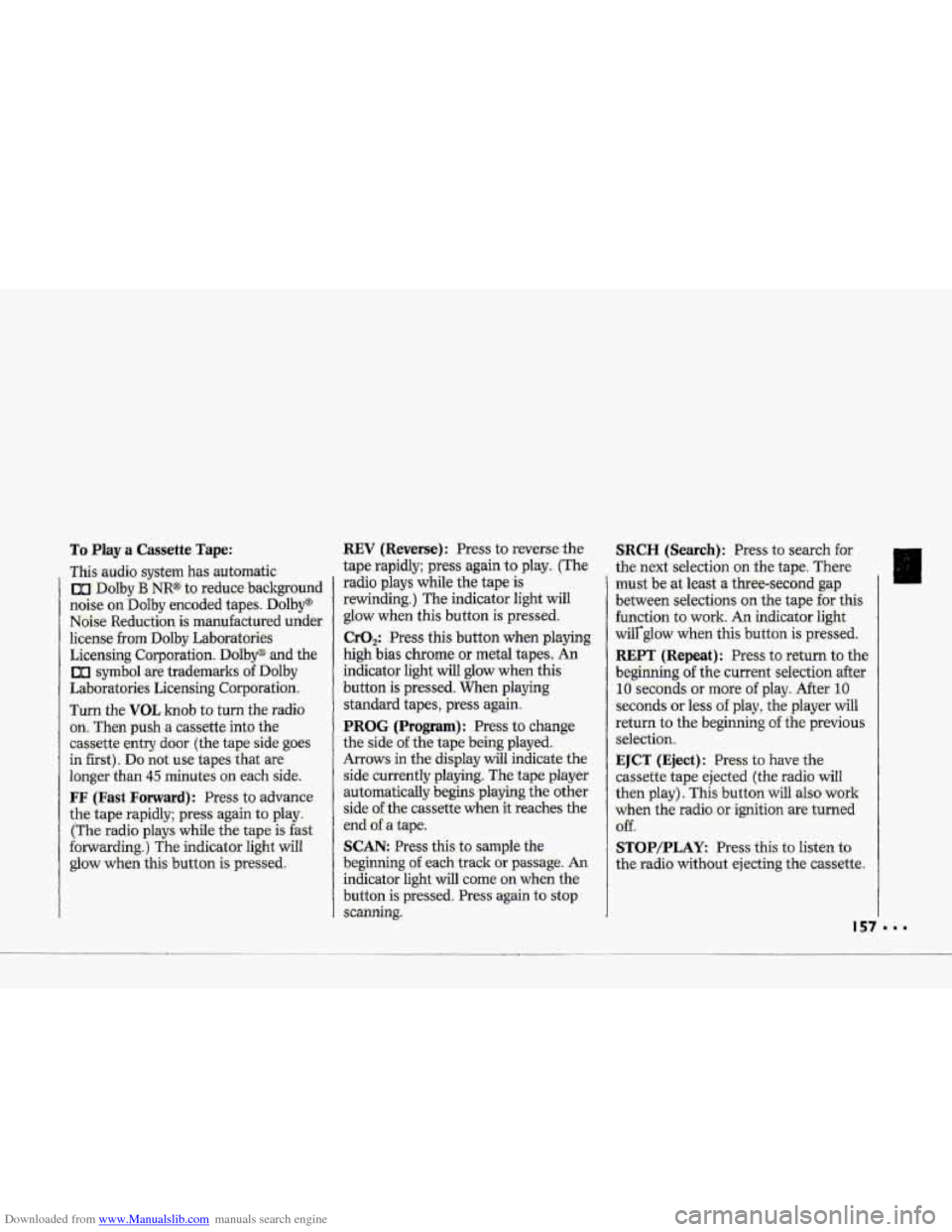

To Play ,a Cassette Titpe:
This audio system hits automatic
00- Dolby B NR@ to feduce-.baclground
hoke on' Dolby encoded tapes. .Dolby@
Noise Reduction is manufactured u.nder
license from Dolby Laboratorie's
Licensing Corporation.
Doby@ and the
011 symbol are trademarks uf Dolby
Laboratories Licensing Corporation.
Turn the VOL knob to turn the radio
-on. Then push a cassette into the
Cassette
entry door (the-tape side goes
in first). Do Bot use tapes:that are
longer..t€ian
45 minutes on each side.
FF (Fast Forward): Press to advame
-the-:tape, rapidly;. press again to play.
(The radio plays- while the tape is fsst
forwarding.) The indicator light will
glow when this button is .pressed.
.REV (Reverse-): Press to reverse the
-tape rapidly; press .again to play. (The
radio plays while the tape is
rewinding.)
The indicator light will
glow when this button is pressed.
CrO,: -Press. this button when playing
high bias
chrome or metal tapes. Ah
indicator light will glow when this
button-is
pressed. When playing
standard tapes, press again.
PROG (Program): Press to change
the side afthe tape being played..
Arkows- in the- display wiil .indicate the
side currently playing, The-tape player
automatically basins :playing the other
side ofthe cassette when it reaches the
end of a tape:
SCAN: Press this-to sample the
beginning
of eadh track or passage. An
indicator light will come on when the
button.
is, pres.sed. Press agtiih to stop
scanning-.
SRCH (.Search): Press to search €Or
the next select-ion on ihe tape. There
must be at
least a three-second :gap
between selections
on the tape for this
function to,
work. An indicaior light
will'glow when this. button
is presmi.
REPT (Repeat): Press to .return to the
beginnhg
of the current selection-after
10 seconds or more of play. After 10
seconds or 1,ess of pray, the player will
return to the beginning &he previous
selection.
EJCT (Eject): Press to have the
cassette tape ejected (the radio -wilJ
then play). This-button will also-work
when the radio
or ignition are turned
6ff.
STUP/PLAY Press .this to list-en. to
the radio without ejecting the cas'sette..

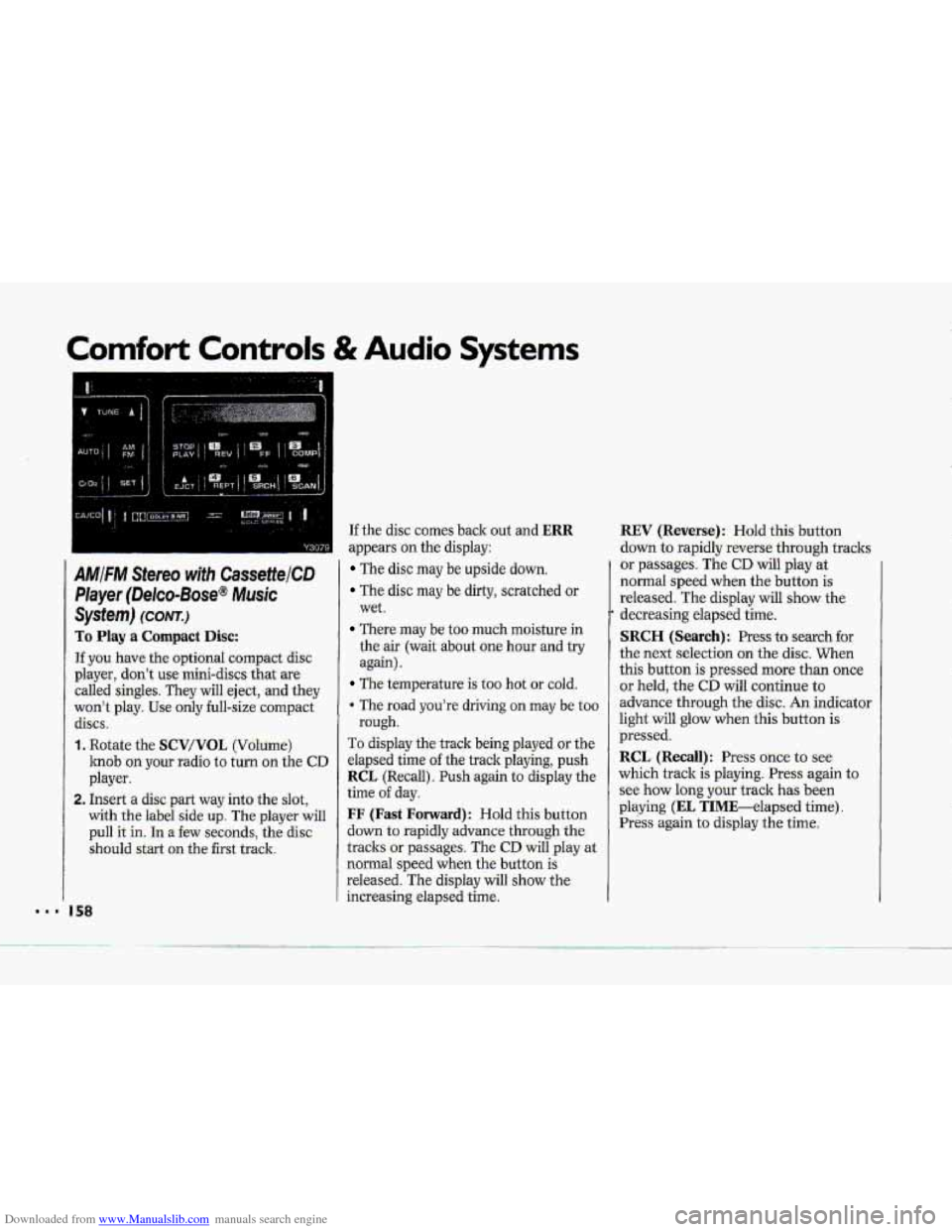

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems
AMIFM Stereo with CassettelCD
Player (Delco-Bose@
Music
System) (CONTJ
To Play a Compact Disc:
Tf you have the optional compact disc
player, don’t use mini-discs that are
called singles. They will eject, and they
won’t play. Use only full-size compact
discs.
1, Rotate the SCV/VOL (Volume)
knob on your radio to turn on the CD
player.
2. Insert a disc part way into the slot,
with
the label side up. The player will
pull it in. In a few seconds, the disc
should
start on the first track.
... I58
If the disc comes back out and ERR
appears on the display:
The disc may be upside down.
The disc may be dirty, scratched or
wet.
There may be too much moisture in
the
air (wait about one hour and try
again).
The temperature is too hot or cold.
The road you’re driving on may be too
rough.
To display the track being played or the
elapsed time
of the track playing, push
RCL (Recall). Push again to display the
time of day.
FF (Fast Forward): Hold this button
down
to rapidly advance through the
tracks or passages. The
CD will play at
normal
speed when the button is
released. The display will show the
increasing elapsed time.
REV (Reverse): Hold this button
down to rapidly reverse through tracks
or passages. The CD wili play at
normal speed when the button is
released. The display will show the
decreasing elapsed time.
SRCH (Search): Press to search for
the next selection on the disc. When
this button is pressed more than once
or held, the
CD will continue to
advance through the disc. An indicator
light will glow when this button
is
pressed.
RCL (Recall) : Press once to see
which track
is playing. Press again to
see how long your track
has been
playing (EL TIME-elapsed time).
Press again to display the time.
