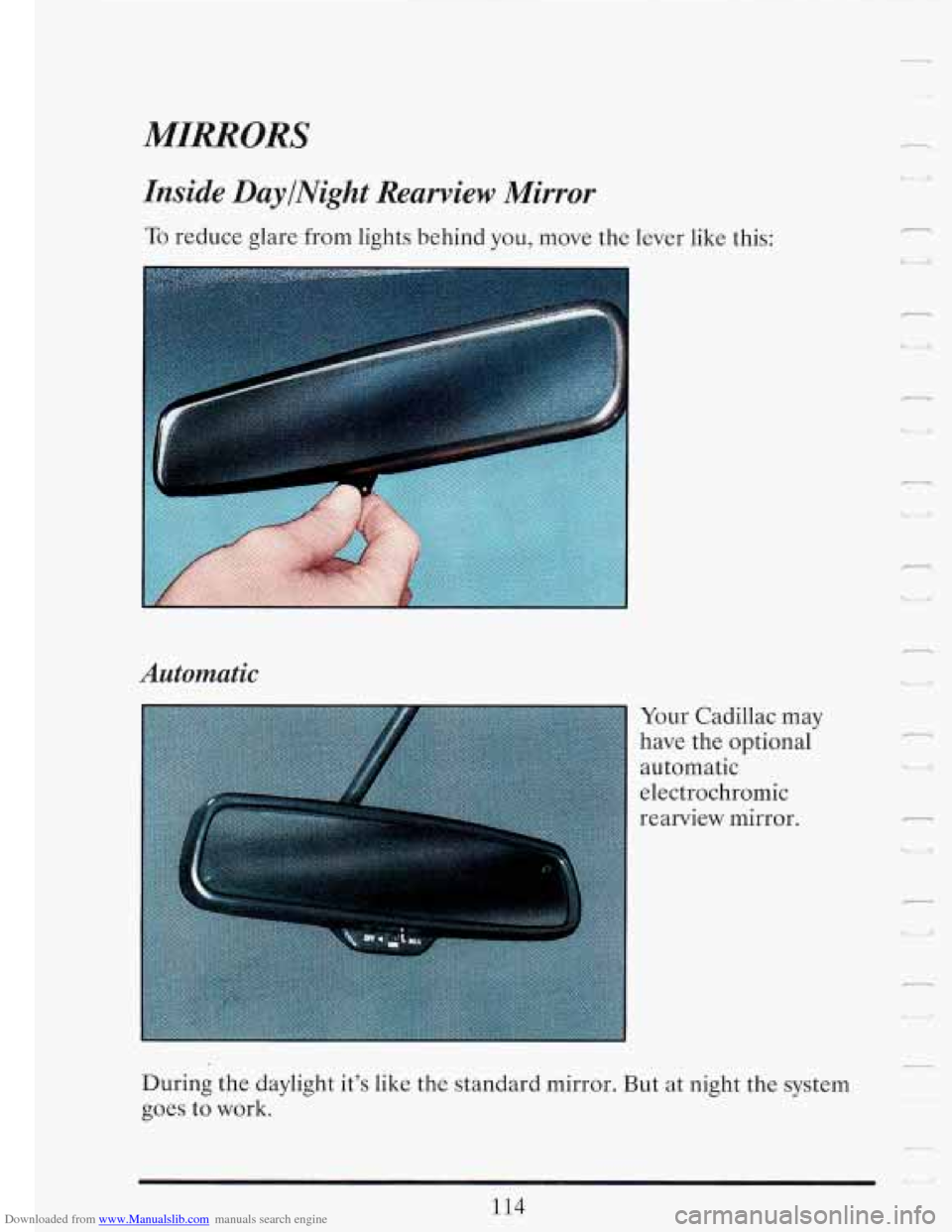

Downloaded from www.Manualslib.com manuals search engine MIRRORS
Inside DaylNight Rearview Mirror
To reduce glare from lights behind you, move the lever like this:
Automatic
Your Cadillac may
have the optional
automatic
electrochromic
rearview mirror.
During the daylight it’s
like the standard mirror. But at night the system
goes to work.
114
r
1y
r
I L-4
U
n
1; U

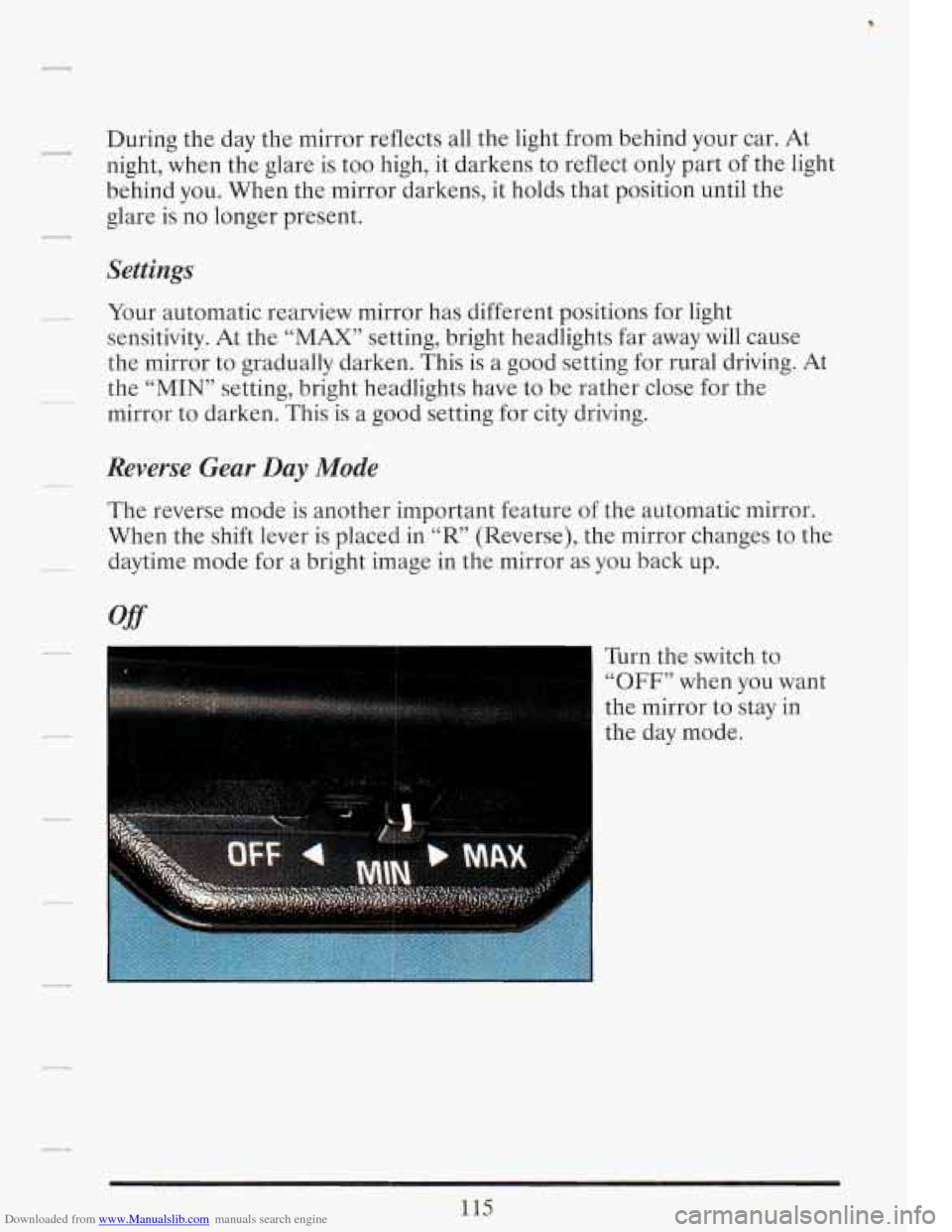

Downloaded from www.Manualslib.com manuals search engine - During the day the mirror reflects all the light from behind your car. At
night, when the glare is too high, it darkens to reflect only part
of the light
behind
you. When the mirror darkens, it holds that position until the
glare is no longer present.
R_
Settings
__ Your automatic rearview mirror has different positions for light
sensitivity. At the
“MAX” setting, bright headlights far away will cause
the mirror to gradually darken. This is a good setting for rural driving. At
mirror to darken. This
is a good setting for city driving.
-- the “MIN” setting, bright headlights have to be rather close for the
Reverse Gear Day Mode
The reverse mode is another important feature of the automatic mirror.
When the shift lever is placed in
“R’ (Reverse), the mirror changes to the
~
__ daytime mode for a bright image in the mirror as you back up.
off
Turn the switch to
“OFF” when you want
the mirror to stay in
the day mode.
115

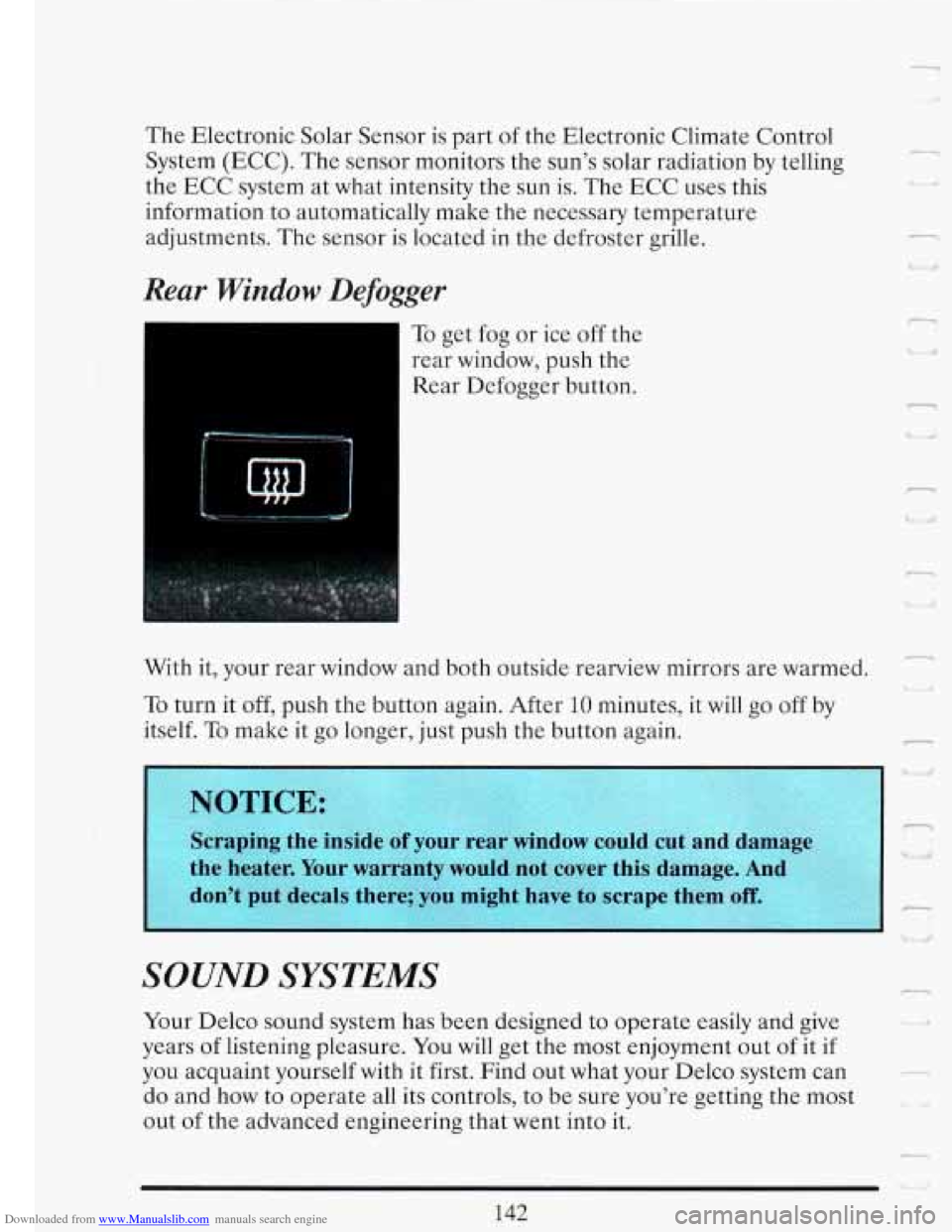

Downloaded from www.Manualslib.com manuals search engine The Electronic Solar Sensor is part of the Electronic Climate Control
System (ECC). The sensor monitors the
sun’s solar radiation by telling
the
ECC system at what intensity the sun is. The ECC uses this
information to automatically make the necessary temperature
adjustments. The sensor is located in the defroster grille.
Rear Window Defogger
To get fog or ice off the
rear window, push the
Rear Defogger button.
With it, your rear window and both outside rearview mirrors are warmed.
To turn it off, push the button again. After
10 minutes, it will go off by
itself. To make it go longer, just push the button again.
n
n .-
-I
SOUND SYSTEMS
Your Delco sound system has been designed to operate easily and give
years of listening pleasure.
You will get the most enjoyment out of it if
you acquaint yourself with it first. Find out what your Delco system can
7.
do and how to operate all its controls, to be sure you’re getting the most - i
out of the advanced engineering that went into it.
1 t d
142

Downloaded from www.Manualslib.com manuals search engine 0
0
0
0
0

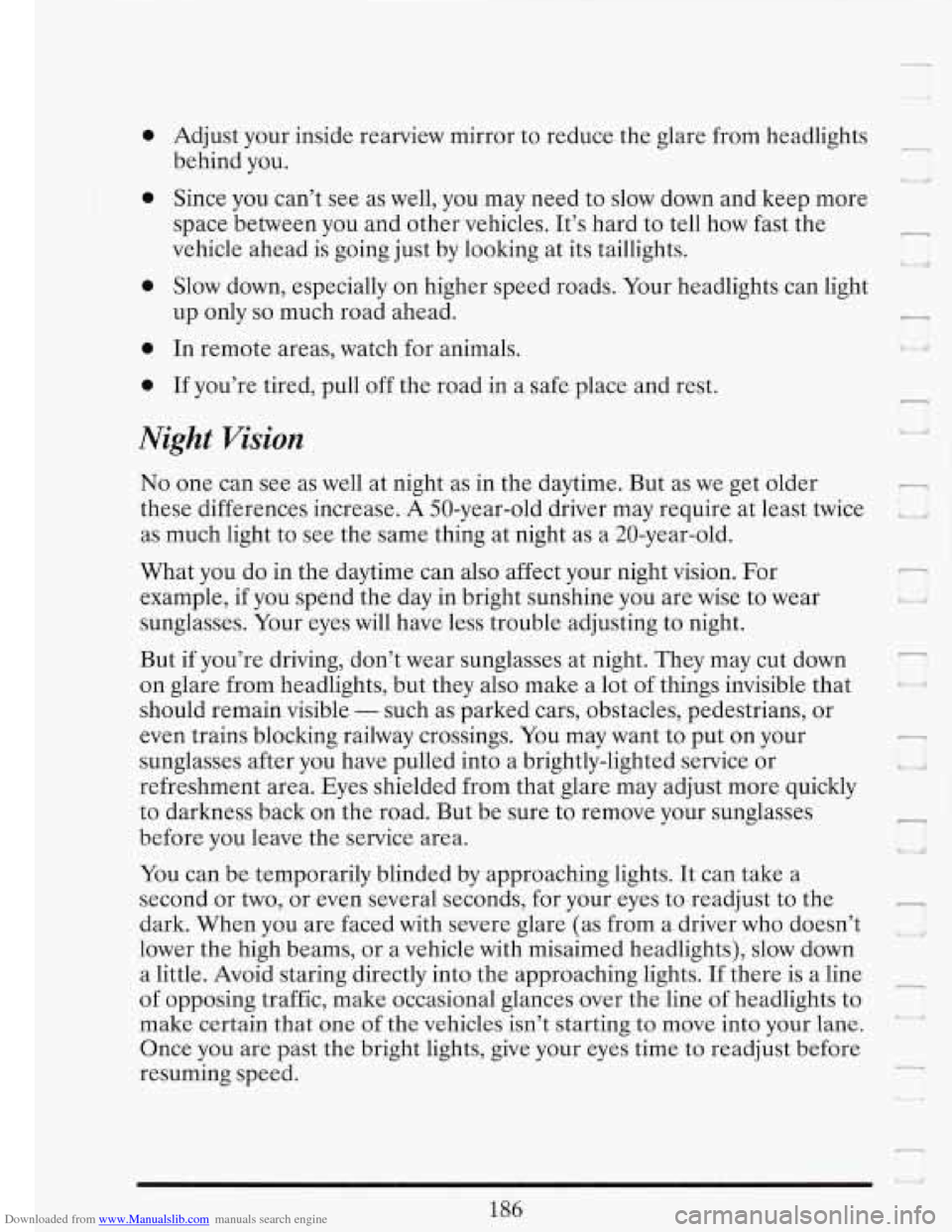

Adjust your inside rearview mirror to reduce the glare from headlights
behind you. -
Since you can’t see as well, you may need to slow down and keep more
space between you and other vehicles. It’s hard to tell how fast the
vehicle ahead is going just by looking at its taillights.
Slow down, especially on higher speed roads. Your headlights can light
up only
so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull off the road in a safe place and rest.
Night Vision
f-I
i
No one can see as well at night as in the daytime. But as we get older -
these differences increase. A 50-year-old driver may require at least twice i,
as much light to see the same thing at night as a 20-year-old.
What you do in the daytime can also affect your night vision. For
example, if you spend the day in bright sunshine you are wise to wear
sunglasses. Your eyes will have less trouble adjusting to night.
But if you’re driving, don’t wear sunglasses at night. They may cut down
on glare from headlights, but they also make a lot of things invisible that
should remain visible
- such as parked cars, obstacles, pedestrians, or
even trains blocking railway crossings.
You may want to put on your
sunglasses after you have pulled into a brightly-lighted service or
refreshment area. Eyes shielded from that glare may adjust more quickly
to darkness back on the road. But be sure to remove your sunglasses
before you leave the service area.
I
3:
You can be temporarily blinded by approaching lights. It can take a
second or
two, or even several seconds, for your eyes to readjust to the r
dark. When you are faced with severe glare (as from a driver who doesn’t
lower the high beams, or a vehicle with misaimed headlights), slow down
a little. Avoid staring directly into the approaching lights.
If there is a line
of opposing traffic, make occasional glances over the line of headlights to
make certain that one of the vehicles isn’t starting to move into your lane.
Once you are past the bright lights, give your eyes time to readjust before
resuming speed.
I.-
-
i*
It 81
186

Downloaded from www.Manualslib.com manuals search engine r

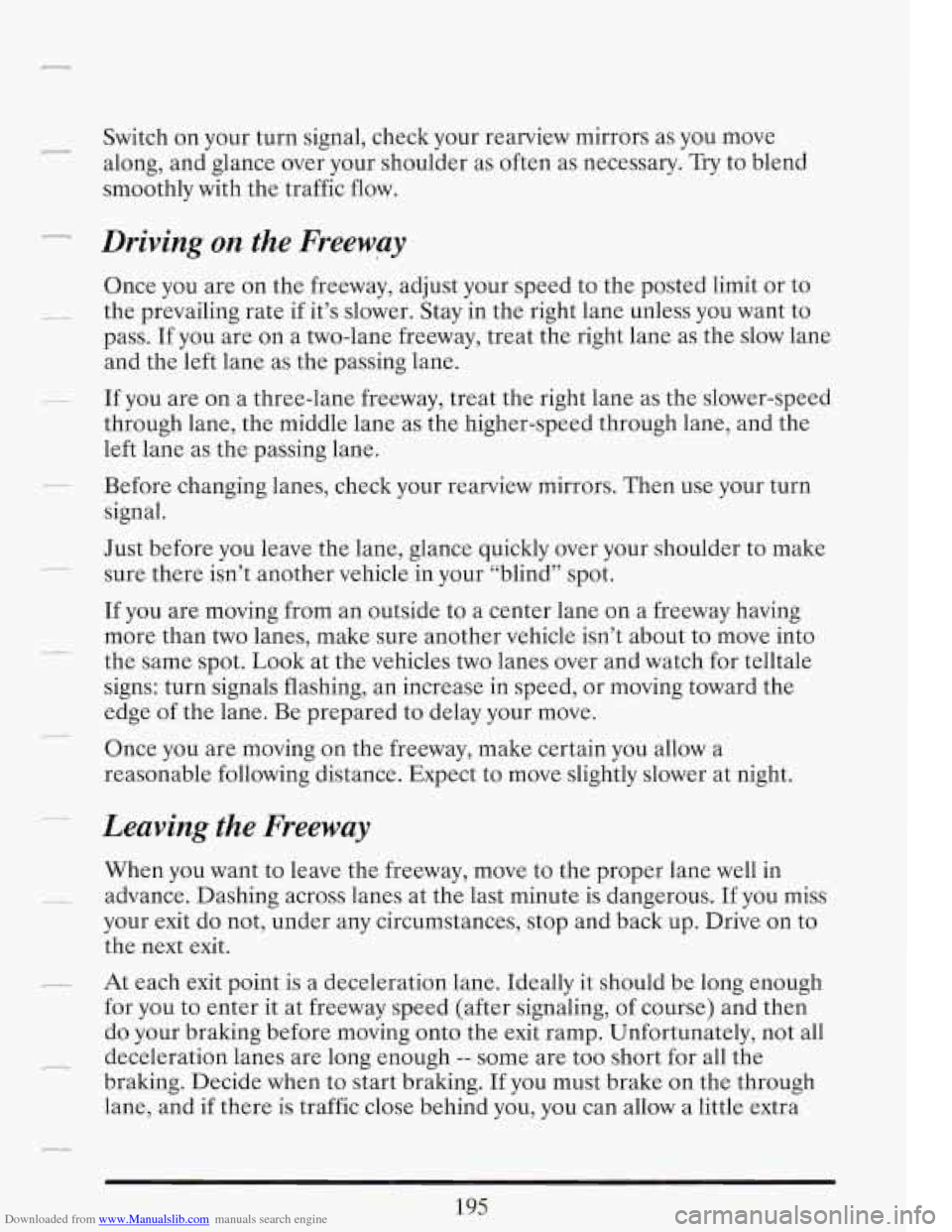

Switch on your turn signal, check your rearview mirrors as you move
along, and glance over your shoulder as often as necessary.
Try to blend
smoothly with the traffic flow. c-
_I Driving on the Freeway
Once you are on the freeway, adjust your speed to the posted limit or to
-- the prevailing rate if it’s slower. Stay in the right lane unless you want to
pass.
If you are on a two-lane freeway, treat the right lane as the slow lane
and the left lane as the passing lane.
through lane, the middle lane as the higher-speed through lane, and the
left lane as the passing lane.
- If you are on a three-lane freeway, treat the right lane as the slower-speed
L_ Before changing lanes, check your rearview mirrors. Then use your turn
signal.
Just before you leave the lane, glance quickly over your shoulder to make
sure there isn’t another vehicle in your “blind” spot.
If you are moving from an outside to
a center lane on a freeway having
more than two lanes, make sure another vehicle isn’t about to move into
the same spot. Look at the vehicles
two lanes over and watch for telltale
signs: turn signals flashing, an increase in speed, or moving toward the
edge
of the lane. Be prepared to delay your move.
-
._.
_I
Once you are moving on the freeway, make certain you allow a
reasonable following distance. Expect to move slightly slower at night.
c_
Leaving the Freeway
When you want to leave the freeway, move to the proper lane well in
__ advance. Dashing across lanes at the last minute is dangerous. If you miss
your exit do not, under any circumstances, stop and back up. Drive on to
the next exit.
- At each exit point is a deceleration lane. Ideally it should be long enough
for you to enter it at freeway speed (after signaling, of course) and then
do your braking before moving onto the exit ramp. Unfortunately, not all
braking. Decide when to start braking.
If you must brake on the through
lane, and
if there is traffic close behind you, you can allow a little extra
- deceleration lanes are long enough -- some are too short for all the
195

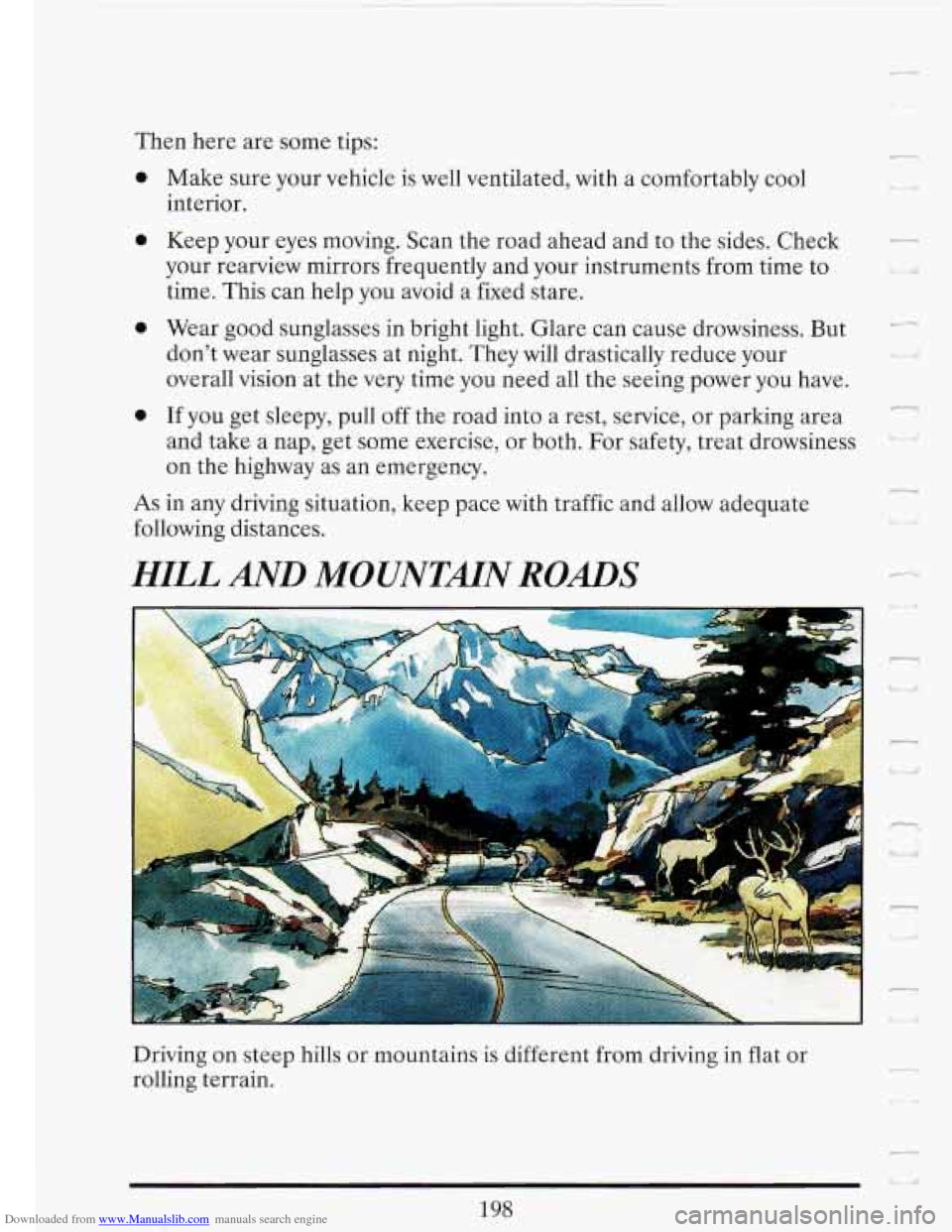

Downloaded from www.Manualslib.com manuals search engine Then here are some tips:
0
0
0
0
Make sure your vehicle is well ventilated, with a comfortably cool
interior.
Keep your eyes moving. Scan the road ahead and to the sides. Check
your rearview mirrors frequently and your instruments from time to
time. This can help you avoid a fixed stare.
1
U
I'
Wear good sunglasses in bright light. Glare can cause drowsiness. But --
don't wear sunglasses at night. They will drastically reduce your -
overall vision at the very time you need all the seeing power you have.
If you get sleepy, pull off the road into a rest, service, or parking area
and take a nap, get some exercise, or both. For safety, treat drowsiness
on the highway as an emergency.
Pl
As in any driving situation, keep pace with traffic and allow adequate
following distances.
HILL AND MOUNTMN ROADS
r
Driving on steep hills or mountains is different from driving in flat or
rolling terrain.
n
i
198

Downloaded from www.Manualslib.com manuals search engine 1
75:lO 15,
A
I
-
INSTRUMENT PANEL (I/P) FUSE BLOCK
-5 - NOT USED 6 - T/SIG (15 AMP) - PARWNEUTRALAND BACKUP LAMP SWITCH
7 - ABS (IO AMP) - ELECTRIC TURN FLASHER
- ELECTRONIC BRAKE CNTRL. MOD.
iEBCM)
8
- ,RAPWPR (25 AMP) - RETAINED ACCESSORY PWR. (RAP) 9 - RADIO (IO AMP) - RADIO RECEIVER 10 - WIPER (25 AMP) - WINDSHIELD WIPER/WASHER 11 - I/P INDC /TELLTAIL (10 AMP) - DIAGNOSTIC ENERGY RESERVE
- LOW COOLANT MOD.
MOD. (DERM) - INSTRUMENT
PANEL CLUSTER
INDICATORS
12 - NOT USED 13 - CHIME (10 AMP) - CHIME MOD.
SPEED SENSOR BUFFER MOD.
TORQUE CONVERTER CLUTCH
AUTO. DAY/NIGHT MIRROR
FCC)
DISABLE RELAY
REAR DEFOGGER RELAY
CCM (IO AMP) CENTRAL CNTRL. MOD. (CCM)
THROlTLE POSITION (TP) SENSOR
MOD. .,
15 - AIR BAG (IO AMP)
16 - CRUISE (10 AMP)
- ELECTRONIC LEVEL CNTRL. (ELC)
- DUAL POLE ARMING SENSOR
- GENERATOR - CRUISE CNTRL. 17 - HTD ST (10 AMP) - DRIVER'S MEMORY SEAT - DRIVER HEATED SEAT - PASSENGER HEATED SEAT
- CENTRAL CNTRL. MOD. (CCM) - INSTRUMENT CLUSTER:
18 - CCM IGN (10 AMP)
THEFT DETERRENT RECEIVER REMOTE KEYLESS ENTRY/UNVERAL RAP PWR (10 AMP) RETAINED ACCESSORY PWR.
RAP) HVAC (A0 AMP) ~ ~ HVAC SOLENOID MOD.
INSTRUMENT CLUSTER
HVAC CNTRL. HEAD
RAP BATT (25 AMP)
WIPER RELAY RETAINED ACCESSORY PWR. (RAP) HVAC (25 AMP
TRK REL
(IO AMP) TRUNK LID RELEASE SW. STARTER (10 AMP) STARTER ENABLE REALY
DIAGNOSTIC ENERGY RESERVE
MIR DEFG (IO AMP) MOD. (DERM)
SIDE VIEW MIRROR DEFOGGERS
PWR ANT (20 AMP) TRUNK LAMP
\,
HVAC PWR. M&D.
PWR. ANTENNA
D/INT LPS (15 AMP) DELAYED INTERIOR LIGHTS (DIL) FRT CIG (10 AMP) FRONT CIGAR LIGHTER RR CIG (20 AMP) REAR CIGAR LIGHTERS HVAC (10 AMP)
ABS
(25 AMP) HVAC CNTRL. ASSEMBLY
TRACTION CNTRL. MOD. ELECTRONIC BRAKE AND/
NOT USED
CLUSTER (IO AMP) CHIME MOD.
INSTRUMENTCLUSTER:
LOW ENGINE OIL MOD.
HEADLIGHT SW.
RADIO RECEIVER CCM (1 0 AMP) CENTRAL CNTRL. MOD. (CCM) PWR LK (10 AMP) PWR. DOOR LOCKS PWR. MIRRORS
TRK PDWN (15 AMP) PWR. LUMBAR SEATS
TRUNK LID PULL-DOWN UNIT
STOP LPS (20 AMP) BRAKE TRANSMISSION SHIFT
INTERLOCK IBTSIVSTOP LIGHT
BRAKESW.
' '. PWR RECL 115 AMPI DRIVER-SCT RECLIfiE SW.
PASSENGER SEAT RECLINE SW. PWR LUMB 120 AMP) PWR. LUMBARSEAT MOTOR CNTRL MOD. HTD ST 15 AMP)
SEAT CNTRL. MOD. RELAY CORNR LP (IO AMP) INSTRUMENT CLUSTER:
RADIO CNTRL. HEAD
CORNERING LIGHTS
INT DIM (IO AMP) HEADLIGHT SWITCH DRIVER4 AND PASSENGER HEATEL - INTERIOR LIGHTS - DIMMING 43 - RR T/LPS (IO AMP). - REATTAIL LIGHTS - REAR SIDE MARKER LIGHTS - LICENSE LAMP
- HAZARD WARNING FLASHER 44 - HZRD LP (20 AMP)
45- PWR LK 20AMP) - PWR. Doh LOCK RELAY
- RETAlNED ACCESSh PWR. (RAP)
C/B 1 - NOT USED CIB 2 - RAP PWR (30 AMP
RELAY CIS 3 - PWR ST (25 AMP) - DRIVERS PWR. SEAT SW. - PASSENGER PWR. SEAT SW. - MEMORY SEAT MOD.
- REAR DEFOGGER REALY C/B 4 - RR DEFG (30 AMP)
C/B
5 - HDLP (30 AMP) - HEADLIGHT RELAY - DAMIME RUNNING LIGHTS (DRL)
314
