1993 CADILLAC DEVILLE steering

Downloaded from www.Manualslib.com manuals search engine - .- The other positions let you perform these functions:
ACC: Accessory lets you use things like the radio and the windshield
wipers when the engine is
off. To get into “Acc”, push in the key and turn
before you inserted the
key.
- it toward you. Your steering wheel will remain locked, just as it was
OFIF: This position lets you turn off the engine but still turn the steering
wheel. It doesn’t lock the steering wheel like
“Lock.” Use “Off” if you
must have your car in motion while the engine is off (for example, if your
car is being pushed).
RUN: This is the position for driving.
STARE This starts your engine.
If your Key seems stucK in “Lock, and you can’t turn it, be sure - - ..
-~
ignition switch. If none of this works, then your vehicle need
STARTING YOUR ENGINE
Move your shift lever to “P” (Park) or “N” (Neutral). Your engine won’t
start
in any other position -- that’s a safety feature. To restart when you’re
already moving, use
“N’ (Neutral) only.
1
NOTICE:
Don’t try to shift to “P” (Park, if your Cadillac is moving. If you
do, you could damage the transaxle. Shift to
when your vehicle is stopped.

Downloaded from www.Manualslib.com manuals search engine If YOU are towinn a trailer and are parking; on any hill: See “Towing a
Trailer” in the Index. That section
shows what to do first to keep the
trailer from moving.
SHIFTING INTO “P” (PARK)
I A CAUTION:
I It can be dangerous to get out of your vehicle if the shift lever is
not fully in
“P” (Park) with the parking brake firmly set. Your
vehicle can roll.
If you have left the engine running, the vehicle can move
suddenly. You or others could be injured. To be sure your vehicle
won’t move, when you’re on fairly level ground, use the steps
that follow.
If you are parking on a hill, or if you’re pulling a
trailer, also see “Parking On Hills” or “Towing a Trailer” in the
Index.
I
I
Steering Column Shi! Lever
1. Hold the brake pedal down with your right foot.
7
b.
84

Downloaded from www.Manualslib.com manuals search engine Window Lock
When the switch is in
the "On" position, an
amber indicator light
will illuminate.
Only
the driver's window
control switches will
operate the power
windows. This feature
~ is useful when you're
transporting small
children and you don't
want them using the
power windows.
When your vehicle is in the Retained Accessory Power
(RAP) mode, the
window lock function will not lock the windows.
HORN
To sound the horn, just press the center of the steering wheel.
TILT WHEEL
A tilt steering wheel allows you to adjust the steering wheel before you
drive.
You can also raise it to the highest level to give your legs more room
when you exit and enter the vehicle.

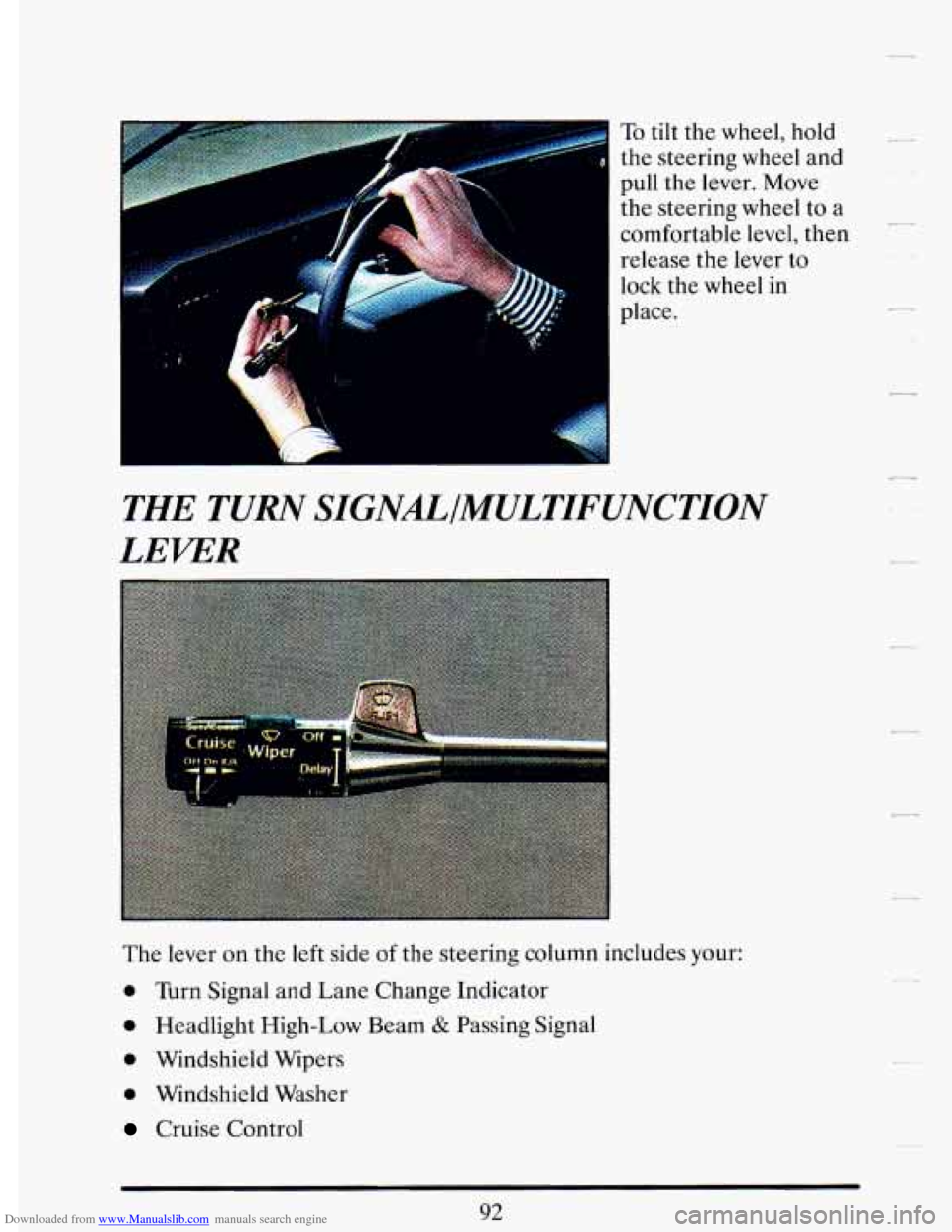

Downloaded from www.Manualslib.com manuals search engine To tilt the wheel, hold -
the steering wheel and b.
pull the lever. Move
the steering wheel to a
comfortable level, then
release the lever to
lock the wheel in
place.
-
THE TURN SIGNK/MULTIFUNCTION
LEVER
The lever on the left side of the steering column includes your:
0 Turn Signal and Lane Change Indicator
0 Headlight High-Low Beam & Passing Signal
0 Windshield Wipers
0 Windshield Washer
Cruise Control
92

Downloaded from www.Manualslib.com manuals search engine - Service Air Cond Light
You’ll find this light here:
FORMATION CENTE
iERVICE
__ If it ever stays on for 29 seconds or more, you need service. It comes on
for a few seconds, just as a bulb check whenever you turn your ignition to
“ Run. ”
__
SERWCE SSS Light
bRMATION CEP
When you first start
your car, the
“SERVICE SSS” light
will come on as a bulb
check and a system
self-check for a
few
seconds.
If this light comes
on and stays while driving, you have a problem with the
Speed Sensitive Suspension or the Speed Sensitive Steering system. See
your Cadillac dealer for the proper service
of this system.
129

Downloaded from www.Manualslib.com manuals search engine Once the buttons are released the “CHANGE OIL SOON” light will
flash 4 times to indicate it has reset to
100.
If the “CHANGE OIL SOON” light comes on and stays on for 5 seconds,
it did not reset. You’ll need to reset the system again.
SPEED SENSITIVE SUSPENSION
(SSS SYSTEM)
The Speed Sensitive Suspension System (SSS) automatically controls the
firmness of your Cadillac’s ride. The vehicle is controlled by an actuator
in each of the four struts to increase ride firmness depending on vehicle
speed and other driving conditions. There are three dampening modes:
COMFORT, NORMAL, and
FIRM. As the vehicle speed increases, the
firmness of the suspension increases. The system is in COMFORT for
speeds less than
28 mph, NORMAL for speeds between 28 and 65 mph,
and FIRM for speeds greater than
65 mph. The system also stiffens
damping during hard acceleration, braking and cornering ,for increased
control.
The SSS controller is a computer used to control and monitor the system.
The computer receives speed, acceleration and determines optimum
mode strut valving (or suspension stiffness) for your current operating
conditions. The computer also receives feedback from the struts to
determine proper system operation.
If the computer receives an incorrect
feedback from the system, an error code
will be set in memory and a
“SERVICE
SSS” light will come on and stay on until the problem is
corrected.
If this light should appear, have your vehicle serviced at your
earliest convenience.
SPEED SENSITm STEERING
This system varies the amount of steering effort proportionate to your
vehicle speed. Steering is easier at a lower speed for increased
maneuverability and parking ease. As your vehicle speed increases, the
steering effort is also increased proportionately. At highway speeds the
amount
of steering effort is greatly increased to provide a manual like
steering
feel for maximum control and enhanced vehicle stability.
135

Downloaded from www.Manualslib.com manuals search engine - accident. At a BAC level of 0.10 percent, the chance of that driver having
an accident is
six times greater; at a level of 0.15 percent, the chances are
twenty-five times greater! And, the body takes about an hour to rid itself
of the alcohol in one drink. No amount of coffee or number of cold
showers will speed that up.
“I’ll be careful” isn’t the right answer. What
if there’s an emergency, a
person with a higher BAC might not be able to react quickly enough to
avoid the collision.
-
-_ need to take sudden action, as when a child darts into the street? A
-~ . There’s something else about drinking and driving that many people
don’t know. Medical research shows that alcohol in a person’s system can
make crash injuries worse. That’s especially true for brain, spinal cord
-- and heart injuries. That means that if anyone who has been drinking --
driver or passenger -- is in a crash, the chance of being killed or
permanently disabled is higher than if that person had not been drinking.
And we’ve already seen that the chance
of a crash itself is higher for
drinking drivers. -
* Drinking and then driving is very dangerous. Your reflexes,
perceptions, and judgment will be affected by even a small
amount of alcohol. You could have a serious -- or even fatal --
accident if you drive after drinking. Please don’t drink and drive
or ride with a driver who has been drinking. Ride home’in a cab;
or if you’re with a pup, designate a driver who will not drink
- CONTROL OF A WHICLE
You have three systems that make your vehicle go where you want it to
go. They are the brakes, the steering and the accelerator.
All three
systems have to do their work at the places where the tires meet the road. --
179

Downloaded from www.Manualslib.com manuals search engine VOTICE:
Cmtinuing to drive with worn-out brake pads could result in
I
costly brake repair
Some driving conditions or climates may cause a brake squeal when the
brakes are first applied or lightly applied. This does not mean something
is wrong with your brakes.
Rear Drum Brakes
Your rear drum brakes don’t have wear indicators, but if you ever hear a
rear brake rubbing noise, have the rear brake linings inspected.
Also, the
rear brake drums should be removed and inspected each time the tires
are removed for rotation or changing. When
you have the front brakes
replaced, have the rear brakes inspected, too.
Brake linings should always be replaced as complete axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return to normal height, or if
there is a rapid increase in pedal travel. This could be a sign of brake
trouble.
Brake Adjustment
Every time you make a moderate brake stop, your brakes adjust for wear.
If you rarely make a moderate or heavier stop, then your brakes might
not adjust correctly. If you drive in that way, then
-- very carefully -- make
a
few moderate brake stops about every 1000 miles (1600 km), so your
brakes will adjust properly.
Braking in Emergencies
Use your anti-lock braking system when you need to. With anti-lock, you
can steer and brake at the same time.
In many emergencies, steering can
help you more than
even the very best braking.
186
