1993 BUICK SKYLARK Owners Manual

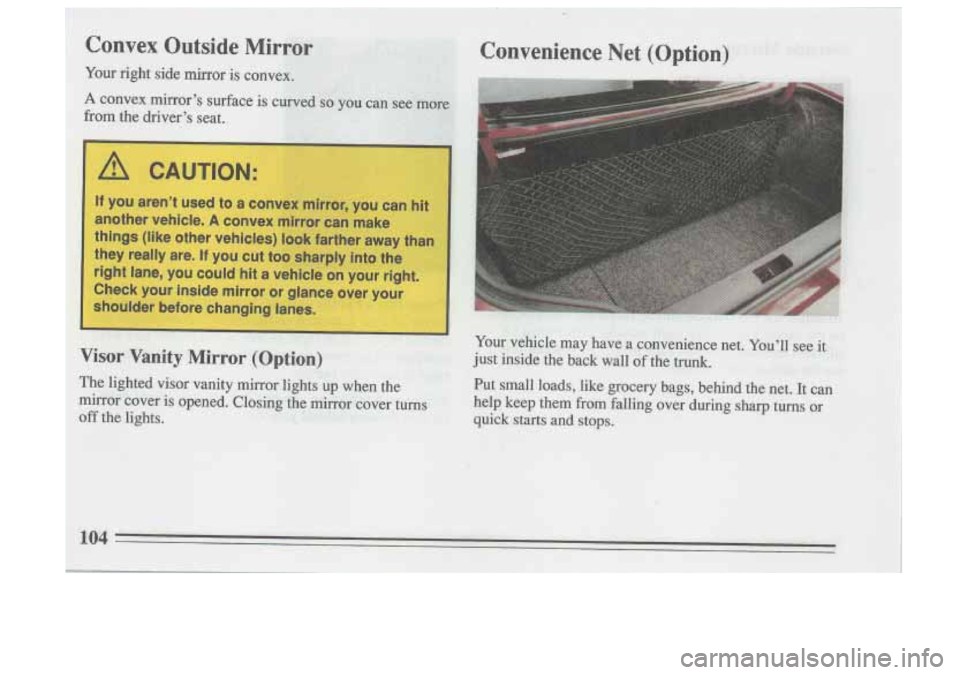

The net isn’t for larger, heavier loads. Store them in the To remove the rear ashtray for cleaning, press down on
trunk as far forward as you can. the snuffer as you pull the ashtray down and out.
You can unhook the net so that it will lie flat when
you’re not using it.
Ashtrays
The front center ashtray may be lifted out for cleaning.
I
..
105

Cigarette Lighter Front Console Storage (Option)
It’s near
the ashtray. To use the cigarette lighter,’push it
in all the way and let go. When it’s ready, it will pop
back by itself. ..
arette lighter in with your hand
while it
is heating, it won’t be able to back away
from the heating element when it’s ready. Thal
can make it overheat, damaging the lighter and
the heating element.
The console between the front seats has rear seat cupholders that when pulled up and rotated backward
can be used. There is also a small tissue holder in the
cover.
If you have the full length console, you also have a
storage area with a sliding door. Lift
up on the latch to
open the door to store your compact discs, sunglasses or
other small items.
106

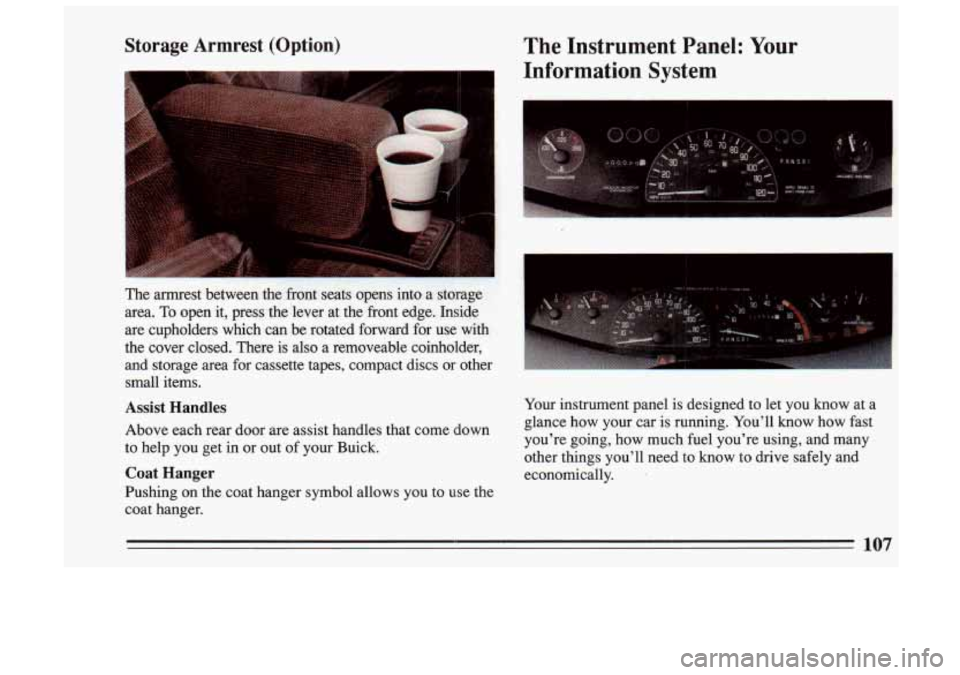

Storage Armrest (Option) The Instrument Panel: Your
Information System
The armrest between the front seats opens' into a storage.
area.
To open it, press the lever at the front edge. Inside
are cupholders which can. be rotated forward for
use with
the cover closed. There is also a removeable coinholder,
and storage area for cassette tapes, compact discs or other small items.
Assist Handles
Above each rear door are as-sist handles that come down
to help you get in or out of your Buick.
Coat Hanger
Pushing on the coat hanger symbol allows you to use the
coat hanger. Your
instrument panel
is designed to let you know at a
glance how your car is running. You'll know
how fast
you're going, how much fuel you're using, and many
other things you'll need to know to drive safely and
economically.
.

I

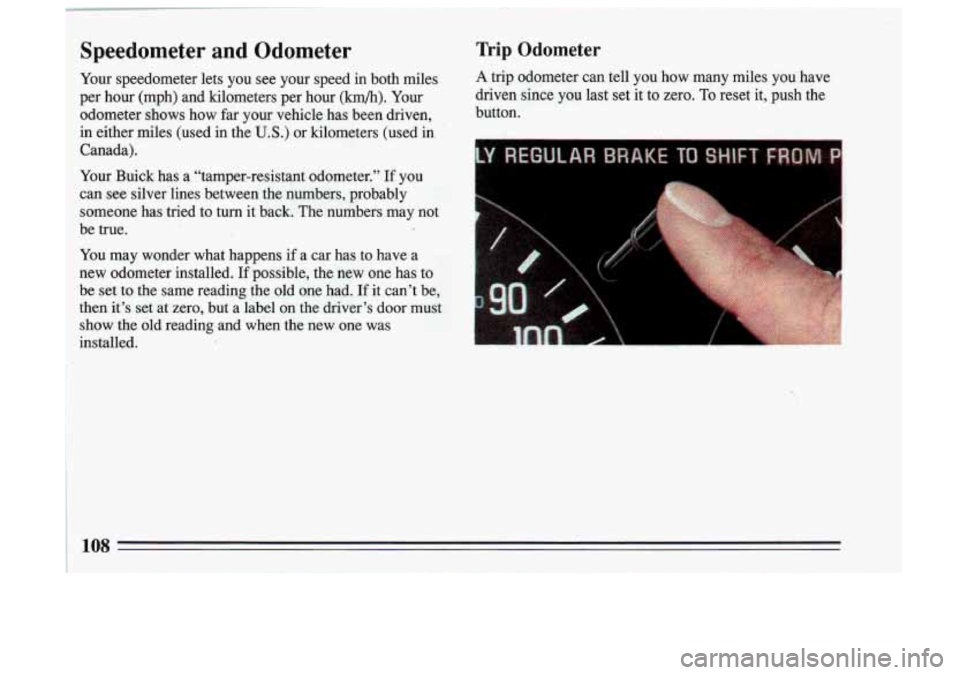

1 Speedometer and Odometer Trip Odometer
Your speedometer lets you see your speed in both miles A trip odometer can tell you how many miles you have
: per hour (mph) and kilometers per hour (km/h). Your driven since you last set
it to zero. To reset it, push the
i odometer shows how far your vehicle has been driven, button.
in either miles (used in the
U.S.) or kilometers (used in
Canada).
Your Buick has a “tamper-resistant odometer.”
If you
can see silver lines between the numbers, probably
someone has tried to turn it back. The numbers may not
be true.
I
You may wonder what happens if a car has to have a
new odometer installed.
If possible, the new one has to
be set to the same reading the old one had. If it can’t be,
then it’s set at zero,
but a label on the driver’s door must
show the old reading and when the new. one was
installed.

Warning Lights, Gages and
Indicators
This section describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights go on when there may be or is a problem with one of your vehicle’s functions.
As you will see in
the details
on the next few pages, some warning lights
come on briefly when you turn the ignition key just to
let you know they’re working. If you are familiar with
this section, you should not be alarmed when this
happens.
Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle. When
one
of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you what to do about it. Please follow the manual’s advice.
Waiting to do repairs can be costly
-- and,even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Fuel Gage
Your fuel gage shows how much fuel is in your tank. It
works only when the engine is on. When the indicator
nears
“E,” you still have a little fuel left. You need to get
more right away.

Brake System Warning Light
0 At the gas. stati0n;the gas pump shuts off before. the
gage reads “F.” 1 ,

This light will also come on when you set your parking
brake, and will stay on
if your parking brake doesn’t
release fully. If it stays on after your parking brake is
fully released, it means you have a brake problem.
If the
light comes on while driving, pull
off the road and stop
carefully, You may notice that the pedal is harder to
push. Or, the pedal may go closer to the floor. It may
take longer to stop. If the light is still on, have the
vehicle towed for service. (See “Towing Your
Car” in
the Index.)
-
1
I A CAUTION:
Your brake system may not be working properly
if the brake warning light is on. Driving with the
brake warning light on can lead to an accident. If
the light is still on after you’ve pulled off the road
and stopped carefl
r, have the vehicle towed for
service.
I
Anti-Lock Brake System Warning Light
ANTI.-
LOCK
With anti-lock, this light will go on unless you start your
engine and it will stay on for three .seconds. If the light
doesn’t come on, have it fixed
so it will be ready to
warn
you if there is a problem.
If the light stays on or comes on when you’re driving,
stop as soon
as possible and turn the key off. Then start
the engine to reset the system. If the light still stays on,
or comes on again while you’re driving, your Buick
needs service. Unless the regular brake system warning
light is also on, you will still have brakes, but not
anti-lock brakes. If the regular brake system warning
111
