1993 BUICK RIVIERA engine

Replaceable Light Bulbs
Application Number
Exterior
Cornering ........................... 1156
Headlight
High Beam
......................... 9005
Low Beam ......................... 9006
Marker
............................... 194
Park
.............................. 194NA
Park/Turn
......................... 2057NA
Backup
............................. 1156
High Level Stop
..................... S1156
. License ............................... 194
Marker
............................... T24
Stop/Turn/Tail
........................ 2057
Tail
................................. 194
Application Number
Interior Illumination
Ashtray .............................. 161
DoorCourtesy
........................ 161
Door Warning ......................... 161
Engine Compartment
..................... 89
Footwell Courtesy
...................... 168
Glovebox
............................. 194
Overhead Courtesy/Reading
............ t5582
Rear Console Courtesy ................ t5560
Rear Quarter Courtesy ................ 12864
Trunk
.............................. 51004
Vanity Mirror ......................... 124

IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This part covers the maintenance required for your Buick. Your vehicle needs these services to retain its
safety, dependability and emission control performance.
Plan
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties. See
your Buick dealer for details.
Introduction
A Word About Maintenance
We at General Motors want to help you keep your
vehicle in good working condition. But we don't know
exactly how you'll drive it. You may drive very short
distances only a few times a week.
Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or in many other
ways.
Because of all the different ways people use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you
will
find in the schedules in this part. So please read this part
and note how you drive.
If you have any questions on
how to keep your vehicle in good condition, see your Buick dealer, the place many GM owners choose to
have their maintenance work done. Your dealer can be
relied upon to use proper parts and practices.

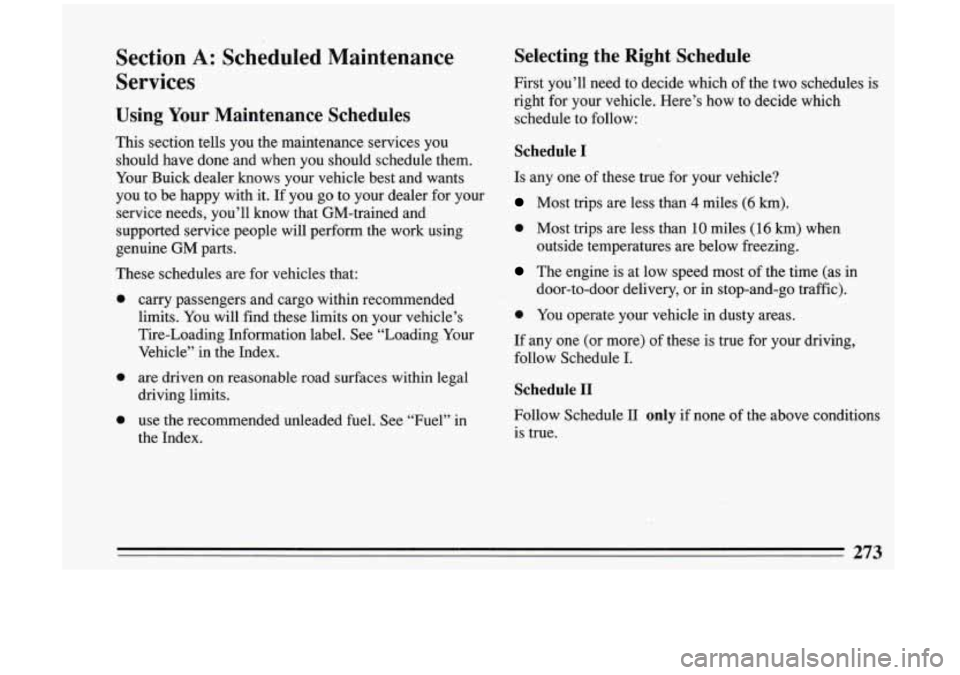

Section A: Scheduled Maintenance
Services
Using Your Maintenance Schedules
This section tells you the maintenance services you
should have done and when you should schedule them.
Your Buick dealer knows your vehicle best and wants
you to be happy with it. If you go to your dealer for your
service needs, you’ll know that GM-trained and
supported service people will perform the work using
genuine GM parts.
These schedules are for vehicles that:
0
0
0
carry passengers and cargo within recommended
limits. You will find these limits on your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle” in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended unleaded fuel. See “Fuel” in
the Index.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how’ to decide which schedule to follow:
Schedule I
Is any one of these true for your vehicle?
Most trips are less than 4 miles (6 km).
0. Most trips are less than 10 miles ( 16 km) when
outside temperatures
are below freezing.
The engine. is at low speed most of the time (as in
door-to-door delivery, or in stop-and-go traffic).
0 You operate your vehicle in dusty areas.
If any one (or more) of these is true for your driving,
follow Schedule I.
Schedule I1
Follow Schedule I1 only if none of the above conditions
is true.
273

Scheduled Maintenance Services Schedule I
Follow Schedule I if your car is MAINLY driven under one or more of the following conditions:
0 When most trips are less than 4 miles (6 kilometers).
0 When most trips are less than 10 miles (16 kilometers) and outside temperatures remain below fieezing.
0 When most trips include extended idling and/or frequent low-spee\
d operation as in stop-and-go traffic.
0 Towing a trailer.*?
0 When operating in dusty areas.
Schedule I should also be followed if the car is used for delivery service, police, taxi or other commercial applications.
TO BE SERVICED
(See Explanation of
Scheduled Maintenance
Services Following
Schedules
I and n)
Item No.
1. Engine Oil & Oil Filter
Change*
2. Chassis Lubrication
3. Throttle Body Mounting
Bolt Torque*
4. Tire
& Wheel Inspection &
Rotation
5. Engine Accessory Drive Belt(s) Inspection*
6. Cooling System Service*
WHEN TO PERFORM
Miles (kilometers) or Months, Whichever MILES (000)
Occurs First
k
Every 3 000 mi. (5000 km)
or 3 months. , I
Every other oil change
At
6 000 mi. (10 000 km)
only
I
At 6 000 mi. (10 000 km) and
then every
15 000 mi. (25 000
km) or as necessary I
Every 30 000 mi.
(50 000 km) or 24 months.
KILOMETERS (000)
30 35
00
0
0
..
45 50 55
000
0
0
65 70
00
0
274

~ Scheduled Maintenance Services Schedule I1
~
~ .
I
Follow Schedule
I1 ONLY if none of the driving conditions specified in Schedule I apply.
TO BE SERVICED
(See Explanation of
Scheduled Maintenance Services Following Schedules
I and II)
Item No.
1. Engine Oil Change*
Oil Filter Change*
2. Chassis Lubrication
3. Throttle Body Mounting Bolt Torque*
4. Tire & Wheel Inspection & Rotation
5. .Engine Accessory Drive Belt(s) Inspection*
6. Cooling System Service*
7. Transaxle Service
WHEN TO PERFORM
Miles (kilometers) or
7.5
Months, Whichever Occurs First
12.5
Every
7 500 mi. (12 500 km) or 12 mos. 0
At first and then every other oil change 0
Every 7 500 mi. (12 500 km) or 12 mos. 0
At 7 500 mi. (12 500 km) only 0
At 7 500 mi. (12 500 km) and then every
15
000 mi. (25 000 km) or as necessary 0
Every 30 000 mi. (50 000 km) or 24 mos.
See Explanation of Scheduled Maintenance
Services Following Schedules
I and I1
MILES (000)
KILOMETERS (000)
276 -

.Section B: Owner Checks and
Services At Each Fuel Fill
(It is important for you or a service station attendant
to perform these underhood checks at each fuel
fill.)
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Section
D.
CHECK OR
SERVICE
Engine Oil
Level
Engine Coolant
Level
Windshield
Washer Fluid
Level
WHAT TO DO
Check the engine oil level and add
the proper oil if necessary. See “Engine Oil” in the Index for further
details.
Check the engine coolant level in the
coolant recovery tank and add the
proper coolant mix if necessary. See “Coolant” in the Index for further
details.
Check the windshield washer fluid
level in the windshield washer tank
and add the proper fluid if necessary.
See “Windshield Washer Nuid”
in
the Index for further details. ~-~ ~- ~
280 .~

At Least Once a Month
CHECK OR
Tire Inflation
WHAT TO DO
~~ ~~ ~~ ~
Check tire inflation. Make sure they
are inflated to the pressures specified
on the Tire-Loading Information
label located on the rear edge of the
driver’s door. See “Tires” in the
Index for further details.
At Least Once a Year
CHECK OR
SERVICE I WHAT TO DO
Key Lock
the lubricant specified
in Section D. Cylinders Lubricate the key lock cylinders with
Lubricate all body door hinges. Also
Body
Lubrication lubricate ‘all hinges and latches,
including those for the hood, glove
box door and console door. Section
D tells you what to use.
CHECK OR SERVICE
Starter Switch
WHAT TO DO
or others could be injured.
Follow the stem below.
I
1. Before you start, be sure you have
enough room around the vehicle.
2. Firmly apply both the parking brake (see “Parking Brake” in the Index if
necessary) and the regular brake.
NOTE: Do not use the accelerator
pedal, and be ready to
turn off the
engine immediately if it starts.
3. Try to start the engine in each gear.
The starter should work only
in “P”
(Park) or “N” (Neutral). If the starter
works in any other position, your
vehicle needs service.
281

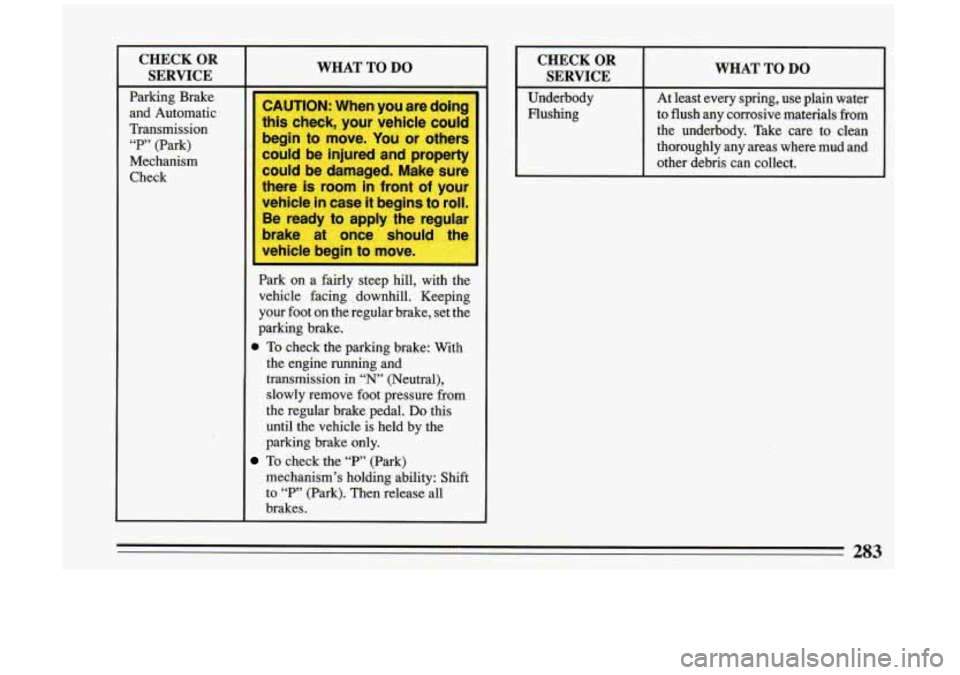

CHECK OR SERVICE
Parking Brake
and Automatic
Transmission
“P” (Park)
Mechanism Check
WHAT TO DO
ZAUTION: When you are doing
this check, your vehicle
could
gin to move. You or others
uld be injured and property
be damaged. Make sure
is room in front of your
hicle
in case it begins to roll.
ready to apply the regular
ake at once should the
ehicle begin to move.
Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot
on the regular brake, set the
parking brake.
li To check the parking brake: With
the engine running and
transmission in
“N’ (Neutral),
slowly remove foot pressure from
the regular brake pedal.
Do this
until the vehicle is held by the
parking brake only.
mechanism’s holding ability: Shift
to
“P” (Park). Then release all
brakes.
To check the “P” (Park)
CHECK OR
SERVICE
Underbody
Flushing
WHAT TO DO
At least every spring, use plain water
to flush any corrosive materials
from
the underbody. Take care to clean
thoroughly any areas where mud and
other debris can collect.
283
