1993 BUICK REGAL Owners Manual

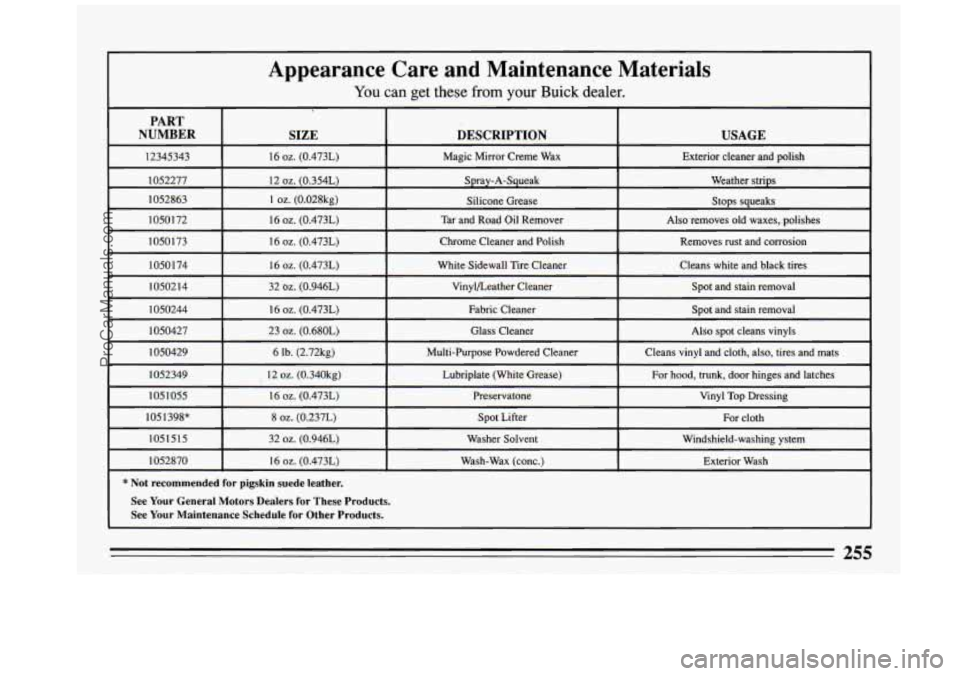

See Your General Motors Dealers for These Products.
-~
255
ProCarManuals.com

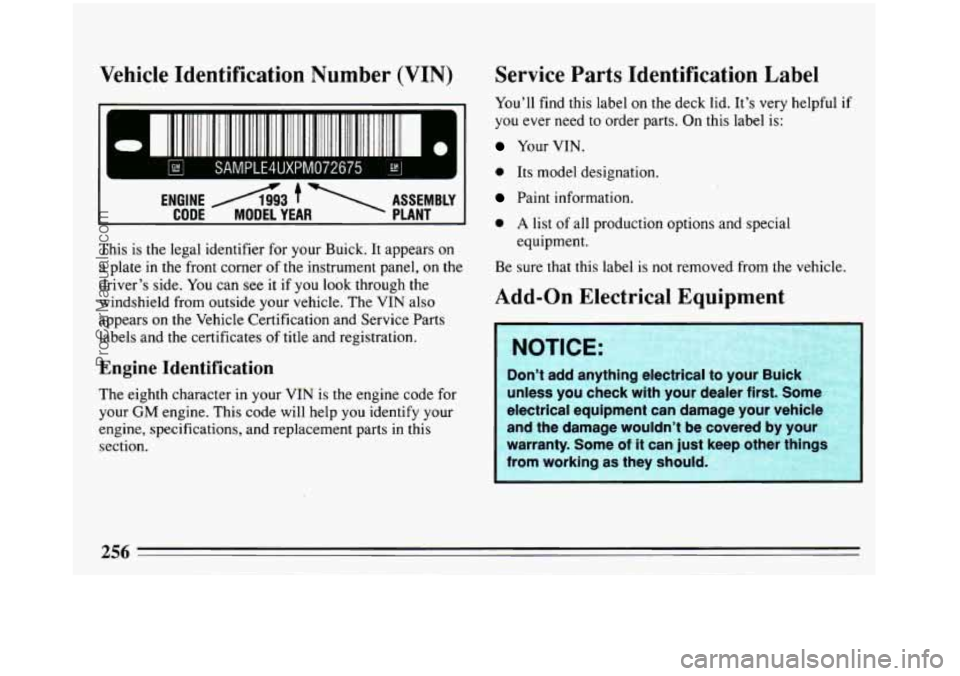

Vehicle Identification Number (VIN) Service Parts Identification Label
I SAMPLE4UXPM072675
ENGINE A3 t ASSEMBLY I
CODE MODEL YEAR PLANT
This is the legal identifier for your Buick. It appears on
a plate in the front comer
of the instrument panel, on the
driver’s side.
You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code for
your
GM engine. This code will help you identify your
engine, specifications, and replacement parts in this
section. You’ll
find this label on the deck lid. It’s very helpful
if
you ever need to order parts. On this label is:
Your VIN.
0 Its model designation.
Paint information.
0 A list of all production options and special
Be sure that this label is not removed from the vehicle.
equipment.
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical
to your Buick
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some of it can just keep other things
from working
as they should.
1
256
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your car are protected from short
circuits by a combination
of fuses, circuit breakers, and
fusible themdi links in the wiring itself.
This greatly
reduces the chance
of fires caused by electrical problems.
This fuse panel is inside the
glove box. Pull the cover
down for access. Some
spare fuses and
a fuse
puller are included.
Be sure
to use the correct fuse. If you ever have a problem
on the road and don’t have
a spare fuse, you can “borrow”
one of the correct value. Just pick some feature of your car
that you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is of the value you need.
Replace
it as soon as you can.
Fuse Usage
Amp Description
1.
2.
3.
10
15
15
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
1s.
16.
17.
18.
25
10
1s
15
20
15
10
5
25
10
10
Radio & Clock
Radio
& Clock; Instrument Cluster; Passive
Restraint Timer
Courtesy, Glove Box, Underhood, Trunk, Header
Lights; Cigarette Lighter; Lighted Inside Rearview Mirror; Power Door Locks; Power Mirrors
Windshield Wiper
& Washer
Cruise Control: DRL Module; Instrument Cluster;
HVAC
Brake Lights;
ABS Control Module; Chime Module
Engine Control Module
Taillights; DRL Module
Hazard Warning Flasher
Rear Defogger Timer Relay: Instrument Cluster;
Chime Module; Cruise Control; DRL Module; Lamp
Driver
Module; ABS Lamp Driver
Instrument Panel. Console, Switch Lights
Blower Motor
Turn Signals
Not Used ABS Control Module
Not Used Not Used
Not Used
257
ProCarManuals.com

5
15
10
60
50
Electrical Center
Driver Side - Underhood
Amp Description
1. Not Used
2. Not Used
, 3. Not Used
4. Not Used
5. Not Used
6. Not Used
7. Not Used
8. ABS Control Module
9. Fog Lights
10. Horn
11. Not Used
12. Not Used
13. ABS Controller
14. Exterior Lights
Relay
15.
16.
17.
Horn
Fog Lights
ABS
a
If your car has anti-lock brakes, there is an ABS
electrical center under the hood on the driver's side.
258
ProCarManuals.com

10
10
15
10
Electrical Center
Passenger Side - Underhood
Amp Description
18. 20 Fuel Injectors (3.8L)
19.
15 Trunk Release
20. 20 ECM; Fuel Pump
21. 10 ECM (3.8L)
22. 3
Cooling Fan Relay (3.8L)
23. Not Used
24. Direct Ignition System
25. Fuel Injectors (3.1 L)
26. Not Used
27. Ignition
28. TCC; Primary Cooling Fan (3.1 L)
Relay
29.
30.
31.
32.
33.
Fusible Elements
34. 60 Starter Solenoid
35. 60 Cooling Fan
37. 60 Cooling Fan
36. 60 Blower Motor
38. 30 Fuse Block Fuel Pump
Cooling Fan Control
(3.8L)
Secondary Cooling Fan
Primary Cooling Fan
A/C Clutch Coil
This electrical center is also under the hood on the
passenger side.
259
ProCarManuals.com

The fuse chart, below, shows how to tell a blown fuse
from a good fuse.
... ... .- .
GOOD
FUSE
GM PARTNO. I U RATING ’ COLOR
12004003 ................... 3 AMP VIOLET
12004005
................... 5.AMP TAN
12004006 ................... 7.5 AMP BROWN
12004007
................... 10 AMP RED
12004008
................... 15 AMP LIGHT BLUE
12004009
................... 20 AMP YELLOW
12004010
................... 25 AMP WHITE
12004011 ................... 30 AMP LIGHT GREEN
Headlights
The
headlight wiring is protected by a circuit breaker in
the light switch. An electrical overload will cause the
lights to go on and off, or
in some cases to remain off. If
this happens, have your headlight wiring checked right
away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When
the current
load is too heavy,
the circuit breaker opens and closes,
protecting the circuit
until the problem is fixed or goes
away.
260
ProCarManuals.com

Regal Dimensions
Inches Unless Otherwise Noted
Overall: Coupe Sedan
Length ................... 193.6 193.9
Width
..................... 72.5 72.5
Height
.................... 53.0 54.5
Wheelbase
................ 107.5 107.5
Front Tread
................ 59.5 59.5
Rear Tread
................. 58.0 58.0
Interior Front:
Leg Room ................. 42.3
Head Room
................ 37.8
Shoulder Room
............. 57.6
Hip Room ................. 52.0 42.4
38.7
57.8
52.7
Interior Rear: Coupe
Leg Room ................. 34.8
Head Room
................ 37 . 1
Shoulder Room ............. 56.8
Hip Room ................. 53.1
Trunk Capacity . CU . Ft .... 15.6
Passengers:
Front ...................... 3
Rear
....................... 3
Base Curb Weight . Lbs ... 3152
Sedan
36.2
37.8
57.8
53.2
15.8
3
3
3236
. 261
ProCarManuals.com

Replaceable Light Bulbs
A nplication Number
.
EXTERIOR
Headlight
High Beam
.......................... 9005
Low Beam .......................... 9006
FogLamp
............................. H3
Park/Turn
. Coupe ...................... 890
Park/Turn
. Sedan ...................... 3 157
Front Side Marker
. Coupe ............. 194NA
Front Side Marker
. Sedan ................ 194
Backup
. Coupe ........................ 892
Backup-Sedan
........................ 3057
~ High Level Stop ....................... 3155
High Level Stop
. Luggage Rack ........... 891
License
............................... 194
Rear Side Marker
. Coupe ................. 24
Application Number
EXTERIOR (continued)
Rear Side Marker . Sedan ................. 24
Tail
.................................. 194
Tail/Stop/Turn
......................... 3057
INTERIOR
Ashtray ............................... 194
Courtesy Lamp
.
Rear Quarter ......................... 562
Dome
............................... 211-2
Dome
................................. 561
Glovebox
............................. 1816
Luggage Compartment
................... 917
Reading
................................ 24
Reading Lamp ........................ 2 12-2
Vanity Mirror
.......................... 558
Underhood ............................. 561
262
. .
