1993 BUICK CENTURY suspension

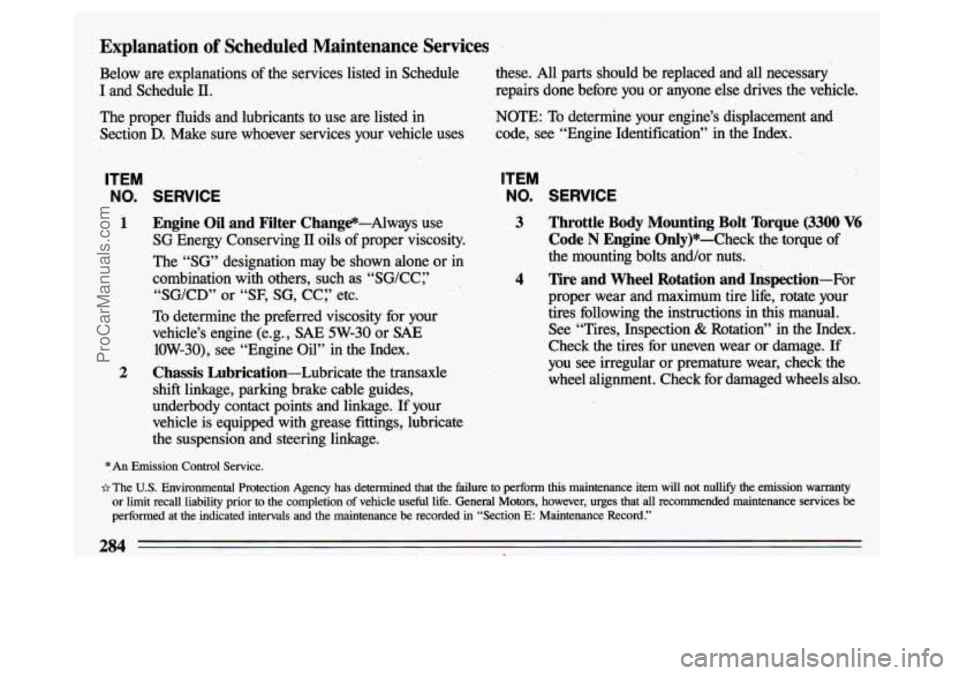

Explanation of Scheduled Maintenance Services
Below are explanations of the services listed in Schedule
I and Schedule II.
The proper fluids and lubricants to use are listed in
Section
D. Make sure whoever services your vehicle uses
ITEM
NO. SERVICE
1 Engine Oil and Filter Change-Always use
SG Energy Conserving 11 oils of proper viscosity.
The “SG” designation may be shown alone or in
combination with others, such as ‘‘SG/CC:’
“SG/CD” or “SF, SG, CC:’ etc.
To determine the preferred viscosity for your
vehicle’s engine (e.g., SAE
5W-30 or SAE
10W-30), see “Engine Oil” in the Index.
2 Chassis Lubrication-Lubricate the transaxle
shift linkage, parking brake cable guides,
underbody contact points and linkage. If your
vehicle is equipped with grease fittings, lubricate
the suspension and steering linkage. these. All parts should be replaced and all necessary
repairs done before you or anyone else drives the vehicle.
NOTE: To determine your engine’s displacement and
code, see “Engine Identification” in the Index.
ITEM
NO. SERVICE
3 Throttle Body Mounting Bolt Torque (3300 V6
Code N Engine Only)*-Check the,torque of
the mounting bolts and/or nuts.
4 Tire and Wheel Rotation and Inspection-For
proper wear and maximum tire life, rotate your
tires following the instructions
in this manual.
See “Tires, Inspection & Rotation” in the Index.
Check the tires for uneven wear or damage. If
you see irregular or premature wear, check the
wheel alignment. Check for damaged wheels also.’
*An Emission Control Service.
~2 The U.S. Environmental Protection Agency has determined that the failure to perform this maintenance item will not nullify the.emission warranty
or limit recall liability prior
to the completion of vehicle useful life. General Motors, however, urges that all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded in “Section E: Maintenance Record.”
284
ProCarManuals.com

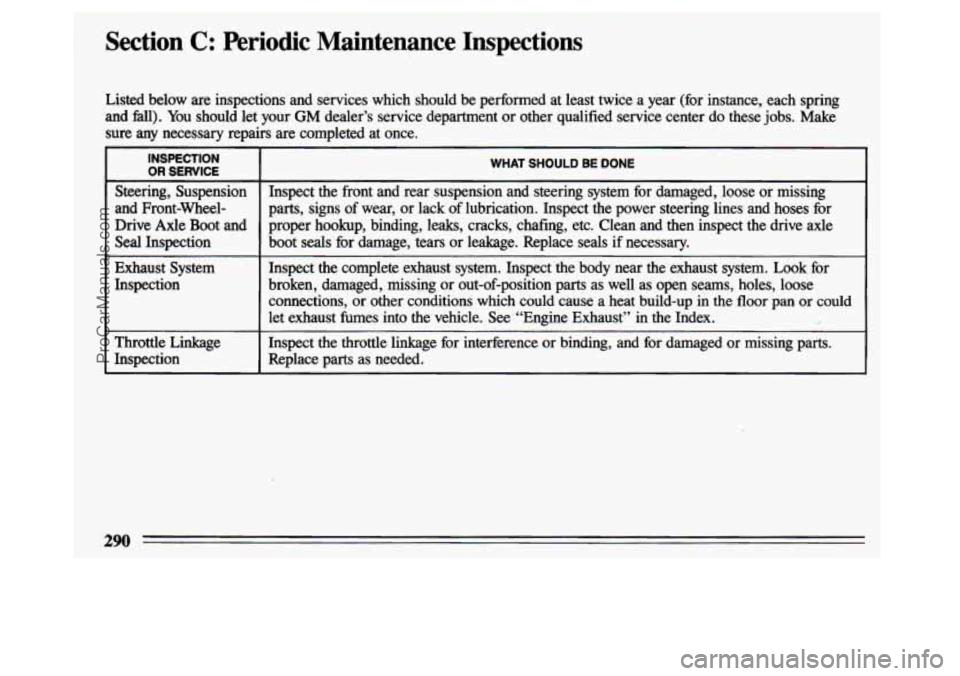

Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least\
twice a year (for instance, each spring
and M1). You should let your
GM dealer’s service department or other qualified service center do these jobs. Make
sure any necessary repairs are completed at once.
INSPECTION
OR SERVICE
Steering, Suspension
and Front-Wheel- Drive Axle Boot and
Seal Inspection
Exhaust System
Inspection
~~~~ ~~
Throttle Linkage
Inspection
WHAT SHOULD BE DONE
Inspect the front and rear suspension and steering system for \
damaged, loose or missing
parts, signs of wear, or lack
of lubrication. Inspect the power steering lines and hoses for
proper hookup, binding, leaks, cracks, chafing, etc. Clean and \
then inspect the drive axle
boot
seals for damage, tears or leakage. Replace seals if necessary.
Inspect the complete exhaust system. Inspect the body near the \
exhaust system. Look for
broken, damaged, missing or out-of-position parts as well as op\
en seams, holes, loose
connections, or other conditions which could cause a heat build\
-up in the
floor pan or could
let exhaust fumes into the vehicle. See “Engine Exhaust”
in the Index.
Inspect the throttle linkage for interference or binding, and f\
or damaged or missing parts.
Replace parts as needed.
