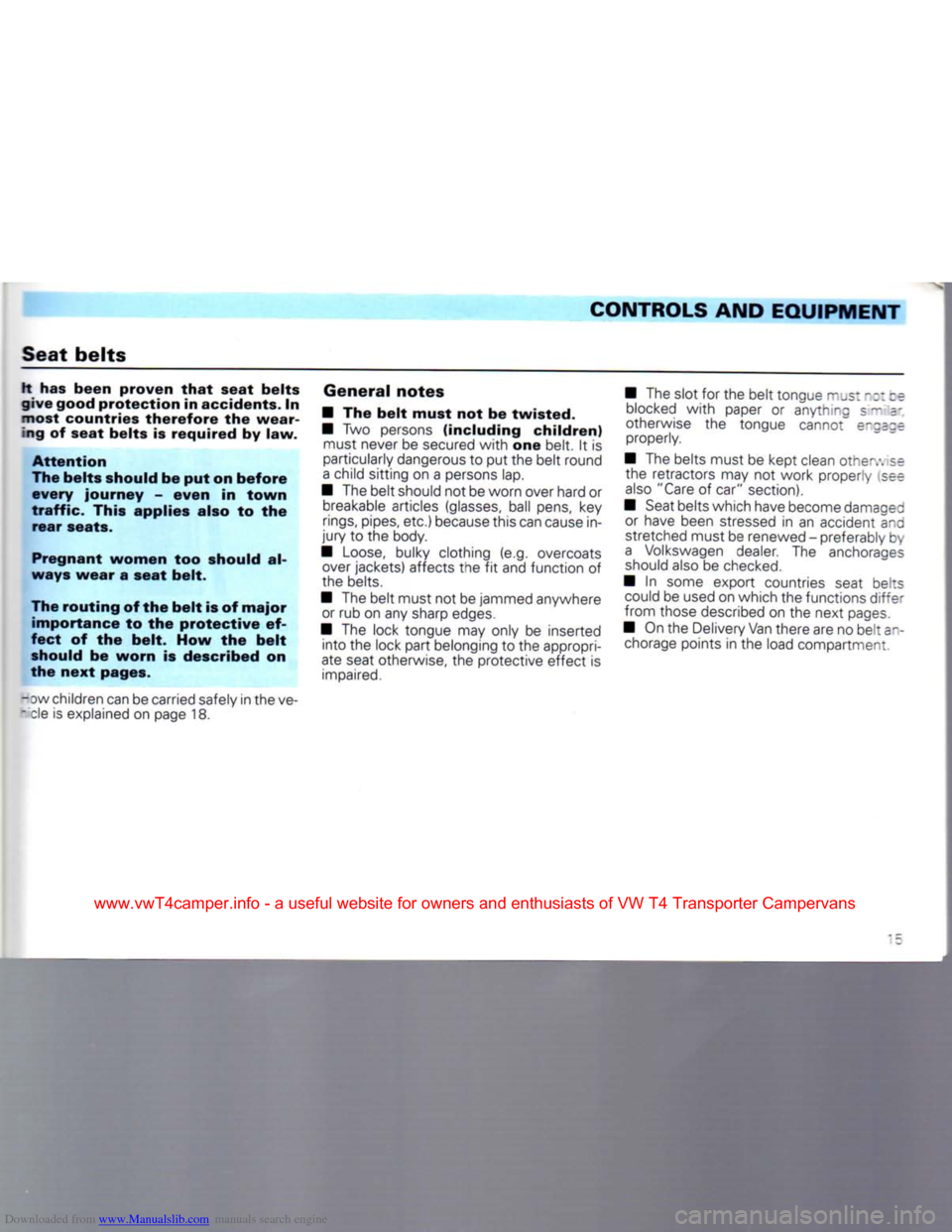

Seat
belts

CONTROLS AND EQUIPMENT
It has
been
proven
that
seat
belts

give
good
protection
in accidents. In

most
countries
therefore
the
wear­
ing of
seat
belts
is
required
by law.

Attention

The
belts
should be put on
before
every
journey
-
even
in
town

traffic.
This
applies
also to the
rear
seats.

Pregnant
women
too should al­

ways
wear
a
seat
belt.

The
routing
of the
belt
is of
major
importance
to the
protective
ef­

fect
of the
belt.
How the
belt

should be
worn
is described on
the
next
pages.
General
notes

• The
belt
must
not be
twisted.

• Two persons
(including
children)
must never be secured
with
one belt. It is
particularly dangerous to put the belt round

a
child sitting on a persons lap.
• The belt should not be worn over hard or
breakable
articles (glasses, ball pens, key
rings,
pipes, etc.) because this can cause in­

jury
to the body.
•
Loose,
bulky clothing (e.g. overcoats
over
jackets) affects the fit and function of
the belts.
• The belt must not be jammed anywhere or rub on any sharp edges.
• The lock tongue may only be inserted into the lock part belonging to the appropri­
ate seat otherwise, the protective effect is
impaired.
• The slot for the belt tongue rr„s: -;: ze

blocked
with
paper or anyth'-c s ~
otherwise the tongue cannot 5"a;e properly.
• The belts must be kept clean otherwise the retractors may not work properly (see
also
"Care
of car" section).
• Seat belts which have become damagec or have been stressed in an accident and stretched must be renewed - preferably by

a
Volkswagen dealer. The anchorages

should
also be checked.
• In some export countries seat belts
could
be used on which the functions differ
from those described on the next pages.
• On the Delivery Van there are no belt an­
chorage
points in the load compartment.

-DW
children can be carried safely in the ve- " cle is explained on page 18.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
DO-IT-YOURSELF

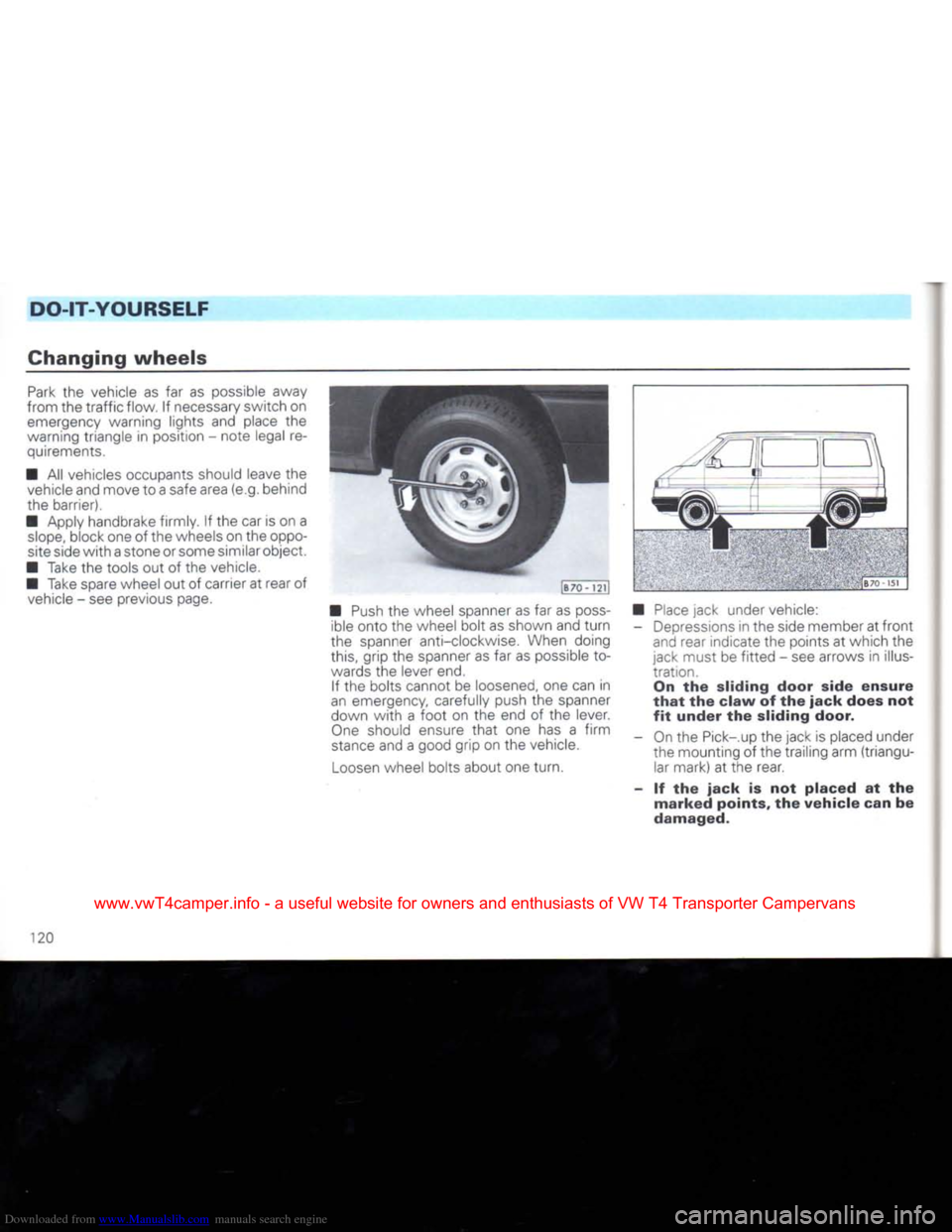

Changing
wheels

Park
the vehicle as far as possible away
from the
traffic
flow, if necessary switch on emergency warning lights and place the
warning triangle in position - note legal re­
quirements.
• All vehicles occupants should leave the vehicle and move to a safe area (e.g. behind
the barrier).
• Apply handbrake firmly. If the car is on a
slope,
block one of the wheels on the oppo­
site side
with
a stone or some similar object.
• Take the tools out of the vehicle.
• Take spare wheel out of carrier at rear of vehicle - see previous page.
JB70
- 121J
•
Push
the wheel spanner as far as
poss­
ible onto the wheel bolt as shown and
turn

the spanner anti-clockwise. When doing this, grip the spanner as far as possible to­
wards the lever end.
If the bolts cannot be loosened, one can in
an emergency, carefully push the spanner
down
with
a
foot
on the end of the lever.
One
should ensure
that
one has a
firm

stance
and a good grip on the vehicle.

Loosen
wheel bolts about one turn. 8"" 1 •>!
•
Place
jack under vehicle: - Depressions in the side member at
front
and rear indicate the points at which the
jack must be
fitted
- see arrows in illus­
tration. On the sliding door side
ensure

that
the
claw
of the
jack
does not
fit
under
the sliding door.
- On the Pick-.up the jack is placed under the mounting of the trailing arm (triangu­lar mark) at the rear.
- If the
jack
is not
placed
at the
marked
points, the
vehicle
can be

damaged.

120
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
DO-IT-YOURSELF

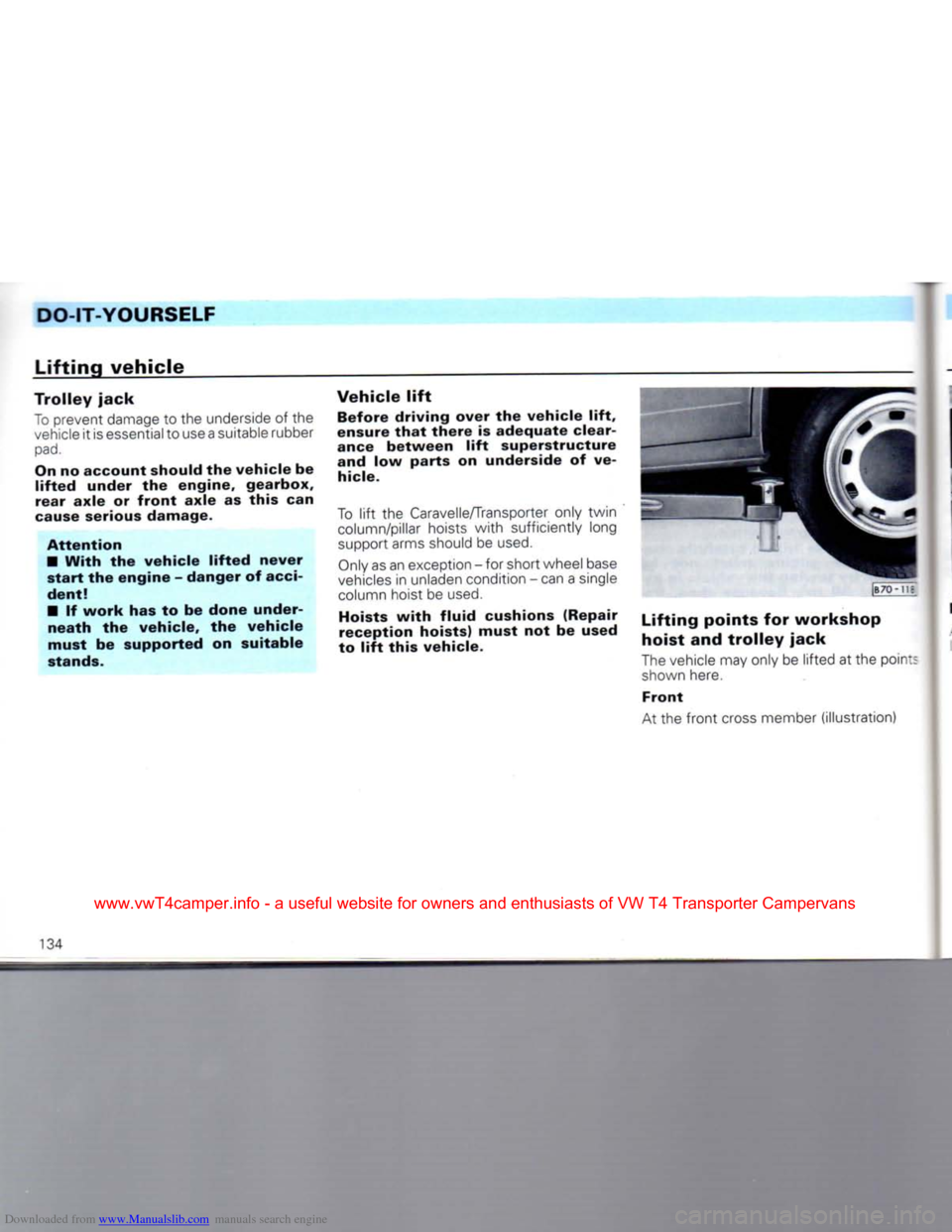

Lifting
