CONTROLS AND EQUIPMENT

3edals
• e ~ cvement of the pedals must not be re-
:: :~is reason, do not put articles in the
—•".•.ell which could roll or slide underneath

—-E-
zedals.

•Vr^-d the pedal area there should not be •r. -;otmatsorotheradditionalfloorcover- •: -aterials:
• In the
case
of defects on the brake sys-
r~
3 greater pedal travel may be
necess-

• : should always be possible to depress
~3
: _tch and accelerator pedals fully.
• - pedals must be able to return, unhin-
z-z'^z.
to their rest positions,
""•e'efore, the only
foot
mats which may be
are those which leave the pedal area
::—oletely free and which are prevented . " slipping. Brakes
The following points are of particular import­
ance
to the safe operation of the brakes.
• New brake linings must also be run in and do not have the optimum
friction
prop­
erties during the
first
200 km. The slightly reduced braking effect can be compen­
sated for by more pressure on the brake

pedal.
This also applies when new linings have been fitted.
• If the brake pedal travel increases suddenly, it may be
that
one of the two
brake circuits has failed. You can still drive
on to the next Volkswagen dealer but be prepared to use more pressure on the pedal
and allow for longer braking distances on
the way.
• The brake
fluid
level must be checked regularly-see page 105.
The brake warning lamp
will
come on to indi­ cate
that
the brake
fluid
level is too low (see

also
page 48).
• Brake lining wear depends to a large ex­
tent
on the operating conditions and style of driving. On vehicles which are used mainly in
town
traffic
and stop/start conditions or
are driven hard it may be necessary to have
the thickness of the brake linings checked by a Volkswagen dealer in between the in­
tervals given in the Service Schedule.
• Change down in good time when driving downhill, in orderto make use of the engine braking effect. This relieves strain on the
brake system. When the brakes are applied do not keep them on con::rjc_s , =" .
and release alternately.
• Under certain operating conditions, *c example after driving through water, a^e' heavy rain or after washing the vehicle the
braking effect may be retarded by wet, or in
winter iced-up brake discs and linings - the brakes must be dried out
first
by applying
the footbrake.
The
full
braking effect may also be delayed when vehicle has been driven for some time
on heavily salted roads
without
using the
brakes,
because the layer of salt on discs
and pads has to be removed
first.

Attention
If a
front
spoiler,
full
size
wheel

trims
etc., is
retrofitted,
it is necessary to
ensure
that
the
flow

of air to the
front
brakes
is not re­

stricted
-
otherwise
the
brakes

can
overheat.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND
EQUIPMENT

3
-
Multi
function
indicator
* In addition to the time display, the multi­
function indicator (MFI) gives a whole range of additional information:
• Driving time
• Average fuel consumption
• Distance driven
• Average speed
• Engine oil temperature
• Ambient temperature With the exception of the time, the symbol for the function switched on appears at the upper edge of the display (in illustration the

average
fuel consumption is shown).
A
B

|B33-
695

By
repeatedly pressing button B in the wind­

screen
wiper lever
with
the ignition
switched on, the additional information is

displayed,
starting
with
the time.
If the button B is pressed for longer than 1

sec,
the function being displayed at
that

time will change over automatically to the time display. The
memories

The
system is equipped
with
two automatic

memories:

A
single
journey
memory
collects the
following data from the time the ignition is switched on to when it is switched off. Driv­ing time, distance covered and fuel
used.
From
this data the average driving speed

and
the average consumption is worked
out.
If the journey is resumed within two hours
of switching off the ignition, the new figures
are automatically included in the calculation. If the journey is interrupted for more than
two hours, the stored information is auto­ matically
erased.

A
total
journey
memory
stores the data
from any number of individual journeys up
to a total of 100 hours driving time, a dis­
tance of 10000 km (6214 miles) and 1000 litres (220 gallons) of fuel consumed. This

data
is only used to work out the consump­
tion and speed averages for all the individual
journeys.
If one of the given figures is exceeded, the
memory is erased and calculation starts
from the beginning again. Contrary to the
single
journey memory, this memory is not

erased
after a journey pause of more than
two hours.
42
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
GENERAL
MAINTENANCE

Maintenance

-s
the
vehicle
is
fitted
with
modern
low
~aintenance
technical components only

small
amount
of
regular servicing
is re­
tired
in
order
to
maintain
the
roadworthi-
"sss,
economy and reliability.
~ne Inspection Service offered by the Vol ks-
I
agen dealers takes into account
to a
large
extent
the
individual annual mileage
cov-

e-ed and helps thus
to
keep
the
operating
:osts
as
low as possible.

Regular maintenance helps to

-J
ensure
that
the emissions - and
thus the environmental burden are

kept
as low as possible.

The
Inspection
Service
is
required
every
12
months
or
every
30 000 km,

. nichever occurs
first.

I
a mileage
of
15 000
km
(petrol engines)
or

"500
km
(Diesel engines)
is
reached before "2 months
has
elapsed,
the Oil
change
Service must
be
carried out. See page
98

5
so and
the
Service Schedule.
~ie Service Schedule also shows what »rk
is
done
at the
Inspection
and Oil

Inange
Services.
In
arduous
operating
conditions, e.g.
extremely low ambient temperatures, very
dusty conditions etc. certain service oper­
ations should be carried
out
between the in­
tervals specified.

This
applies
in
particular
to:

• Changing
the
engine
oil

• Cleaning
or
changing
the air
cleaner
el­
ement
• Draining water from
or
renewing the fuel
filter
on the
Diesel engine

The
service operations should be carried out by
a
Volkswagen dealer because this work
requires specialist knowledge, workshop
equipment and special tools. Furthermore
this work must
be
done
in
accordance
with
out instructions.

Complete
proof
of
servicing
by a
Volks­
wagen dealer can be one
of
the stipulations
for
the
upholding
of any
warranty claims during
the
one year warranty period.

Attention
Safety
regulations
place
very

strict
limits
on the
amount
of re­

pairs
and
adjustments
to
engine

and
running
gear
parts
which
can
be
done
by the
owner.
By
tinker­
ing
with
parts
which affect
the

safety
of a
motor
vehicle
one can

endanger
oneself
and
other road users.

Altering the engine settings is detrimental to the
exhaust

emissions.
This means
that
the envi­
ronment is burdened unnecessarily
and the
fuel
consumption
also
in­
creases.

The disposal of old oil, used brake

fluid,
dirty
coolant, defective
bat­

teries or worn-out tyres etc. must be
done according to environmental
protection regulations. It is even
better
if old operating fluids and parts are used
again
and
do not become a burden on the envi­
ronment. Through "recycling" valu­

able
raw-materials and
energy
are
saved and at the same
time
it re­ lieves the load on the toxic waste

dumps.
Volkswagen dealers collect
all reusable materials and parts and

passes
them
on to the correct
agency
for recycling.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
GENERAL
MAINTENANCE

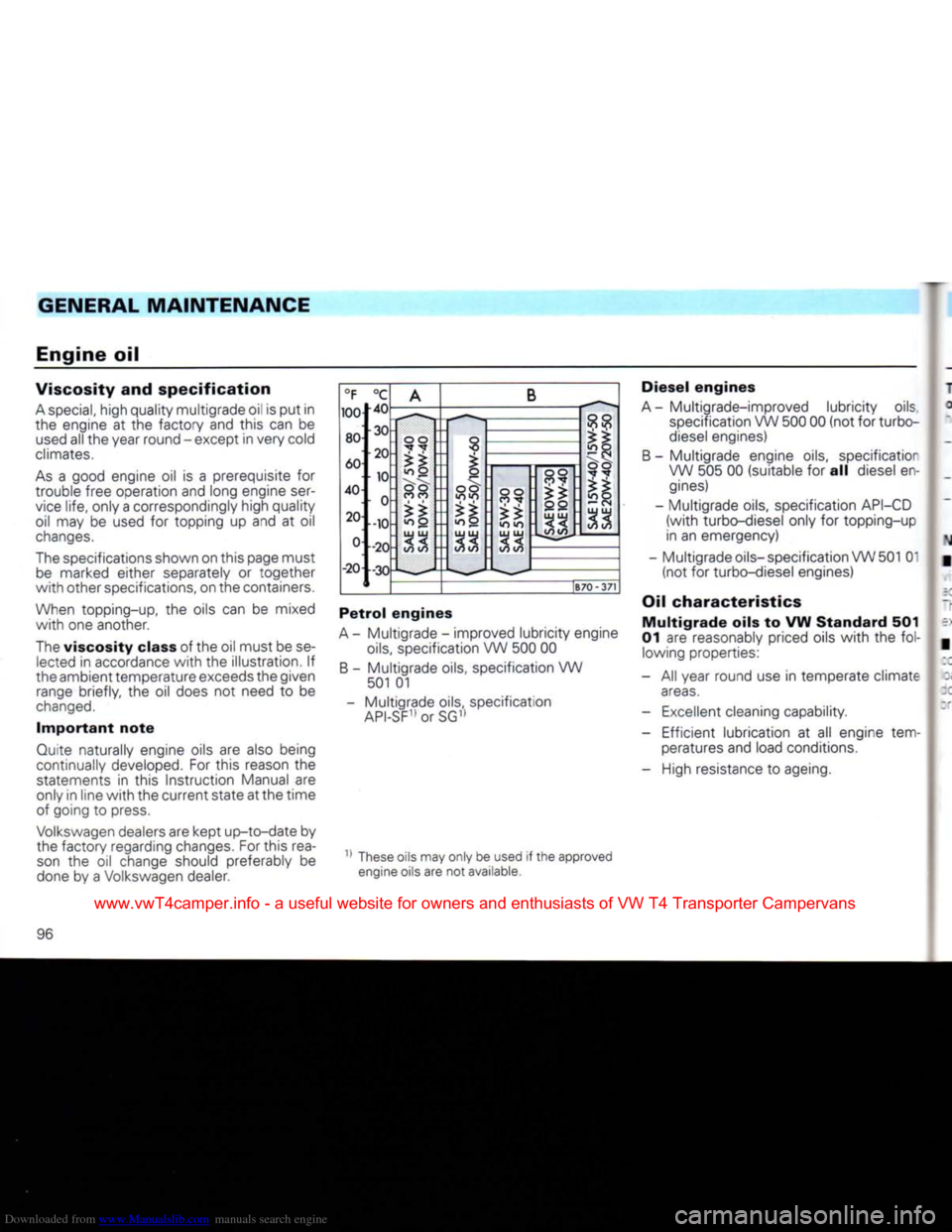

Engine oil
