1992 VOLKSWAGEN CARAVELLE headlights

Downloaded from www.Manualslib.com manuals search engine
CONTENTS
DASHBOARD AND

CONTROLS

Layout
4
i\='-:ng
lamps 6

CONTROLS
AND

EQUIPMENT

•
e.s. Central locking system 7, 8
I:cs, Tailgate 9, 10
I'I
~g doors 11

..
-^ows, Mirrors 12, 13
Sea: belts 15 5re:y for children 18
-ead restraints 19

Seats
20 _:ariing/sleeping surface 26

__ggage
compartment cover 27 __cgage compartment/load surface ... 28
-edals, Brakes 29 Vanual gearbox 31
--tomatic gearbox 32
gnition
lock 36
Starting / Stopping the engine .... 37, 38 "struments 40

.'.
arning lamps 47
Switches 50
~yn signal and dip lever 52

3'uise
control system 53 .'.'indscreen wiper 54
-eating and ventilation 55

Air
conditioner 57
Recirculating air switch 61
Auxiliary heater 63
Additional
water heater 67
Sun roof, Sliding/tilting roof 70, 71
nterior lights, Sun visors 72, 73
Ashtray, Cigarette lighter 73
-oof
rack 75
DRIVING
TIPS

The first 1500 km - and afterwards ... 76 Driving safely 78
Driving economically and

ecologically
79
Trailer towing 81

GENERAL
MAINTENANCE
Filling the tank, Fuel 85, 86
Care of car, Maintenance 88, 93 Bonnet, Engine compartment 94, 95
Engine oil, Gearbox oil 96, 99

Air
cleaner 100 Power assisted steering 100

Cooling
system 101
Brake fluid 104
Battery 106
Windscreen washer system 108
Wheels 110
Arduous operating conditions 115
Winter driving 116
Accessories, modifications and
renewal of parts 117
Mobile
telephones and two way
radios 117

DO-IT-YOURSELF

First
aid kit, Warning triangle 118
Vehicle tools 118 Spare wheel/changing wheel ... 119, 120
Fuses
122

Changing
bulbs 124
Adjusting/masking headlights .. 128,129
Headlights 129
Installing radio 129
Emergency starting 130
Tow starting/towing 132
Lifting vehicle 134
TECHNICAL
DESCRIPTION

Engine 136
Emission control system 137
Activated charcoal filter '38 Power flow '39
Steering, Axles 139 Brakes, Body -139,
1
AC
Environment compatibility 140

TECHNICAL
DATA
Engine 141
Performance 142
Fuel consumption 143
Spark plugs 145
V-belts 145
Wheels,
Tyre
pressures 146, 147

Weights,
Trailer weights 148, 151 Dimensions 152
Capacities 153
Vehicle identification data 154

SPECIAL
INFORMATION

Adjusting the brake pressure regulator 155

ALPHABETICAL
INDEX

Alphabetical index 156

CHECKS
WHEN
FILLING

THE TANK
Overview 160
3
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND EQUIPMENT

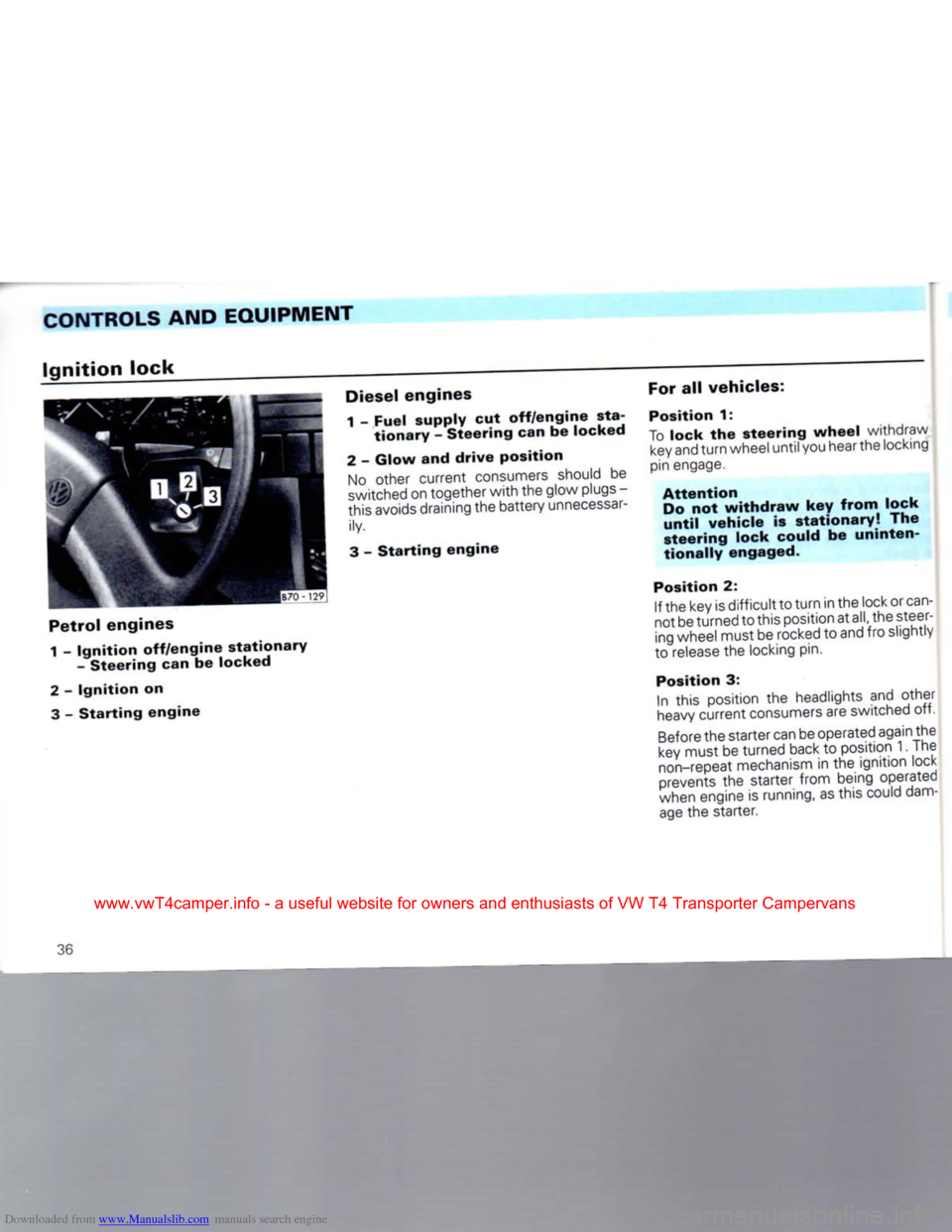

Ignition
lock

Petrol
engines
1 -
Ignition
off/engine
stationary

-
Steering
can be
locked
2
-
Ignition
on
3
-
Starting
engine
Diesel
engines

1 -
Fuel supply
cut
off/engine
sta­
tionary
-
Steering can
be
locked
2
-
Glow
and
drive
position
No
other current consumers should
be

switched
on together with the glow plugs
-

this avoids draining the battery
unnecessar­
ily.
3
-
Starting
engine
For
all
vehicles:

Position
1:

To
lock
the
steering
wheel
withdraw
key
and turn wheel until you hear the locking
pin engage.

Attention
Do
not
withdraw
key
from
lock
until
vehicle
is
stationary!
The

steering lock could
be
uninten­

tionally
engaged.
Position
2: If
the key is difficult to turn in the lock or
can­

not be turned to this position at
all,
the steer­
ing wheel must be rocked
to
and fro slightly
to release the locking pin.
Position
3:
In this position
the
headlights
and
other

heavy
current consumers are switched
off.

Before
the starter can be operated again the

key
must be turned back
to
position 1. The
non-repeat
mechanism
in the
ignition lock

prevents
the
starter from being operated

when
engine
is
running, as this could
dam­

age
the starter.

36
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND EQUIPMENT

JB70-
1251

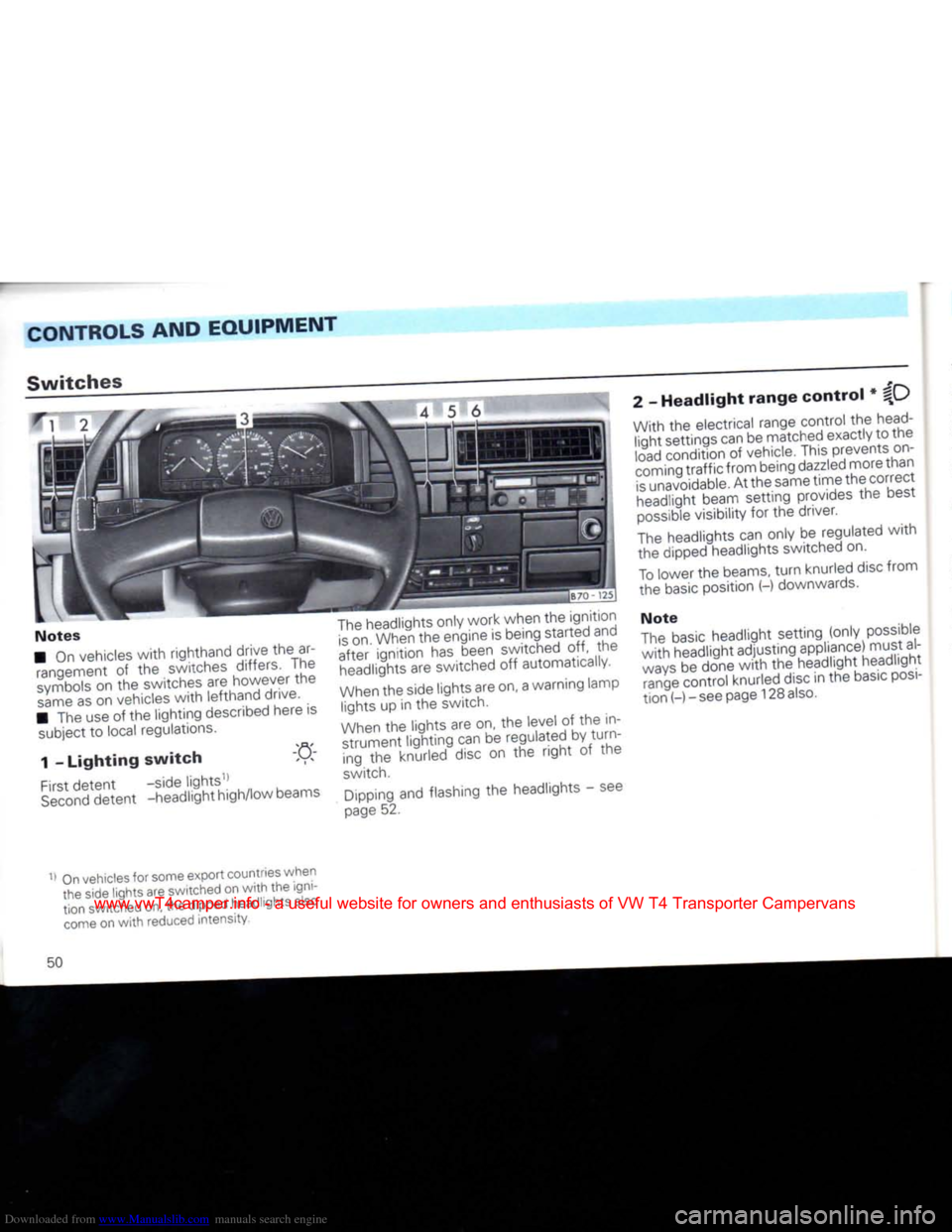

Switches

Notes
• On vehicles
with
righthand drive the ar­ rangement of the switches differs. The

symbols
on the switches are however the

same
as on vehicles
with
lefthand drive.
• The use of the lighting described here is subject to local regulations.
1 -
Lighting
switch
-n

First
detent -side lights11

Second
detent -headlight high/low beams
The
headlights only work when the ignition

is
on. When the engine is being started and
after ignition has been switched off, the headlights are switched off automatically.

When
the side lights are on, a warning lamp lights up in the switch.

When
the lights are on, the level of the in­ strument lighting can be regulated by turn­ing the knurled disc on the
right
of the

switch.

Dipping and flashing the headlights - see

page
52. 2 -
Headlight
range
control
* %\_)
With the electrical range control the
head­
light settings can be matched exactly to the
load
condition of vehicle. This prevents on­
coming traffic from being
dazzled
more than

is
unavoidable. At the same time the correct headlight beam setting provides the best

possible
visibility for the driver.

The
headlights can only be regulated
with

the dipped headlights switched on.
To
lower the beams,
turn
knurled disc from
the
basic
position (-) downwards.
Note

The
basic
headlight setting (only possible
with
headlight adjusting appliance) must al­

ways
be done
with
the headlight headlight range control knurled disc in the
basic
posi­

tion (-) - see page 128
also.

On
vehicles for some export countries when
the side lights are switched on
with
the igni­
tion switched on, the dipped headlights also

come
on
with
reduced intensity.
50
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND EQUIPMENT

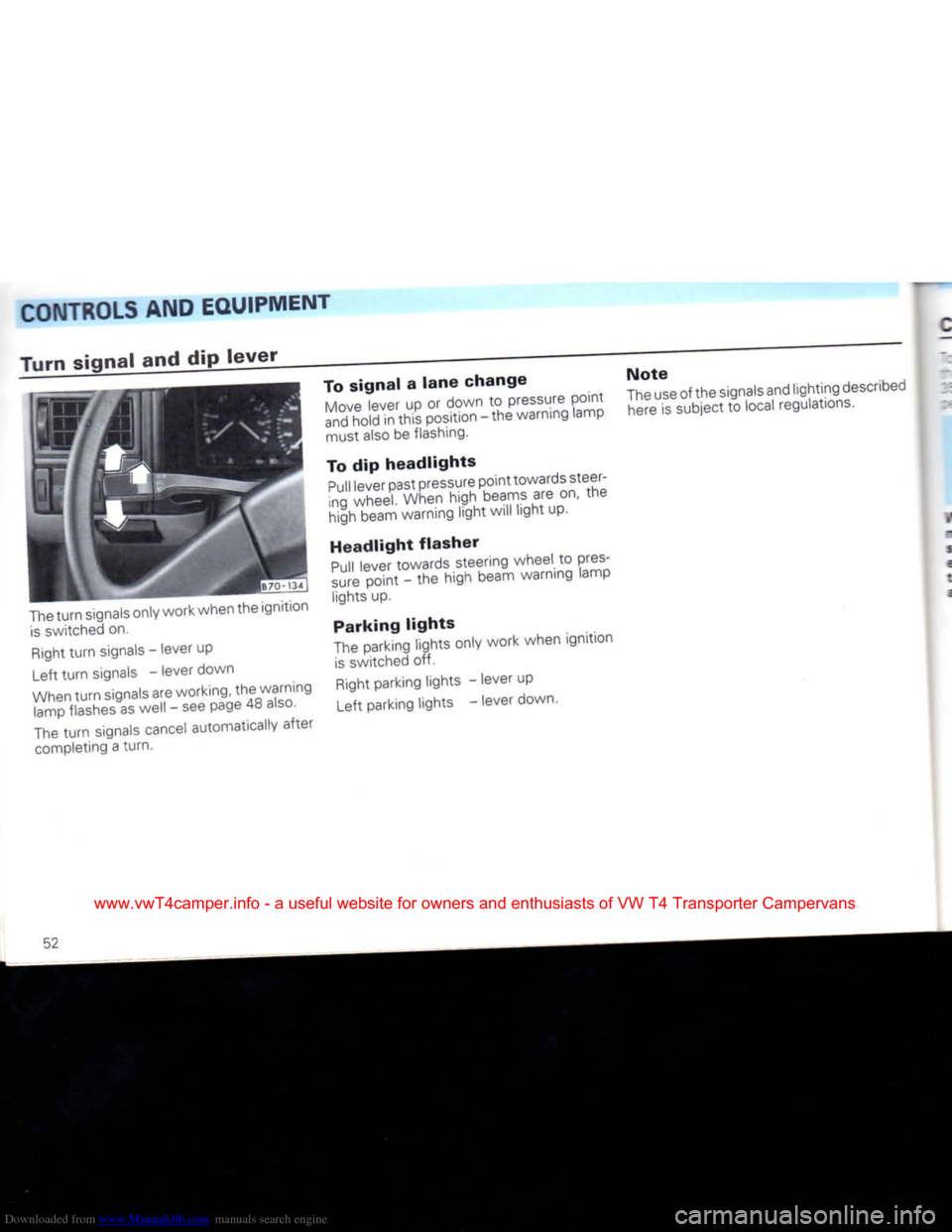

Turn signal and dip
lever

The
turn
signals only work when the ignition
is
switched on.

Right
turn
signals - lever up
Left
turn
signals - lever down

When
turn
signals are working, the warning lamp flashes as well - see page 48
also.

The
turn
signals cancel automatically after
completing a turn. To
signal
a
lane
change

Move
lever up or down to pressure point

and
hold in this position - the warning lamp must also be flashing.
To dip
headlights
Pull
lever past pressure point towards steer­
ing wheel. When high beams are on, the
high beam warning light will light up.
Headlight
flasher
Pull
lever towards steering wheel to pres­

sure
point - the high beam warning lamp lights up.

Parking
lights

The
parking lights only work when ignition
is
switched off.

Right
parking lights - lever up
Left parking lights - lever down. Note

The
use of the signals and lighting described
here
is subject to local regulations.

52
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND EQUIPMENT
Windscreen
wiper
and
washer
system

Wipers
and washers only work when igni­
tion is switched on.
The
heated
windscreen
washer
jets*
are switched on when the ignition is switched on and the amount of heat is regu­lated automatically according to the ambi­
ent temperature

When
it is freezing, check
that
the wiper
blades
are not frozen to the glass before
switching the wipers on for the
first
time.
Windscreen
• Flick
wipe
Lift lever to pressure point before detent 1.
•
Wiper
slow
Lever
at position 1. •
Wiper
fast

Lever
at position 2.
•
Intermittent
wipe
Lever
at position 3

The
wipers work about every 6
seconds.

With an
infinitely
variable
intermit­

tent
wipe*
the wipe delay can be pro­grammed between about 1.5 and 22
sec­

onds:

- Switch on
intermittent
wipe
- Switch off
intermittent
wipe and then switch on again after the desired delay.

The
selected delay can be changed as often

as
required. After switching off the ignition
the selected pause reverts back to a six
sec­

ond interval.
•
Automatic
wash/wipe
facility
Pull
lever towards steering wheel - wipers

and
washer work.

Release
lever -

The
washer stops and the wipers carry on
for about 4
seconds.

Headlight washer system*

When
the headlights are on, the lenses are
washed
every time the windscreen is

washed.

At regular intervals such as when filling the
tank, caked-on
dirt
and insects should be

removed.
Rear
window

Press
lever away from steering wheel and

release
- the wiper works about every 6

seconds
(intermittent
wipe).
Pressing
and
releasing
lever again switches the wiper off.

Automatic
wash/wipe
Press
lever away from steering wheel, and
hold in this position -

The
wiper and washer work as long as the
lever
is held in this position.

Release
lever -

The
washer stops and the wiper carries on
for about 4
seconds.

Notes
Topping-up washer fluid
- see page 108.

Changing
windscreen wiper blades
- see page 109
54
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND
EQUIPMENT

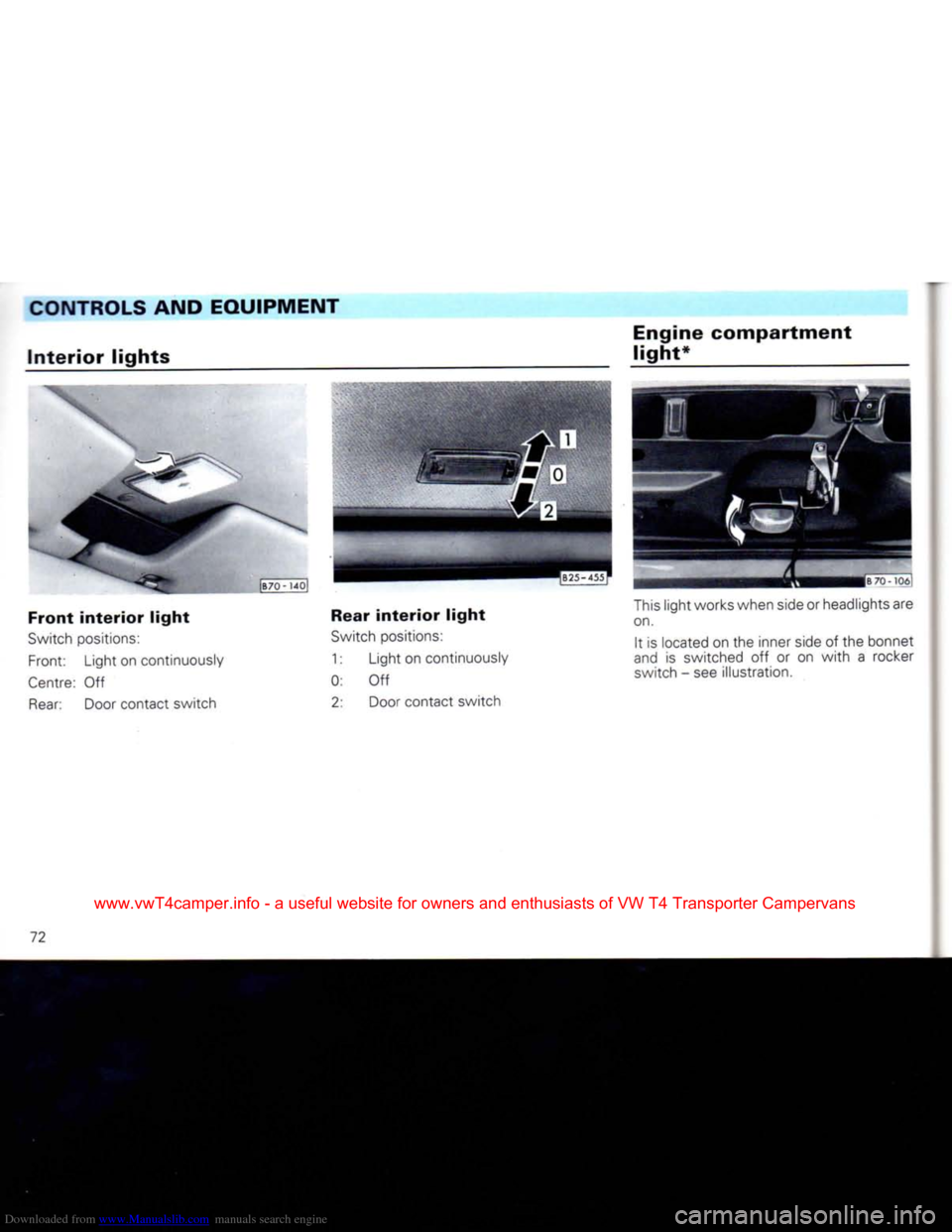

Interior
lights

Front interior light

Switch
positions:
Front: Light on continuously

Centre:
Off
Rear:
Door contact switch
Rear interior light

Switch
positions:
1: Light on continuously

0:
Off
2:
Door contact switch
Engine
compartment

light*

This
light
works when side or headlights are
on.

It is located on the inner side of the bonnet

and
is switched off or on
with
a rocker switch - see illustration.
72
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
DRIVING
TIPS

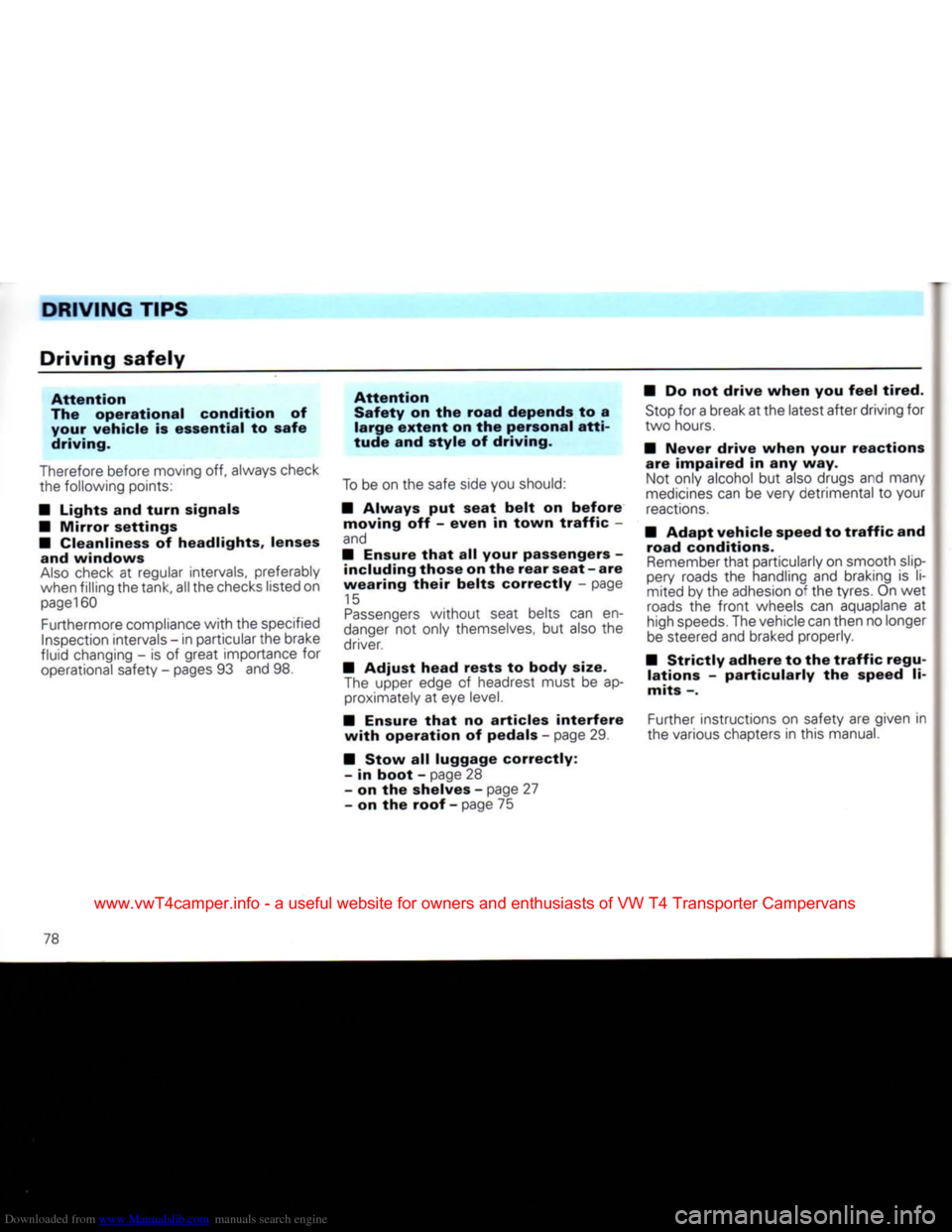

Driving
safely
Attention

The
operational
condition of your
vehicle
is
essential
to
safe

driving.
Therefore before moving off, always check
the following points:
• Lights and
turn
signals
•
Mirror
settings
• Cleanliness of
headlights,
lenses and
windows

Also
check at regular intervals, preferably
when filling the tank, all the checks listed on
page160

Furthermore compliance
with
the specified Inspection intervals - in particular the brake
fluid changing - is of great importance for operational safety - pages 93 and 98.
Attention

Safety
on the
road
depends to a

large
extent
on the personal
atti­

tude
and
style
of driving.

To
be on the safe side you should:
•
Always
put
seat
belt
on
before
moving
off -
even
in
town
traffic
-

and

• Ensure
that
all your passengers - including
those
on the
rear
seat
- are

wearing
their
belts
correctly
- page
15

Passengers
without seat belts can en­

danger
not only themselves, but also the
driver.
•
Adjust
head
rests
to body size.
The
upper edge of headrest must be ap­proximately at eye
level.

• Ensure
that
no
articles
interfere
with
operation
of pedals - page 29
•
Stow
all
luggage
correctly:
- in
boot
- page 28
- on the shelves - page 27
- on the
roof
- page 75 • Do not
drive
when
you
feel
tired.

Stop
for a break at the latest after driving for
two hours.
•
Never
drive
when
your
reactions
are
impaired
in any way. Not only alcohol but also drugs and many

medicines
can be very detrimental to your

reactions.

•
Adapt
vehicle
speed to
traffic
and
road
conditions.
Remember
that
particularly on smooth slip­
pery roads the handling and braking is li­
mited by the adhesion of the tyres. On wet

roads
the
front
wheels can aquaplane at
high
speeds.
The vehicle can then no longer

be
steered and braked properly.
•
Strictly
adhere
to the
traffic
regu­
lations
-
particularly
the speed li­

mits
-.
Further instructions on safety are given in
the various chapters in this manual.
78
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
DO-IT-YOURSELF
Changing bulbs

Before
starting to replace a bulb, switch off
the light concerned.

Do
not touch the glass part of the new bulb

with
bare fingers because the finger marks
left
on the glass evaporate when the bulb

becomes
hot, the vapour settles on the re­
flector and dims it.

Always
use the same type of bulb. The
des­

ignation is marked on the base of the bulb
or on the
glass.

It is advisable to always a carry a box of

spare
bulbs in the vehicle. These can be ob­
tained from Volkswagen dealers. It should contain at least the following bulbs which
are essential for traffic safety:
12 V 60/55 W Headlight (H4)

12V21W
Turn signal

12V21/5W
Brake
and tail light
12 V4W
Side
light

12V5W

Glass
base
Number
plate light
Headlights

The
headlight bulbs can be reached through
the opened bonnet.
• Pull off the connector.
• Pull cap off.
•
Squeeze
the spring clip of the bulb holder together and pull down.
• Take the bulb out and insert the new bulb
so
that
the locating lug on the bulb plate en­

gages
the recess in the reflector. The centre
of the three terminals on the bulb base is
then at the top.
• Fold the spring clip over bulb
base.
Squeeze
the clip together and engage it in
the retaining lugs.
•
Press
the cap back on.
• Attach the connector.
• Have the headlight beam alignment
checked.
Side
light
bulb

The
side light bulbs are located in the head­ light reflectors.
• Turn the bulb holder fully to the
left
and take it out of the reflector.
•
Press
the defective bulb into the holder,
turn
it to
left
and take it out.
• Insert the new bulb.
• Insert the bulb holder in the reflector and
turn
the holder fully to the
right.

124
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans
